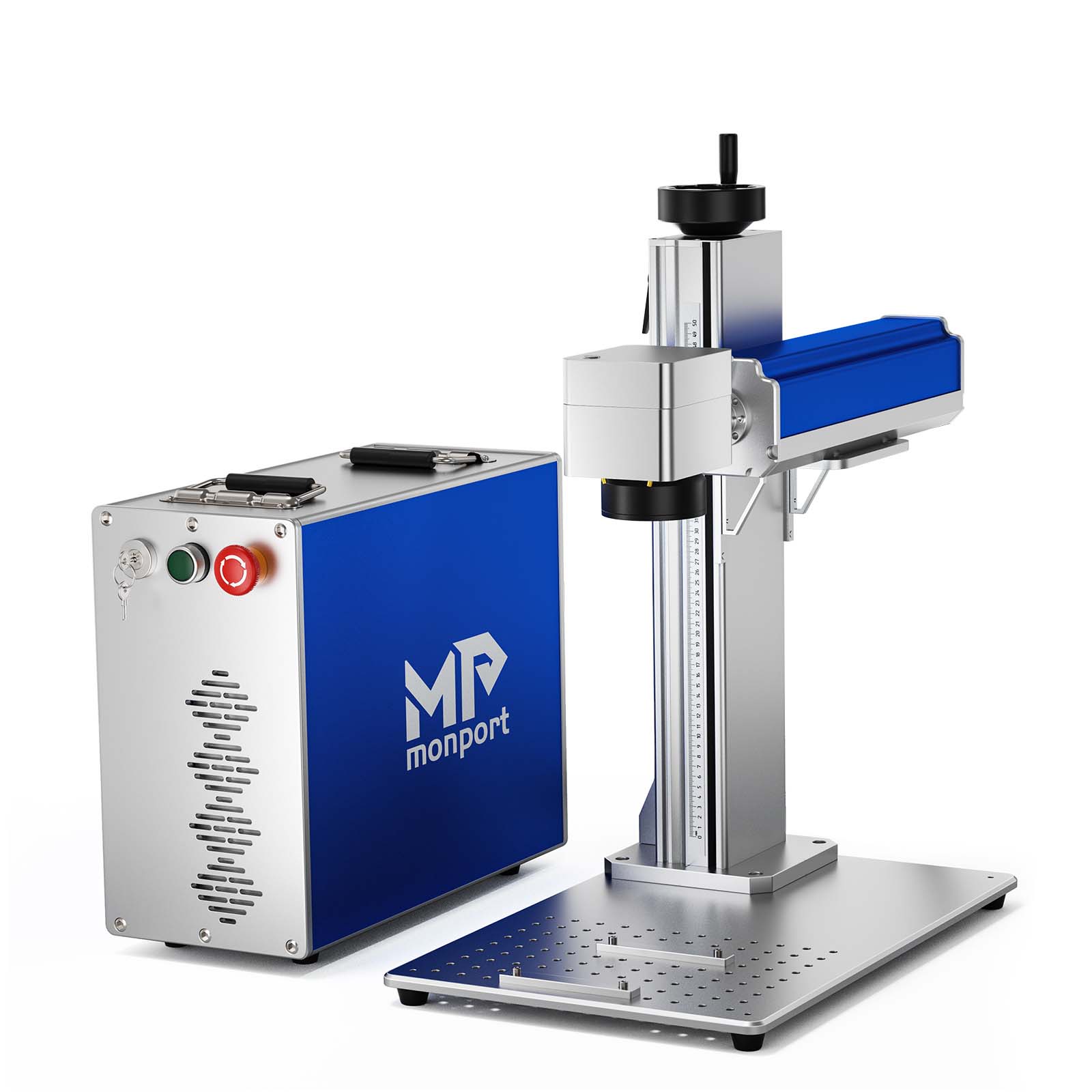

Monport GQ 30W (5.9" x 5.9") Fiber Laser Engraver & Marking Machine with FDA Approval
Monport GQ 30W (5.9" x 5.9") Fiber Laser Engraver & Marking Machine with FDA Approval
Low stock
Couldn't load pickup availability
Dimension & Specifications
Dimension & Specifications
Working Area: 5.9" X 5.9"
Machine Dimension: 8.2" x 17.7" x 15.3"( 21cm x 45cm x 39cm )
Main Tower Dimension: 13.7" x 21.6" x 26,9" ( 35cm x 55cm x 68.5cm )
Field Lens Dimension: 150mm x 150mm
Fiber Lens Model: M85(85-68MM)
Machine Weight: 69lbs ( 31.5 kg )

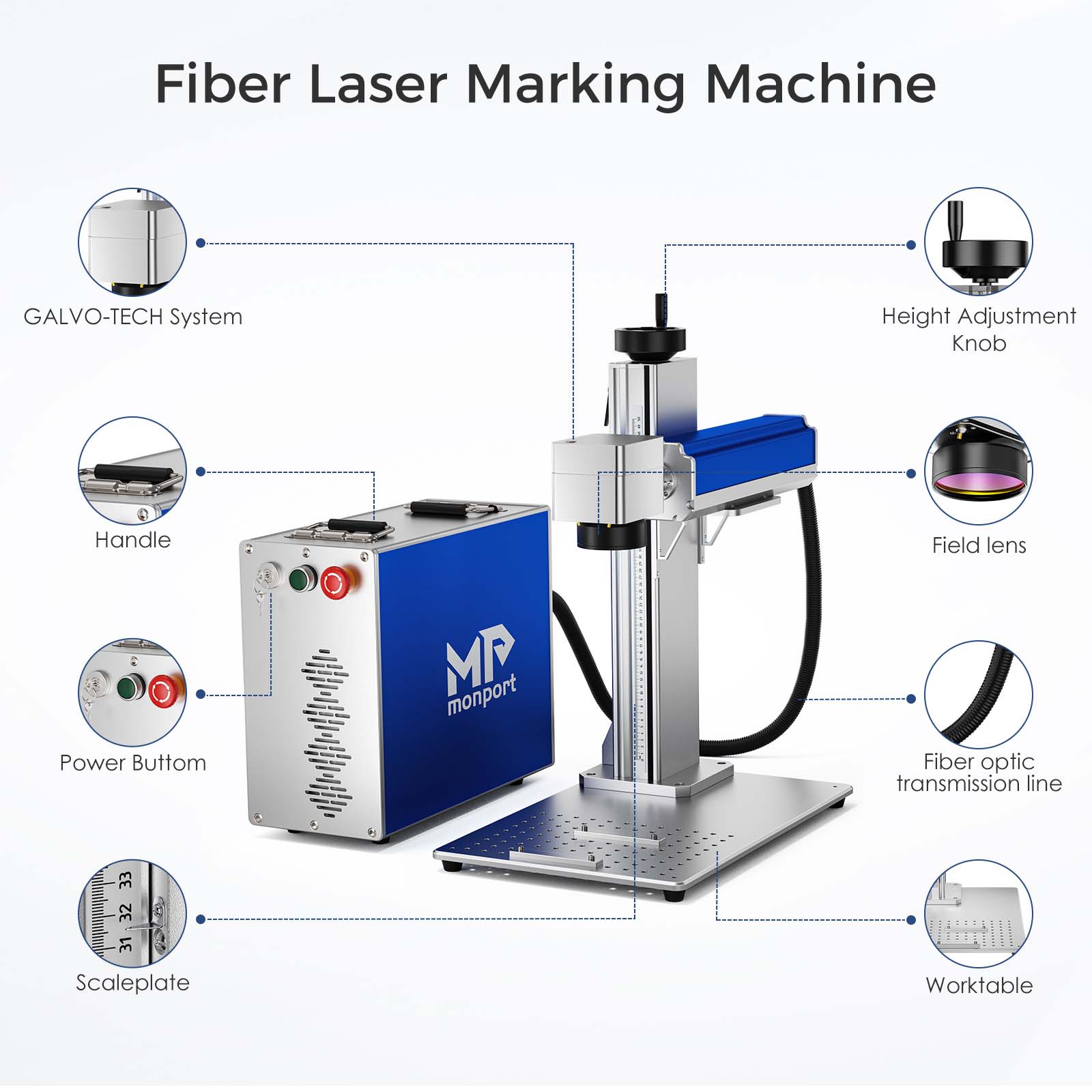

GQ30 Fiber Features
GQ30 Fiber Features
Galvo-tech Control
The Sino-Galvo delivers the laser beam with incredible speed and a much higher degree of accuracy than a regular CO2 laser. Its extreme stability ensures quick scanning, engraving, and project turnaround.
The Fiber Laser Source
The source has an estimated lifetime of up to 100,000 hours, depending on power setting usage, which can safely mark most metals, such as stainless steel, gold, silver, and brass.
Advanced Work Space
This laser machine has a built-in workspace grid with removable positioning bars for precise material placement. It also supports an optional rotary axis (not included) to mark tubes, bottles, pipes, and other curved surfaces.
Portable Size
The most versatile machine can accept a wide range of accessories sizes and fits well on a desk or can be taken in any studio easily.
Additional Laser Guidance

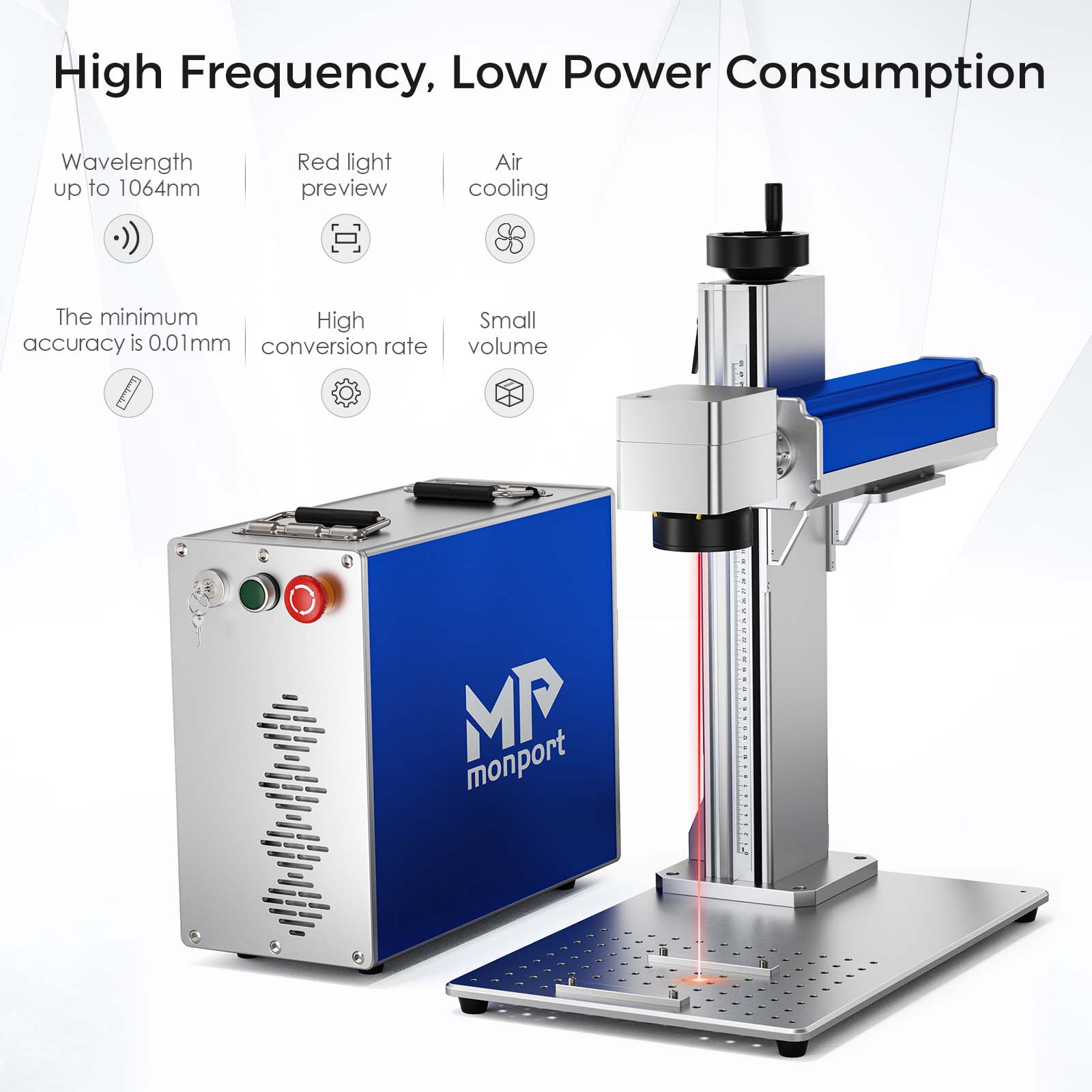

Once properly adjusted, the external red dot locator calibrates with the laser's scanner to allow a quick and accurate laser focus setup.
Manual Focus
By rotating the focus-height wheel, you can quickly focus the galvanometer laser on various materials like gold, silver, brass, stainless steel, etc. Plus, the vertical supporting tower is equipped with a ruler for convenient focus height measurements.

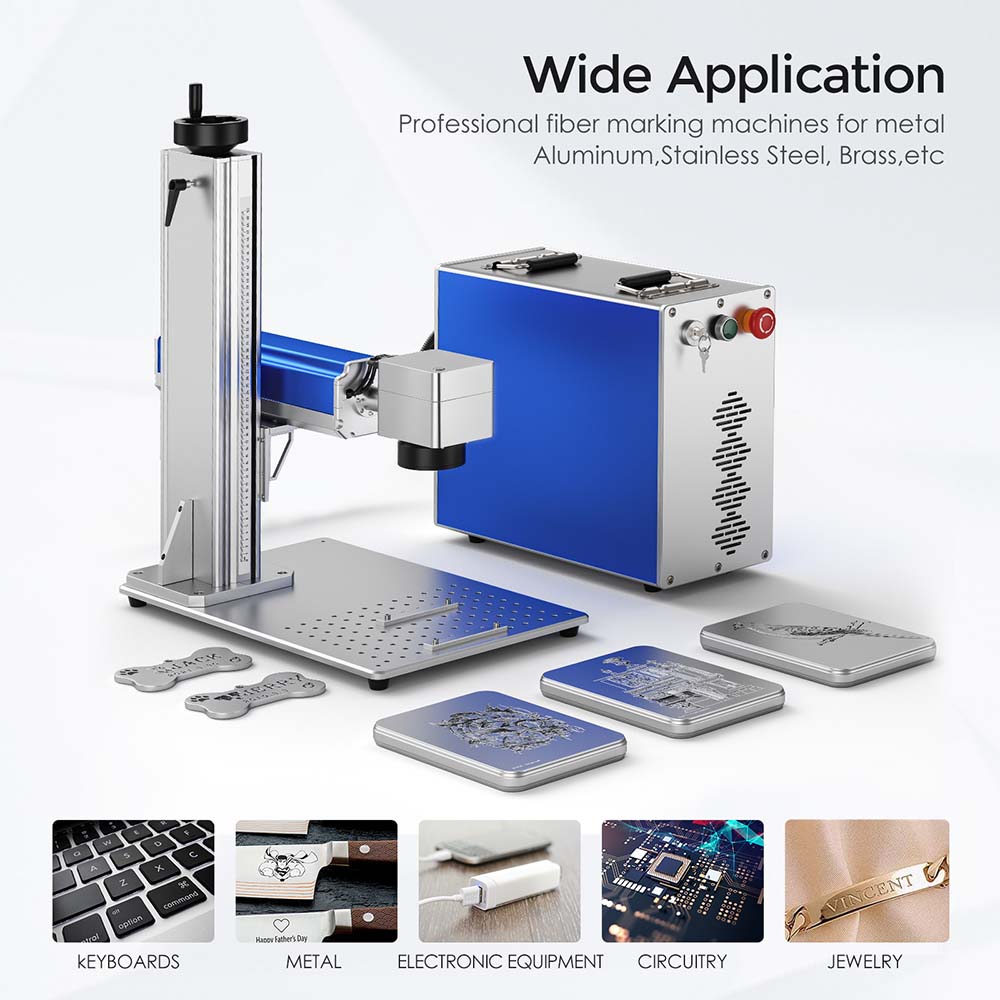

Material Capability
Material Capability
Metals: Stainless Steel, Aluminum, Common Alloys, anodized aluminum, Brass, Chromium, Gold&Silver, Titanium
Non-Metals: Slate, Hard Plastics, Artificial Leather, Colored Acrylic
Package Contents
Package Contents
30 Watt Fiber Laser Marker Machine *1
Power Cable *1
Foot Pedal *1
Laser Safety Glasses *1
USB Flash Drive *1
Clips *2
Bolts *4
Instruction Manual *1
Warranty & Certifications
Warranty & Certifications
- 2-year warranty on every fiber laser machine
- 1-year warranty on fiber laser source
- FDA Approved & CE Certified
Manual List
Manual List
Download the User Manual: 30W Fiber User Manual
We offer compatible accessories: Fiber Laser Rotary
| Product | GQ 20 | GQ 30 | GQ 50 | |
| Input Power | 110-120V 60Hz | |||
| Rated Power | 20W | 30W | 50W | |
| Expected Service Life | 100,000 hr. | |||
| Central Wavelength | 1064 nm | |||
| Laser Frequency | 30-60 kHz | 40-60 kHz | 50-100 kHz | |
| Beam Diameter | 5.7-8 mm | 5.7-8 mm | 5.7-8 mm | |
| Beam Quality M2 | ＜1.5 | ＜1.6 | ＜1.6 | |
| Maximum Pulse Energy | 0.67 | 0.75 | 1 | |
| Processing Area | 4.3x4.3 in. (110×110 mm) |
5.9x5.9 in. (150×150 mm) |
7.9x7.9 in. (200×200 mm) |
|
| Max. Marking Speed | 393.7 ips(10000 mm/s) | |||
| Min. Marking Depth | 0.0002 in.(0.005 mm) | |||
| Max. Marking Depth on a Single Pass |
0.002in. (0.04mm) |
0.003in. (0.08mm) |
0.004in. (0.1mm) |
|
| Min. Line Width | 0.006 in.(0.15 mm) | |||
| Precision | ±0.1 µm | |||
| Required Operating Environment |
Max. Humidity | <70% | ||
| Temp. Range | 32–104°F(0 - 40°C) | |||
| Provided Operating Software | EZCad or BslAppSimple (Coexistence of new and old versions, with the new version being BslAppSimple and the old version being EZcad) | |||
Recommended Matching Field Mirrors
