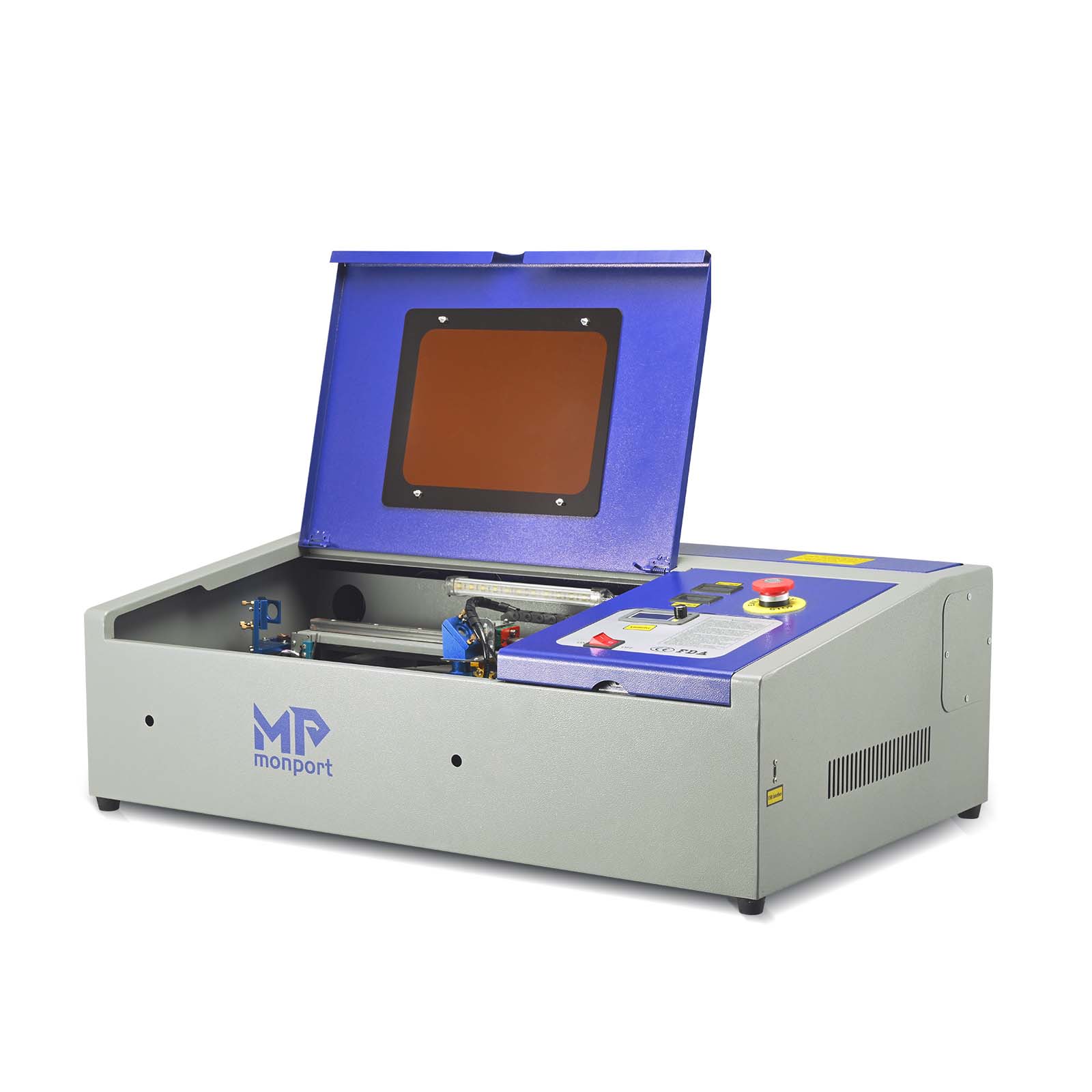

Monport 40W Pro Lightburn-Supported (12" X 8") CO2 Laser Engraver & Cutter with Air Assist

Current price C$799.99
C$799.99 - C$1,711.99
Current price C$799.99
Original price C$1,099.99
Original price C$897.99 - Original price C$1,711.99
Original price C$1,099.99
Free Shipping

CA Delivery time : Usually 15-20 Business Days

1-Year Warranty
Bundle Option: 40W
Description

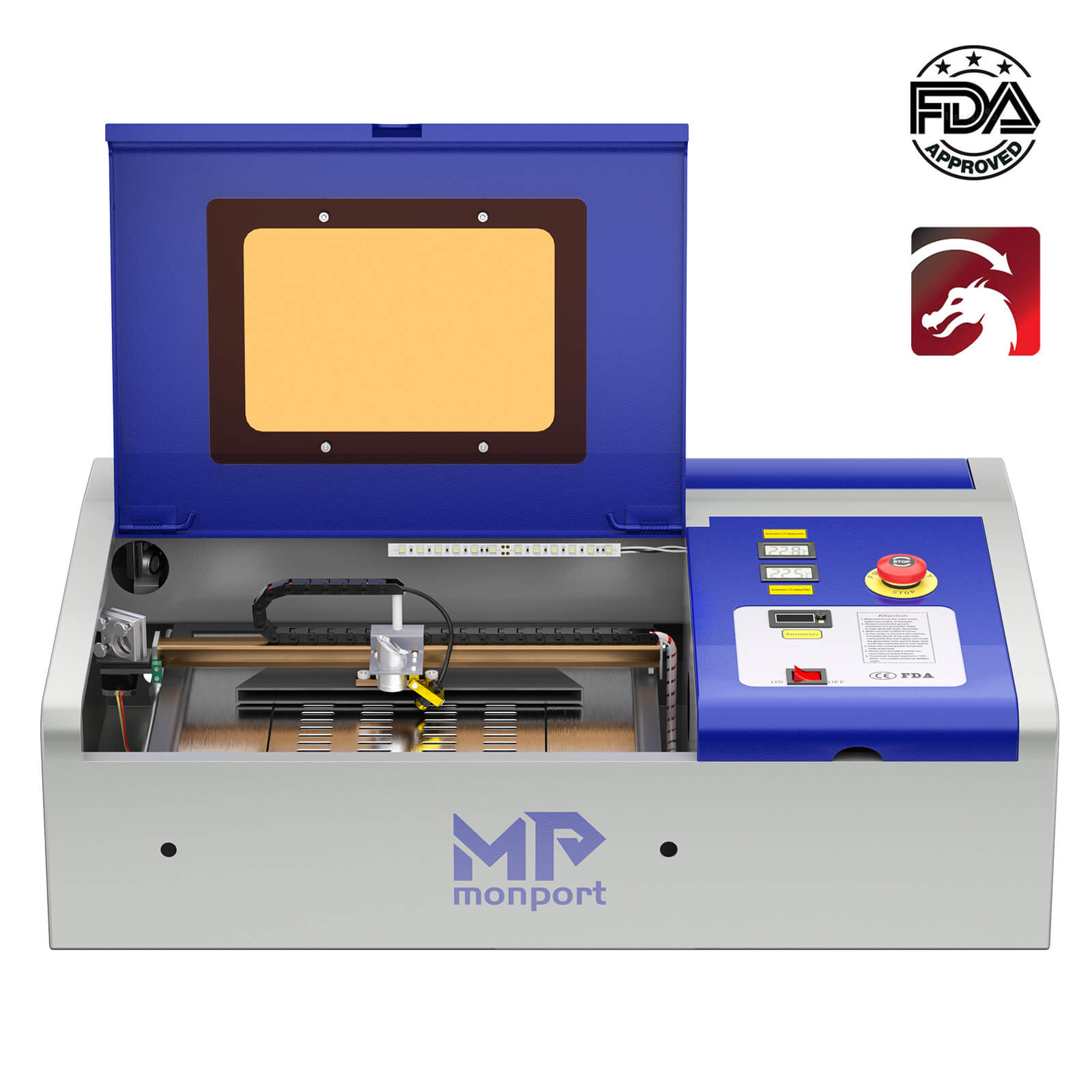

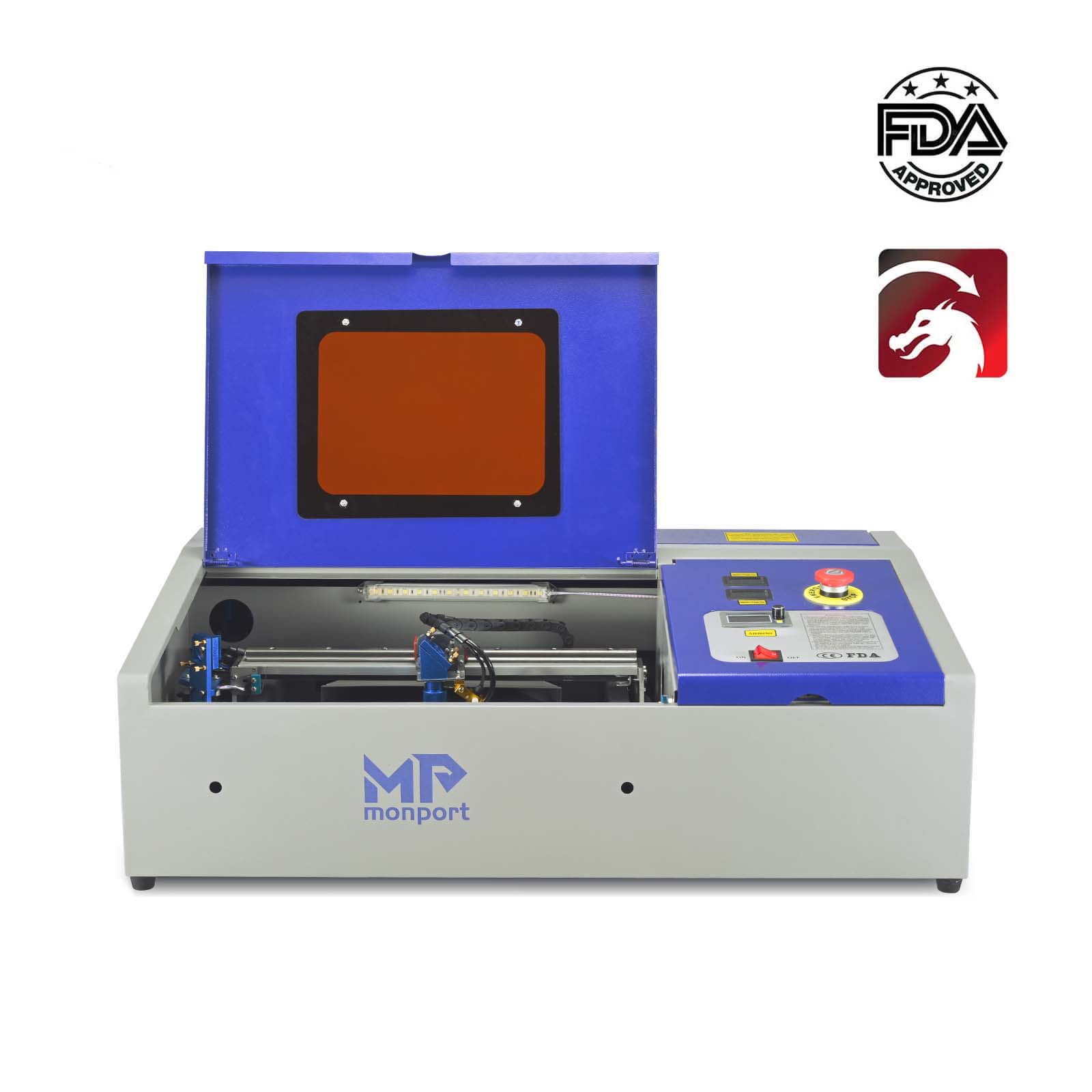

Discover the power of Monport's upgraded 40W Pro CO2 laser engraver.

Staying true to its compatibility with Lightburn and Laser GRBL software, this advanced model introduces the Built-in Air Assist, combating wood discoloration and delivering pristine, high-clarity results that stand out.


Dive into the expansive 8"x12" (200x300 mm) flat work table, accompanied by an innovative clamping design table, catering to a plethora of design ventures while supercharging your small business productivity.

40W CO2 Engraver Features

Exceptional Speed and Precision

Our Desktop Engraving Machine guarantees high-speed engraving, reaching up to 350mm/s. It's also incredibly precise, offering an engraving accuracy of 0.01 inches. Whether it's wood, glass, acrylic, or leather, this machine engraves it all with utmost perfection.

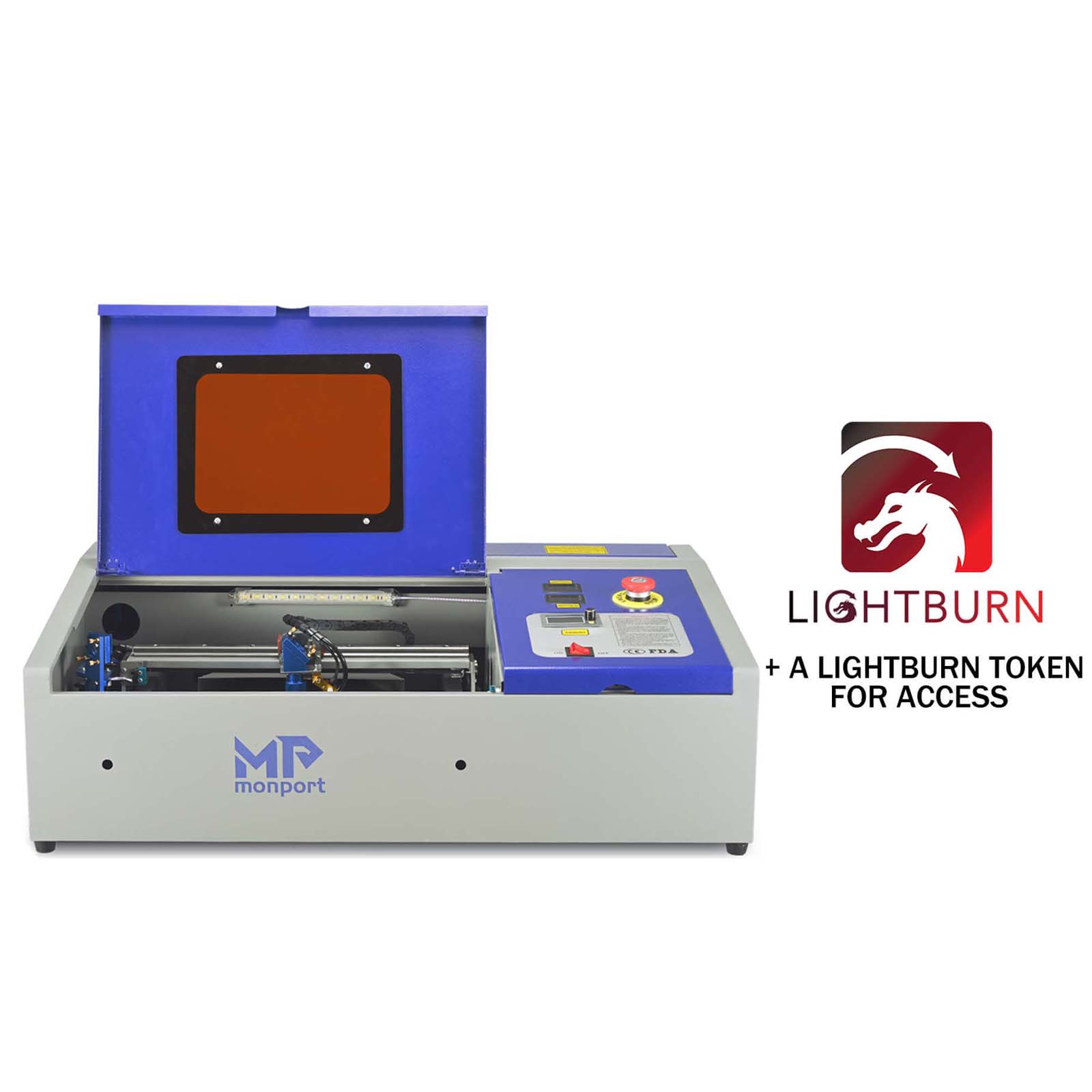

Lightburn Compatibility


We've equipped this 40W machine with an upgraded control board to ensure compatibility with Lightburn - the leading, most widely-used software in the industry. With Lightburn, your design possibilities are virtually limitless.

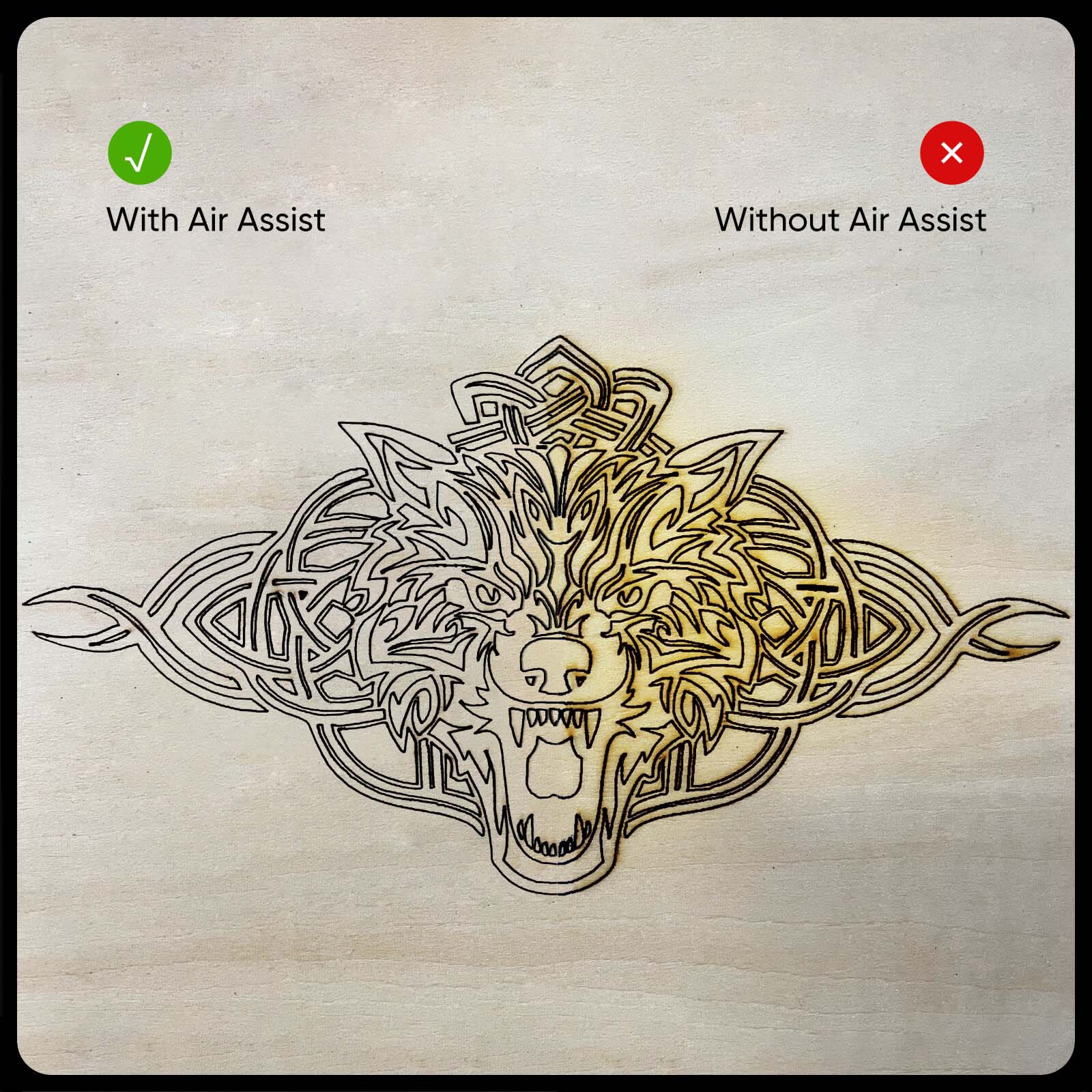

Built-in Air Assist

Built-in air assist enhances the engraving precision, ensuring that the final artwork is clear and clean. Significantly reduce the carbonization effects when engraving on wood, delivering flawless results every time.

Machine Component Upgrade

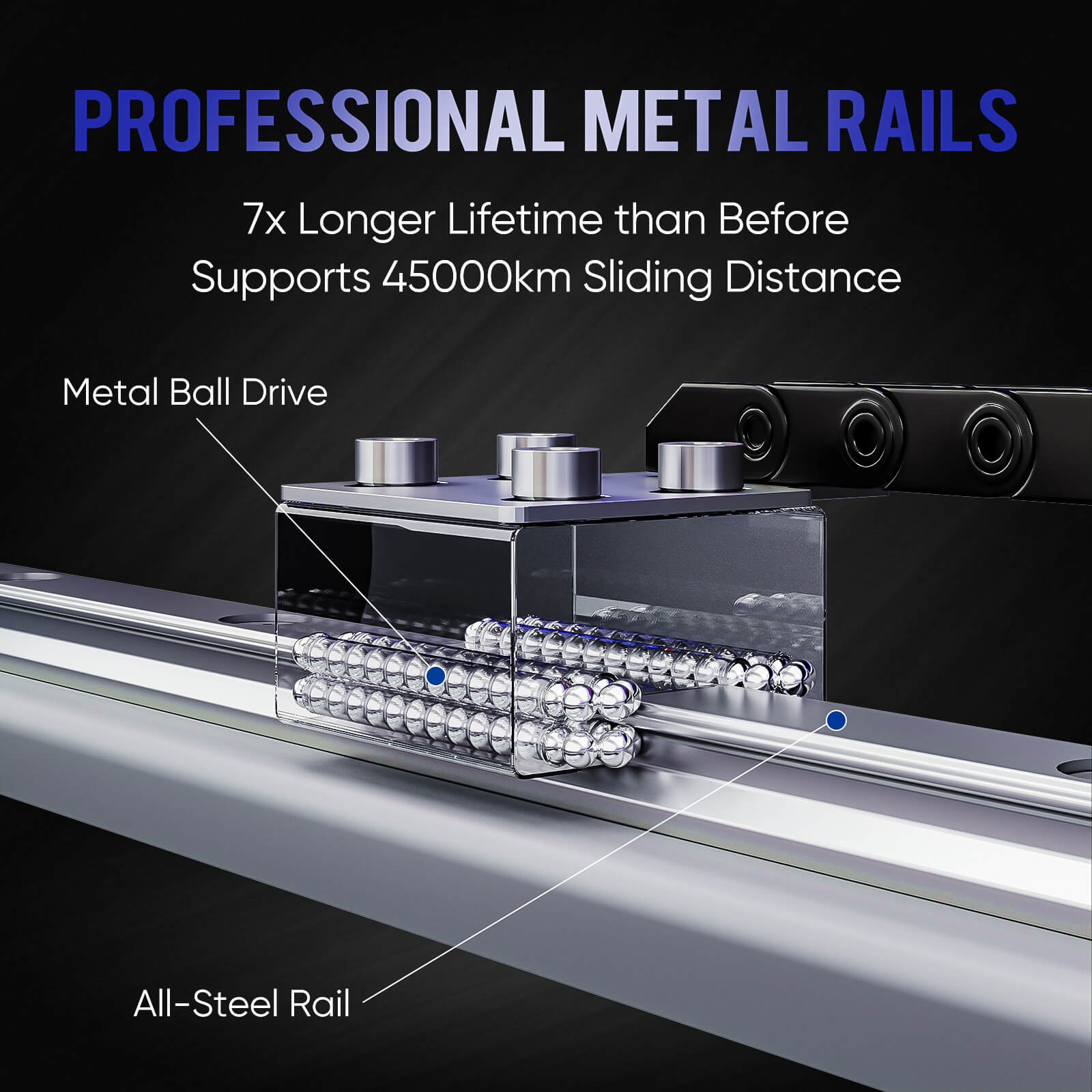

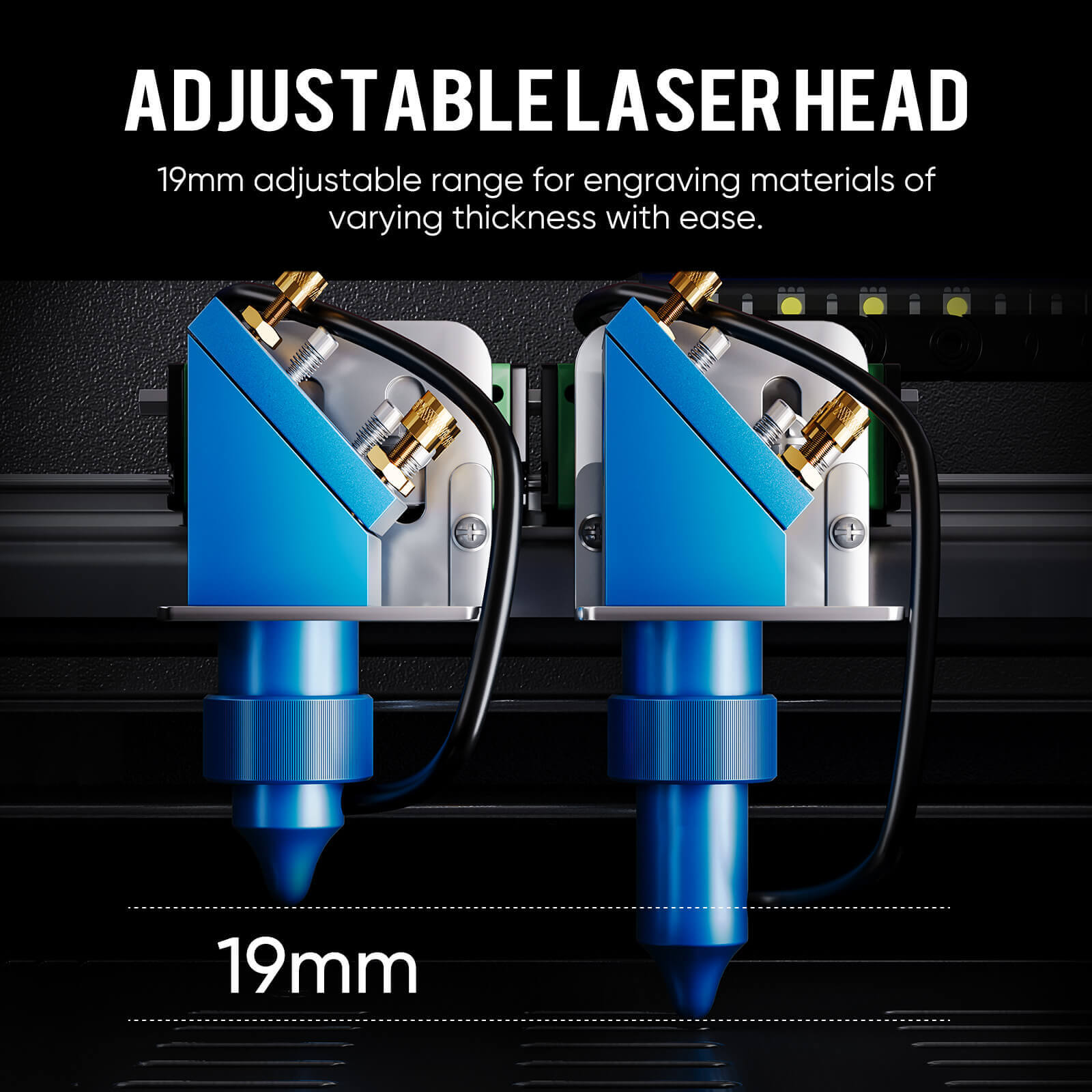

The Monport 40W Pro boasts a suite of enhanced features, including a 19mm Adjustable Laser Head, Professional-Grade Metal Rails, and a top-tier mirror holder. Together, these upgrades ensure a refined engraving experience for users.

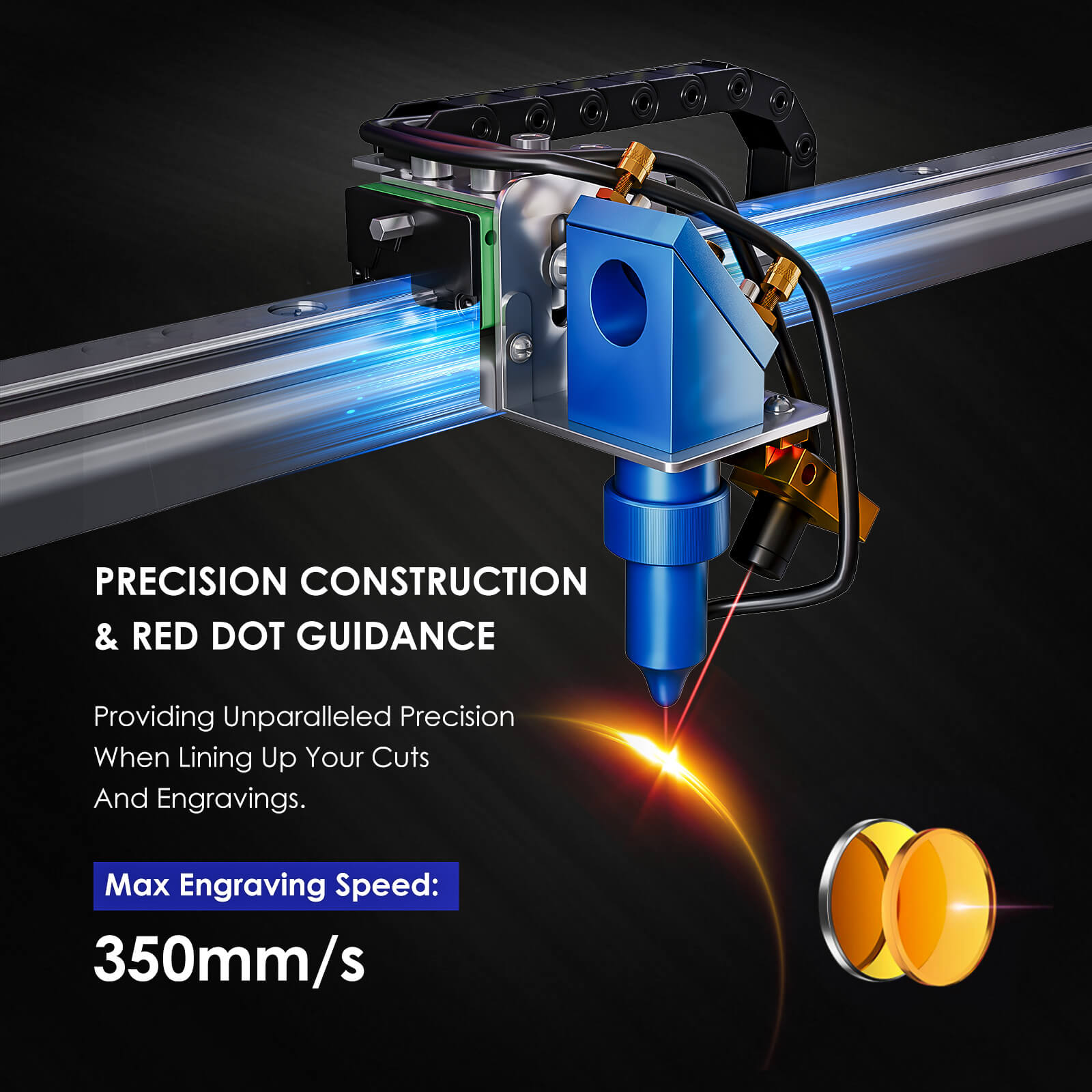

Red Dot Guidance

Never miss the mark with our Red Dot Guidance feature. Mounted on the laser head, it illustrates the laser's path, providing unparalleled precision when lining up your cuts and engravings.

Innovative Dual Work Bed

The machine comes with a dual work bed, offering two options for more possibilities. The stabilizer clamp secures irregularly shaped objects in place, while the vented level board caters to regular shapes, making every engraving project a breeze.

Built-in Ventilation

Integrated fan to boost laser performance, improve ventilation, and reduce noise.The exhaust port helps to create a safe work environment, so you can vent the fumes to the outdoors.

Package Contents

Laser Engraver Machine *1

A Pair of Laser Protective Glasses *1

Accessory Bag *1

Venting Exhaust Duct *1

USB 2.0 Cable *1

Power Cord *1

Stainless Steel Clamp *1

Water Pump *1

Double-sided Tape *1

Silicone Sealant *1

Random Material for Test *1

Wrench *1

A Focus Plate *1

Instruction Manual *1

Specifications

Working Dimension: 8’’ x 12’’ (200 mm x 300 mm)

Machine Dimension: 31.4'' x 19.7'' x 10'' ( 79cm x 50cm x 26cm )

Package Dimension: 37” x 25” x 16” ( 94 cm x 64 cm x 41 cm )

Maximum Engraving/Cutting Speed: 350mm/s

Max Engraving Depth: 10mm

Min Engraving Depth: 0.2mm

Focal Lens Diameter: 12mm

Mirror Diameter: 20mm

Exhaust Port Diameter: 4''

Precision: 0.01''

0.5” Standard Z-depth ( workspace height with the vented level board installed )

2.5” Max Z-depth ( workspace height with vented level board removed )

Net Weight: 48.5 lbs. ( 22 kg )

Package Weight: 63 lbs. ( 28.6 kg )

Manual List

Download the Software: LaserDR K40 Whisperer

Download the Settings: 40W Parameter Settings

Download the Manual: 40W Lightburn User Manual

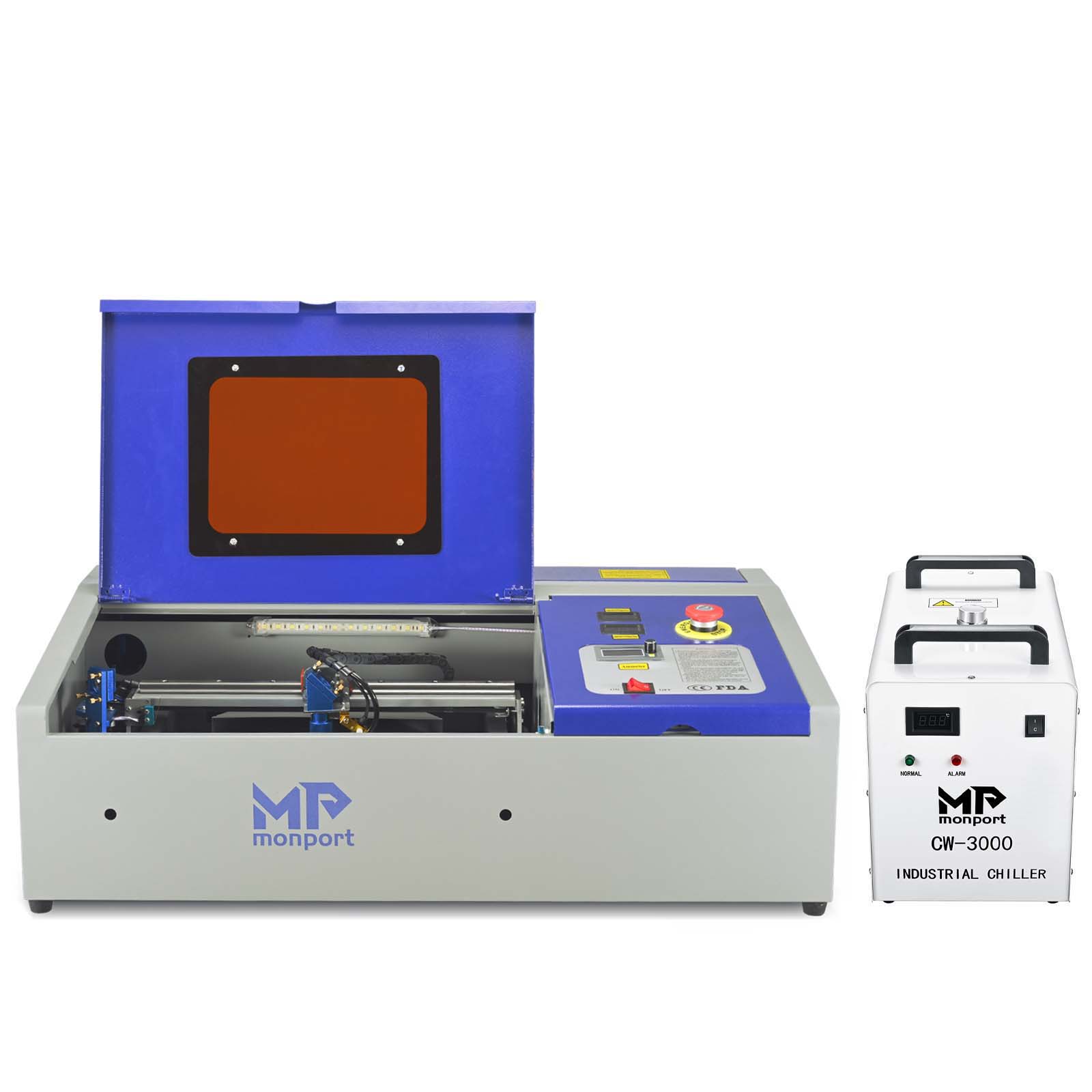

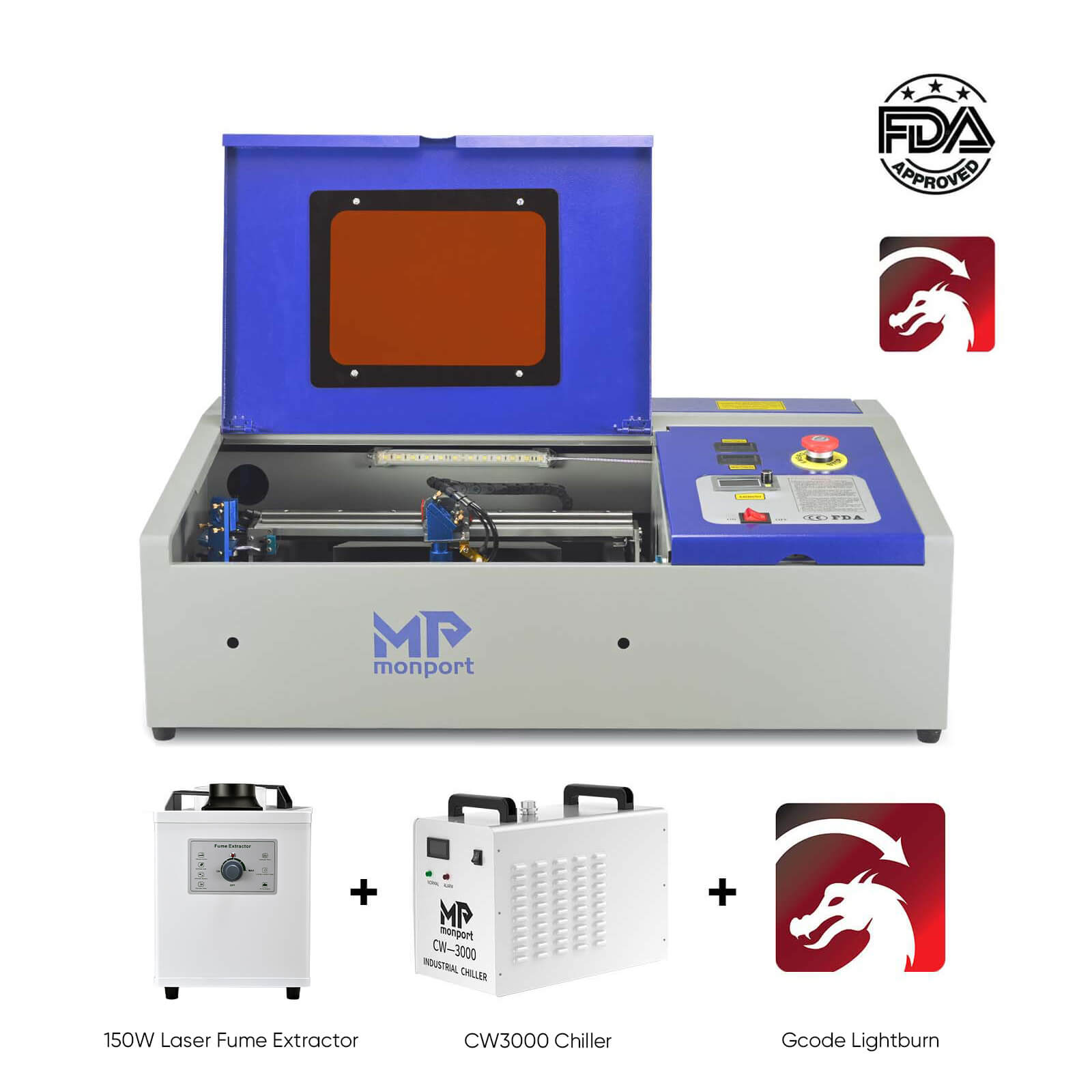

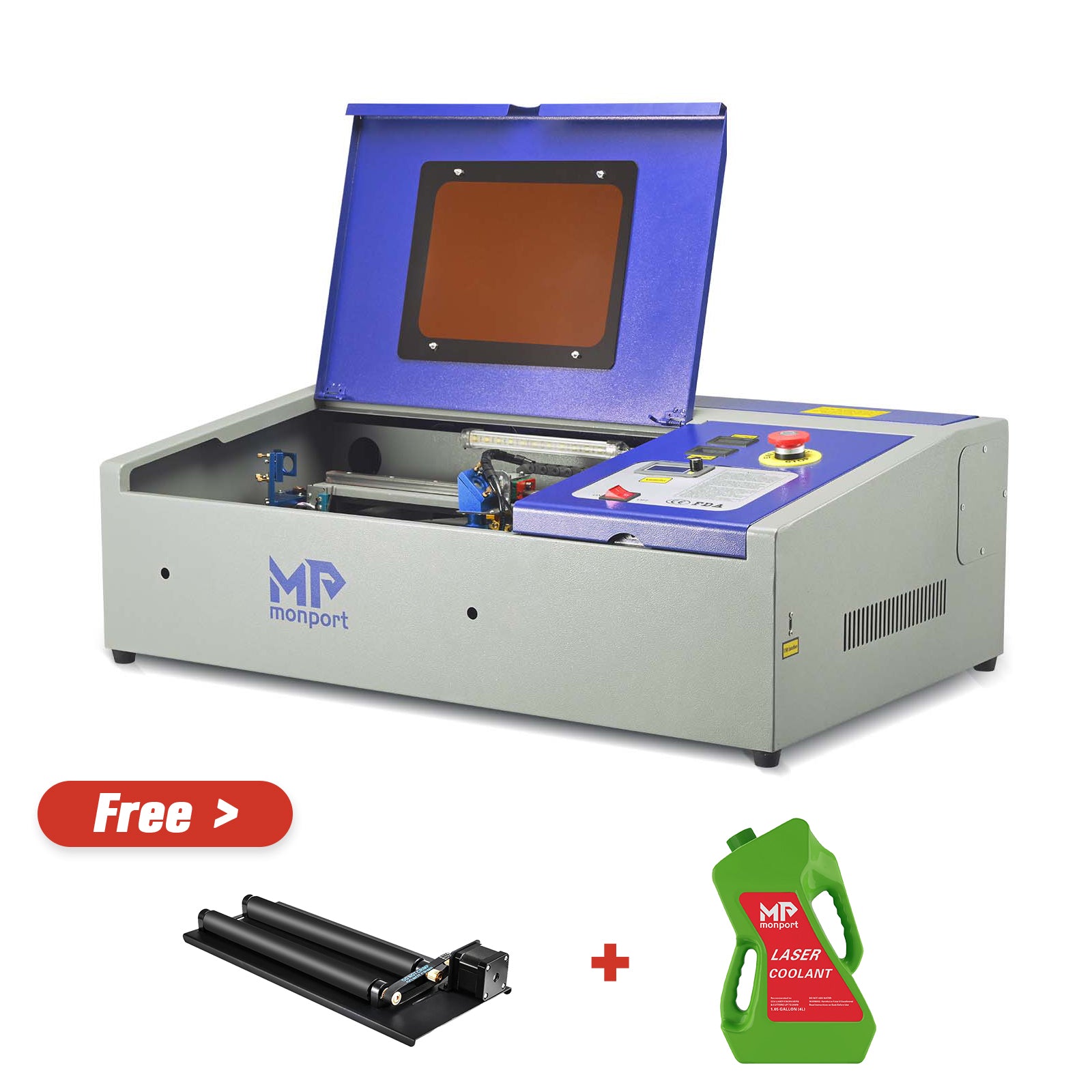

We offer compatible accessories: CW3000Rotary Axis

We sponsor CDR files: https://kokorosastudio.com

Warranty

1-year warranty on all 40W laser machines and parts

6-month warranty on laser tube

FDA Approved & CE Certified

FEATURES
Monport 40W Pro Features
Red Dot Guidance
Red Dot Guidance provides unparalleled precision when lining up your cuts and engravings.
Speed: 350mm/s
Red Dot Guidance
Water Cooling
The easy setup water cooling system, including a compact water pump & built-in hoses. This ensures the machine works within the tube's temperature parameters for longer life.
Water Cooling
Laser Tube Lifetime 2,000hr
Lightburn Compatibility
With an upgraded control board to ensure compatibility with Lightburn.With Lightburn, your design possibilities are virtually limitless.
Lightburn Compatibility

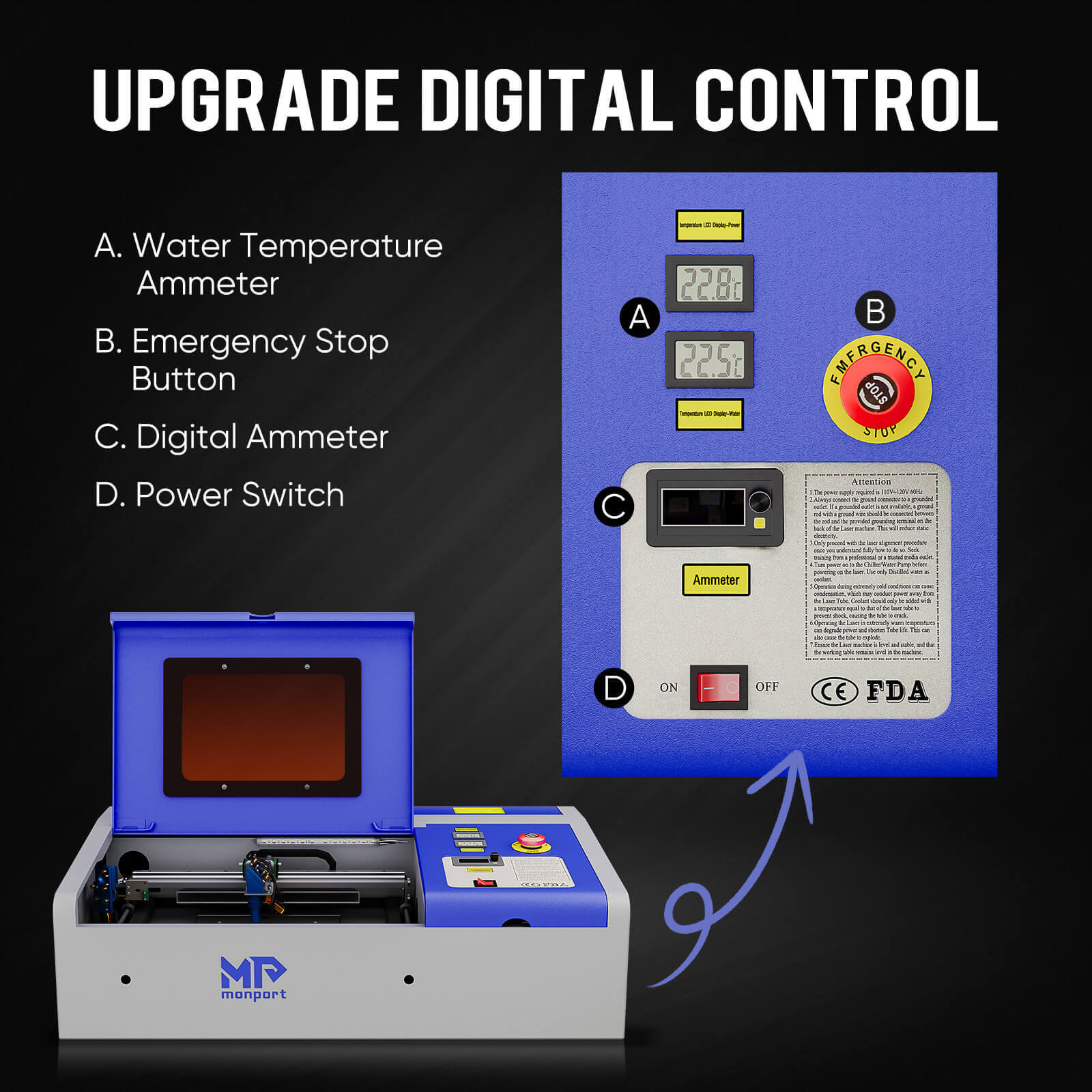

Upgraded Control Board
Monport Spaces around you

Monport Spaces around you

Discover a variety of Monport laser machines, from 40W to high-powered models, and fiber lasers hosted by our partners across the USA.

Click here to book a visit and get hands-on with the laser machine of your choice. Dive into laser innovation at Monport Space!

Book Today
DETAILED PARAMETERS
Monport 40W Pro CO2 Laser Engraver
Manchine Model Monport 40W Lighhtburn-ready
Working Area 8" x 12"
Machine Dimension 31.4" x 19.7" x 10"
Exhaust Port Diameter 4''
Output Power 40W
Compatible Operating Systems MacOS,Windows XP/7/8/10/11
Max.Process Speed 350mm/s
Product Weight 48.5 lbs. ( 22 kg )
Material Capability Wood, glass, acrylic, fabric, leather, paper, cardboard, rubber.
Focal Lens Diameter 12mm
Mirror Diameter 20mm
Expected service Life of Laser Tube 1500-2000 hours
Laser Frequency 20-100 kHz
  • Click the download button, you can get all machine parameters.
  • PDF
