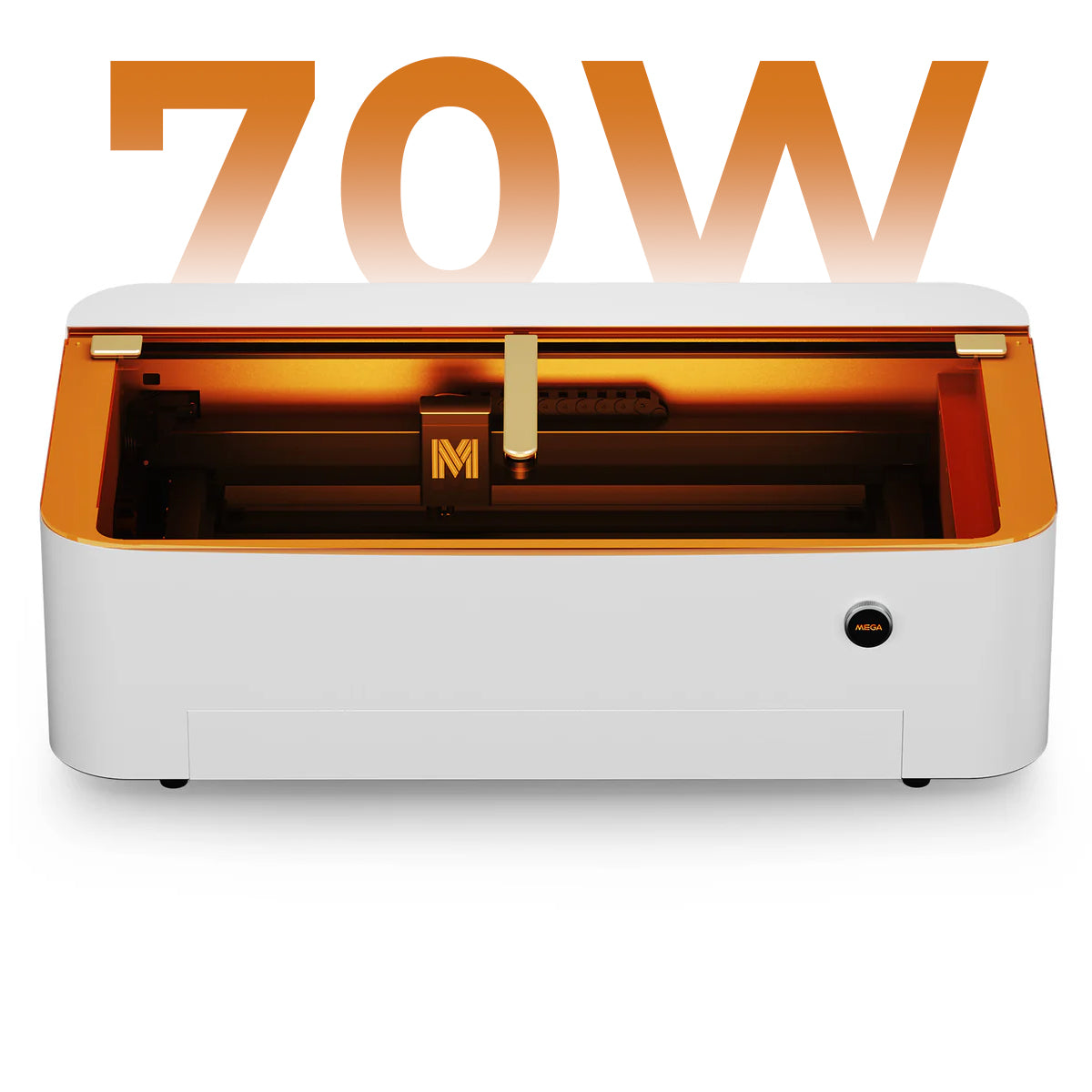

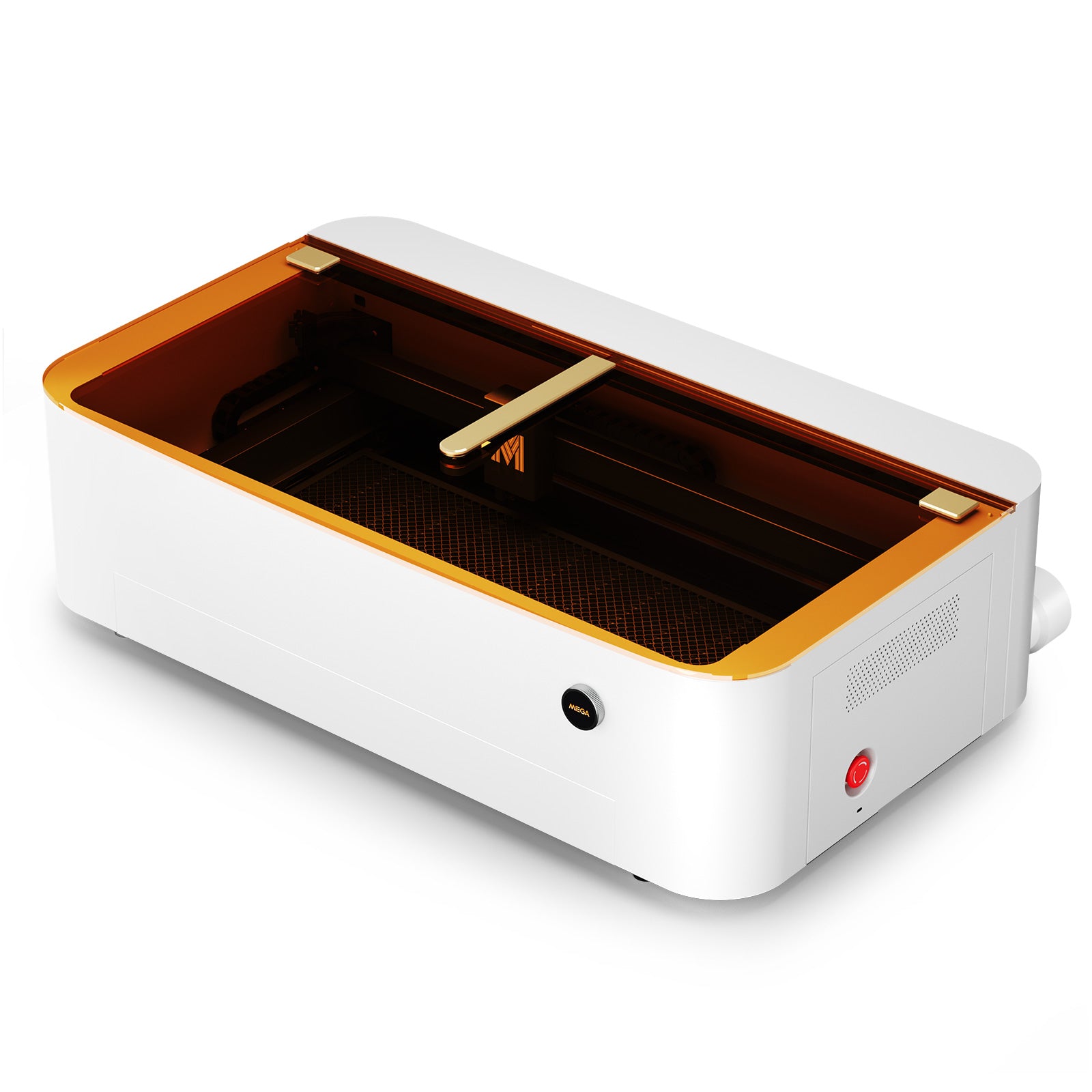

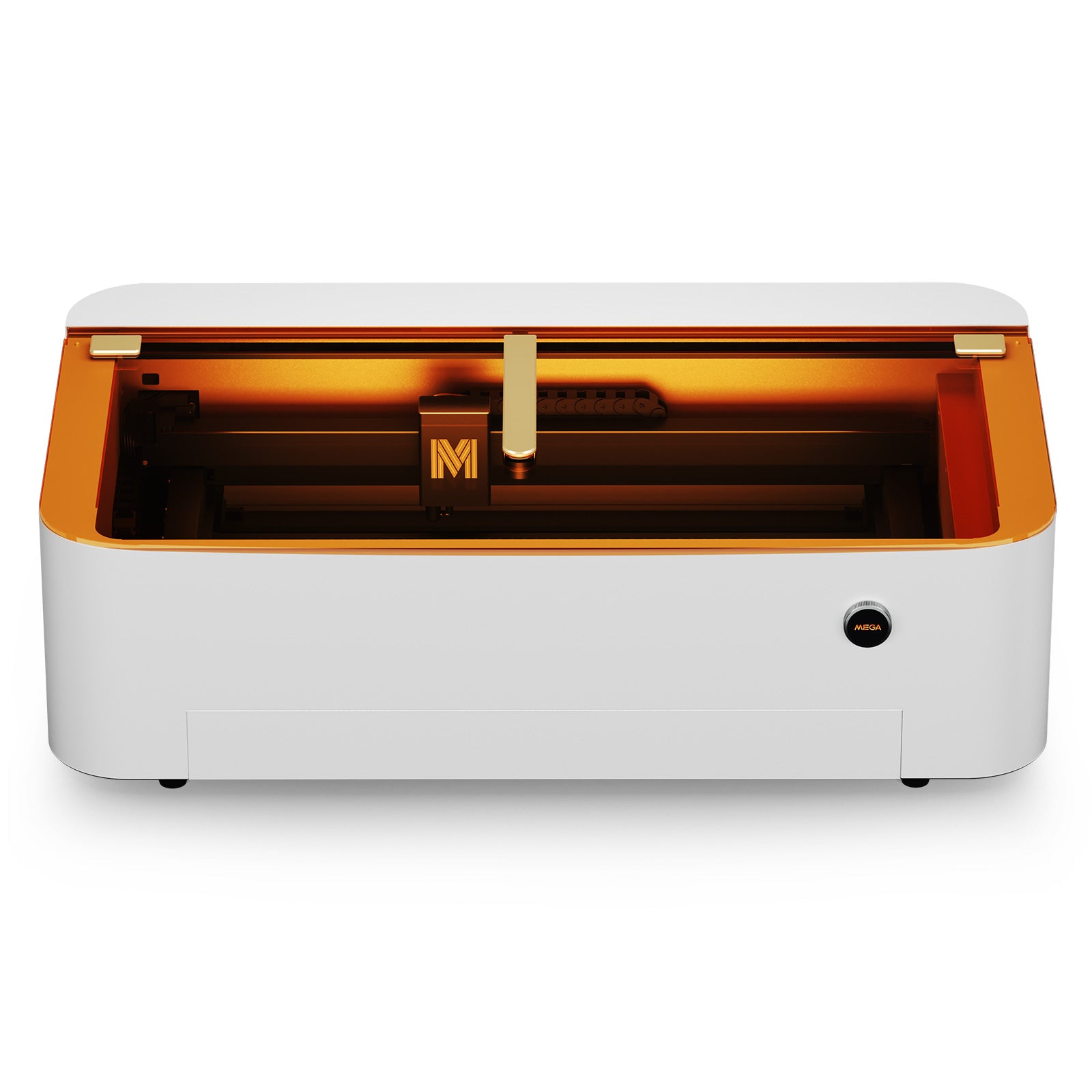

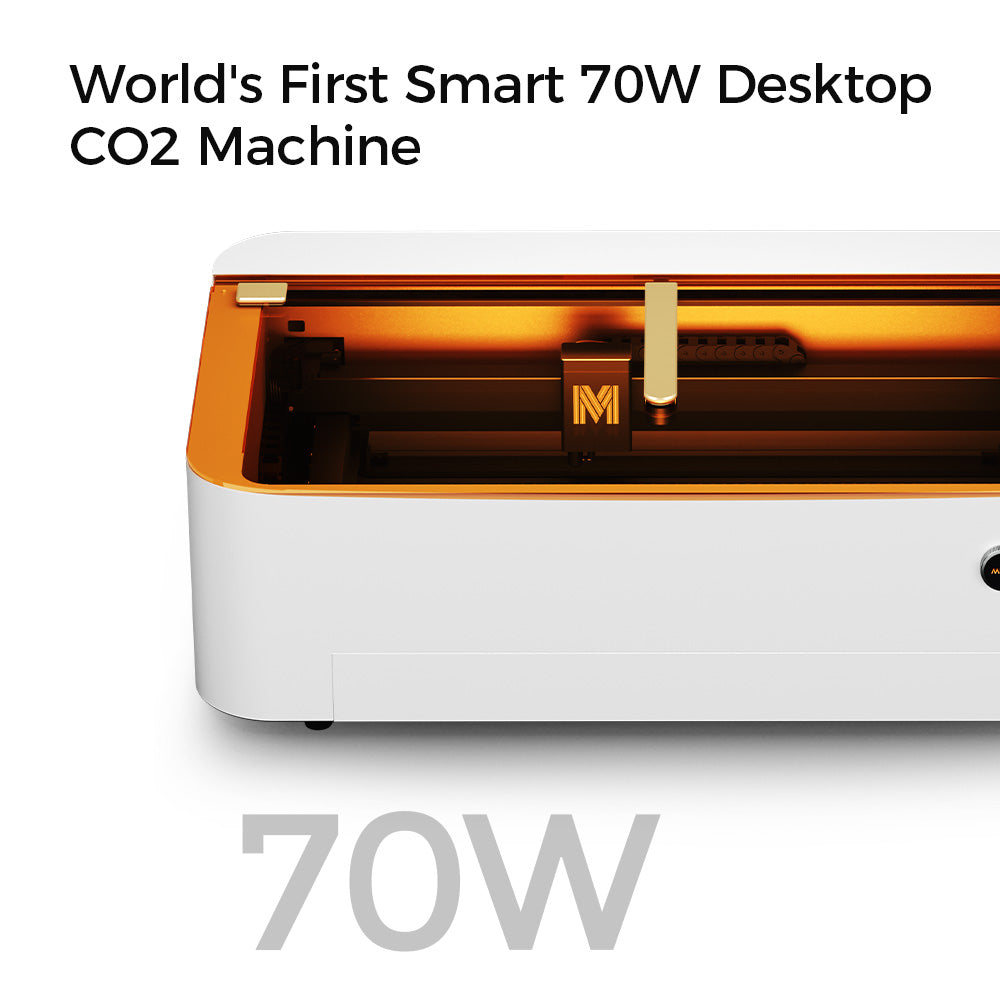

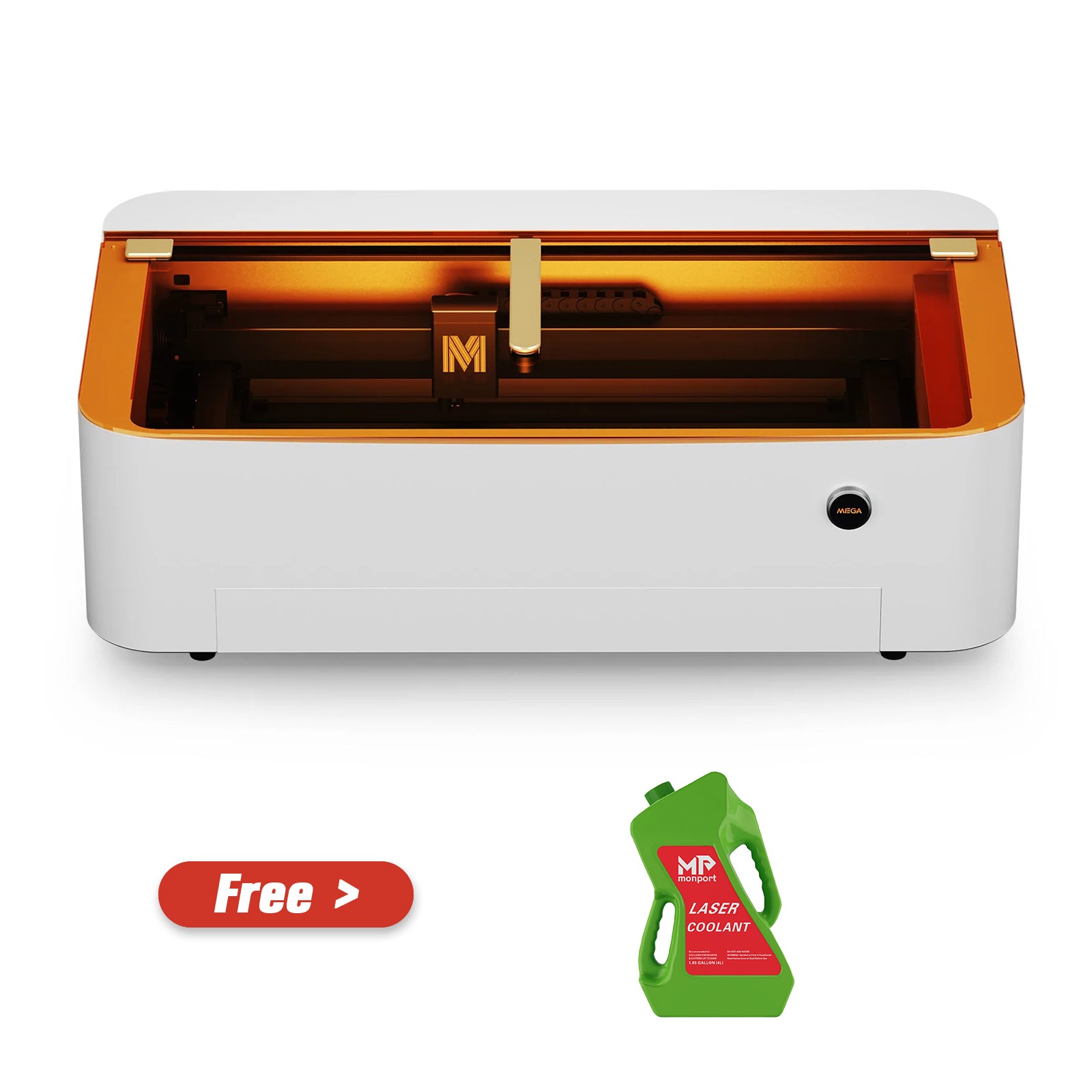

Monport Mega: The World's Premier 70W Intelligent Desktop Engraving Machine
Monport Mega: The World's Premier 70W Intelligent Desktop Engraving Machine
Regular price
C$2,659.99
Sale price
C$2,659.99
Regular price
C$7,109.99
Shipping calculated at checkout.
In stock
Couldn't load pickup availability
Payment methods
Crafting Made Easy
Mega

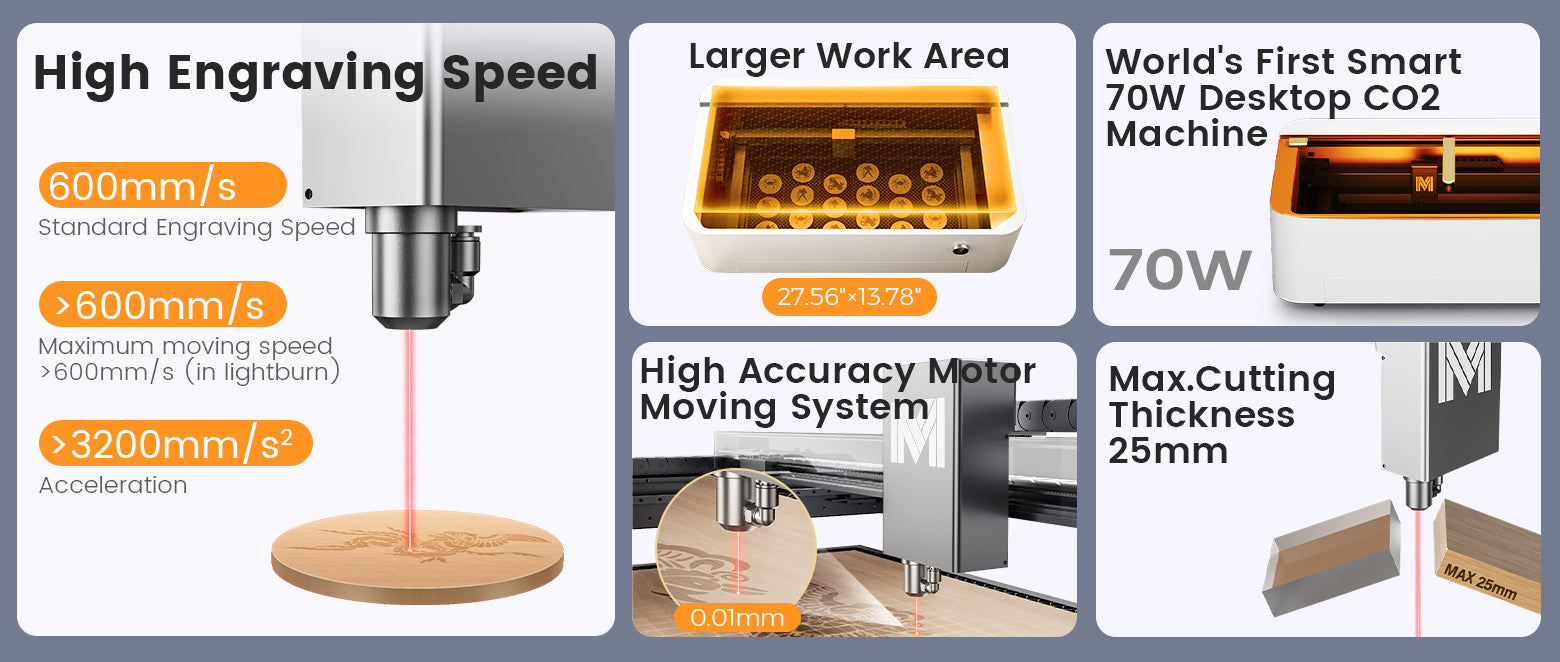

Designed for Speed & Power
600mm/s
Speed

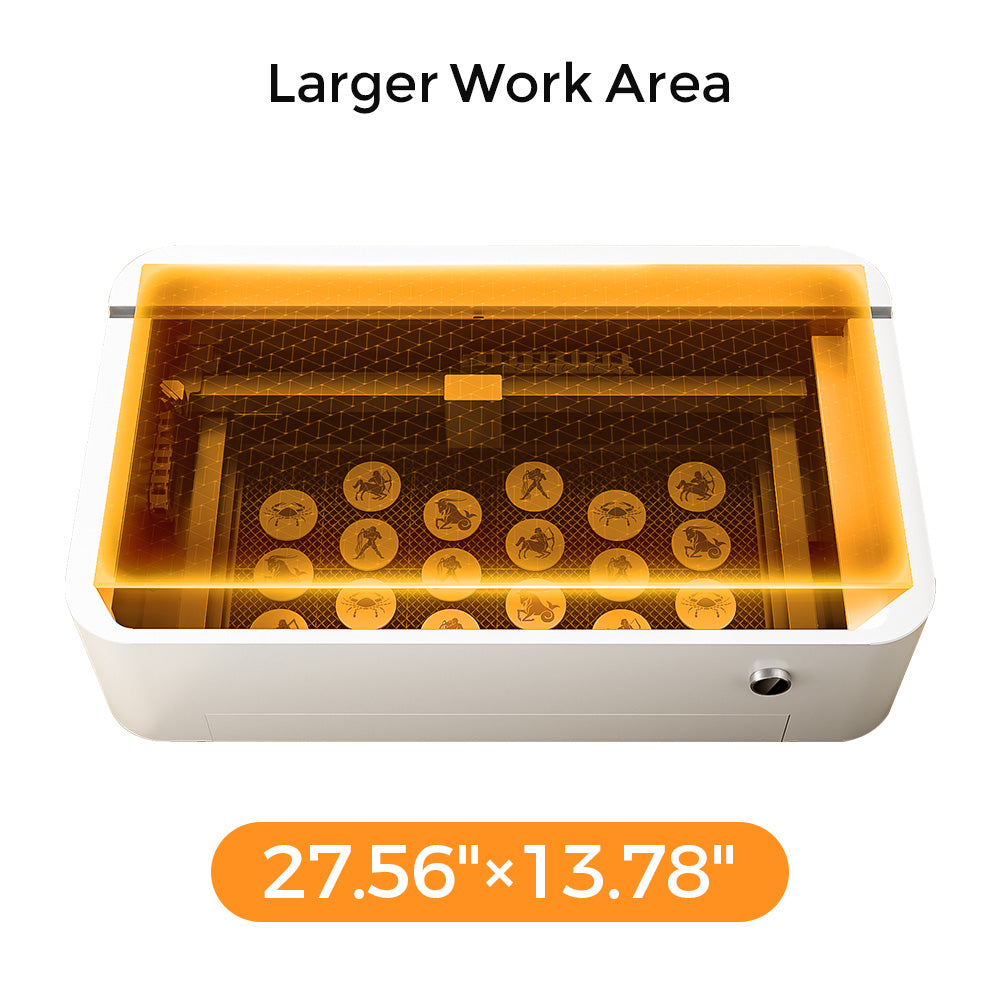

27.56" x 13.78"
Area
70W
Power

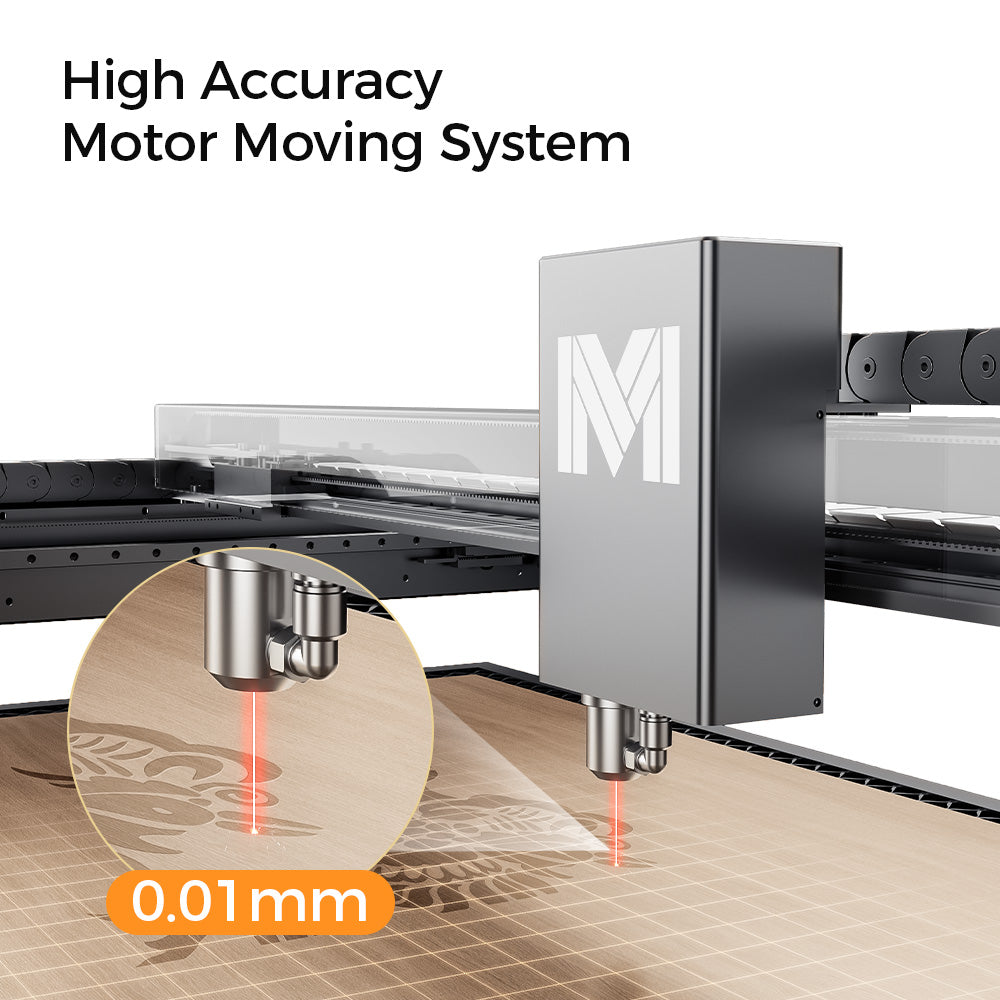

0.01mm
Accuracy
Core Intelligent Features
Smart Batch Fill
Automatically detects identical shapes and applies the same design across all matching materials, enhancing production efficiency and reducing manual setup.
Auto Focus
Built-in sensors measure material thickness and adjust the laser head to the optimal height, ensuring precise focus for consistent results.

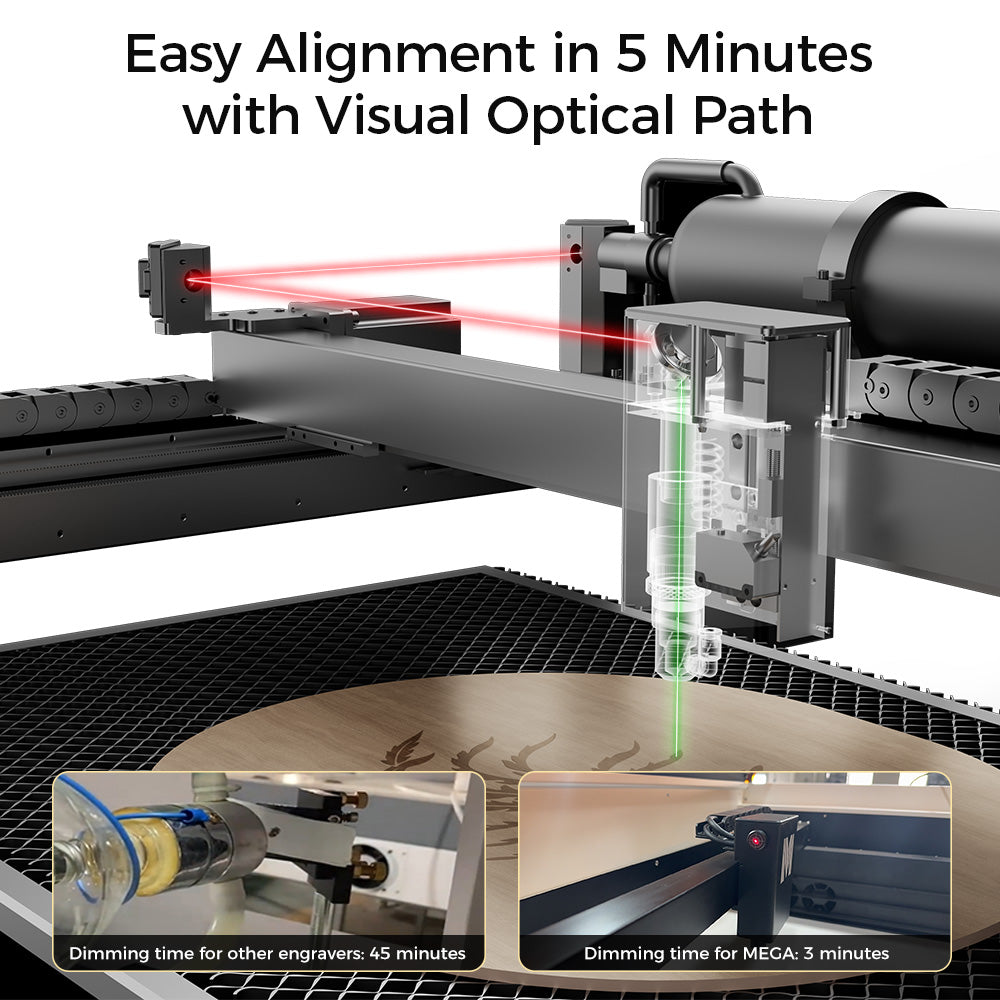

5-Minute Alignment
Quickly calibrate the optical path with a low-power visible laser beam and alignment target, saving time and enhancing safety.

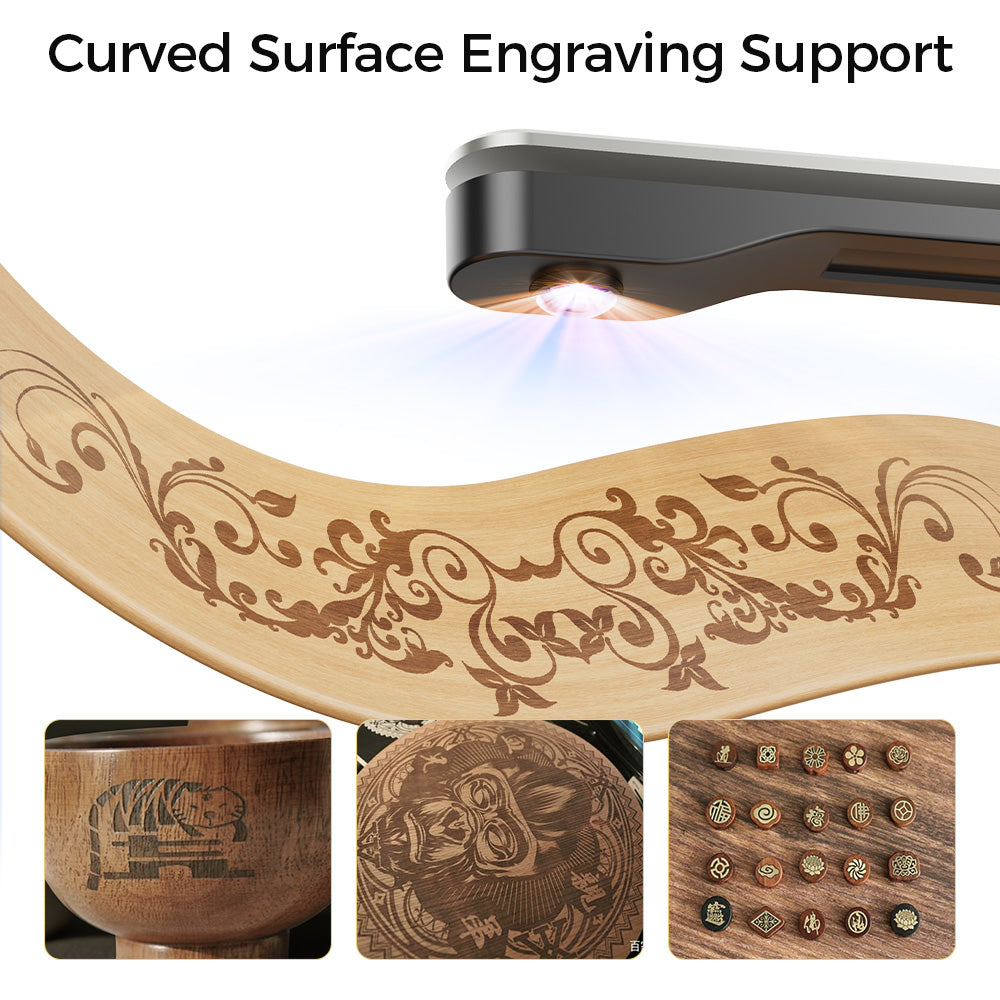

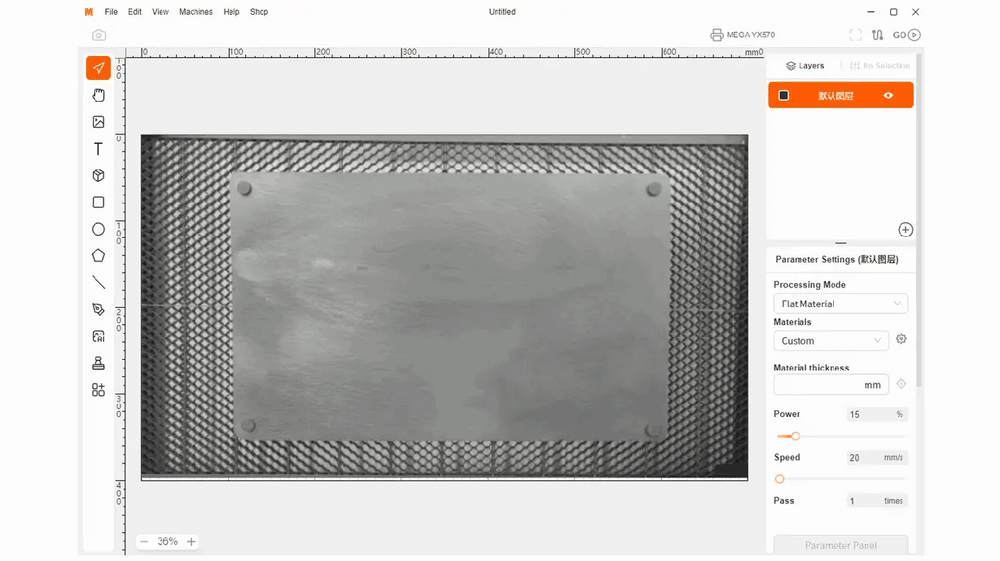

High Precision Vision Recognition
Our system supports batch engraving and engraving on curved surfaces.It delivers high precision and efficiency, reducing processing time while ensuring excellent results.

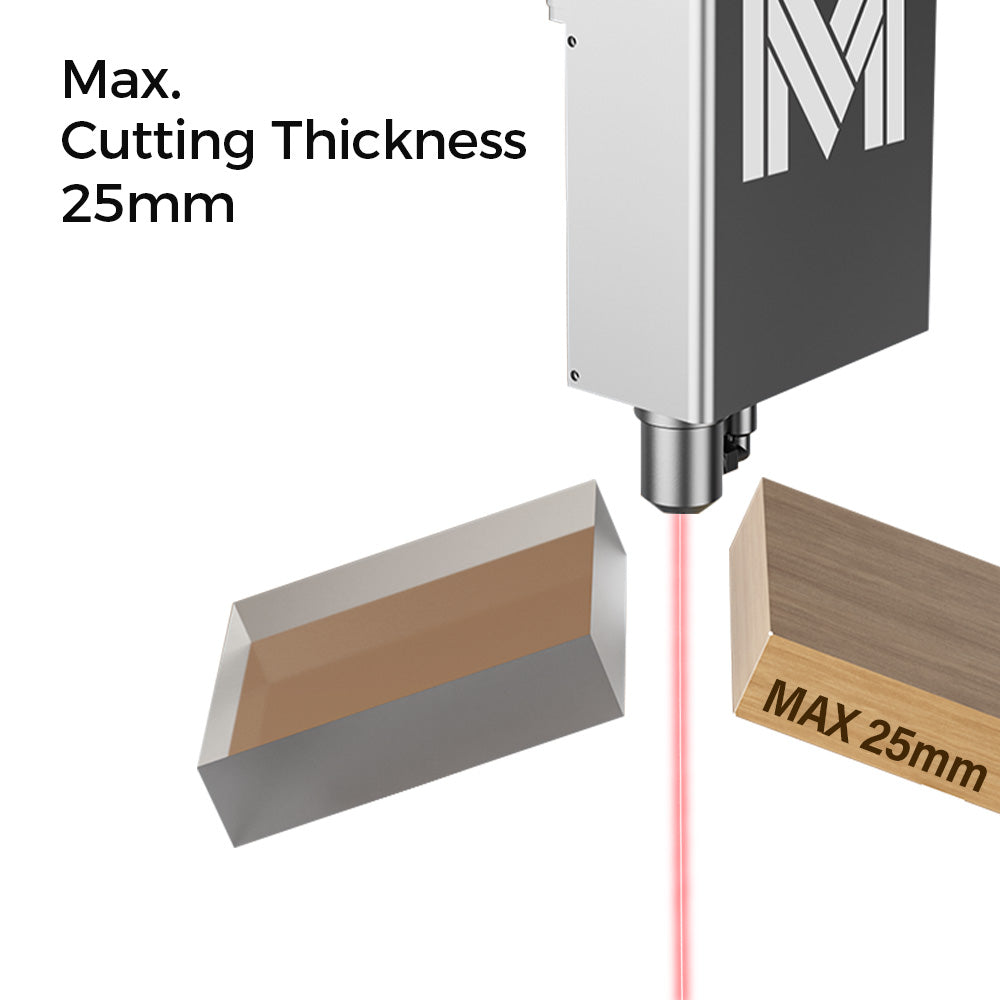

Powerful Cutting Capability
Max 25mm Thick Wood/ Acrylic 40% Deeper than Other

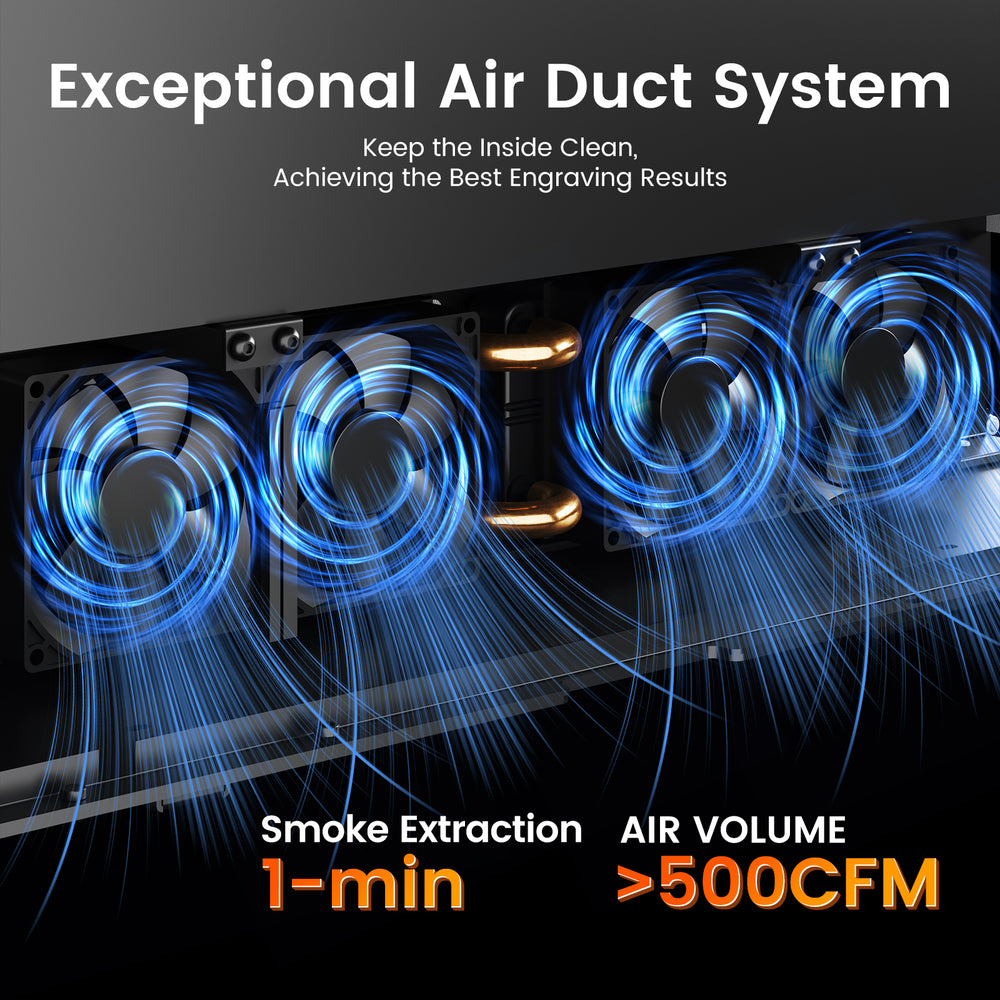

1min Stay Fresh
The Air Duct System of our engraving machine efficiently exhausts smoke, ensuring a clean environment with powerful suction.
Reduce 80% Maintenance
The Enclosed Guide Rail Design effectively prevents dust contamination of the guide rail, significantly extending its lifespan and ensuring smooth operation overtime.
Smart Tech Revolution
More Advanced Features
Expansion Accessories
Supports additional accessories, including cylindrical engraving attachments.
Auto-Focus
Automatically measures material thickness, height, and contours.
Safety Enclosure Design
Includes a drawer for safely engraving cylindrical and curved items.
Visual Light Adjustment Design
Utilizes integrated lights for quick and easy adjustments-no masking tape needed.
Machine Noise
Operating noise remains below 65dB in a 50dB environment.
Class 1 Laser Standard
Complies with IEC 60825 Class 1 safety standards and is certified for Class 4.

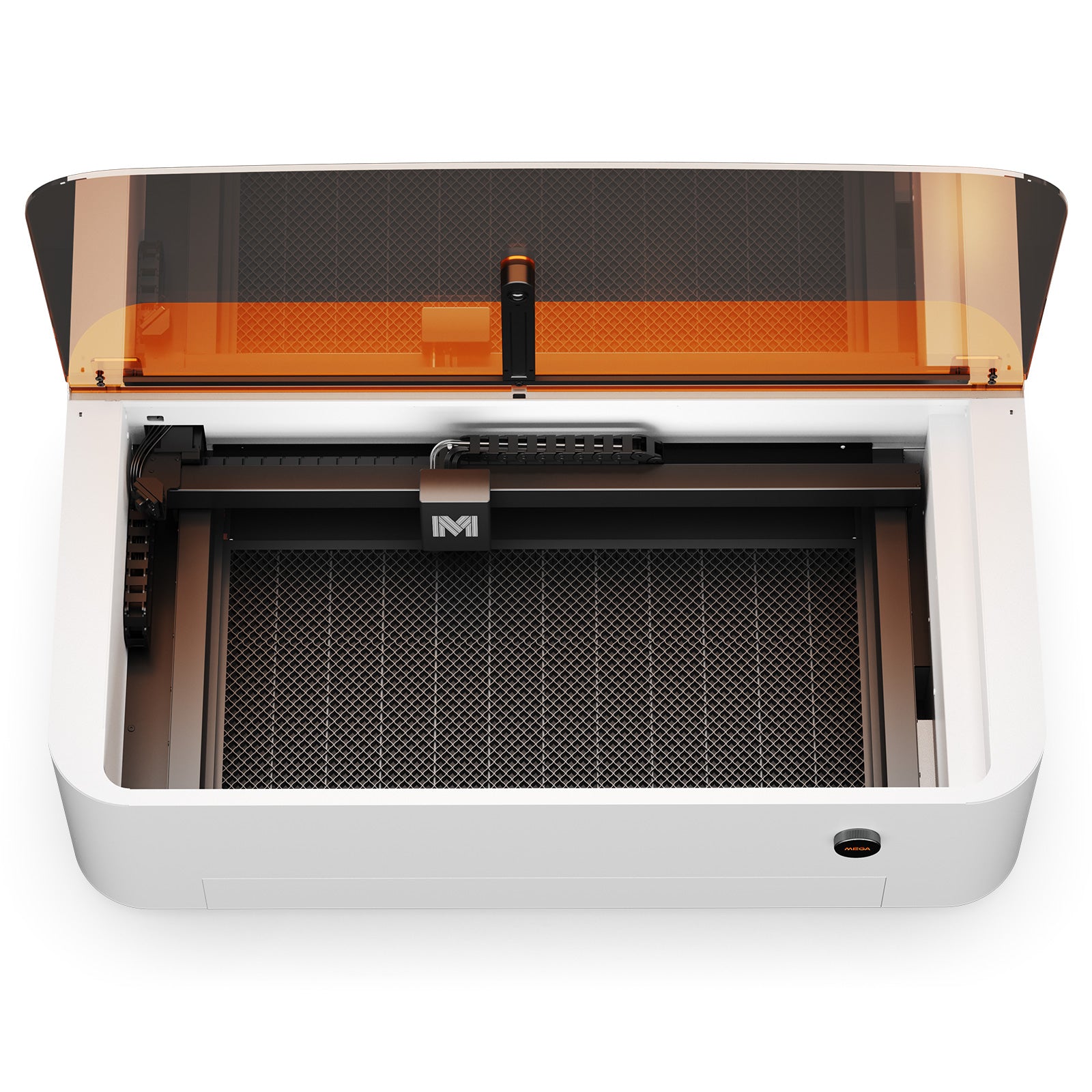

Enclosed Track Design
The enclosed track prevents dust accumulation, extending the rails' lifespan.
Why Choose Mega as Your Desktop Laser Engraver?
| Feature | MEGA | P2S | P2 | Others |
| Price | 5120 | 5960 | 5250 | / |
| Bed Size | 30.71"×17.32"(780x440mm) | 26.7"×14.1"(680x360mm) | 26.7"×14.1"(680x360mm) | 20"×18"(495x455mm) |
| Working Space | 27.56"×13.78"(700x350mm) | 23.6"×12"(600x305mm) | 23.6"×12"(600x305mm) | 20"×12"(508x305mm) |
| Laser Power | 70W CO₂ Laser | 55W CO₂ Laser | 55W CO₂ Laser | 40W CO₂ Laser |
| Product Size | 44.09"×26.38"×12.99"(1120x670x330mm) | 39.4"×25.1"×10.6"(1000x639x268mm) | 39.4"×25.1"×10.6"(1000x639x268mm) | 37.8"×20.75"×8.27"(955x527x210mm) |
| Product Weight | 70kg | 45kg | 45kg | 40kg |
| Max. Working Speed | Up to 1000mm/s (X - Axis Max Acceleration 12000mm/s²) | 600mm/s (X - Axis Acceleration 3200mm/s²) | 600mm/s (X - Axis Acceleration 3200mm/s²) | 600mm/s (X - Axis Acceleration 3200mm/s²) |
| Exhaust Fan | > 500 CFM | 233.3 CFM(4,000 RPM Dual Blades) | 145 CFM(7,000 Single Blade) | / |
| Number of Fan | 9 | 1 | 1 | 1 |
| Optical Target Assembly | Included (Used for Auxiliary Aligning) | Included | Included | Not Available |
| Type of Guide Rail | Linear Guide | Linear Rod | Linear Rod | Linear Rod |
| Sealability of GuideRail | Enclosed Guide Rails | Open guide rail | Open guide rail | Open guide rail |
| Type of Motor | 1.8 Degree 57mm Stepper Motor | 1.8 Degree 42mm Stepper Motor | 1.8 Degree 42mm Stepper Motor | 1.8 Degree 42mm Stepper Motor |
| Number of door detection sensors | 6 | 2 | 2 | 1 |

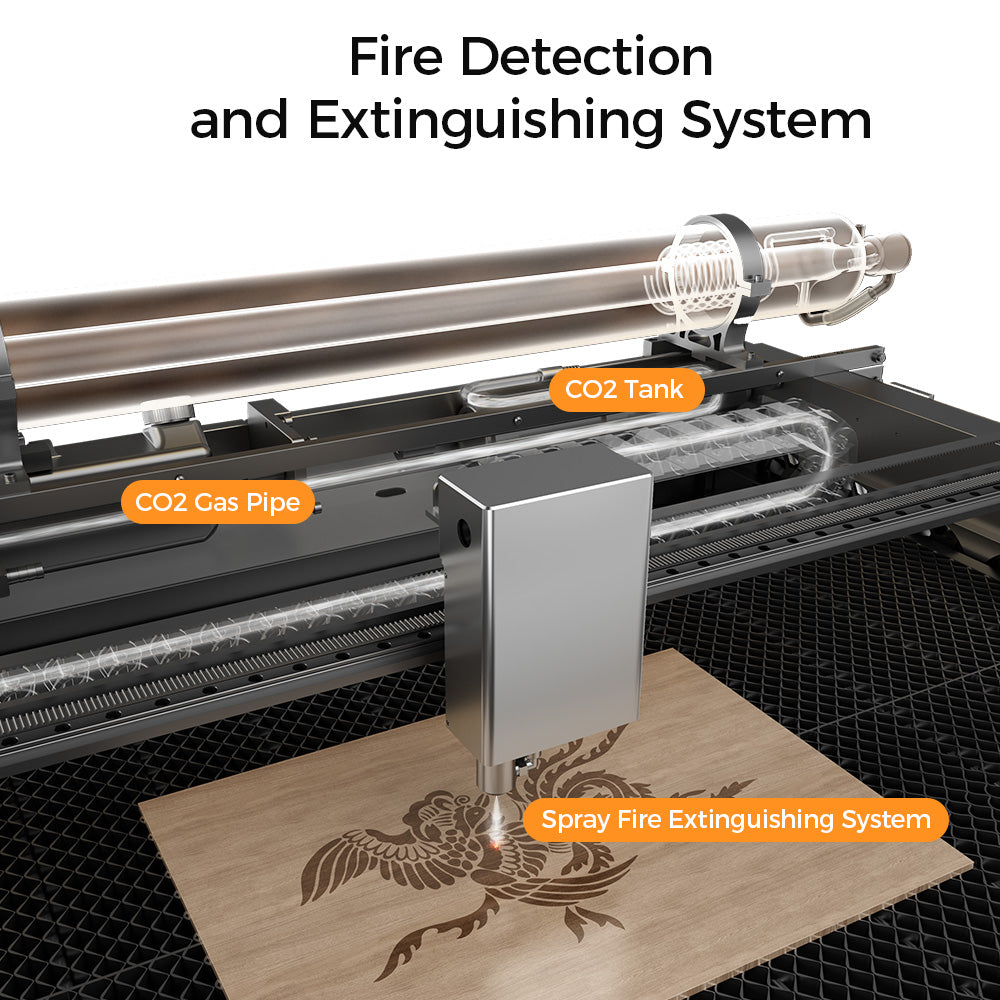

| Type of Extinguishing System | Built - in | External (Be Purchased Separately) | External (Be Purchased Separately) | Not Available |
| Weight of Extinguishing Gas | Recyclable 40g CO₂ cylinder (TR21 - 4 Needle Valve) | Disposable 16g CO₂ gas cylinder | Disposable 16g CO₂ gas cylinder | Not Available |
| Type of Screen | LED Touch Smart Screen | Segment Sode Screen | Segment Sode Screen | Not Available |
| Daily Maintenance | Just Need a Simple Wipe | Quick - Release Fan Button, Magnetic FilterScreen, Mistake - Proof | Quick - Release Fan Button, Magnetic FilterScreen, Mistake - Proof | Laser Mirror |
Super Easy to Use
Craft on Various Materials with Our Precision Engraver
Wood
Metal
Rock Metal
Leather
Glass
Others
Mega Specs
| Item | Specification |
| Bed Size | 30.71''×17.32''(780x440mm) |
| Working Space | 27.56"x13.78"(700x350mm) |
| Laser Power | 70W CO2 Laser |
| Product Size | 44.09’'×26.38''×12.99''.(1120x670x330mm) |
| Product Weight | 70kg |
| Coltage/Current | 110V/10A or 220V/5A |
| Max. Working Speed | 600mm/s (> 600m/s [Lightburn]） |
| Max. Workpiece Height | 0-3.54''(0-90mm) |
| Rotary Engraving Diameter | 0-60mm |
| Z-Axis Movement | 0-1.18“(30mm) |
| Operating Ambient Temperature | 10-30°C 10-86°F)*lf the temperature drops below 10°C (50°F),please add antifreeze |
| Storage Temperature | 10-45°C (50-113°F) |
| Air Assist | Included |
| Air Pump Presssure | 50kPa |
| Exhaust Fan | ＞500 CFM |
| Number of Fan | 9 |
| Visible Optical Path | Included（Red/Green） |
| Optical Target Assembly | Included（Used for Auxiliary Aligning） |
| Type of Guide Rail | Linear Guide |
| Sealability of GuideRail | Enclosed Guide Rails |
| Type of Motor | 1.8 Degree 57mm Stepper Motor |
| Number of door detection sensors | 6 |
| Type of Screen | LED Touch Smart Screen |
| Daily Maintenance | Just Need a Simple Wipe |
| Water-Cooling System | Capacity: 1.2L(0.32gal) |
| Ranging System | LiDAR Ranging System |
| Camera Type | Panoramic Camera |
| Number of Pixels (Effective) | 8MP×1 |
| lmage Resolution | 1000 DPI |
| Focus Mode | Autofocus |
| Software | M-Design Hub / Lightburn |
| Connection | WiFi & USB |
| Support File | SVG/DXF/IPG/IPEG/PNG/BMP,etc |
| Support Systems | Windows / Mac |

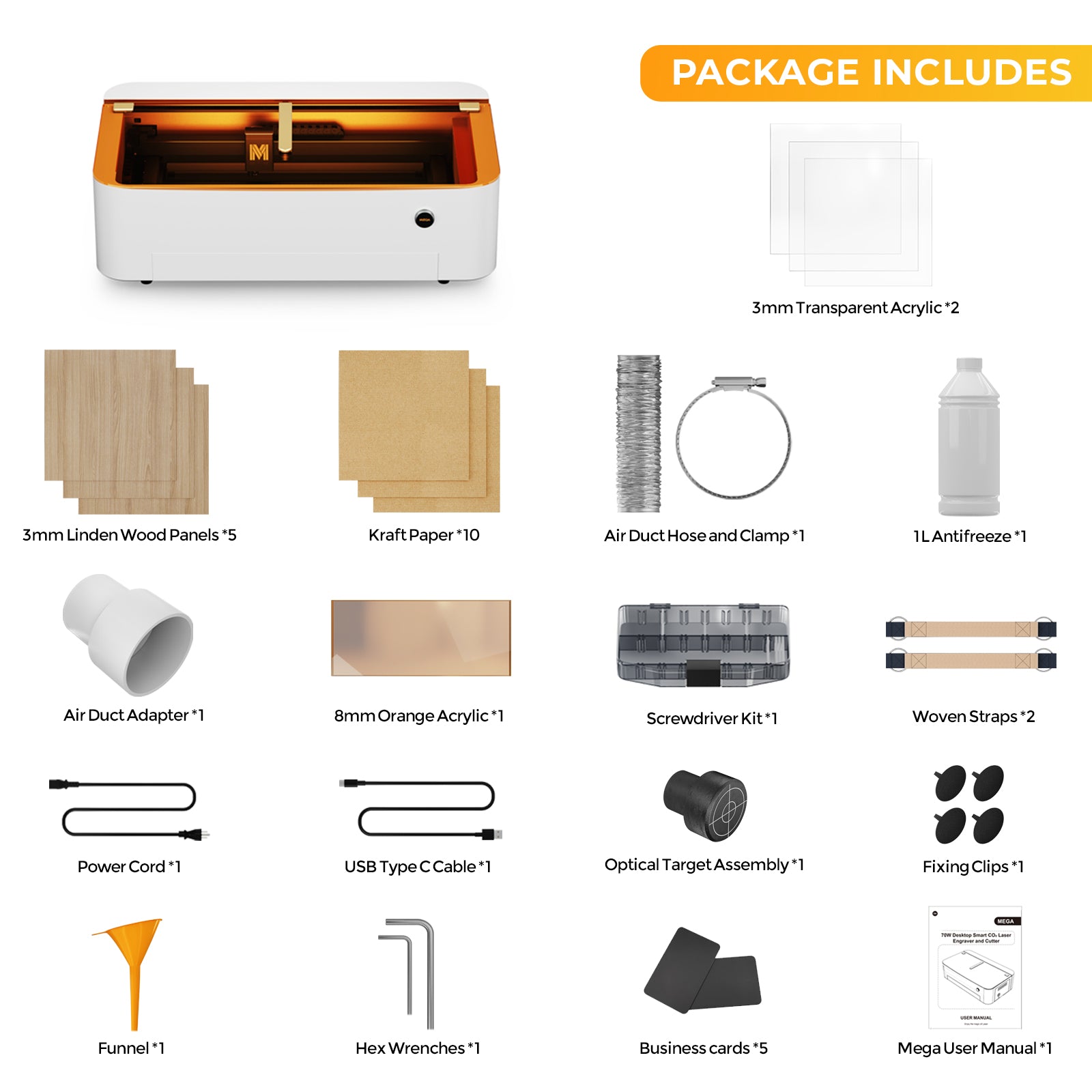

What's in the Box
70W CO2 Laser *1
3mm Transparent Acrylic *2
3mm Linden Wood Panels *5
Kraft Paper *10
Air Duct Hose and Clamp *1
1L Antifreeze *1
Air Duct Adapter *1
Power Cord *1
USB Type C Cable *1
Optical Target Assembly *1
Screwdriver Set *1
Funnel *1
Fixing Clips Set *1
Hex Wrenches Set *1
Woven Straps *2
Business Cards *5
Mega User Manual *1
