Monport 130W CO2 Laser Engraver & Cutter (55" x 35") with FDA Approved

Current price C$8,699.99
C$8,699.99 - C$8,699.99
Current price C$8,699.99
Original price C$9,799.99
Original price C$9,799.99 - Original price C$9,799.99
Original price C$9,799.99
Free Shipping

CA Delivery time : Usually 15-20 Business Days

2-Year Warranty

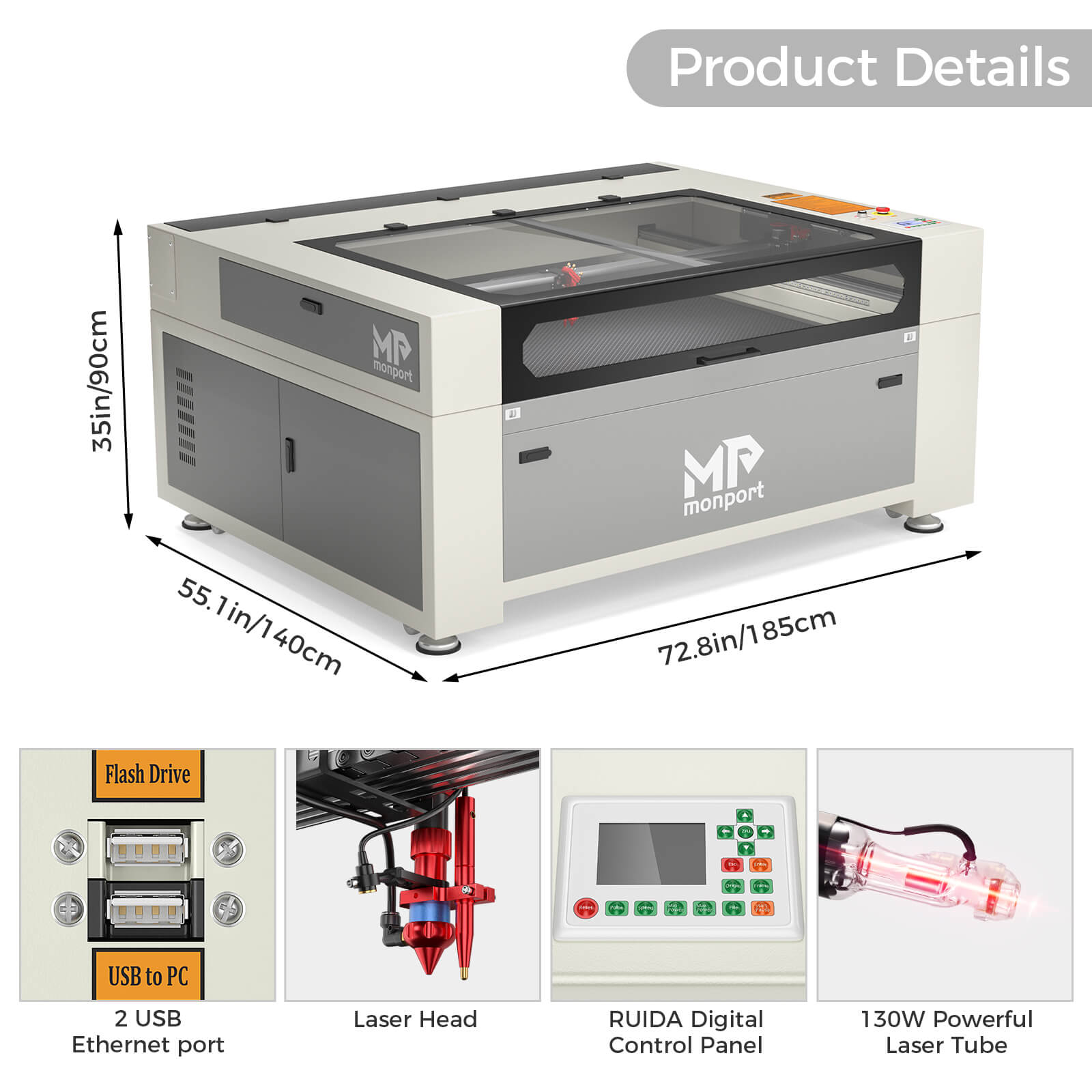

Dimension & Specifications

Machine Dimension: 72.8" x 55" x 35" (185cm x 140cm x 95cm)

Working Dimension: 35” x 55” (90 cm x 137 cm)

Pass-through Dimension:2.9'' x 54.9''(7.5cm x 139.5 cm )

Max Engraving Speed: 800mm/s

Max Cutting Speed: 30mm/s ( actual speed depends on material )

Max Engraving Depth: 19.05mm

Min Engraving Depth : 0.01 mm

Focal Lens Diameter: 18mm

Mirror Diameter: 25mm

Max Z-depth: 13.7"

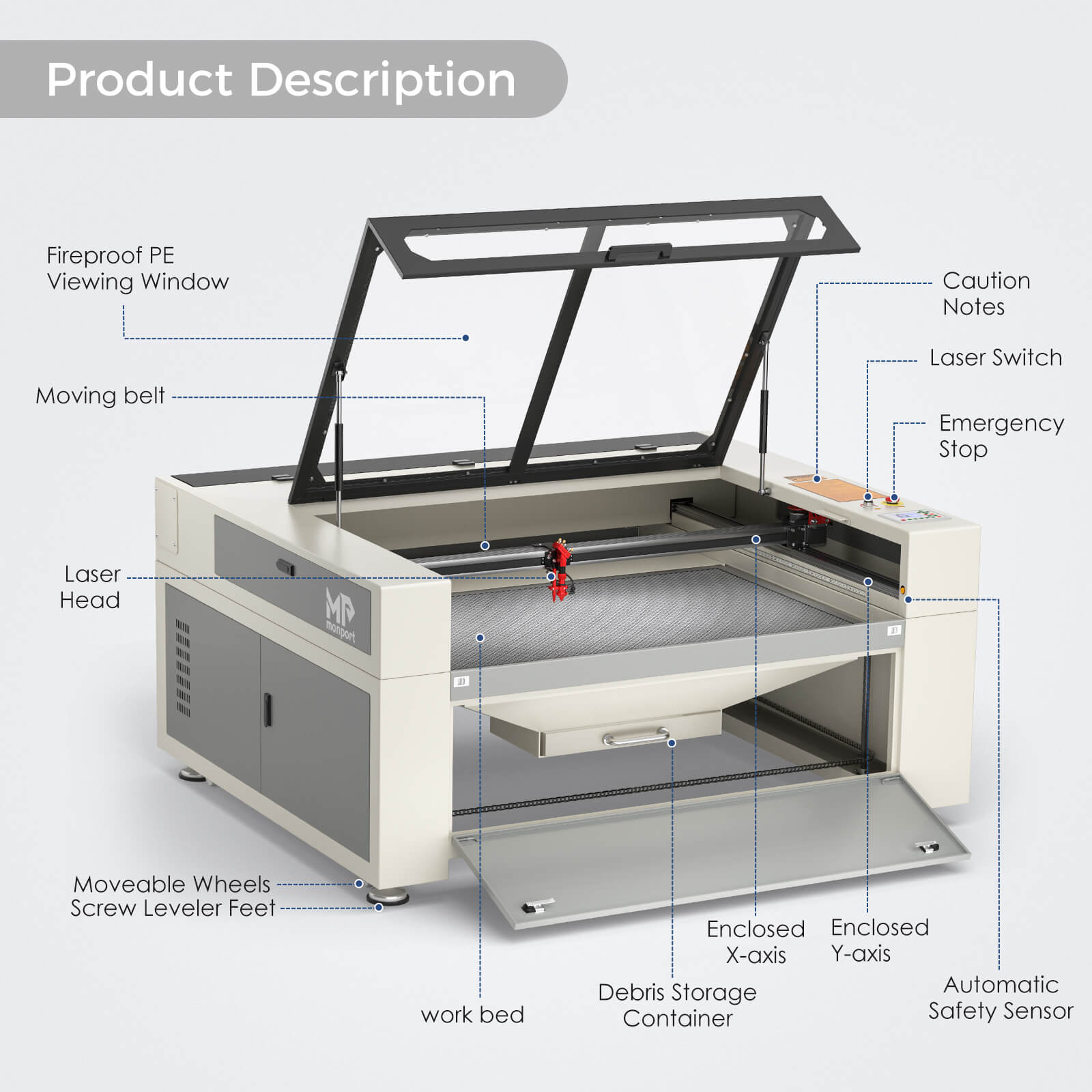

130W CO2 Engraver Features

Fireproof Viewing Window

This viewing window is made from special fire-resistant polyester with iron frames. The melting point of this polyester ranges from 432° to 488° and the ignition temperature of it is over 1000°, which can dramatically decrease the possibility of fire accidents caused by the heat of laser burning the materials.

Enclosed Aeronautical Aluminum Rail

Equipped with X and Y stepper motors, this rail features efficient power transmission with high precision. The enclosed rail is designed to avoid smoke and debris and prolong the service time of rail units.

Laser Protective Glasses for Free

Lasers emit radiation in the invisible form of light. This pair of laser protective glasses is certified to protect your eyes against radiation damage by looking at the class 4 laser in any way (directly, indirectly, or even looking at the laser dot on a surface can damage your eyes).

Ruida Digital Controller

Whether your chosen software is LightBurn, RDworks, AutoCAD, or CorelDRAW, this Ruida digital controller can support the given platform. The Ruida Controller with a digital display can  control the laser head, start or stop projects, adjust laser power and speed settings and so on.

High Speed and Resolution

The Engraving Speed is up to 800 mm/s;
The Cutting Speed is up to 400 mm/s;
The Resolution is up to 4500 dpi;
3 LED light strips above the work bed provide illumination for precision;
2.0" Focal distance provides high resolution and etching of tiny fonts

Autofocus

Use the control panel to correct the focus automatically at the touch of a button — no more manual testing and adjustment.

Built-in Air Assist

A built-in air assist system guides a pressurized air stream through the laser head nozzle to displace debris, heat, and combustible gases from the engraving surface and laser beam path, keeping engravings more precise.

3-ways to Connect with PC End

Two USB ports provide options including flash drive connectivity and a USB-to-USB PC connection. In addition, one ethernet port is also available for connection.

Red Dot Guidance

The red dot shows the laser head position, marks the working path and frames the project sizes, assisting you with more convenience and guidance.

Automatic Safety Sensor

The safety shutdown sensor helps stopping the machine even if the window cover is on. Once closed, press the “Enter” button to continue operation.

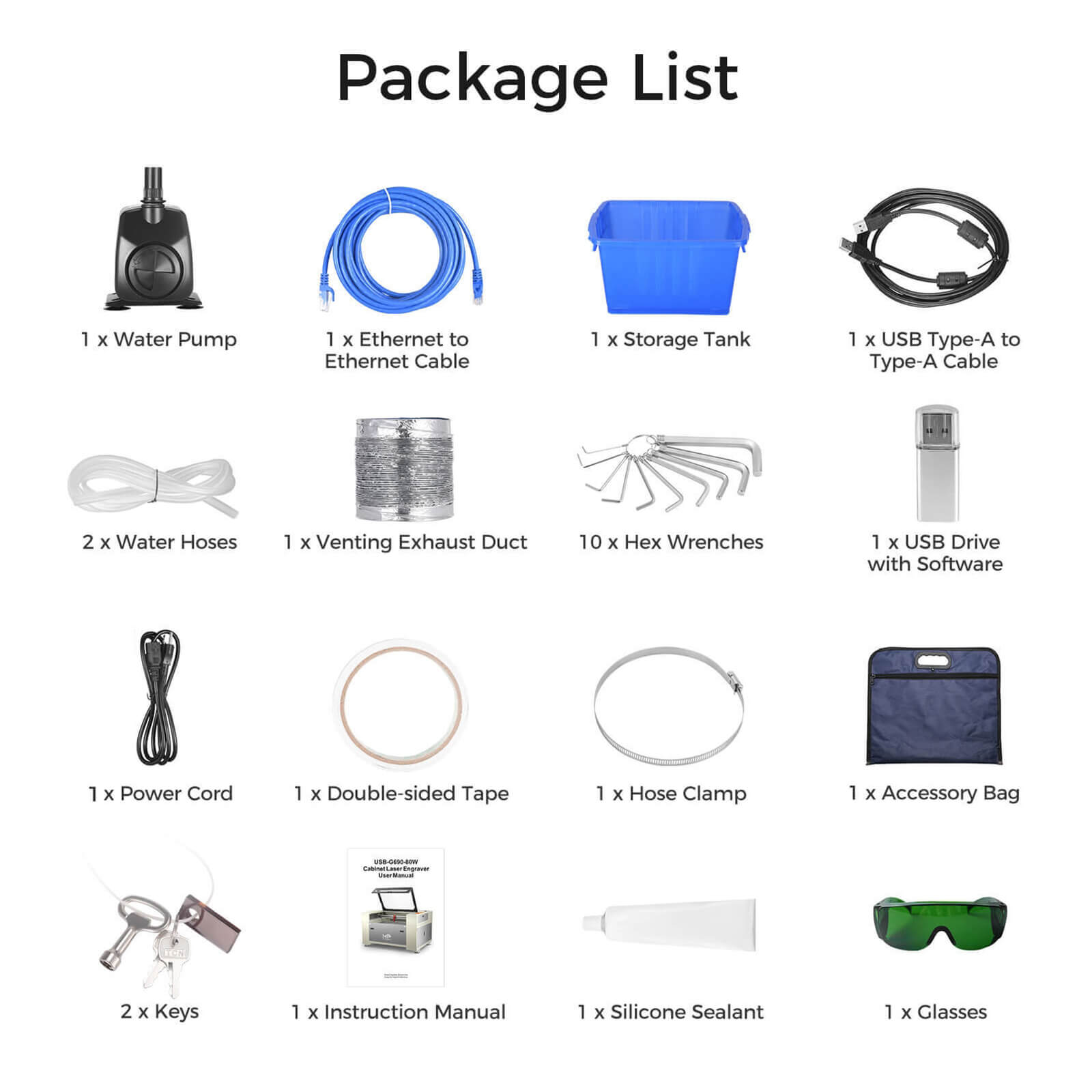

Package Contents

Laser Engraver Machine *1

A Pair of Laser Protective Glasses *1

Accessory Bag *1

Ethernet to Ethernet Cable *1

USB Type-A to Type-A Cable *1

Venting Exhaust Duct *1

USB Drive with Software (RDworks) *1

Hex Wrenches *10

Double-sided Tape *1

Power Cord *2

Keys *2

Silicone Sealant *1

Stainless Steel Clamp *1

Instruction Manual *1

Warranty & Certifications

2-year warranton all 130W laser machines and parts

1-year warranty on laser tube

FDA Approved & CE Certified

Manual List

Download the software RDworks

Download the Manual: 130W CO2 User Manual

Download the Settings: CO2 Parameter Settings

We offer compatible Rotary Axis and Water Chiller!

We sponsor CDR files: https://kokorosastudio.com

Forklift Unloading Note

Our prices cover transportation but does not forklift unloading. If your address is not convenient for truck transportation, forklift assistance is required. Please contact us at support@monportlaser.com, and we will provide you with a customized quote.

FEATURES
Monport 130w Features
Enclosed Aeronautical Aluminum Rail & Autofocus
The enclosed rail is designed to avoid smoke and debris and prolong the service time of rail units. Use the control panel to correct the focus automatically at the touch of a button — no more manual testing and adjustment.
Aluminum Rail
Autofocus
High Speed and Resolution
The Engraving Speed is up to 800 mm/s. The Resolution is up to 4500 dpi;
Speed: 800mm/s
Compatible with Lightburn, RDWorks.
Easy to Use

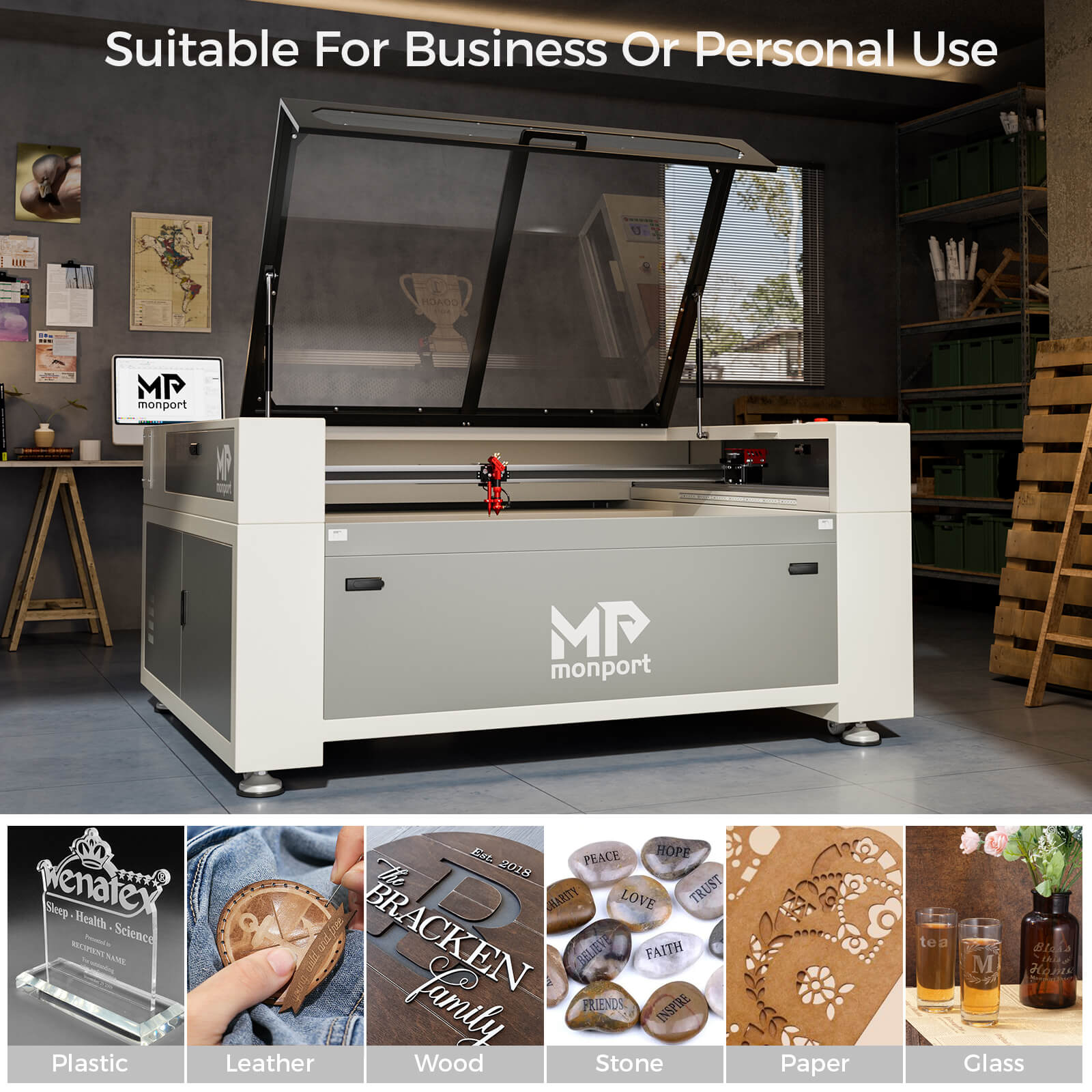

Wide Application
Excellent Cutting and Engraving Capabilities
Monport 130W CO2 Laser can cut different of wood, acrylic, stone and etc.
Various Materials
DETAILED PARAMETERS
Compare Each High Power CO2 Laser Model
Manchine Model Monport 80W CO2 Monport 100W CO2 Monport 130W CO2 Monport 150W CO2
Working Area 24"x 36" 24" x 40" 55" x 35" 64" x 40"
Max. Marking Speed 800mm/s 800mm/s 800mm/s 800mm/s
Machine Dimension 57"x 43" x 35" 61"x 43" x 35" 72.8" x 55" x 35" 84.6" x 59" x 35"
Pass-through Dimension 2.9"x 37.4" 2.9" x 43" 2.9" x 54.9" 2.9" x 66.7"
Wheels Height 3.9" 3.9" 3.9" 3.9"
Output Power 80W 100W 130W 150W
Provided Operating Software RDworks RDworks RDworks RDworks
Laser Wavelength 10640nm 10640nm 10640nm 10640nm
Expected Service Life 12,000hr 12,000hr 12,000hr 12,000hr
Product Weight 396.8 lbs 578 lbs 790 lbs 1000 lbs
Supported image formats BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others
Compatible Software Lightburn, RDWorks, Coreldraw, Auto-CAD Lightburn, RDWorks, Coreldraw, Auto-CAD Lightburn, RDWorks, Coreldraw, Auto-CAD Lightburn, RDWorks, Coreldraw, Auto-CAD
