Monport GI60 Integrated MOPA Fiber Laser Engraver & Marking Machine with Electric Lifting
Monport GI60 Integrated MOPA Fiber Laser Engraver & Marking Machine with Electric Lifting
In stock
Couldn't load pickup availability
Dimension & Specifications
Dimension & Specifications
Laser Model:JPT 60-M7
Output Power:60W
Laser Type:JPT MOPA Fiber
Color Engraving:YES
Working Area: 7.9" x 7.9"
Machine Dimensions:22" x 13.4" x 28.3"
Package Dimension: 35.8" x 17.5" x 16.5"
Wavelength:1064nm
Marking Speed:0- 10000mm/s
Accuracy:0.01mm
Graphic Format Supported:BMP, GIF, JPG, JPEG, DXF, DST, Al.etc
System Supported:Window7/8/10/11 , MAC
Cooling Type:Air Cooling(Automatic)
Voltage:110/220V
Compatible Materials:all kinds of metal including Stainless Steel, Aluminum, Gold, Silver, Alloy ,Ceramic,Marble, Leather,Plastics etc.
Expected Service Life (MTTF):100,000 hr.
Net Weight:22KG
Package Weight:28KG
GI60 Fiber Features
GI60 Fiber Features

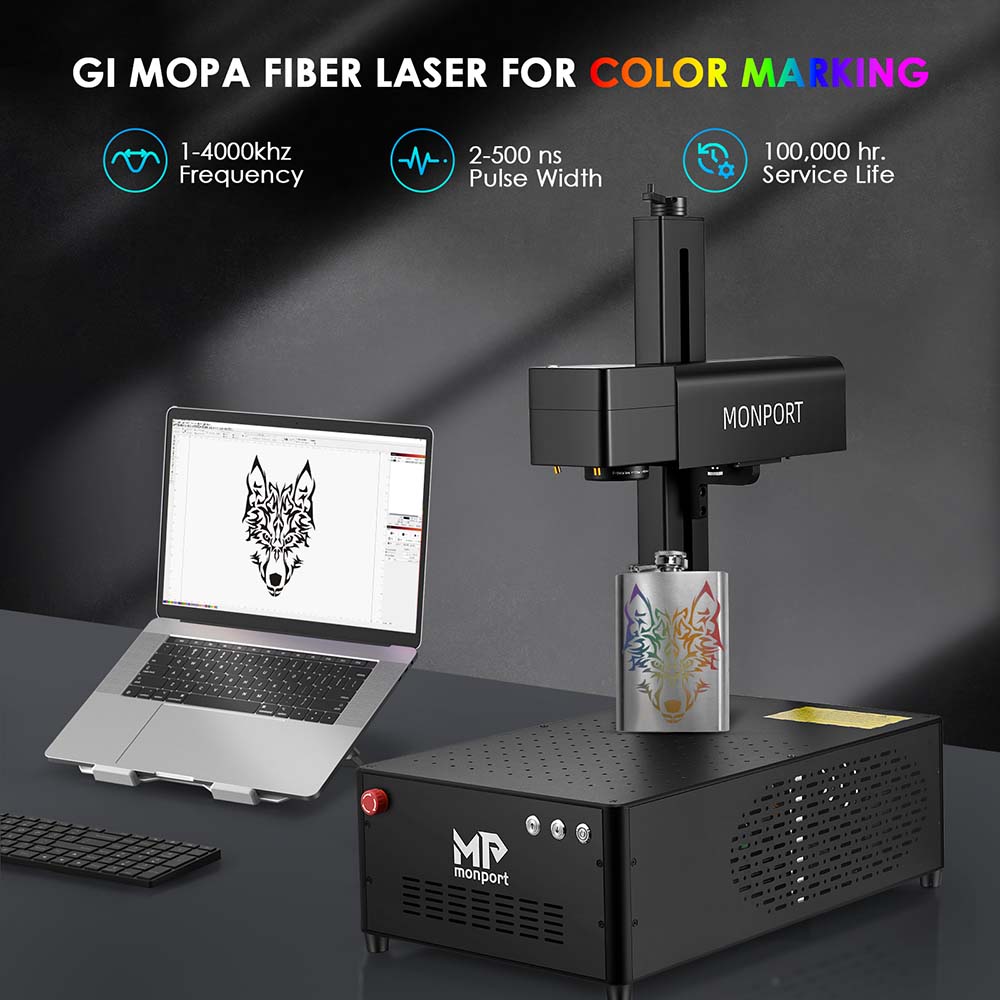

Full color marking
Monport's 60W JPT MOPA fiber laser marking machine propels your design journey with unmatched speed, precision, and flexibility. With adjustable pulse frequency and width, it enables vibrant color marking on stainless steel and high contrast engraving on anodized aluminum. Not only does it boast an MTTF exceeding 100,000 hours, but it also delivers precise cuts of up to 0.05mm per pass, accurate to ±0.1 micron.

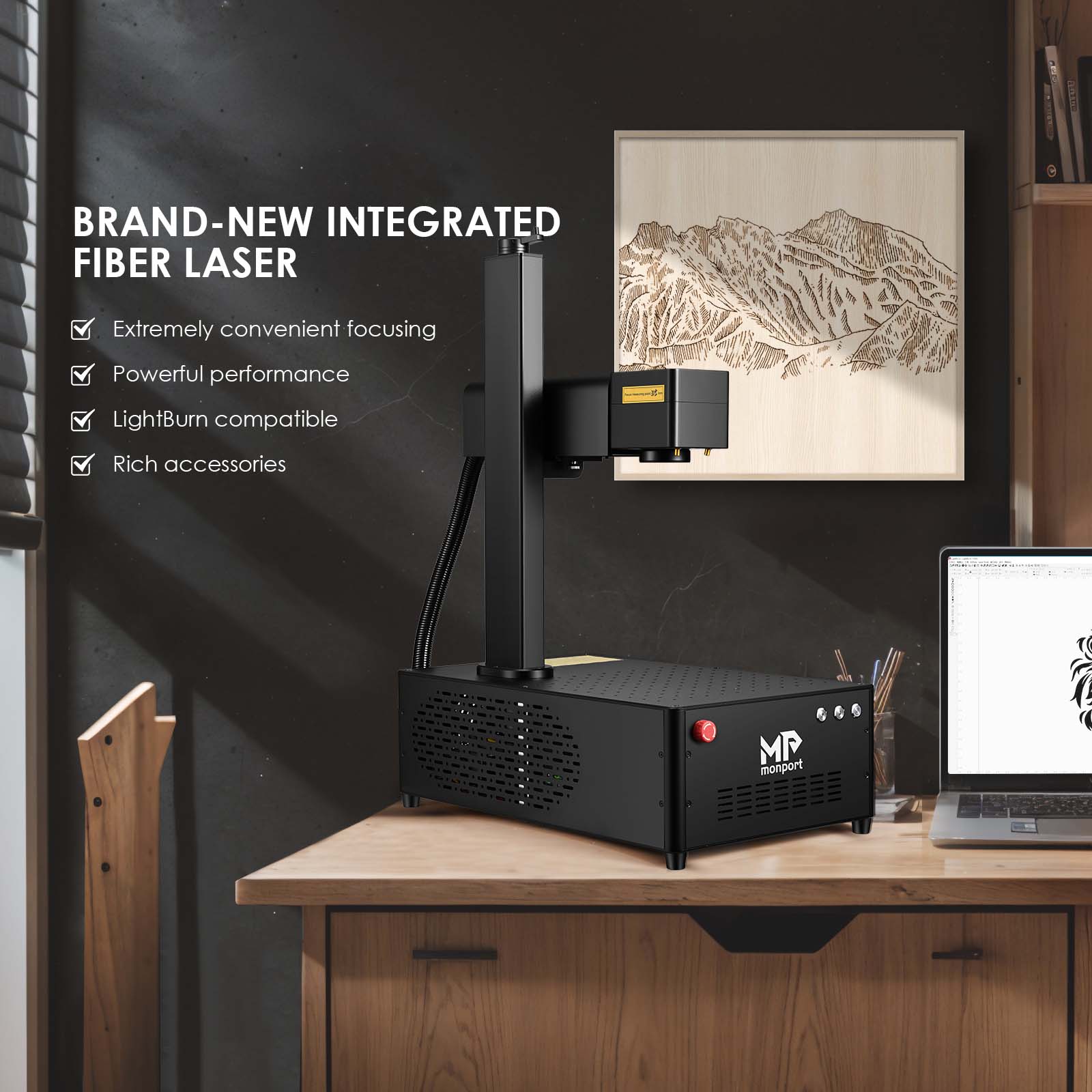

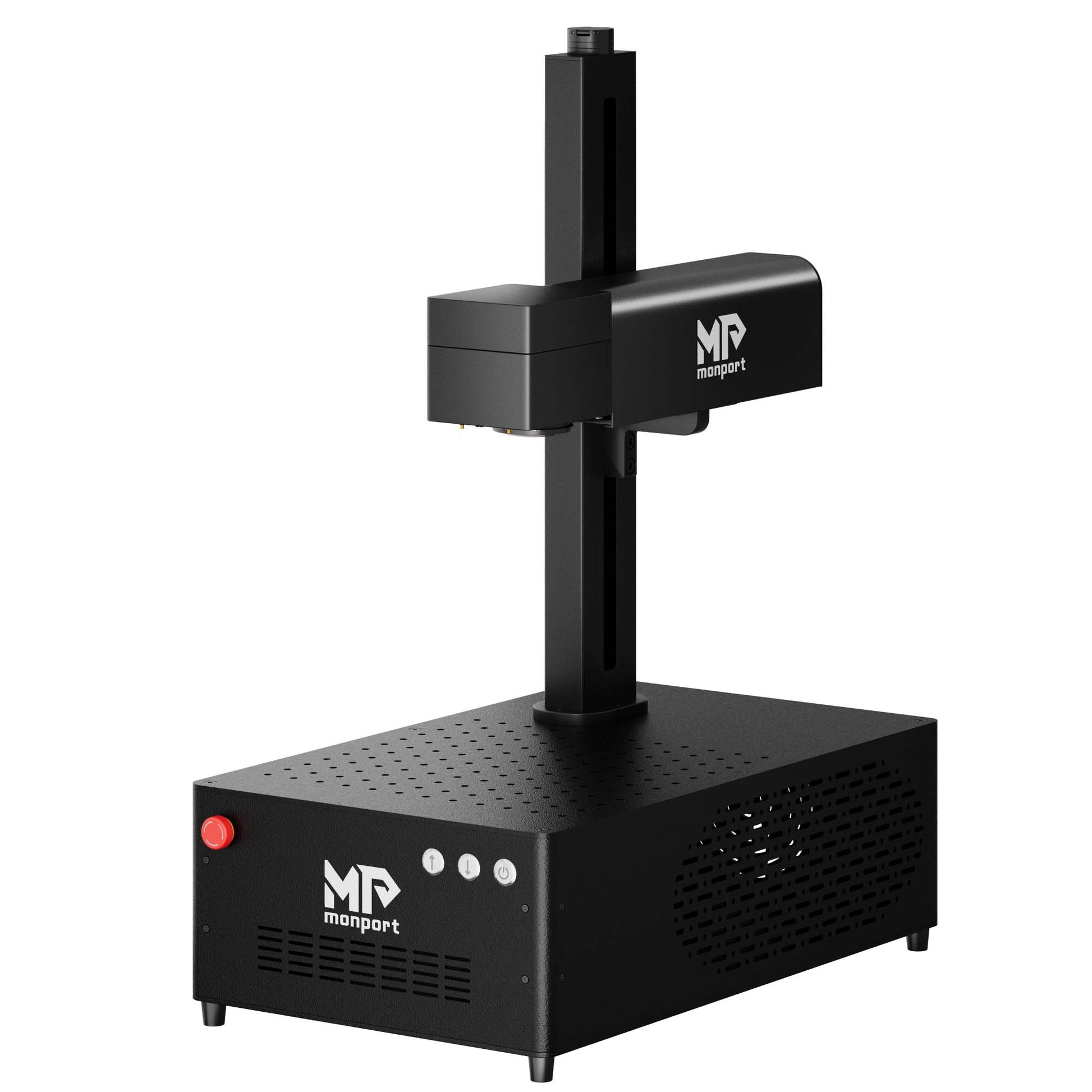

Integrated Innovative Design
Monport's brand-new integrated fiber laser defines a new generation of machines. It achieves a lighter weight, smaller size, cooler appearance, and more user-friendly user experience while maintaining the original performance unchanged.
Electric Lifting Focus
Monport integrates a concealed lifting motor to ensure spot-on focusing, enabling users to operate smoothly and significantly enhancing the final marking result. Particularly designed with beginners in mind, this feature makes precision engraving a breeze.
LightBurn Compatible
Monport's fiber laser includes the EZCad 2.0 software for free and is fully compatible with LightBurn software, providing a seamless marking experience, user-friendly controls, and a wide range of customizable features.
Industry-leading Heat dissipation technology
Built-in air cooling and unique side panel openings bring a better heat dissipation effect, and this will maintain the peak performance of the machine.

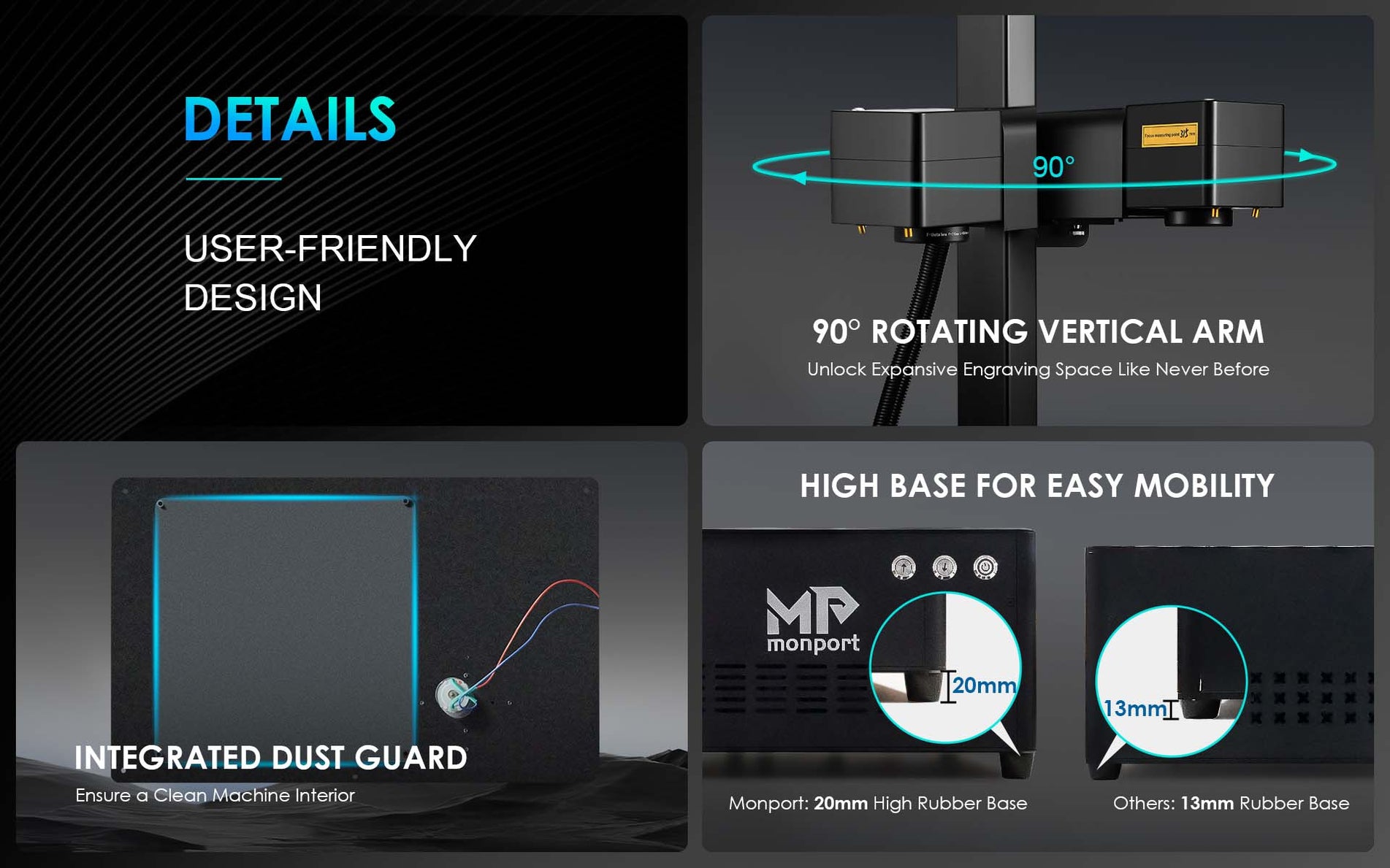

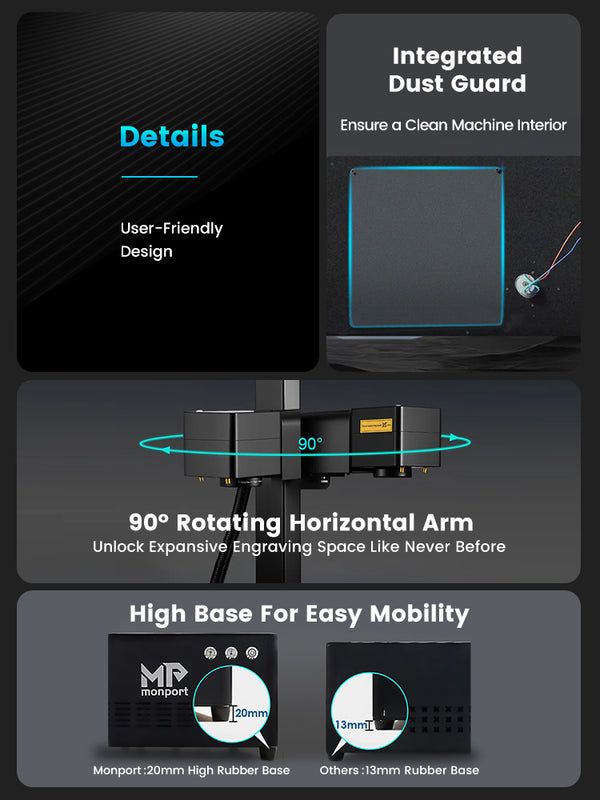

Everywhere Details
①A casing crafted from anodized aluminum oxide material delivers a high-quality texture and robust durability.
② All sharp parts have been chamfered or filleted, ensuring user safety is never compromised.
③The addition of dust shields at the back of the work area enhances the machine's lifespan, maintaining its performance over time.
④ An included rich material pack lets you jumpstart your creative process right away.

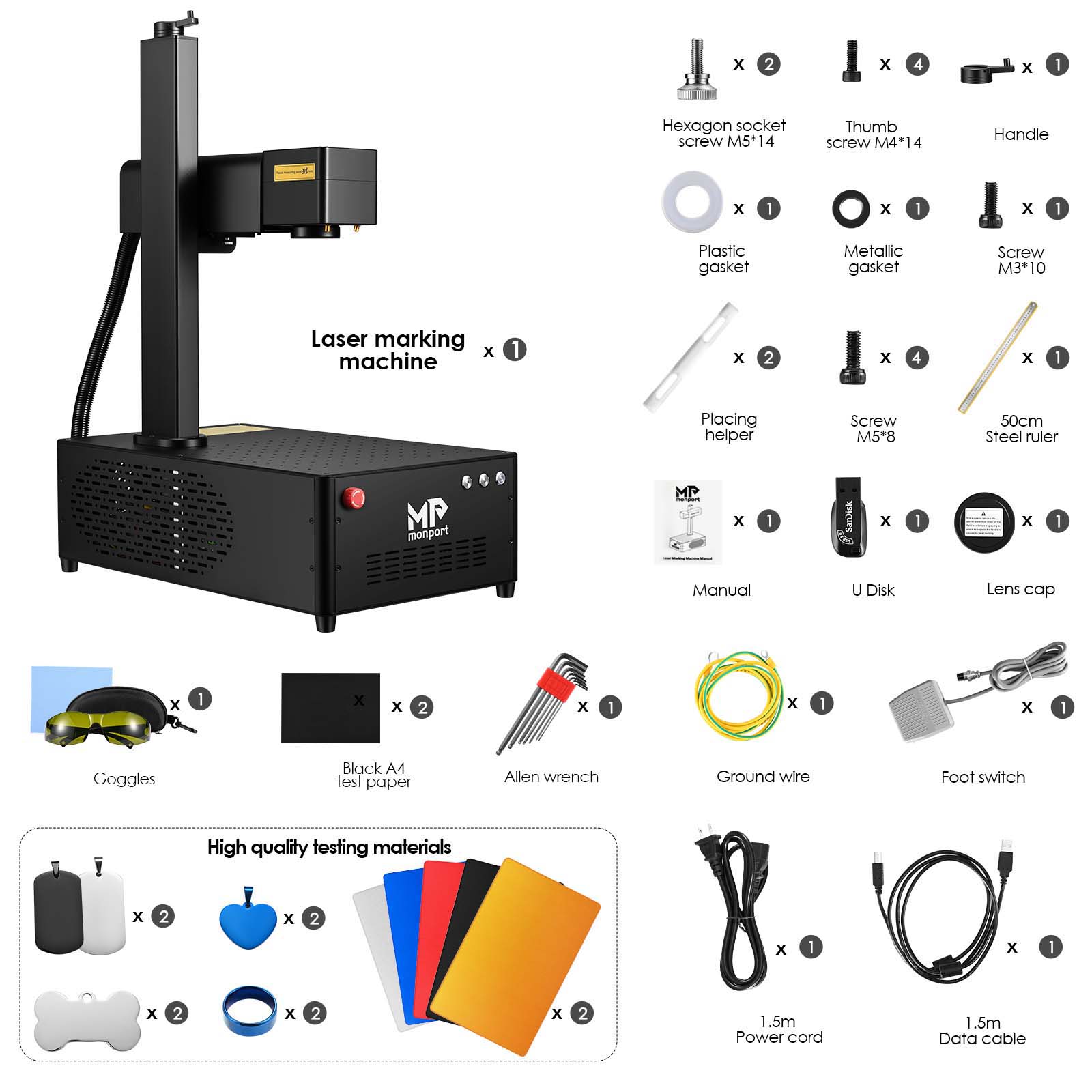

Package Contents
Package Contents
Fiber marking machine*1
Hexagon socket screw 4PCS M5*14
Thumb Screw M4*14
Handle*1
Plastic gasket*1
Metallic gasket*1
Screw M3*10
1.5m Power cord*1
1.5m Date cable*1
50cm Steel ruler*1
Manual*1
U Disk*1
Lens cap*1
Black A4 test paper*2
Allen wrench set*1
Goggles*1
Ground wire*1
Foot switch*1
Placing helper*2
Screw 4PCS M5*8
Testing materials*20
Warranty & Certifications
Warranty & Certifications
2-year warranty on all GI60 Fiber machines and parts
FDA Approved & CE Certified
Manual List
Manual List
Download the Manual: GI Integrated Fiber User Manual

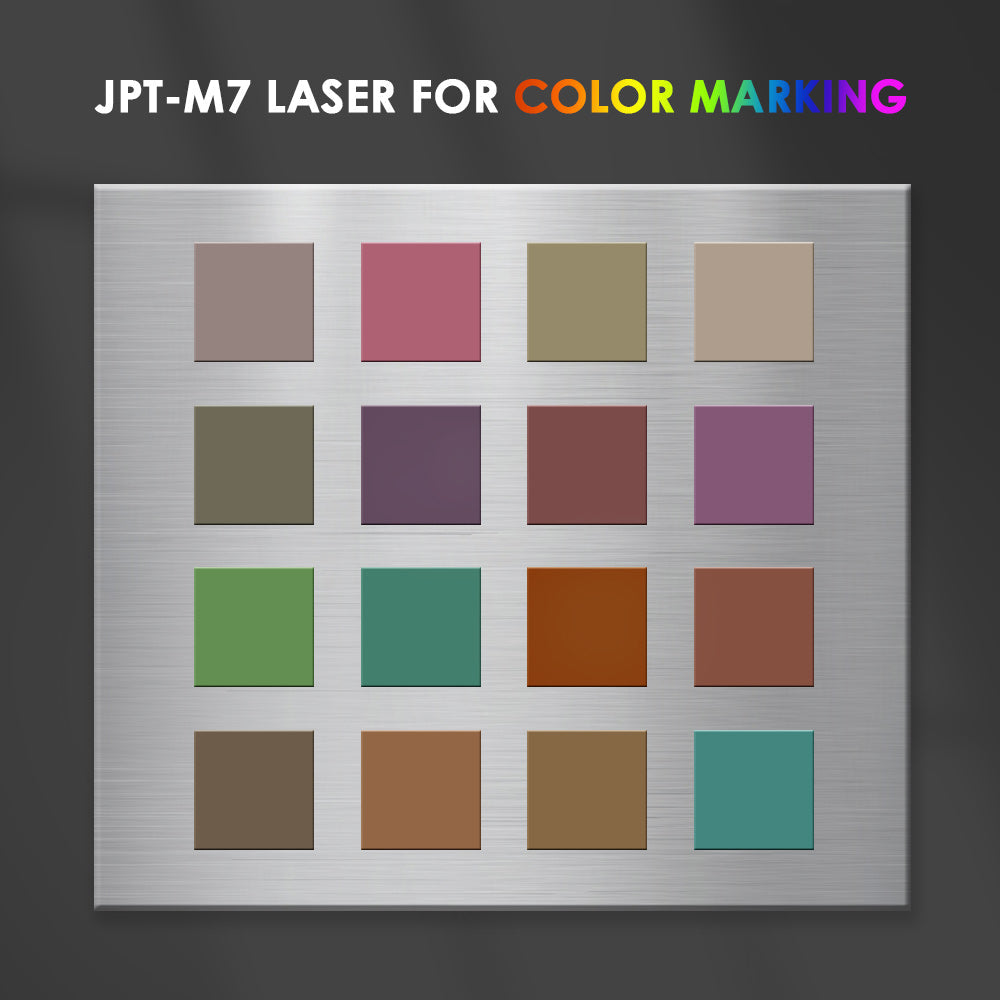

Full Color Marking
With adjustable pulse frequency and width, MOPA 60W fiber enables vibrant color marking on stainless steel and high contrast engraving on anodized aluminum. Not only does it boast an MTTF exceeding 100,000 hours, but it also delivers precise cuts of up to 0.05mm per pass, accurate to ±0.1 micron.

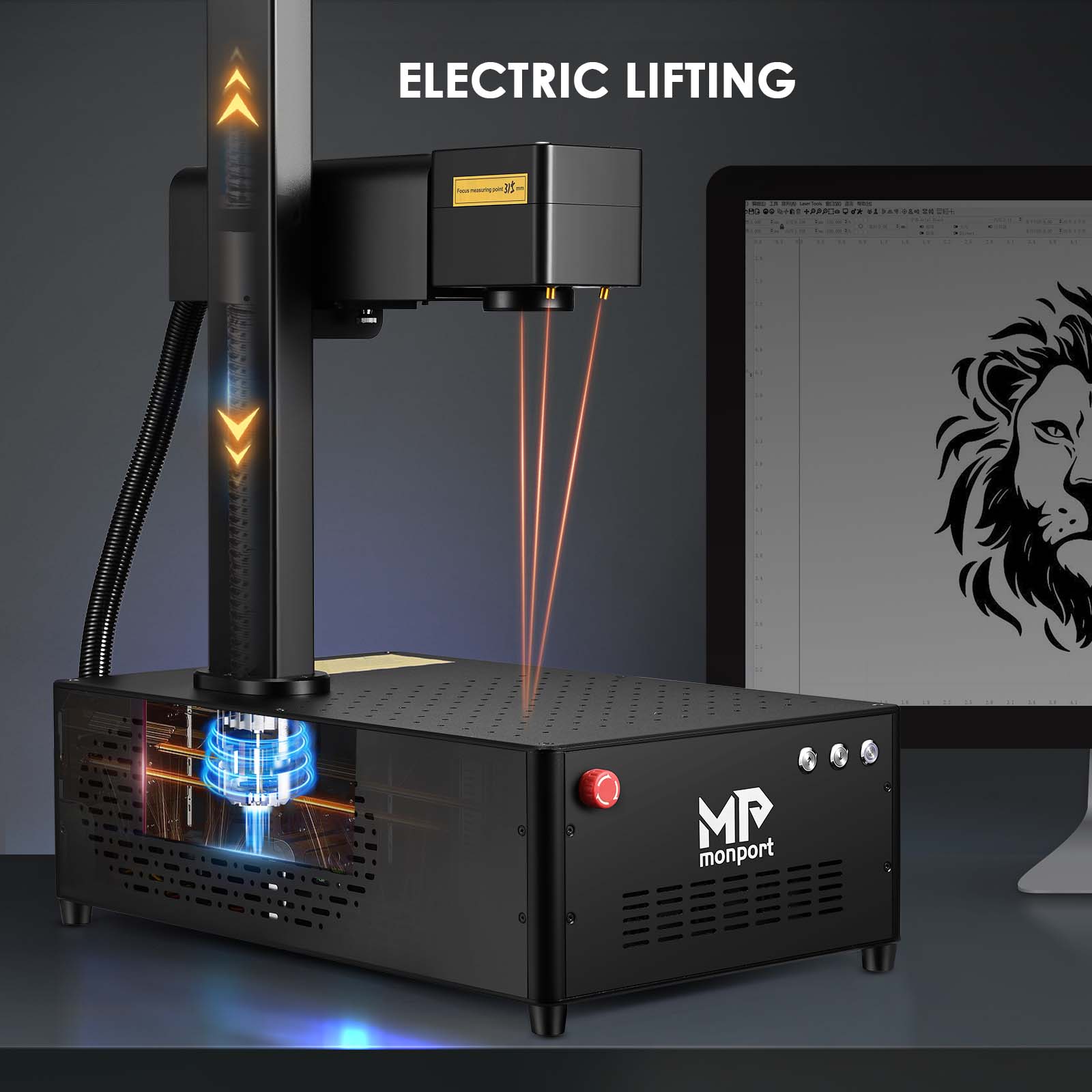

Electric Lifting
Monport adds built-in hidden lifting motor for more precise focusing,and this will help users operate without obstacles and greatly improve the final marking effect.
It is extremely friendly to beginners.

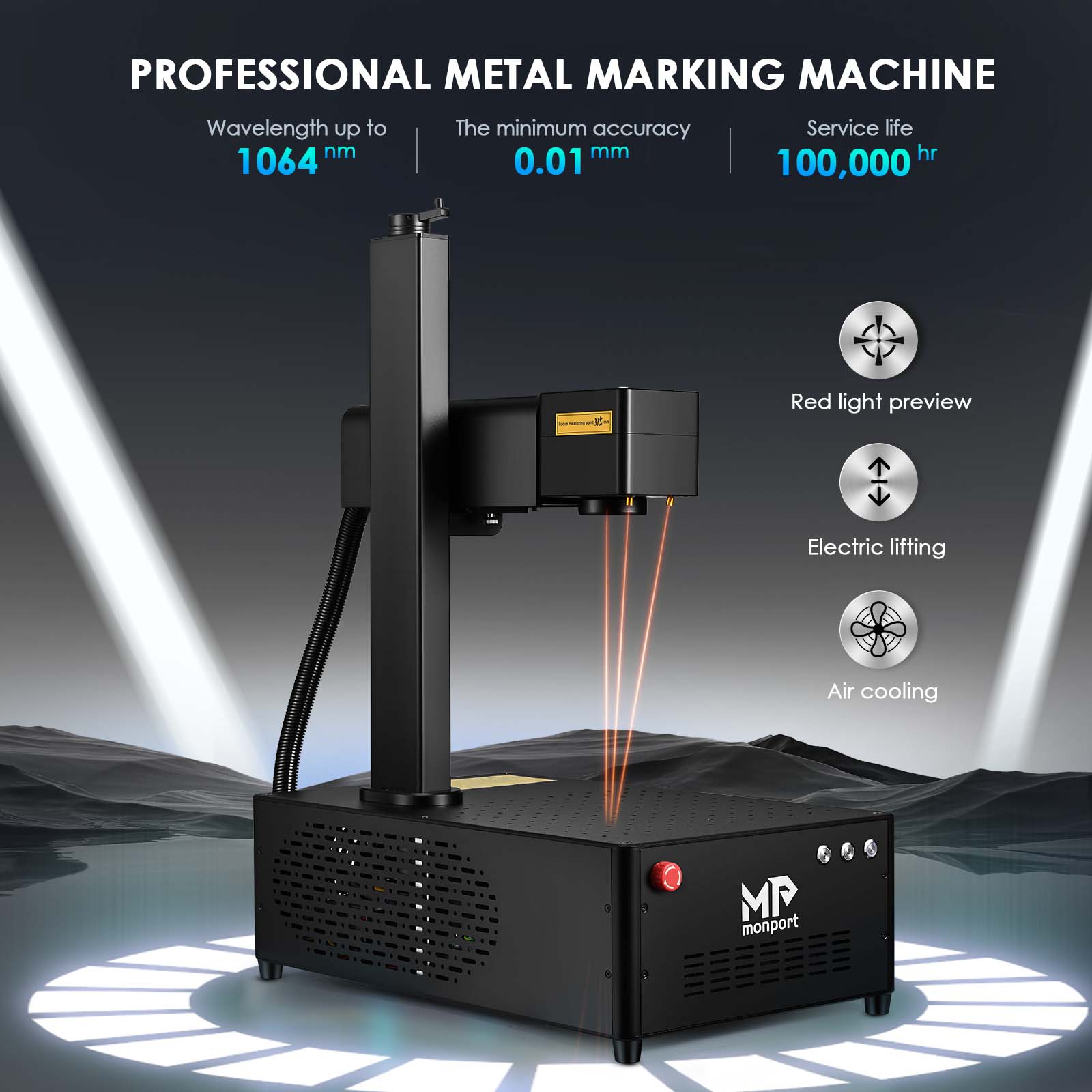

Excellent Marking Capability
Monport's 60W JPT MOPA fiber laser marking machine propels your design journey with unmatched speed, precision, and flexibility.
Marking speed up to 10000mm/s.
Not only does it boast an MTTF exceeding 100,000 hours, but it also delivers precise cuts of up to 0.05mm per pass, accurate to ±0.1 microns.

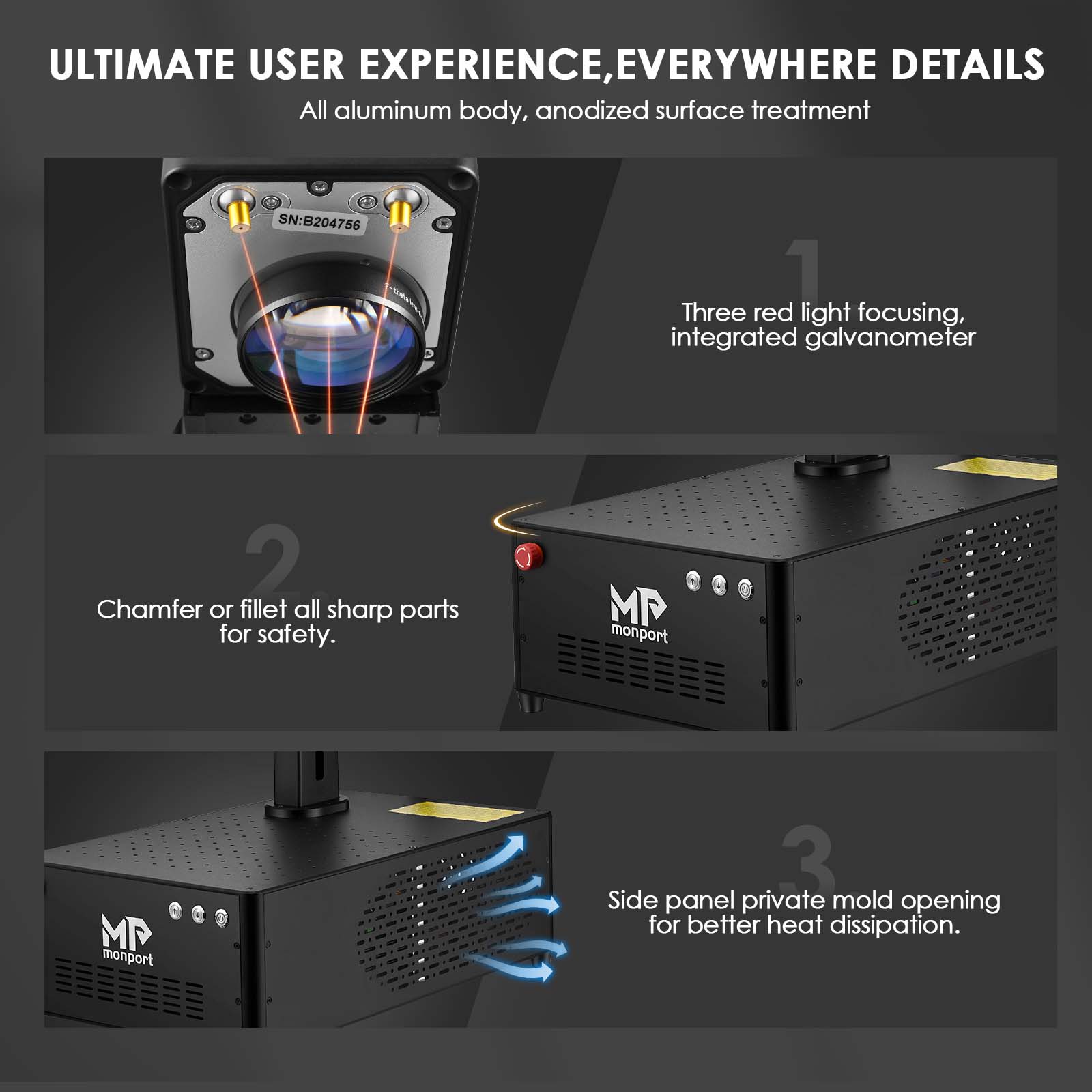

Everywhere Details
①The entire machine casing is made of anodized aluminum oxide material, showcasing a high-quality texture.
②Chamfer or fillet all sharp parts for safety.
③Add dust shields to the back of the work area for longer service life.
④Enjoy the accompanying rich material pack in advance.All for the ultimate user experience.

Multiple Apllications
Monport Integrated Fiber effortlessly and swiftly marking on a wide range of materials. Whether it's metal, stone, or leather, achieve impeccable results with every use.

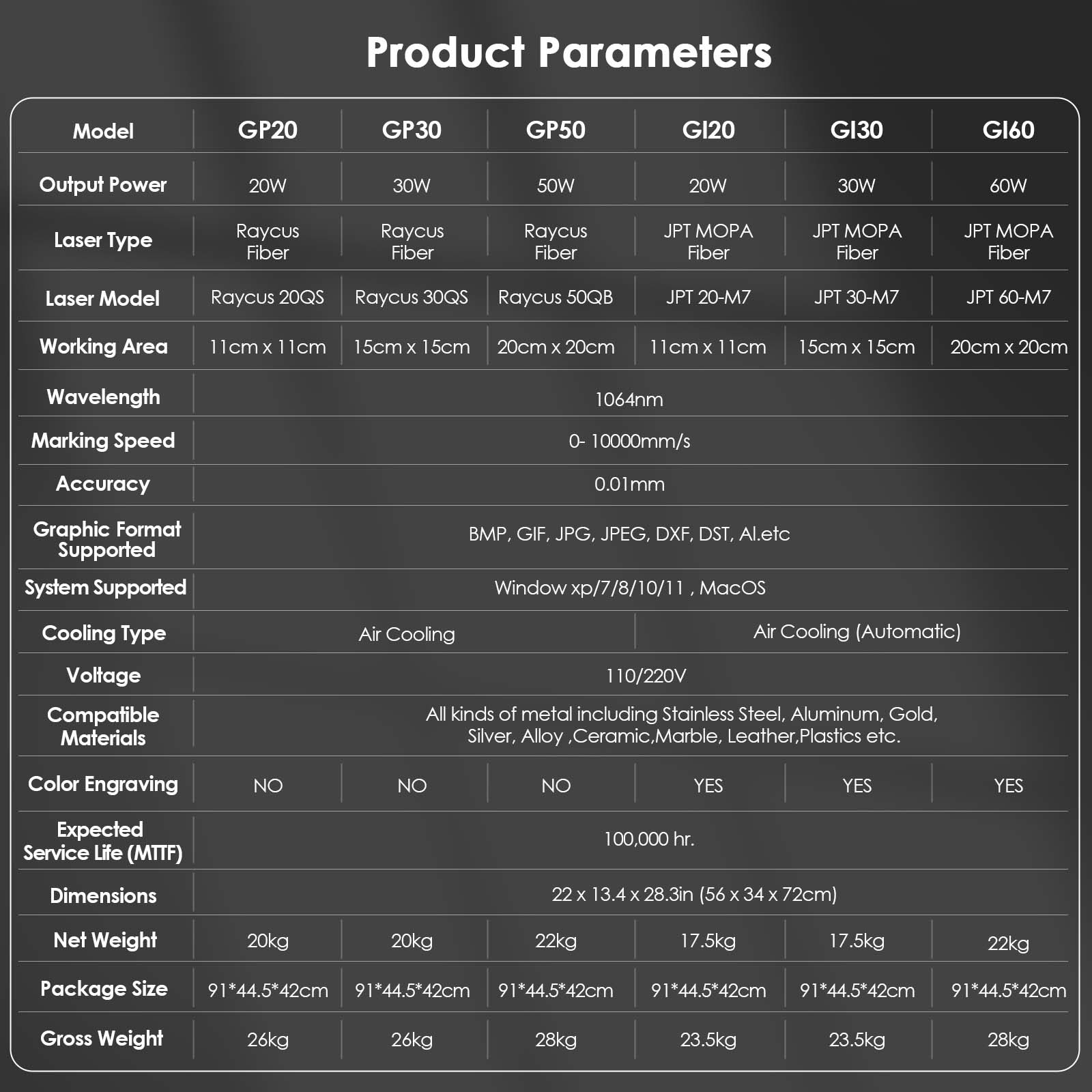

Laser Model | GP20 | GP30 | GP50 | GI20 | GI30 | GI60 |
---|---|---|---|---|---|---|
Output Power | 20W | 30W | 50W | 20W | 30W | 60w |
Laser Type | Raycus Fiber | Raycus Fiber | Raycus Fiber | JPT MOPA Fiber | JPT MOPA Fiber | JPT MOPA Fiber |
Laser Model | Raycus 20QS | Raycus 30QS | Raycus 50QB | JPT 20-M7 | JPT 30-M7 | JPT 60-M7 |
Frequency Ajustable Range | 30-60khz | 30-60khz | 30-60khz | 1-4000khz | 1-4000khz | 1-4000khz |
Working Area | 4.3"x4.3" | 5.9"x5.9" | 7.9"x7.9 | 4.3"x4.3" | 5.9"x5.9" | 7.9"x7.9 |
Field Lens Dimension | 110mm x 110mm | 150mm x 150mm | 200mm x 200mm | 110mm x 110mm | 150mm x 150mm | 200mm x 200mm |
Wavelength | 1064nm | 1064nm | 1064nm | 1064nm | 1064nm | 1064nm |
Marking Speed | 0- 10000mm/s | 0- 10000mm/s | 0- 10000mm/s | 0- 10000mm/s | 0- 10000mm/s | 0- 10000mm/s |
Accuracy | 0.01mm | 0.01mm | 0.01mm | 0.01mm | 0.01mm | 0.01mm |
Graphic Format Supported | BMP, GIF, JPG, JPEG, DXF, DST, Al.etc | BMP, GIF, JPG, JPEG, DXF, DST, Al.etc | BMP, GIF, JPG, JPEG, DXF, DST, Al.etc | BMP, GIF, JPG, JPEG, DXF, DST, Al.etc | BMP, GIF, JPG, JPEG, DXF, DST, Al.etc | BMP, GIF, JPG, JPEG, DXF, DST, Al.etc |
System Supported | Window xp/7/8/10/11 , MacOS | Window xp/7/8/10/11 , MacOS | Window xp/7/8/10/11 , MacOS | Window xp/7/8/10/11 , MacOS | Window xp/7/8/10/11 , MacOS | Window xp/7/8/10/11 , MacOS |
Cooling Type | Air Cooling | Air Cooling | Air Cooling | Air Cooling (Automatic) | Air Cooling (Automatic) | Air Cooling (Automatic) |
Voltage | 110/220V | 110/220V | 110/220V | 110/220V | 110/220V | 110/220V |
Compatible Materials | all kinds of metal including Stainless Steel, Aluminum, Gold, Silver, Alloy ,Ceramic,Marble, Leather,Plastics etc. | all kinds of metal including Stainless Steel, Aluminum, Gold, Silver, Alloy ,Ceramic,Marble, Leather,Plastics etc. | all kinds of metal including Stainless Steel, Aluminum, Gold, Silver, Alloy ,Ceramic,Marble, Leather,Plastics etc. | all kinds of metal including Stainless Steel, Aluminum, Gold, Silver, Alloy ,Ceramic,Marble, Leather,Plastics etc. | all kinds of metal including Stainless Steel, Aluminum, Gold, Silver, Alloy ,Ceramic,Marble, Leather,Plastics etc. | all kinds of metal including Stainless Steel, Aluminum, Gold, Silver, Alloy ,Ceramic,Marble, Leather,Plastics etc. |
Color Engraving | NO | NO | NO | YES | YES | YES |
Expected Service Life (MTTF) | 100,000 hr. | 100,000 hr. | 100,000 hr. | 100,000 hr. | 100,000 hr. | 100,000 hr. |
Dimensions | 22 x 13.4 x 28.3in (56 x 34 x 72cm) | 22 x 13.4 x 28.3in (56 x 34 x 72cm) | 22 x 13.4 x 28.3in (56 x 34 x 72cm) | 22 x 13.4 x 28.3in (56 x 34 x 72cm) | 22 x 13.4 x 28.3in (56 x 34 x 72cm) | 22 x 13.4 x 28.3in (56 x 34 x 72cm) |
Net Weight | 20kg | 20kg | 22kg | 17.5kg | 17.5kg | 22kg |
