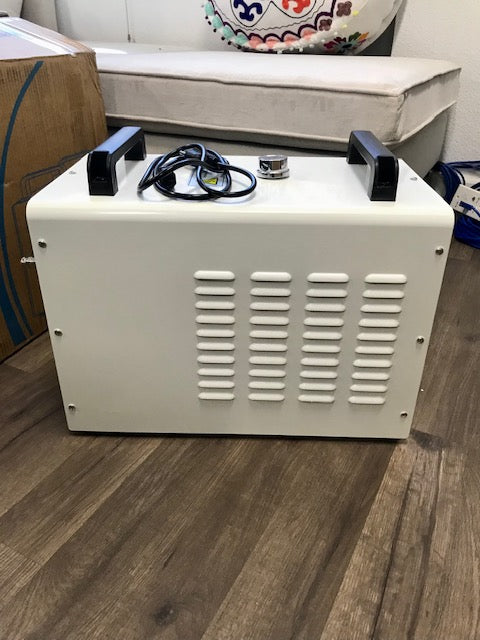

Monport 6L CW-5200 Industrial Water Chiller for 40W-150W CO2 Laser Engraver

Current price C$589.99
C$589.99 - C$589.99
Current price C$589.99
Original price C$729.99
Original price C$729.99 - Original price C$729.99
Original price C$729.99
Dimension

Product dimension: 27” x 16” x 22” ( 68.5 x 41 x 56 cm )

Total weight: 59.5 lb ( 27 kg )

Benefits & Features

Multiple Safety Guarantee

This professional chiller has multiple warning protection mechanisms such as alarms for ambient temperature, alarms for overheated/overchilled water temperature. When an alarm occurs, the display will alternate between the water temperature and the error.

Large Water Cooling Capacity

1.6 gallon (6L) water tank features a closed design to reduce water evaporation and ensures a powerful cooling performance. The water level observation window at the back of the machine lets you keep track of use and know when to refill the tank.

Digital Screen with Real-time Data

It is very easy to monitor the real-time temperature on the screen. Besides, you can get immediate information about whether the water/room temperature is abnormal. It never deviates outside of the range defined in the setup.

Super Quiet

It's about as loud as a mini-fridge (only around 50 dB) when the built-in air compressor is cooling and is almost silent when cooling is cycled off.

High-Grade Ports

Monport CW5200 chiller’s inlet and outlet ports are made of high-quality brass to keep long-term, non-corrosion performance and prevent any issues with leaks as it operates.

Dual Operating Mode

There are two cooling modes of CW5200, constant temperature mode and intelligent temperature mode. The intelligent mode will keep your laser tube within 2°C of the ambient room temperature. The constant mode allows you to set the temperature range manually.

Specification

Model Number: CW-5200 Water Chiller

Compressor Power: 0.6 HP (0.45kW)

Air Compressor: standard R410a refrigerant

Input Power Supply: 110 V / 60Hz

Maximum Flow: 2.6 gallon / min. (10L / min)

Maximum Lift: 29.5 ft (9 m)

Current: 4.6-6.5A

Product dimension: 27” x 16” x 22” ( 68.5 x 41 x 56 cm )

Total weight: 59.5 lb ( 27 kg )

Warranty & Certification

1-year warranton all water chillers

FDA Approved & CE Certified

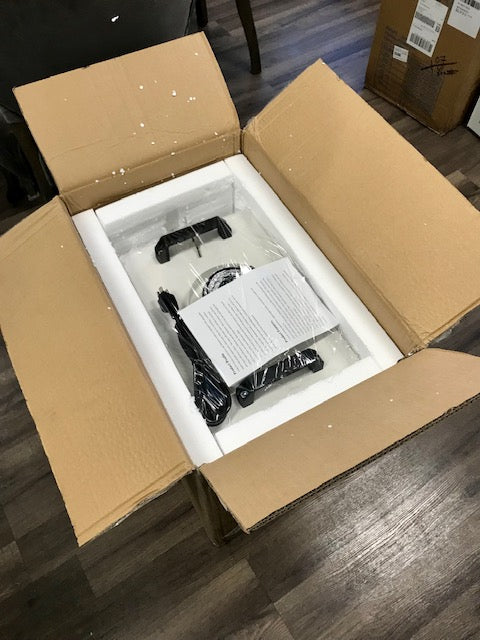

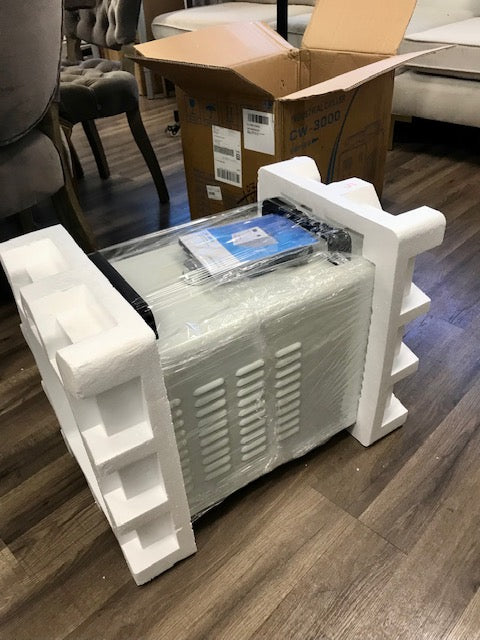

Package Contents

Industrial Chiller *1

Power Cord *1

Alarm Signal Output Plug *1

Spare fuse *1

Instruction Manual *1

Stainless Steel Clamp *2

Download the User Manual

Download the User Manual
