CA Delivery time : Usually 15-20 Business Days
Dimension
Working Area: 7.9" X 7.9"
Machine Dimension: 8.2" x 17.7" x 15.3"( 21cm x 45cm x 39cm )
Main Tower Dimension: 13.7" x 21.6" x 26,9" ( 35cm x 55cm x 68.5cm )

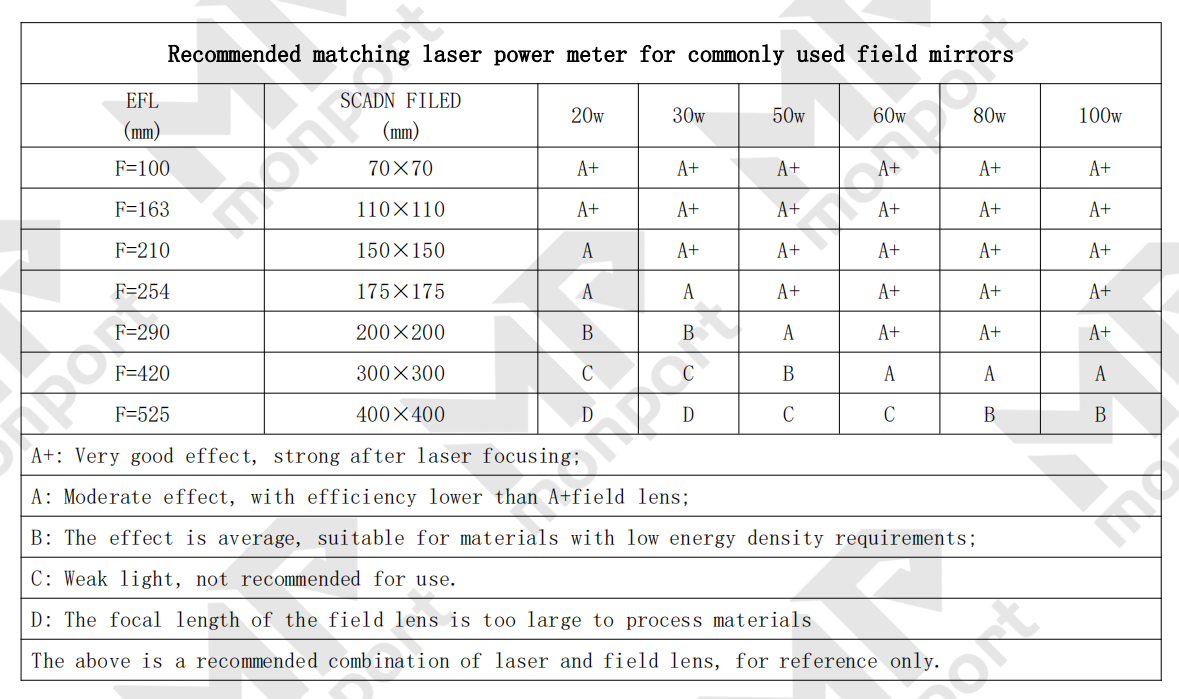

Field Lens Dimension: 200mm x 200mm
Fiber Lens Model: M52(55-68MM)
Machine Weight: 73.8lbs ( 33.5 kg )
Monport 50W Features & Benefits
Galvo-Tech Control
Discover unmatched speed and precision with our Sino-Galvo laser technology. This advanced system delivers laser beams with extraordinary accuracy and speed, enabling quick scanning, engraving, and seamless project completion. It outperforms standard CO2 lasers.
Raycus Fiber Laser Source
Confidently mark metals using our Raycus fiber laser source, which offers an impressive estimated lifetime of up to 100,000 hours. Capable of safely engraving stainless steel, gold, silver, brass, and more, it ensures long-lasting, high-quality markings.
Enhanced Workspace
Our laser machine features an advanced built-in workspace equipped with a grid and removable positioning bars for precise material placement and flawless engraving results. Additionally, an optional rotary axis (not included) allows for effortless marking of curved surfaces like tubes, bottles, and pipes.
Portable Design
Tailored to accommodate a variety of accessory sizes, our 50w fiber laser machine is highly versatile. Its compact design makes it suitable for both desk placement and studio use, offering convenient usage in various settings.
Additional Laser Guidance
Optimize laser focus setup with our additional laser guidance feature. The external red dot locator, once aligned, synchronizes with the laser's scanner to provide precise guidance for laser placement.
Manual Focus
Our 50w fiber laser machine includes manual focus capability for precise adjustments on different materials such as gold, silver, brass, and stainless steel. Simply rotate the focus-height wheel to adapt to the chosen material. For more accurate focus height measurements, the vertical support tower is equipped with a ruler for convenience.
Monport 50W Specification
Compatibility
Includes EzCad2 software compatible with Windows XP/7/10 (32 and 64 bits)
Compatible with Lightburn, AutoCAD, CorelDraw and more supported image formats: BMP, GIF, JPG, DXF, PNG and others
Laser System
Rated at 50 watt
Maximum marking speed of 7000 mm/s
Laser Wavelength: 1064 nm
Material Capability
Metals: Stainless Steel, Aluminum, Common Alloys, anodized aluminum, Brass, Chromium, Gold&Silver, Titanium
Non-Metals: Slate, Hard Plastics, Artificial Leather, Colored Acrylic
Package Contents
50 Watt Fiber Laser Marker Machine *1
Power Cable *1
Foot Pedal *1
Laser Safety Glasses *1
USB Flash Drive *1
Clips *2
Bolts *4
Instruction Manual *1
Warranty & Certifications
2-year warranty on every fiber laser machine
FDA Approved & CE Certified
About More
Download the User Manual: 50W Fiber User Manual
Download the Software: EzCad2
Download the Software Manual: EzCad2 Description
We offer compatible accessories: Fiber Laser Rotary
We sponsor CDR files: https://kokorosastudio.com
