Input Voltag: 24V

Rated Power: 10 W

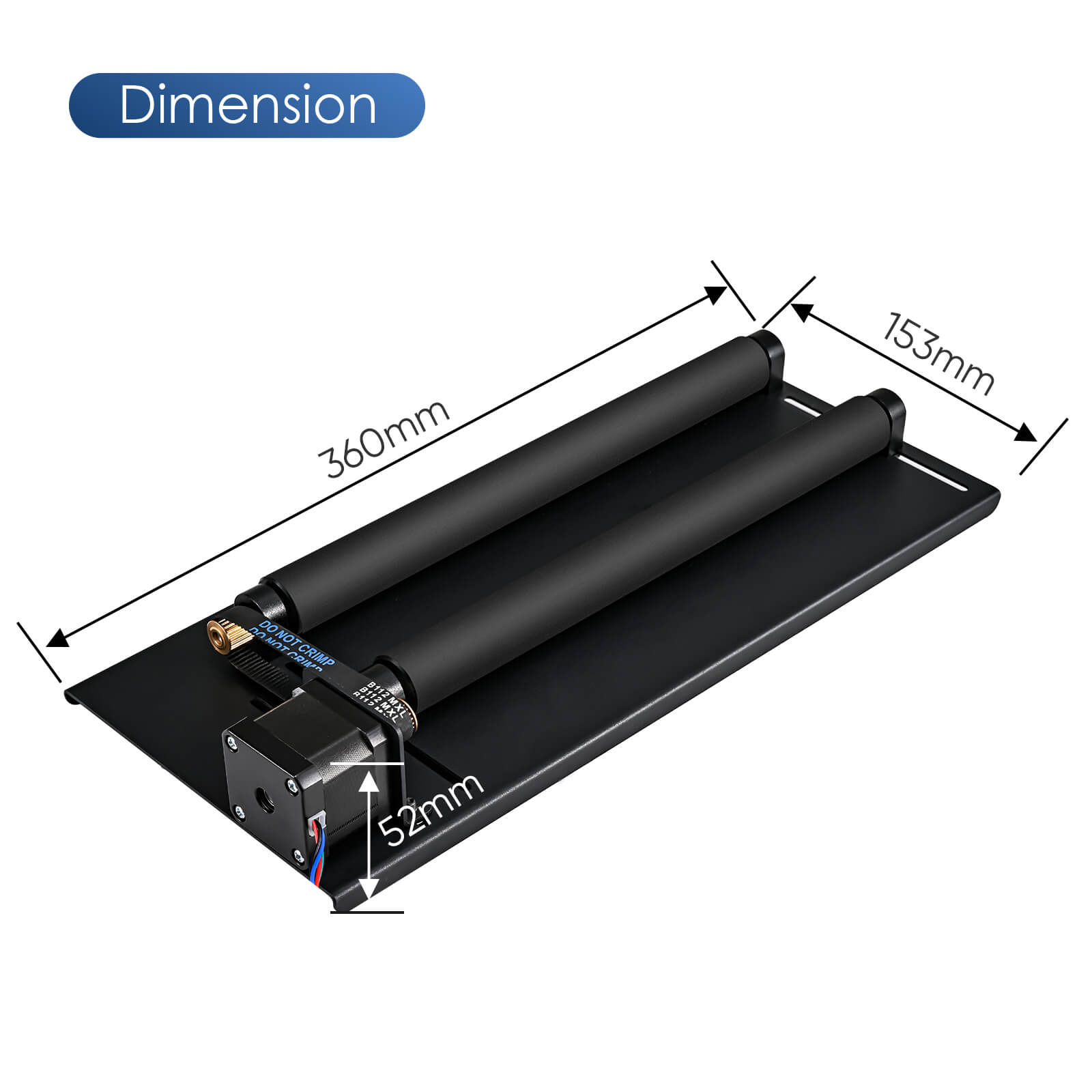

Product Dimensions: 14.1x6.1x2 in.(35.9x15.5x5.2cm)

Distance between Rollers: 0.2-2.9 in.(5-73 mm)

Roller Length: 10.4 in. (26.4 cm)

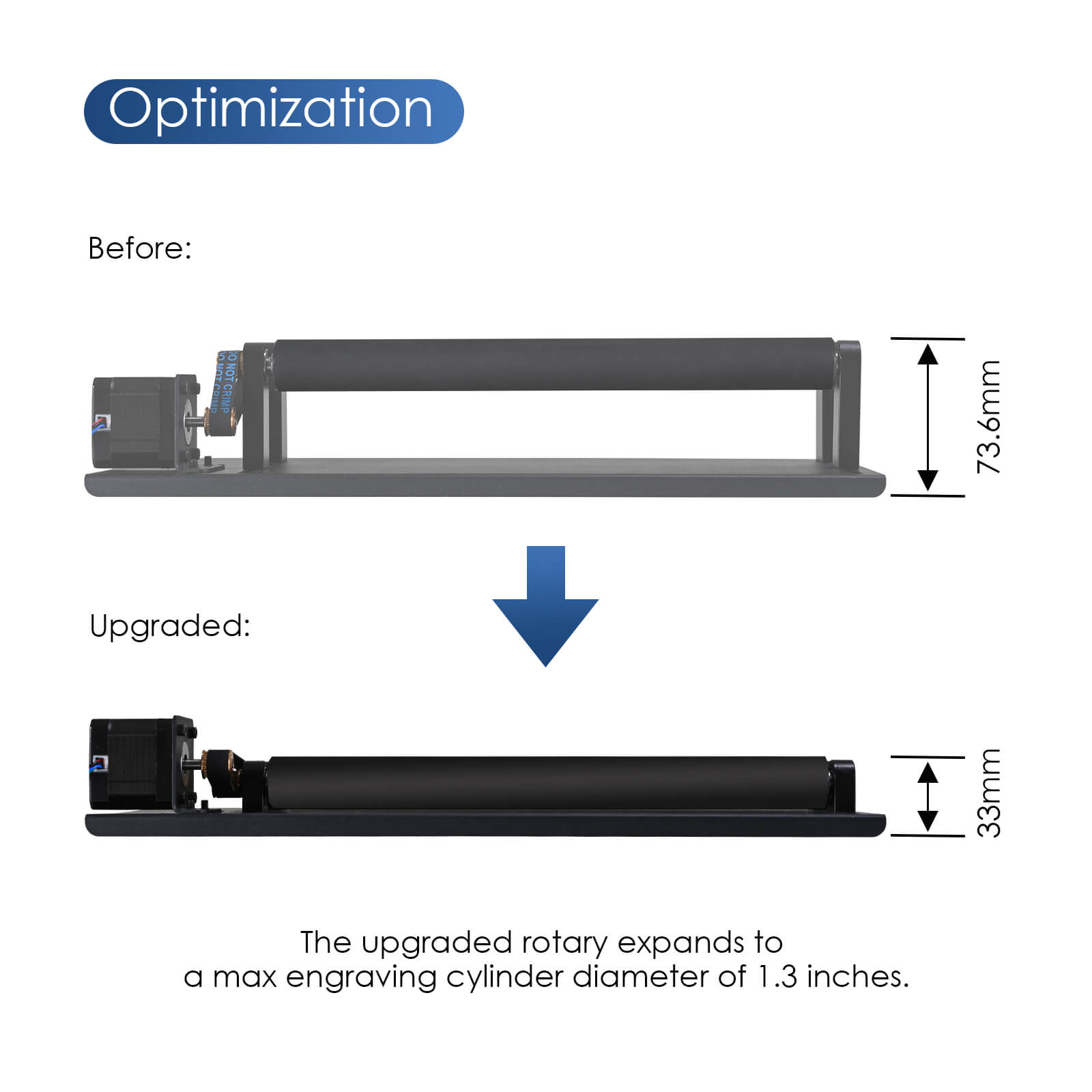

Fixed Roller Height: 1.3 in. (3.4 cm)

Net Weight: 3.3lb.(1.5 kg)

360° Engraving

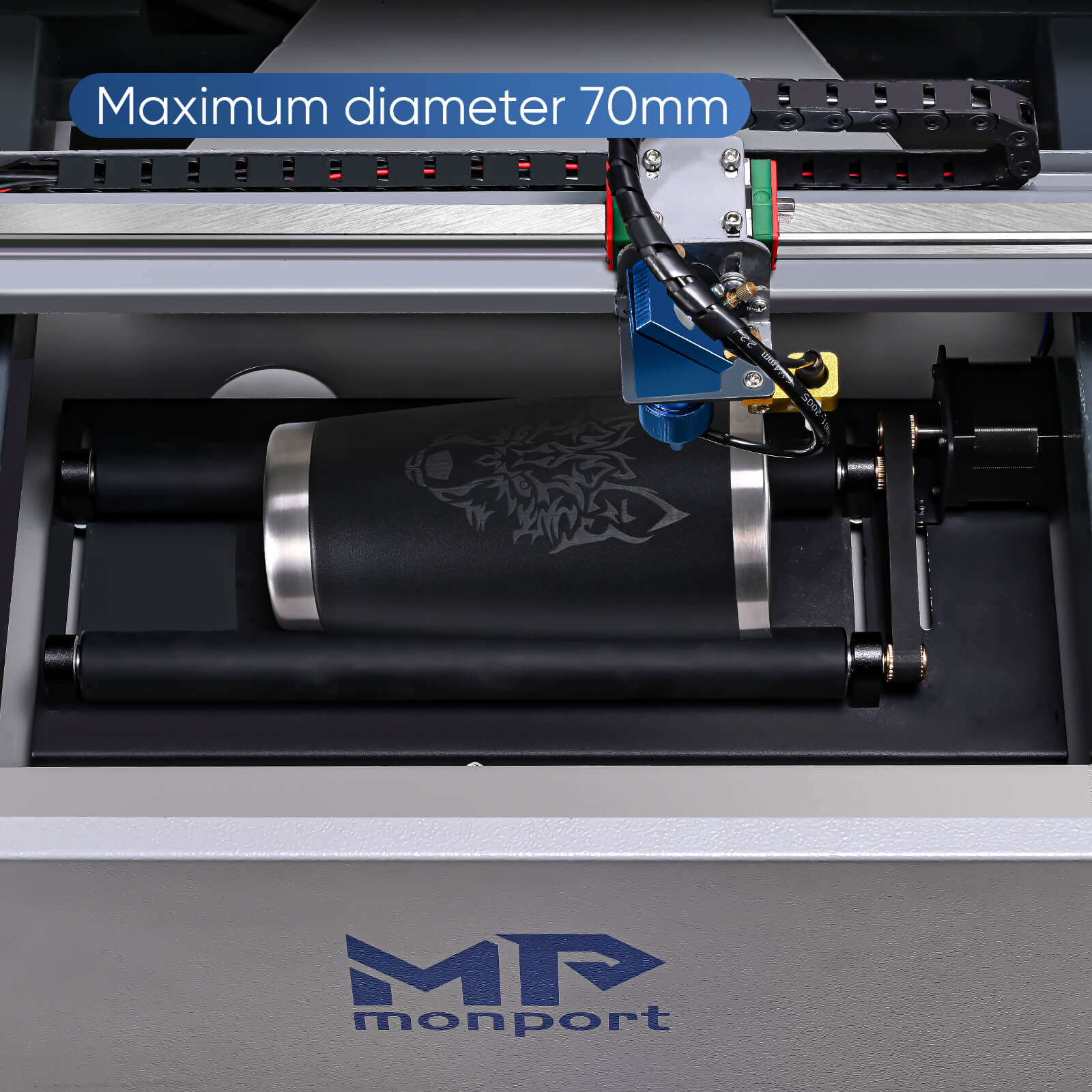

Monport rotary axis revolutionizes cylindrical engraving with a full 360° reach. The slimmed-down Y-axis roller stands at only 1.3 inches, supporting a maximum engraving diameter of 70mm for unparalleled laser accuracy and a wider engraving capacity.

Flexible Design

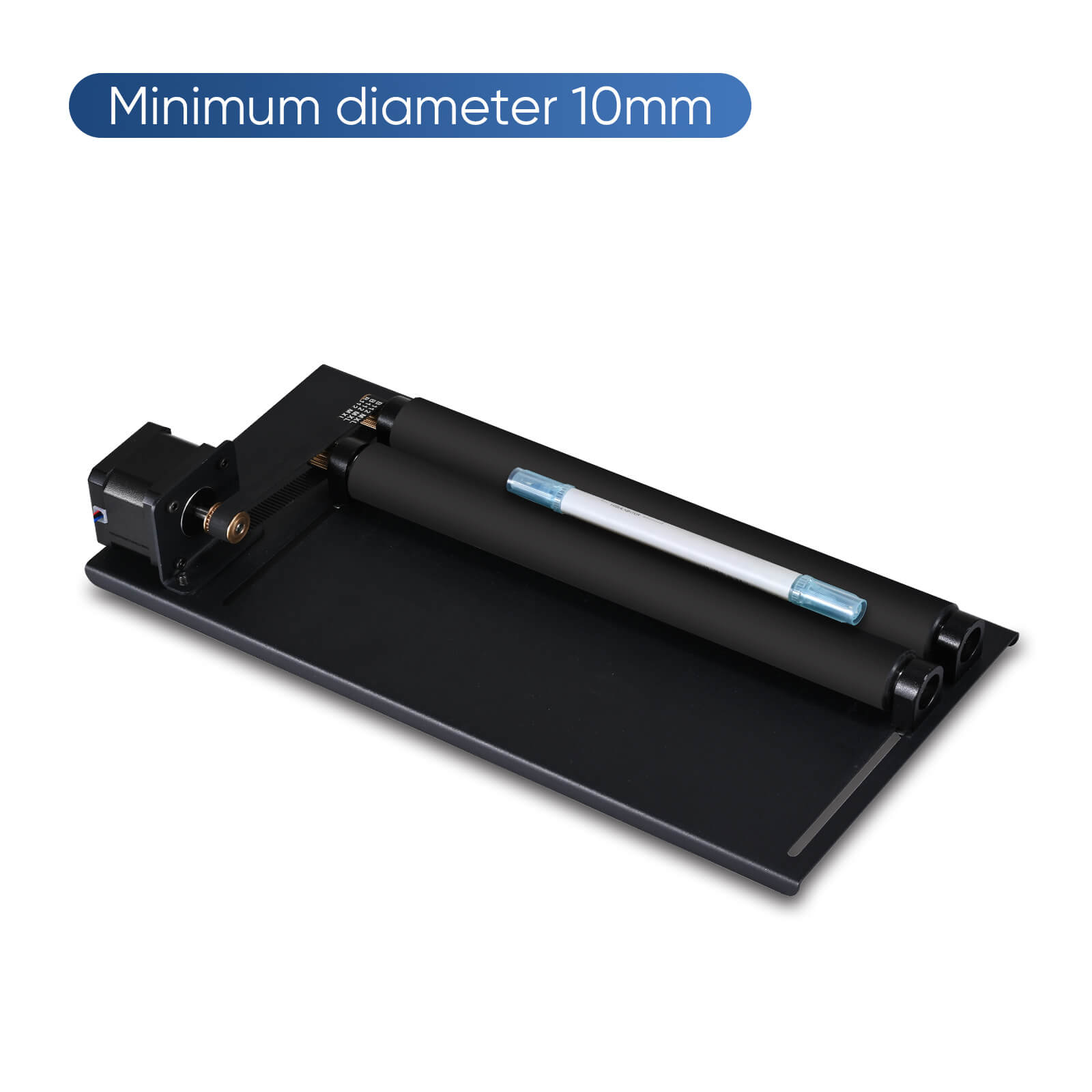

Adjustable roller suitable for engraving 0.4-3 inch cylinders.

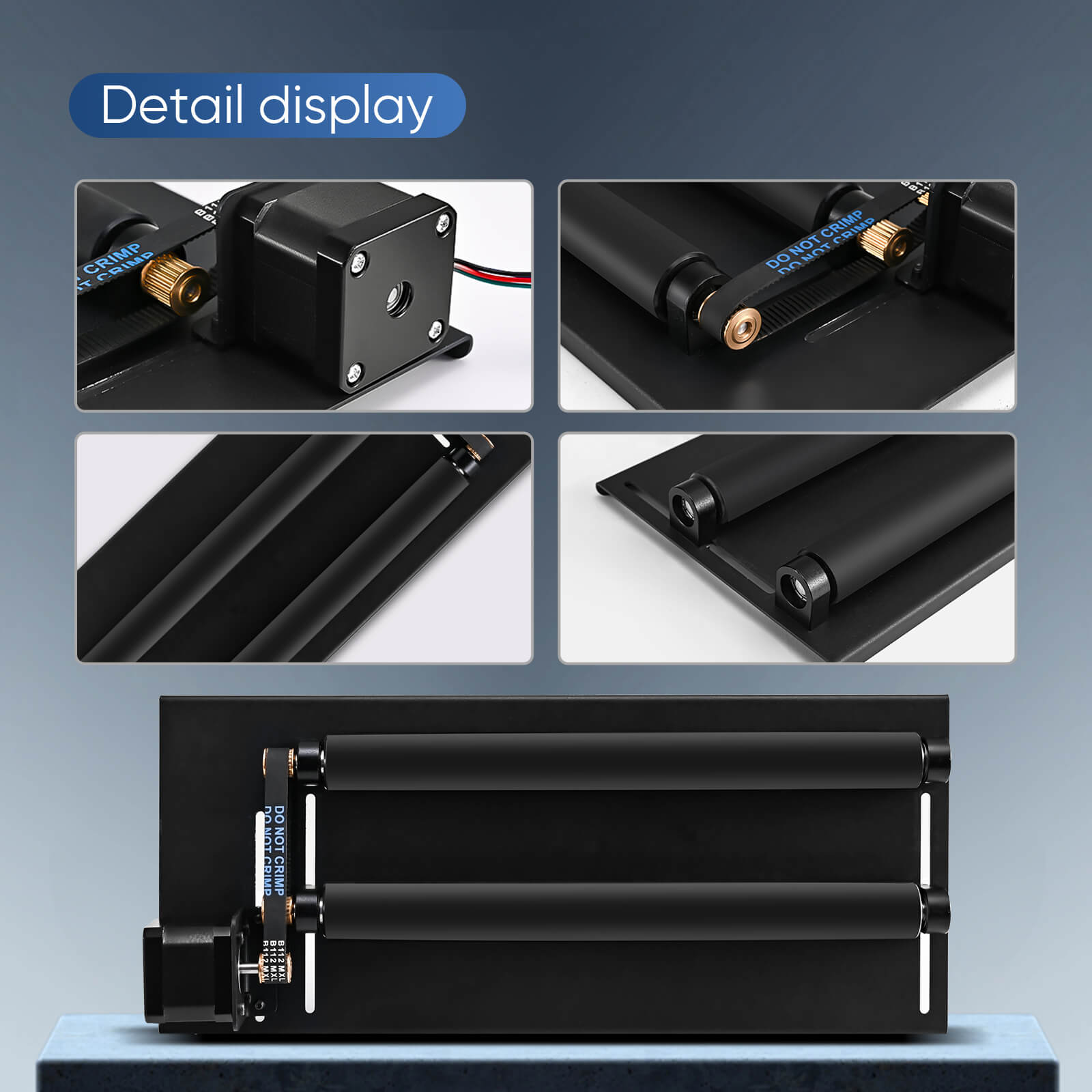

Durable & Efficient

Powered by a Nema17 stepper motor, it features a sturdy SPCC steel structure and silicone rollers that do not scratch the surface of carved objects, enabling smooth and noise free operation.

Simple Setup

Mount the rotary on the engraver's workbench, plug the 4-wire cable into the control board, and set up the software to begin your precision engraving journey.

Rotary Axis *1

Cable *1

Download the User Manual
