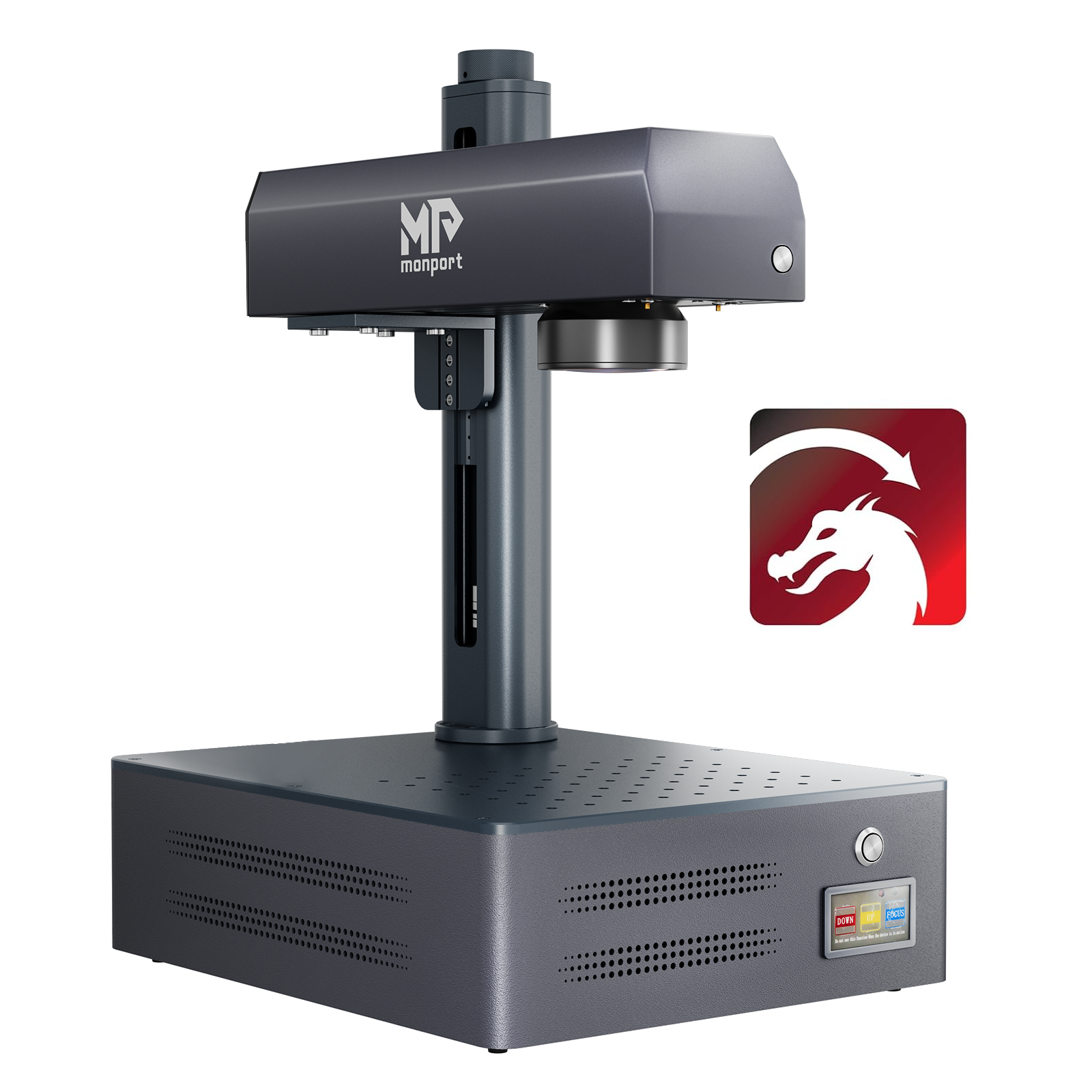

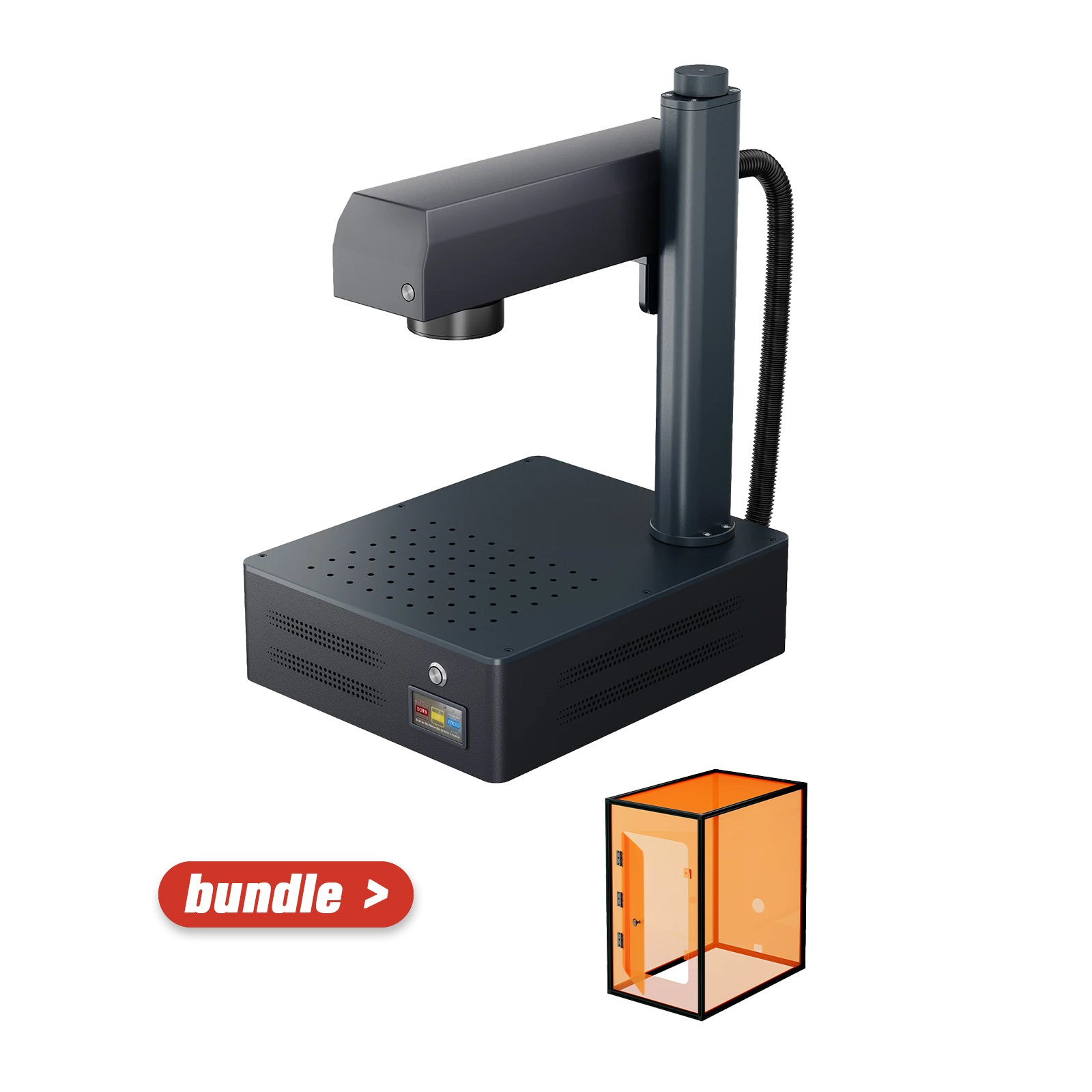

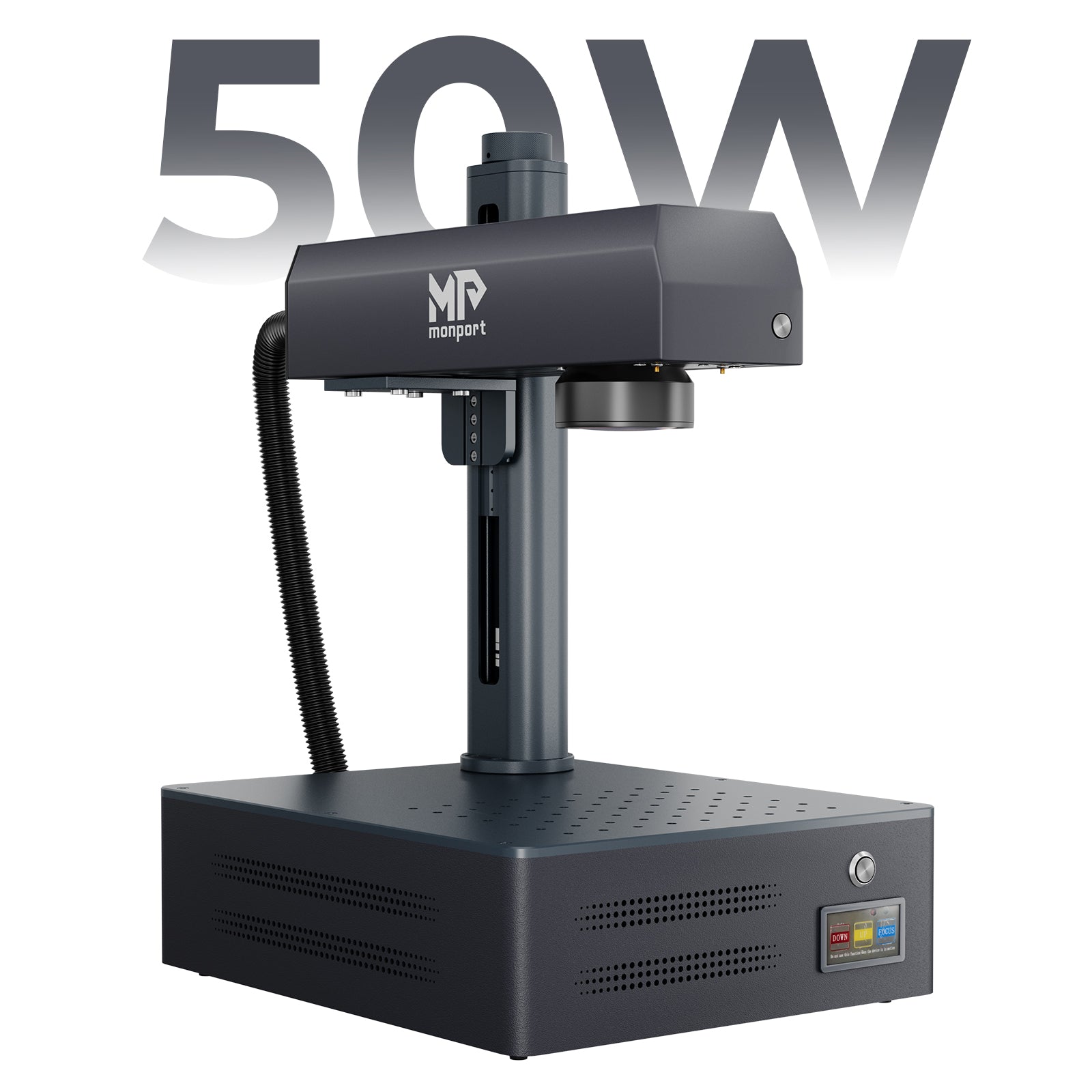

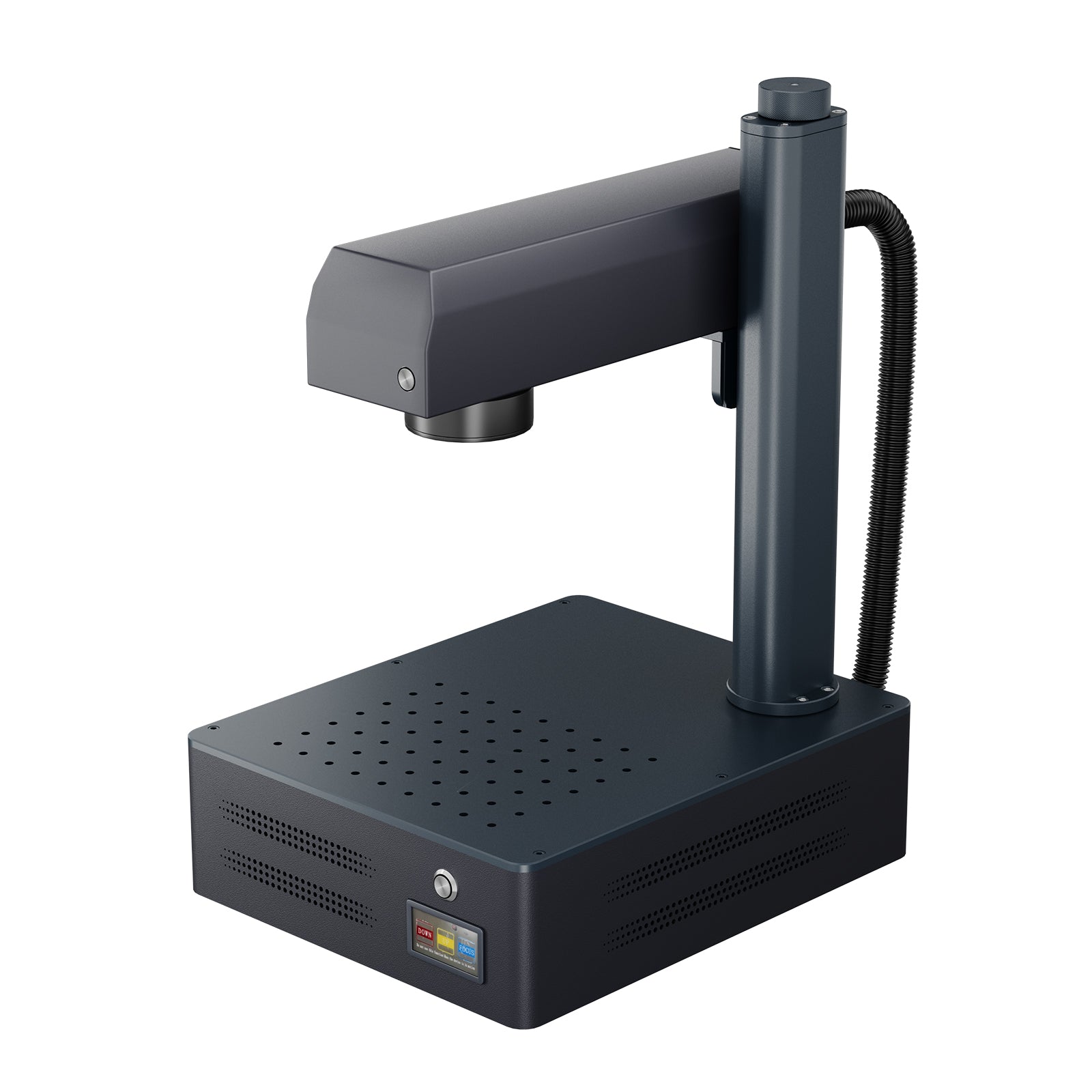

Monport GM 50W Pro Integrated Fiber Laser Engraver & Marking Machine with AutoFocus
Monport GM 50W Pro Integrated Fiber Laser Engraver & Marking Machine with AutoFocus
Regular price
C$3,989.99
Sale price
C$3,989.99
Regular price
C$4,589.99
Shipping calculated at checkout.
Low stock
Payment methods
Couldn't load pickup availability

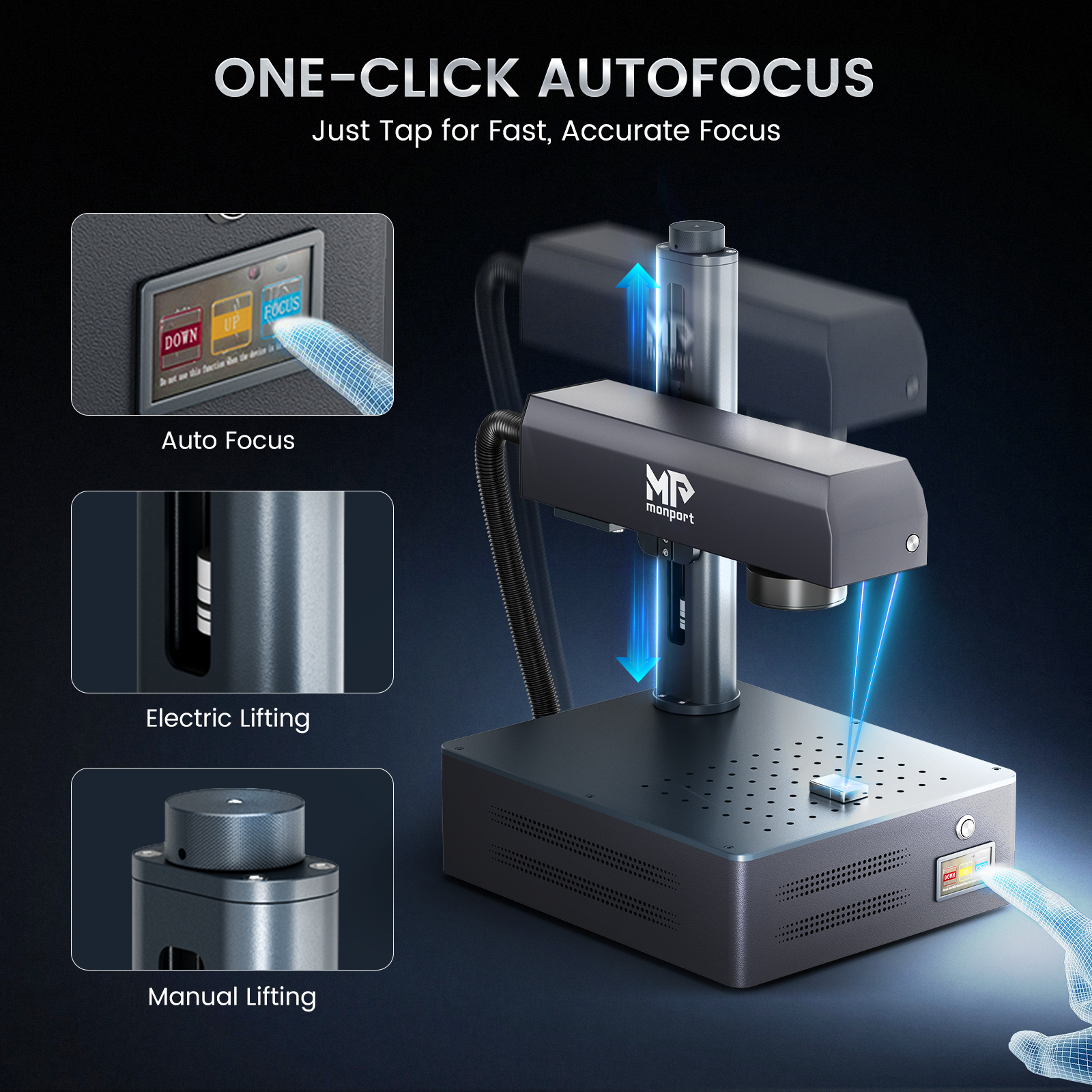

The GM Pro Series includes one-touch auto focus, delivering faster and more precise engraving.

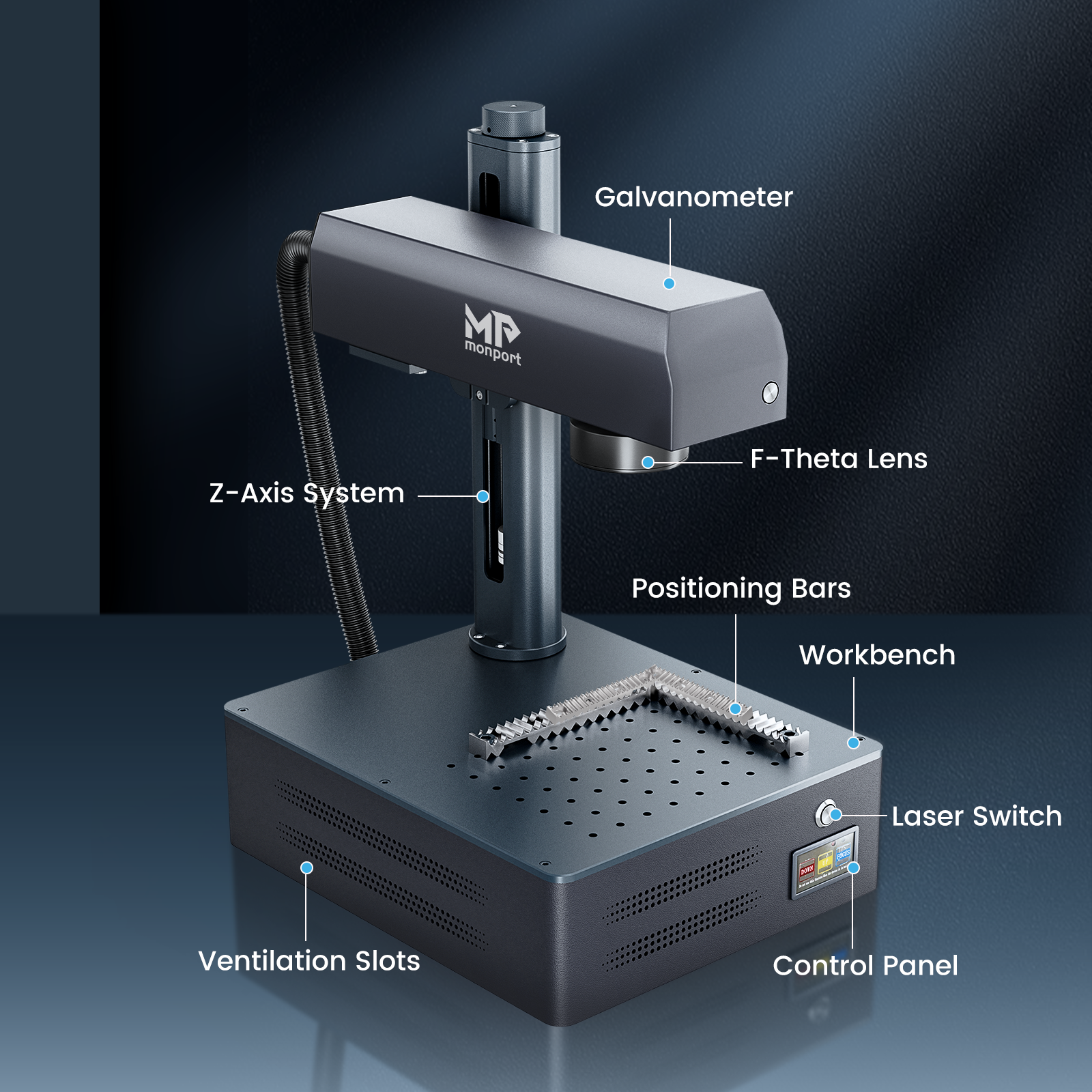

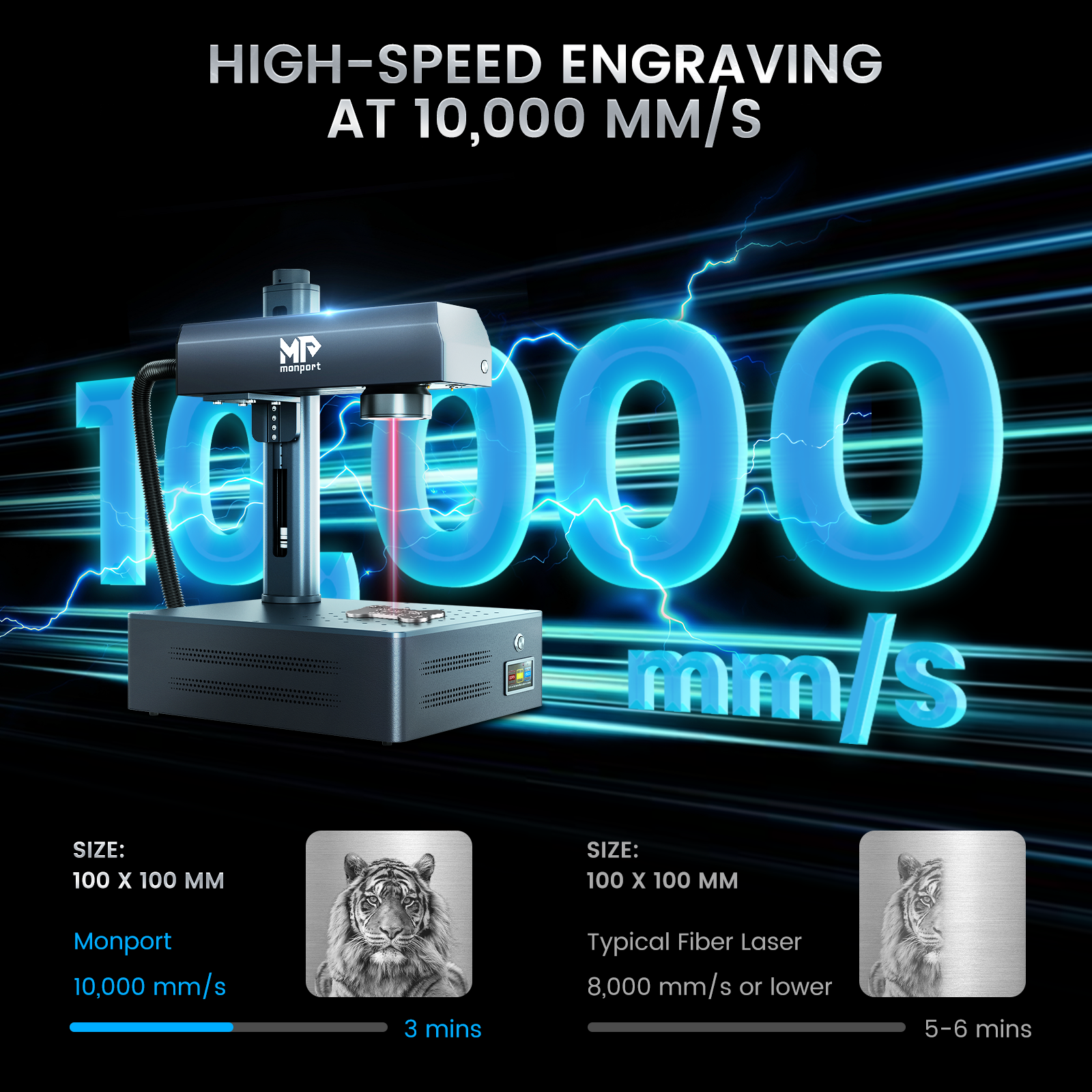

The galvanometer system reaches 10,000 mm/s, and with a custom F-theta field lens achieves 0.01 mm engraving accuracy.

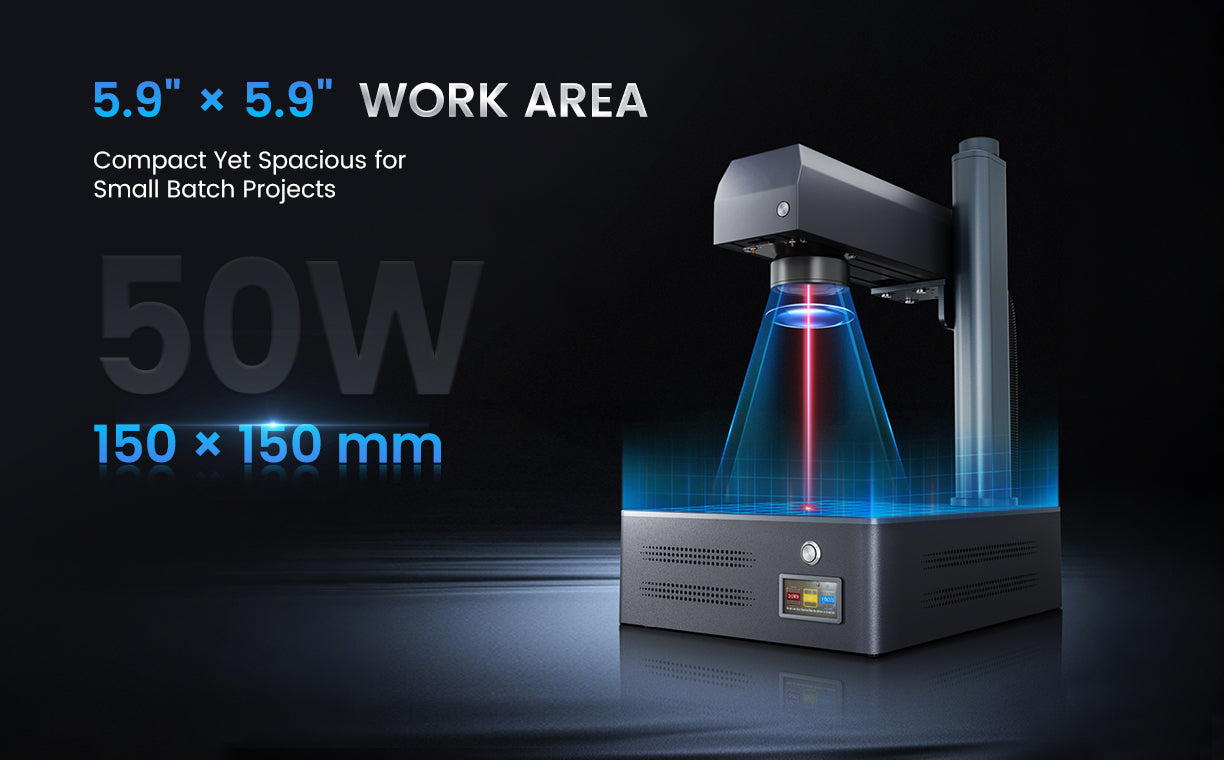

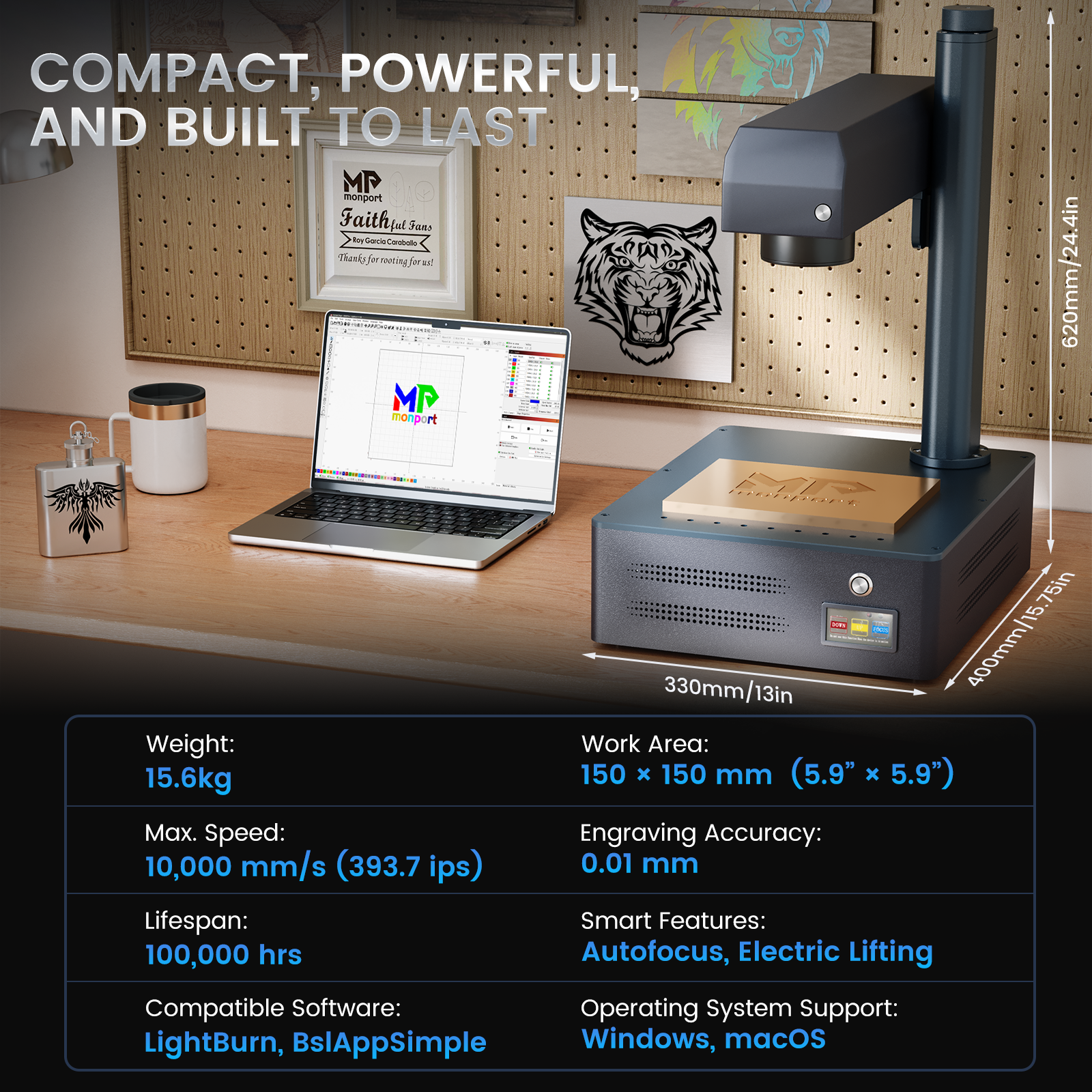

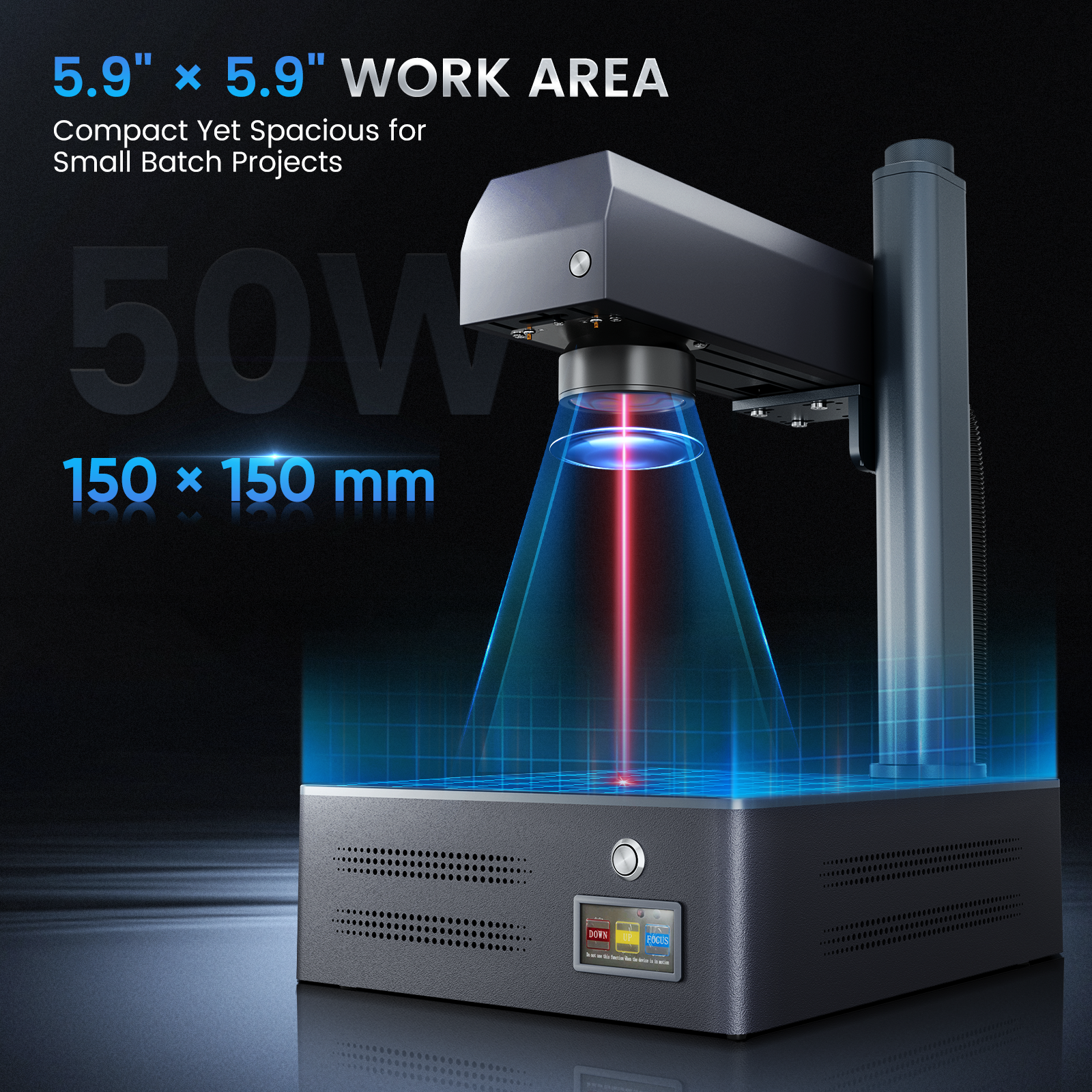

The 150 Ć 150 mm working area is ideal for a 50W fiber laser, ensuring consistent engraving without edge distortion.

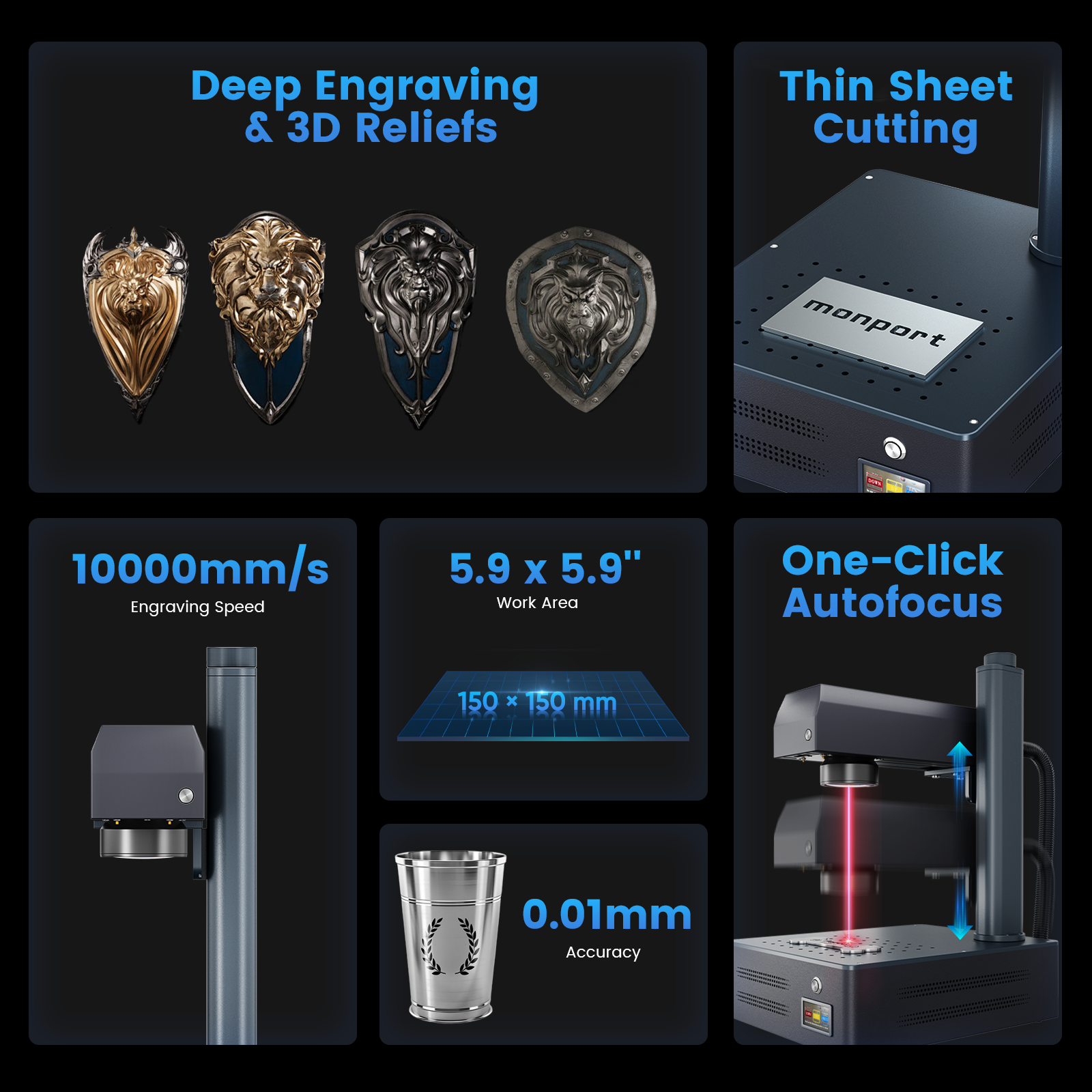

Higher power enables deeper engraving and finer detail, delivering excellent deep engraving and 3D relief results.

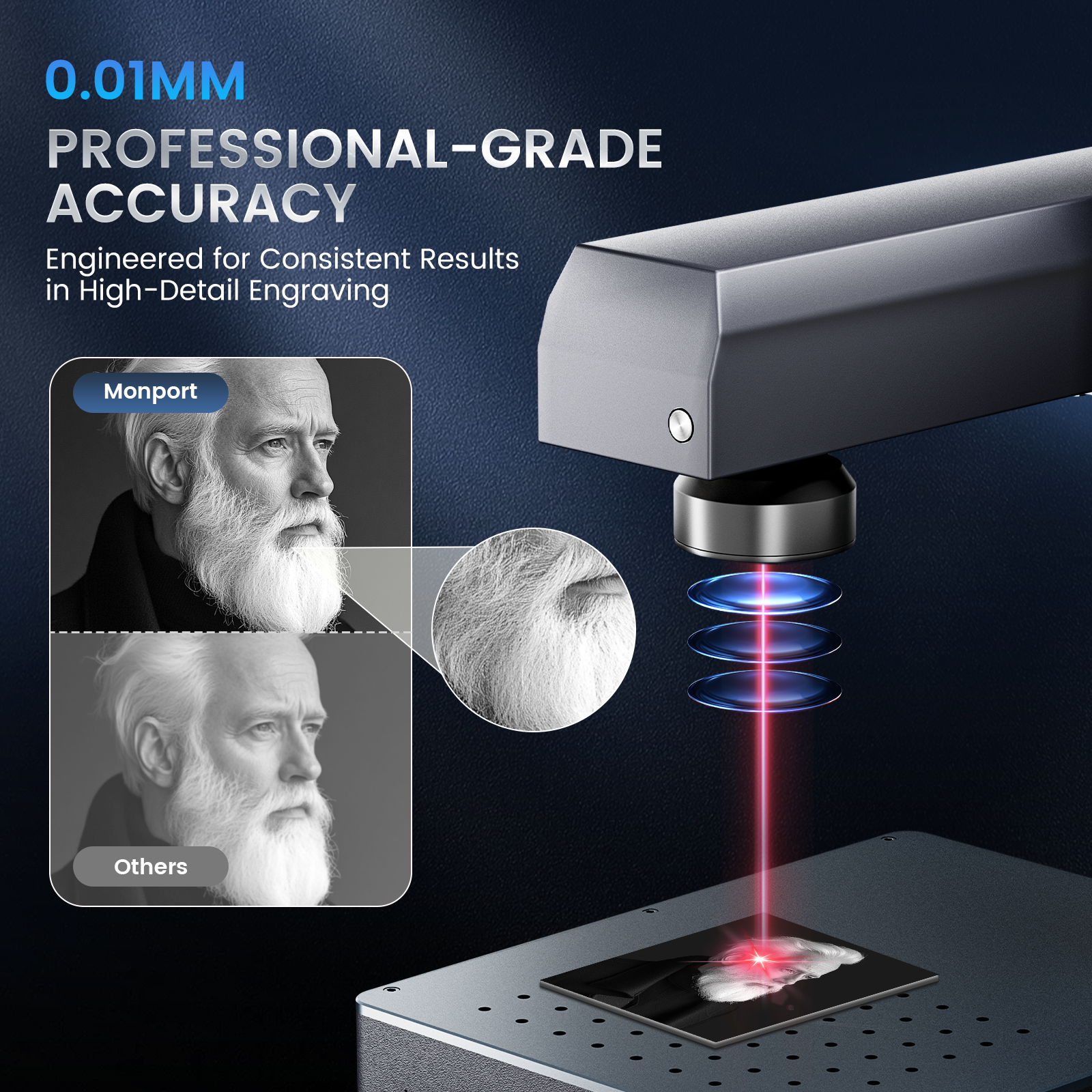

Engineered for precision, this machine delivers consistent, high-detail engraving with an accuracy of 0.01mm, ensuring flawless results with every use.
Compare each GM Pro Fiber Laser Model
| Product | GM20 Pro | GM30 Pro | GM50 Pro | GM30 Pro MOPA | GM60 Pro MOPA | |
|---|---|---|---|---|---|---|
| Rated Power | 20W | 30W | 50W | 30W | 60W | |
| Processing Area | 4.3 x 4.3 in. (110x110mm) | 5.9 x 5.9 in. (150x150mm) | 5.9 x 5.9 in. (150x150mm) | 6.9 x 6.9 in. (175x175mm) | 6.9 x 6.9 in. (175x175mm) | |
| Laser Type | Q-switched fiber laser | MOPA Fiber Laser | ||||
| Color Engraving | NO | YES | ||||
| Max. Marking Speed | 10000mm/s (393.7 ips) | |||||
| Focus mode | Autofucus | |||||
| Electric Lifting | YES | |||||
| Beam Quality M2 | <1.5 | <1.5 | <1.6 | <1.5 | <1.8 | |
| Maximum Pulse Energy | 0.75 mJ | 0.75 mJ | 1.1 mJ | 0.8 mJ | 1.5 mJ | |
| Max. Marking Depth on a Single Pass | 0.002in (0.04mm) | 0.003in (0.08mm) | 0.004in (0.1mm) | 0.003in (0.08mm) | 0.004in (0.1mm) | |
| Expected Service Life | 100,000 hr. | |||||
| Rated voltage | 110V(US),220V(UK,EU) | |||||
| Wavelength | 1064 nm | |||||
| Frequency Range | 29~60kHz | 30~60kHz | 45~170kHz | 1-4000kHz | 1-4000kHz | |
| Pulse Width |
80-120 ns Unadjustable (Fixed pulse width) |
80-120 ns Unadjustable (Fixed pulse width) |
90-110 ns Unadjustable (Fixed pulse width) |
2-500 ns |
2-500 ns |
|
| Beam Diameter | 6-8 mm | 7Ā±1mm | ||||
| Positioning Accuracy | Ā±0.1 Ī¼m | |||||
| Galvanometer Thread size | M68 | |||||
| Field lens dimension | M85 | |||||
| Cooling Type | Air Cooling | |||||
| Supported File | For BSLcadļ¼JPG Filesļ¼*.jpgļ¼*.jpegļ¼,BMP Filesļ¼*.bmpļ¼,GIF Filesļ¼*.gifļ¼,PNG Filesļ¼*.gifļ¼,TIF Filesļ¼*.tifļ¼*.tiffļ¼,EMF Filesļ¼*.emfļ¼,DXF Filesļ¼*.dxfļ¼,AI Filesļ¼*.aiļ¼,FPGL Filesļ¼*.pltļ¼,Gerber Filesļ¼*.csļ¼*.gbrļ¼etcļ¼,Svg Files;
For LightBurnļ¼,Image files (*.bmp *.jpg *.jpeg *.png *.gif *.tif *.tiff *.tga *.webp),Vector files (*.ai *.pdf *.sc *.dxf *.gc *.gcode *.nc *.hpgl *.plt *.svg *.lbrn *.lbrn2 *.mage) |
|||||

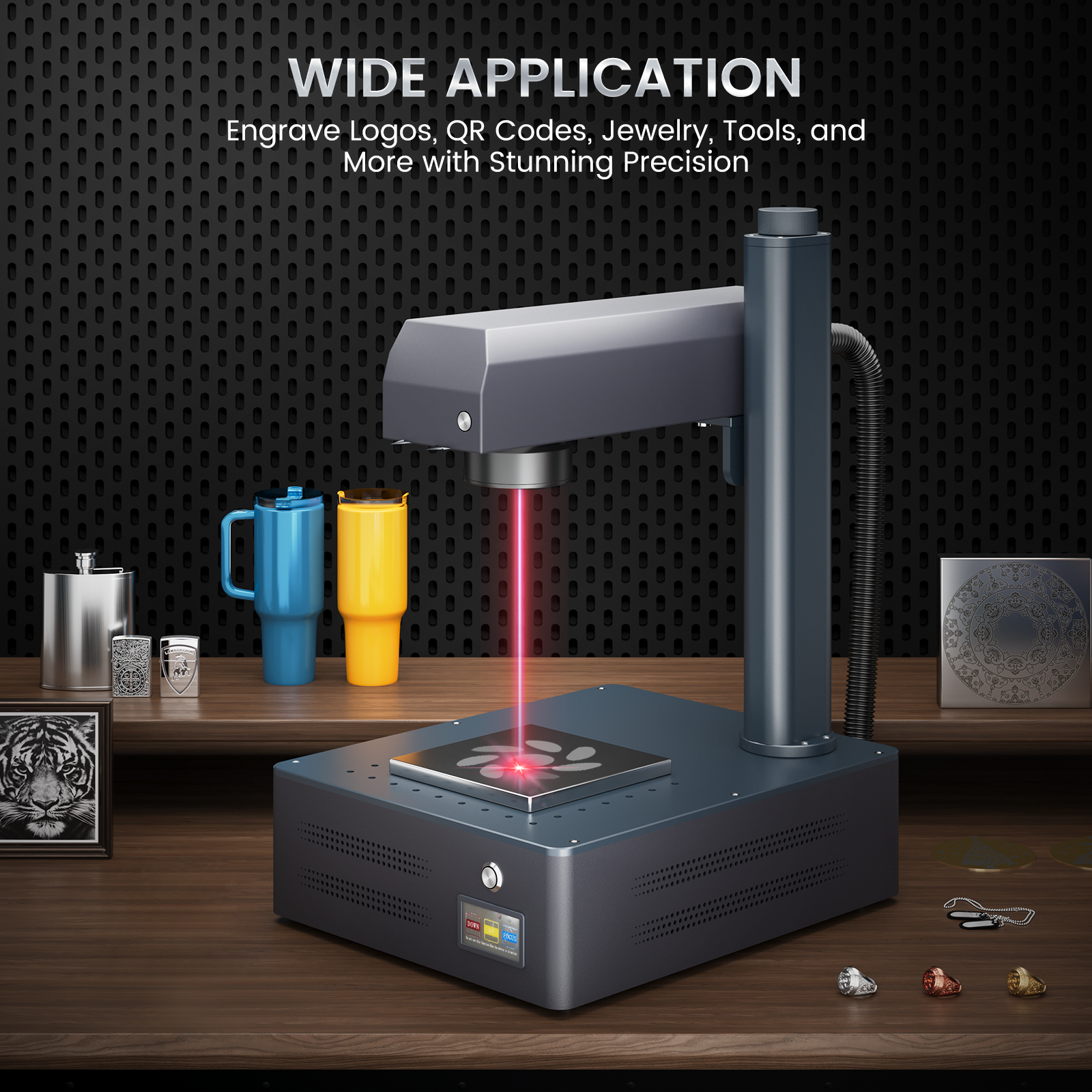

| Materials Suitable for Engraving | Brassļ¼Hard Plasticļ¼Titaniumļ¼Brickļ¼Marbleļ¼Goldļ¼Carbideļ¼Silverļ¼Tungstenļ¼Graniteļ¼Steelļ¼etc | |||||
| Data Transmission | USB Cable | |||||

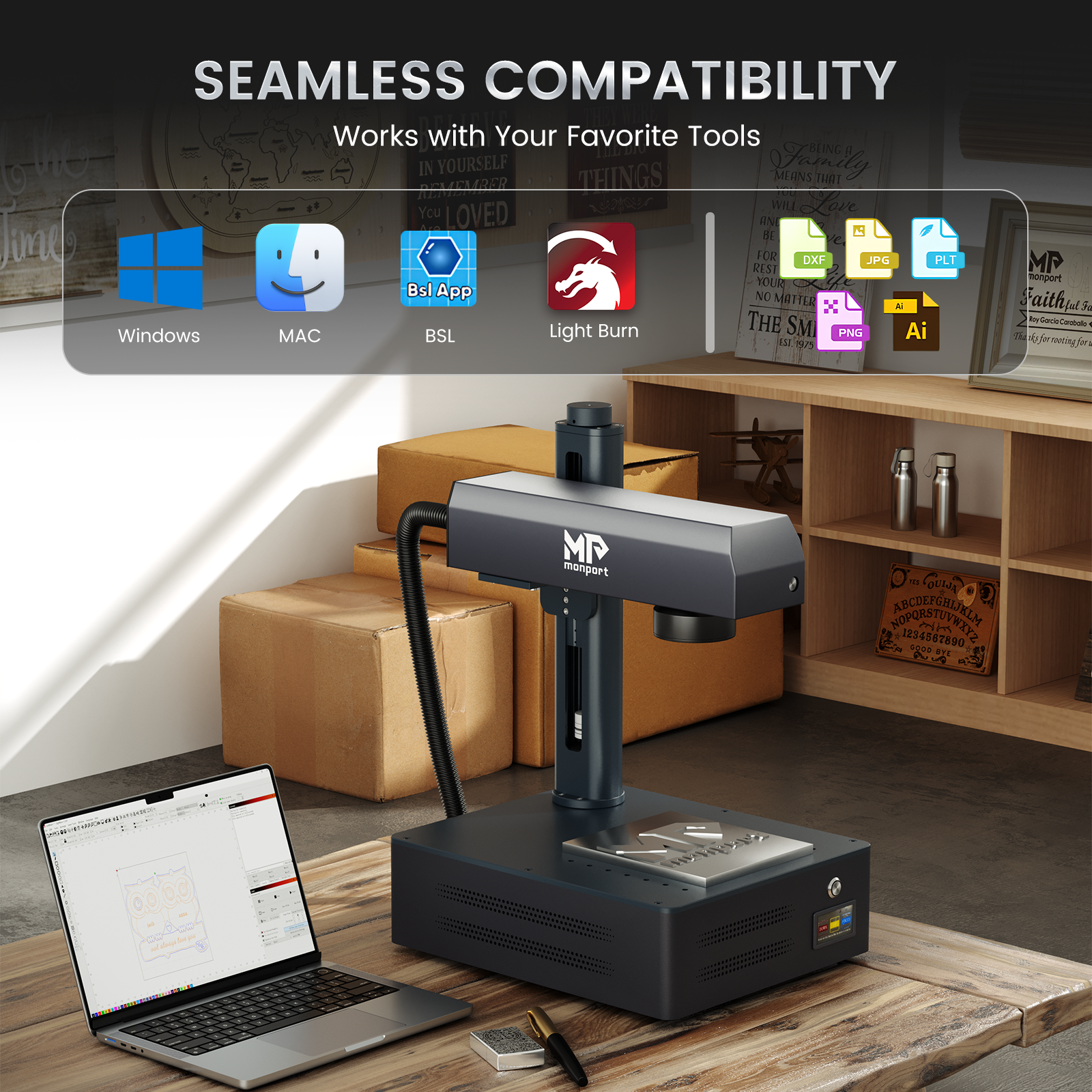

| Compatible Operating Systems | Windows / macOS | |||||
| Provided Operating Software | BslAppSimpleļ¼Lightburn | |||||
| Warranty | 2-year(1 year for laser source) | |||||

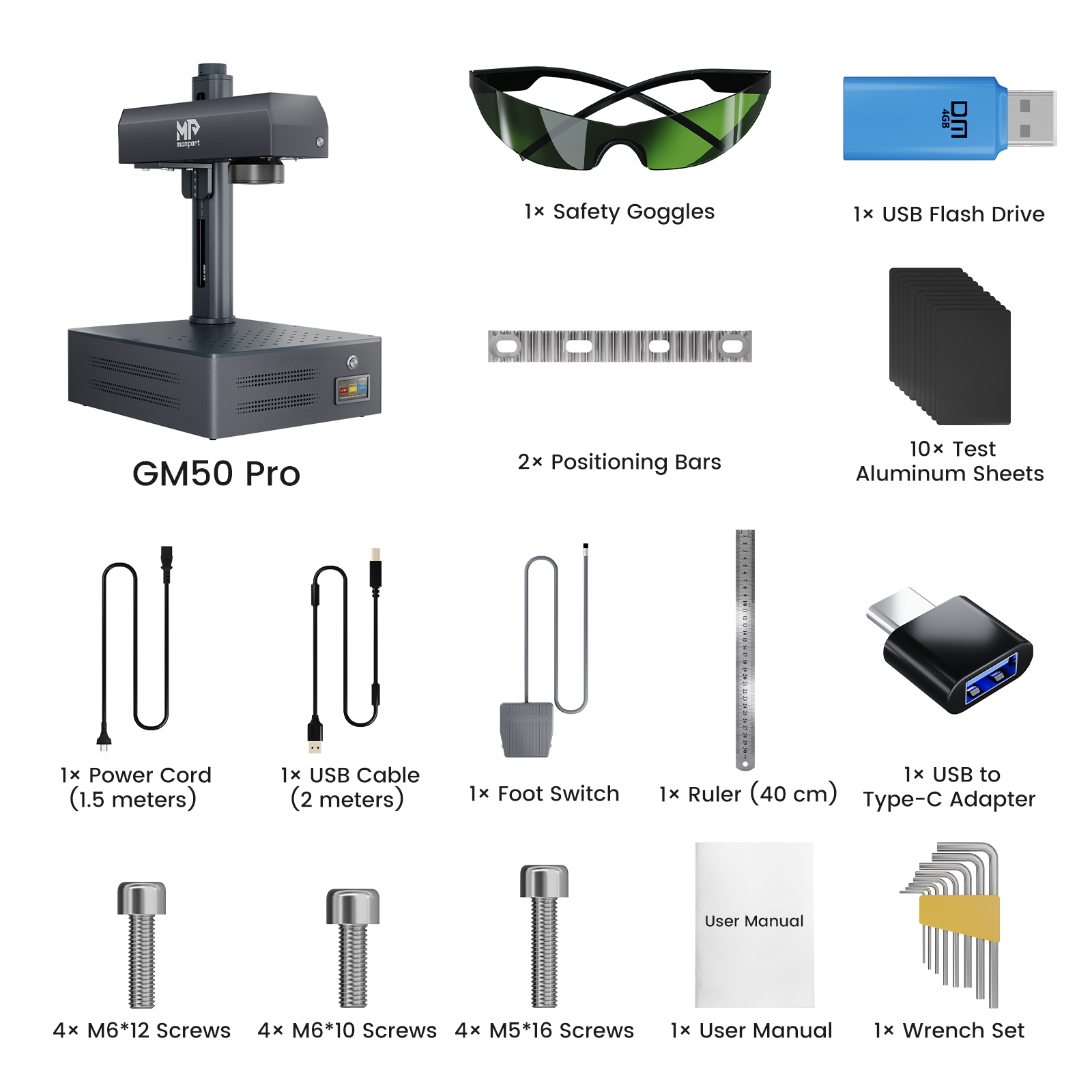

Package List
