Input Voltage: 24V

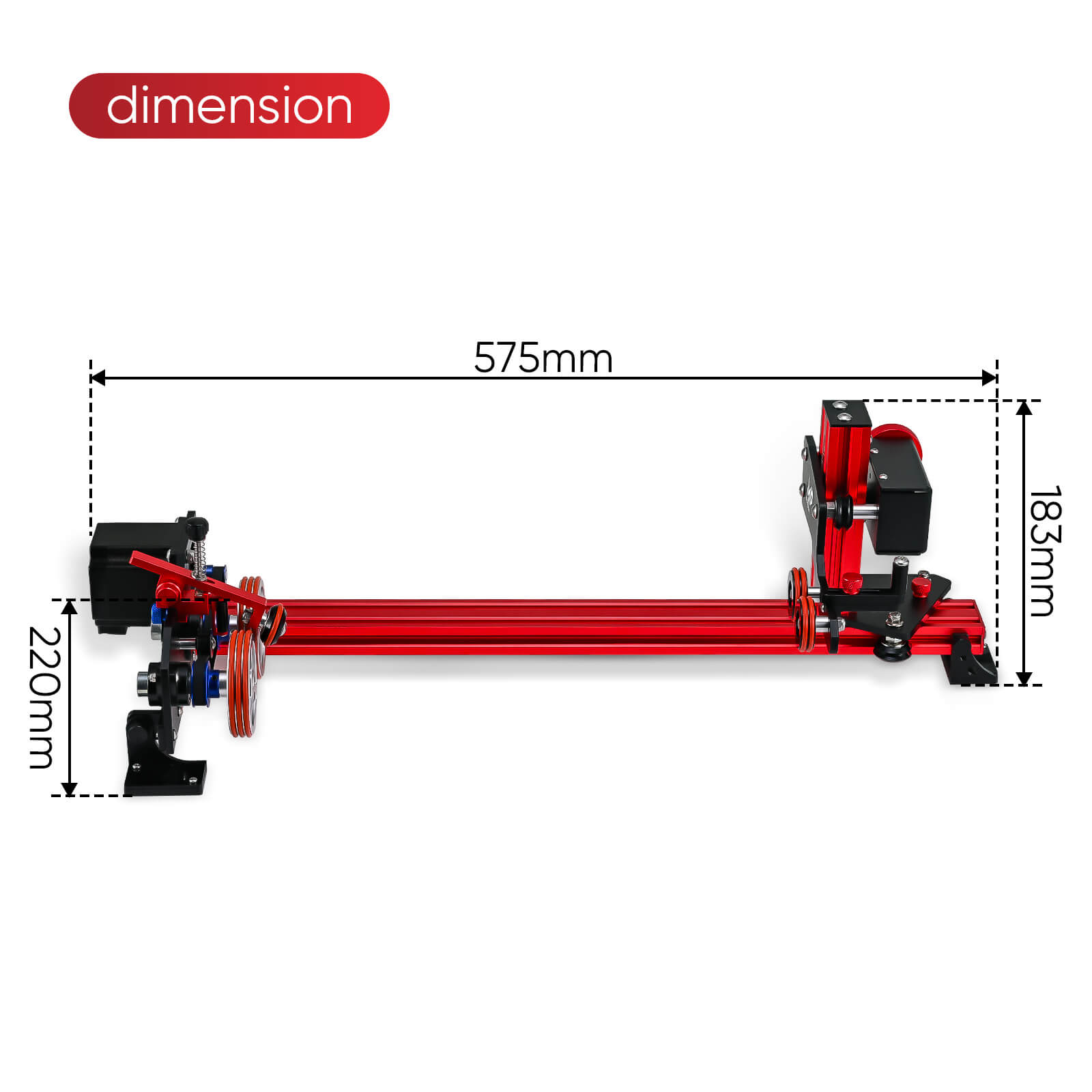

Product Size: 575 * 220 * 183mm

Height without Base: 163mm

Lifting Range: 60-140mm (80mm activity space)

Big Wheel Diameter: 60mm

Small Wheel Diameter: 30mm

Net weight: 2.5KG

360°Rotary Engraving

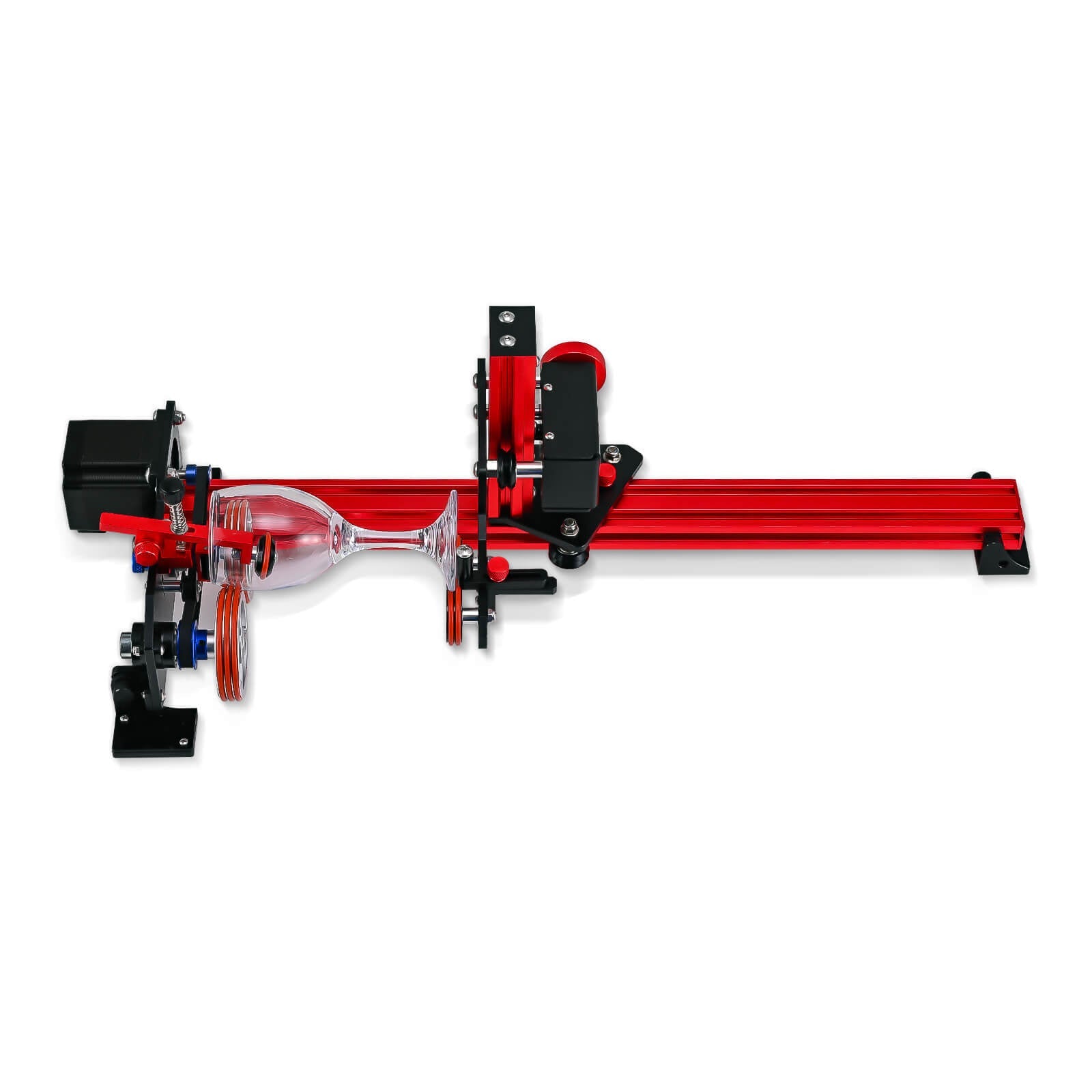

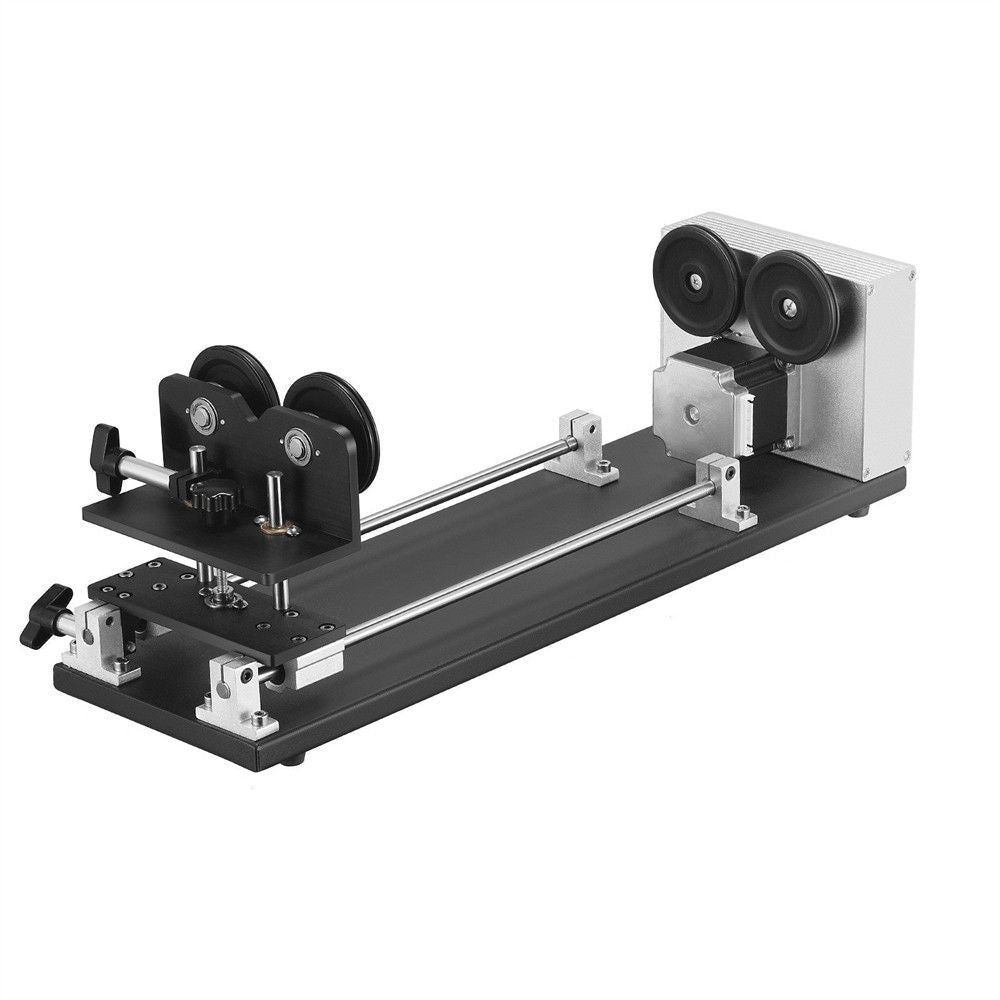

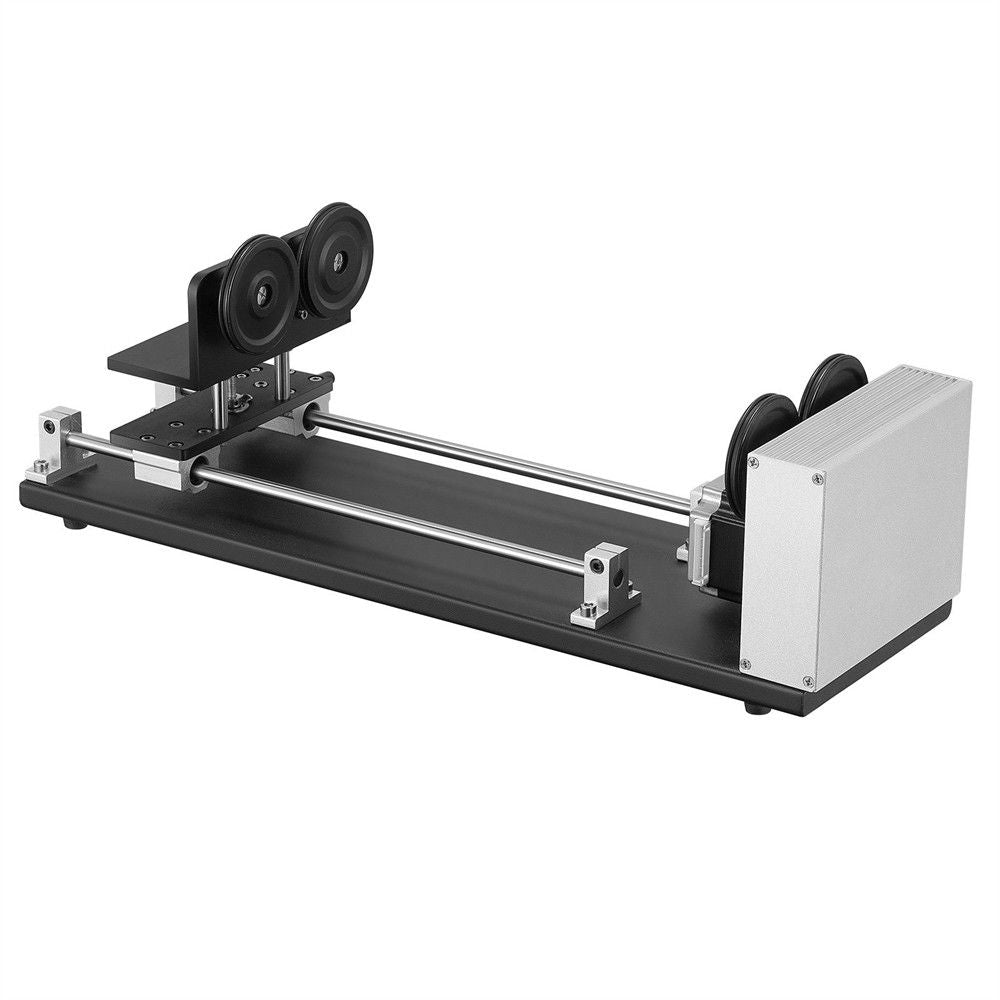

Monport 4- wheel lifting rotary axis can rotate 360°and move up, down, left, and right, allowing for engraving on cylindrical rings or irregular shapes.

Liftable Rotary Axis

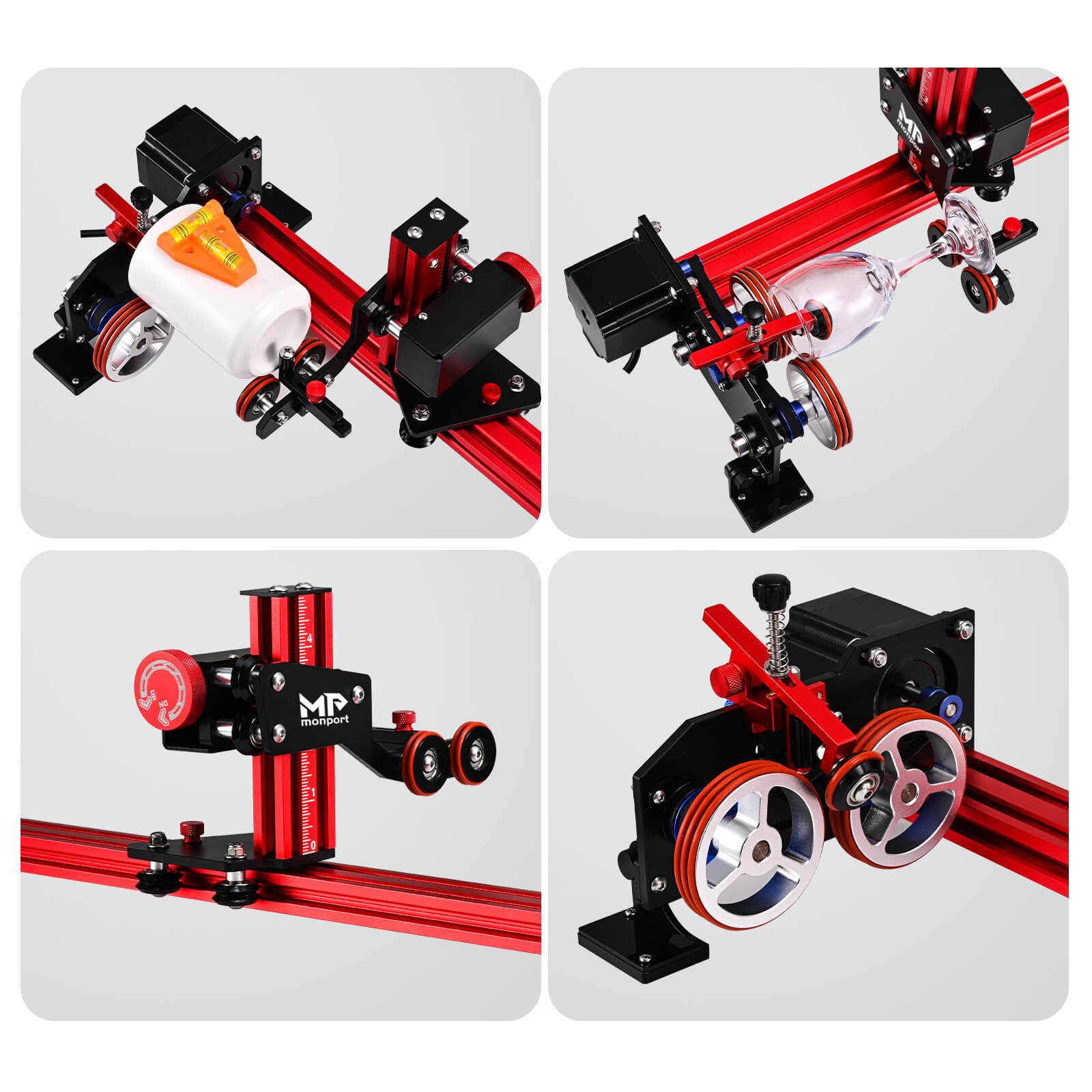

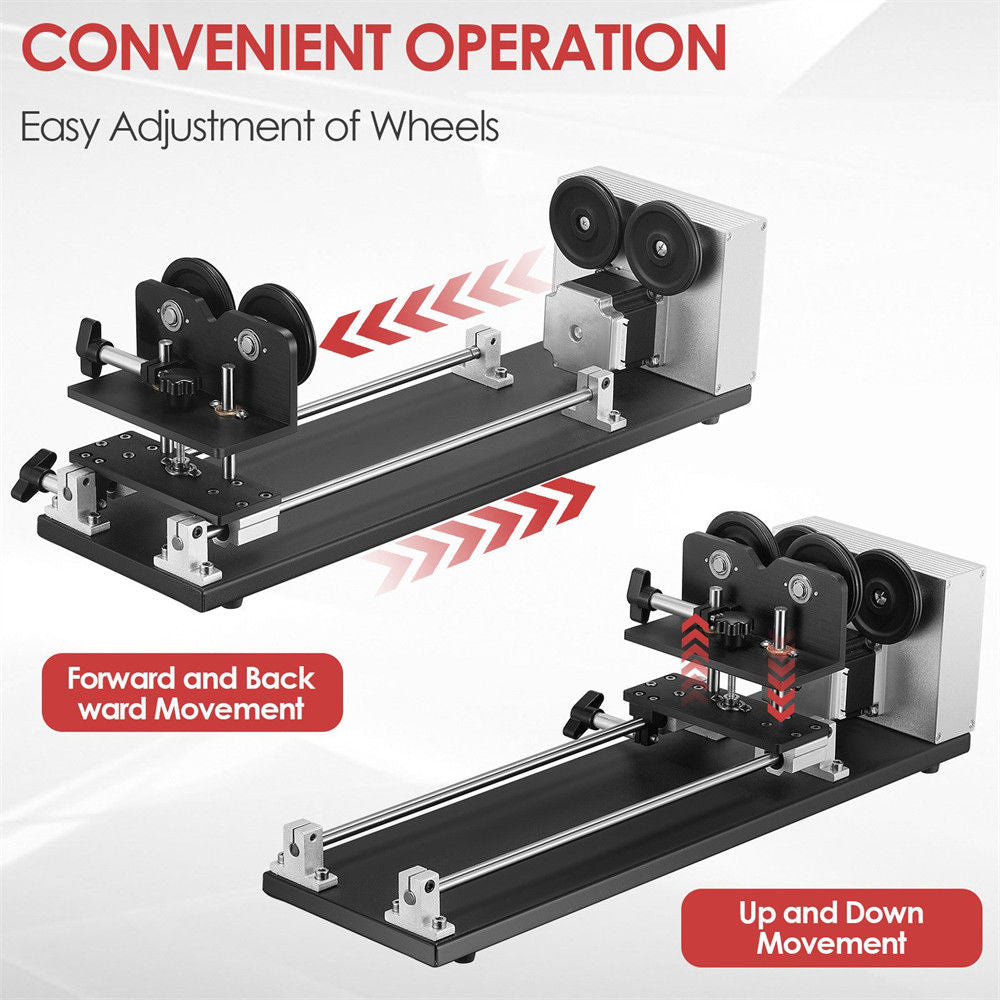

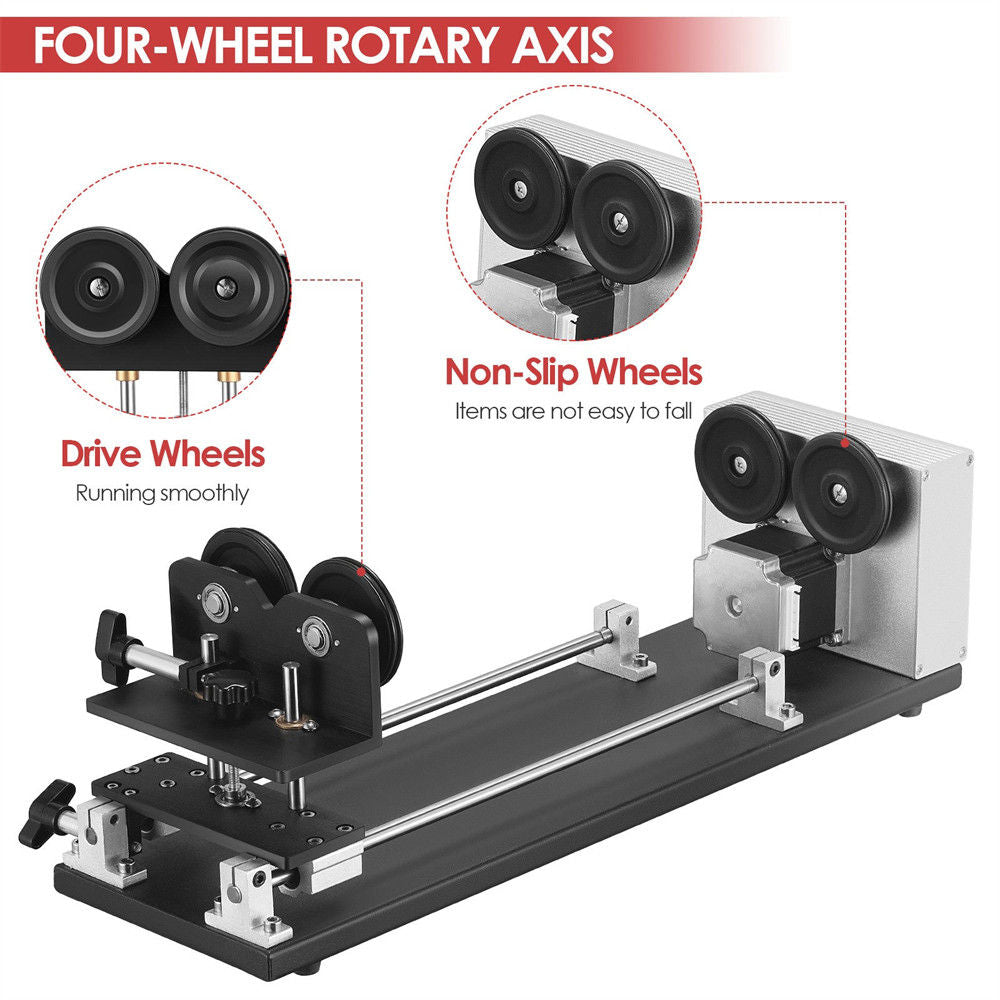

The machine has four rotating shafts, each with two rotating shafts on the left and right for fixing objects. It can move back and forth according to the length of the object, and irregular shapes can be detected by a level and then moved up and down.

Repeat Settings

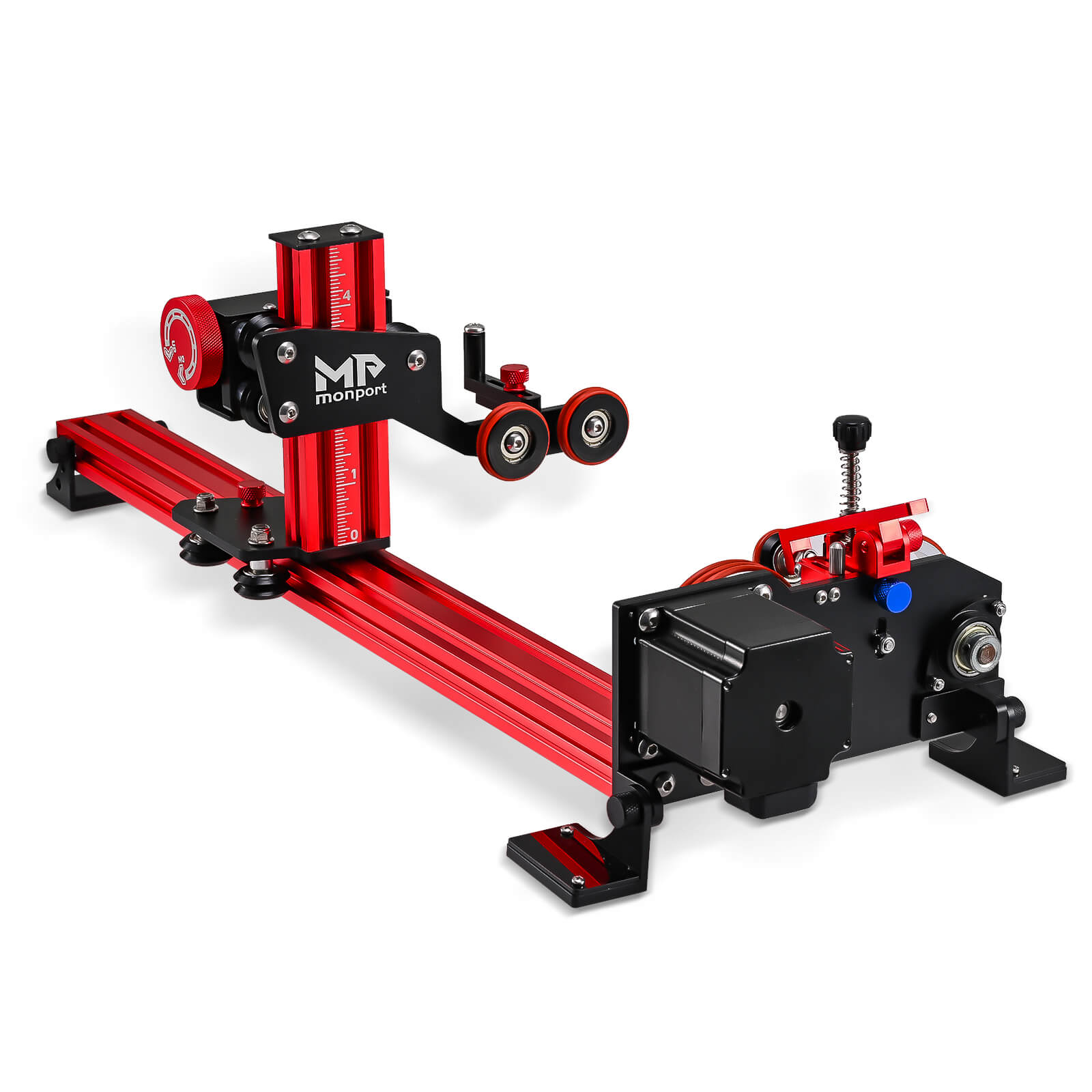

There is a scale on the rear axle that allows for extremely high repeatability and fast setting.

Easy to Install

The machine is fully assembled and does not require installation. It can be directly used after connecting to the engraving machine.

1-year warranty on the rotary roller axis

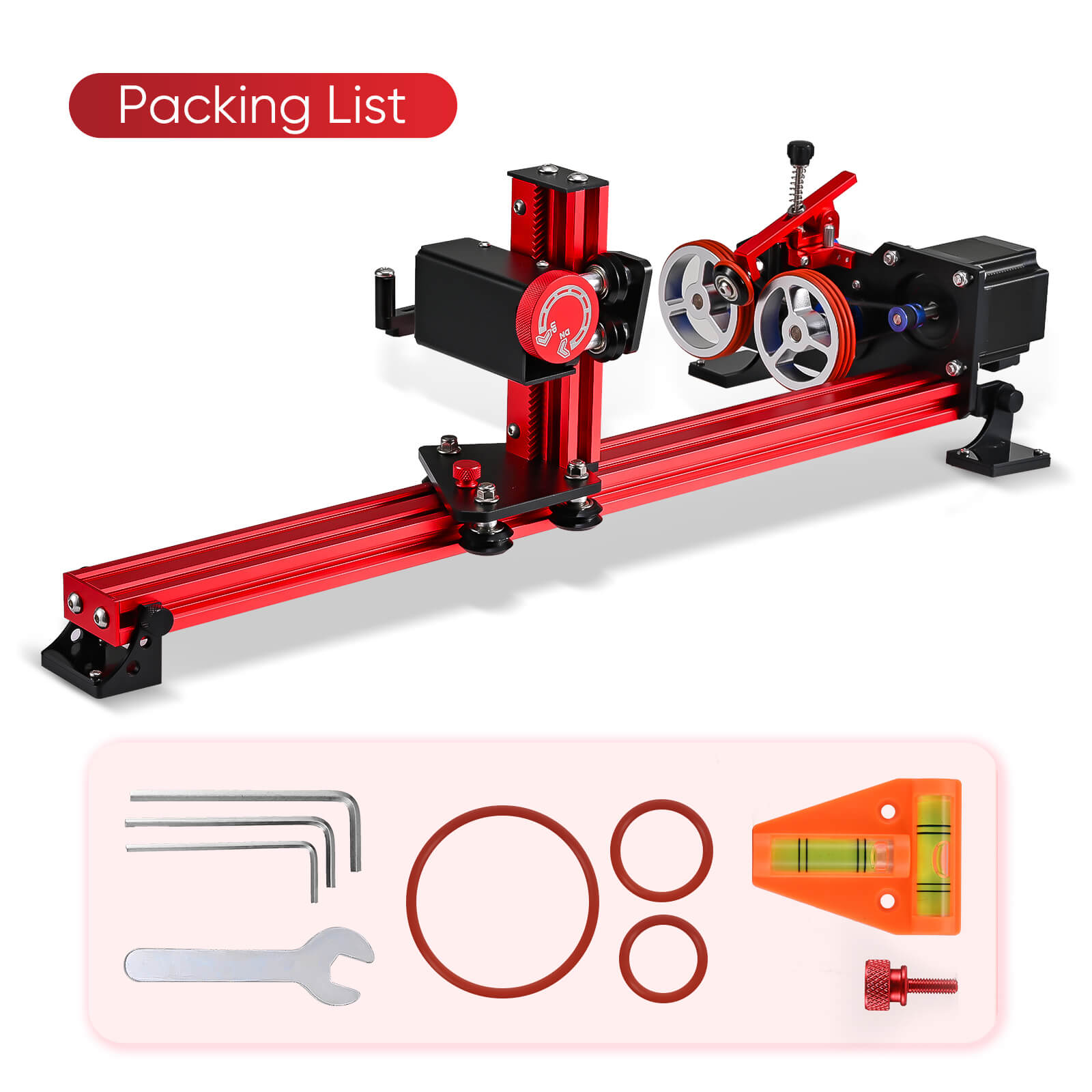

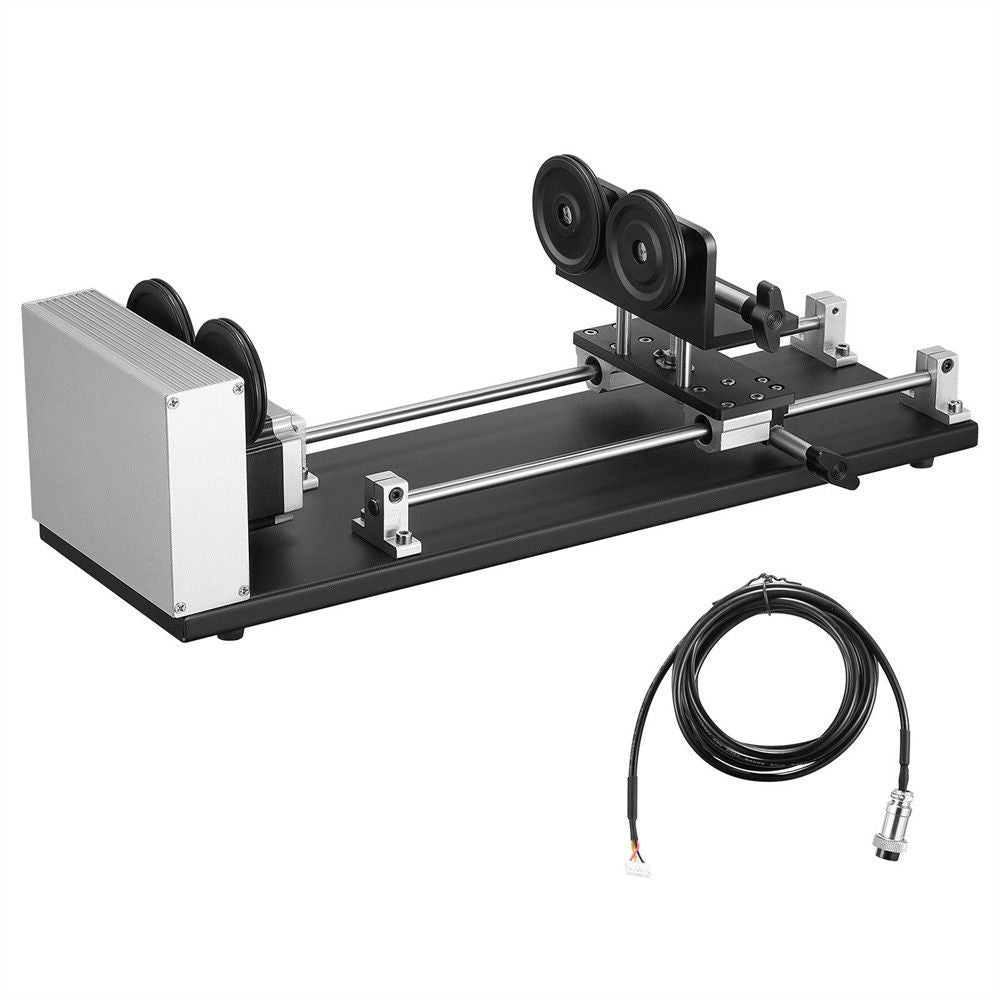

Rotary Axis *1

Cable *1

Download the User Manual
