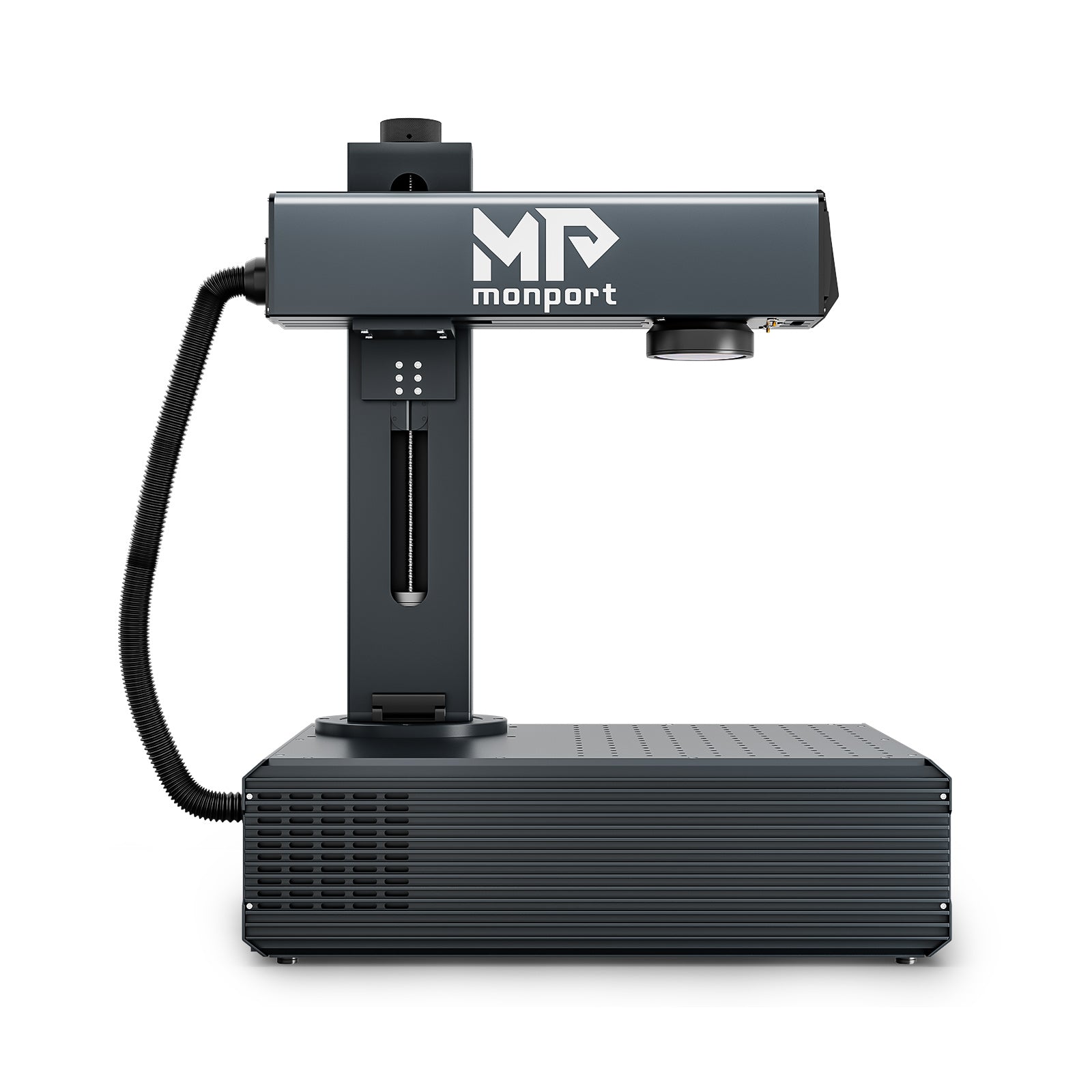

Monport GA 100W Upgraded Integrated MOPA Fiber Laser Engraver & Marking Machine with Auto Focus
Monport GA 100W Upgraded Integrated MOPA Fiber Laser Engraver & Marking Machine with Auto Focus
Out of stock
Couldn't load pickup availability

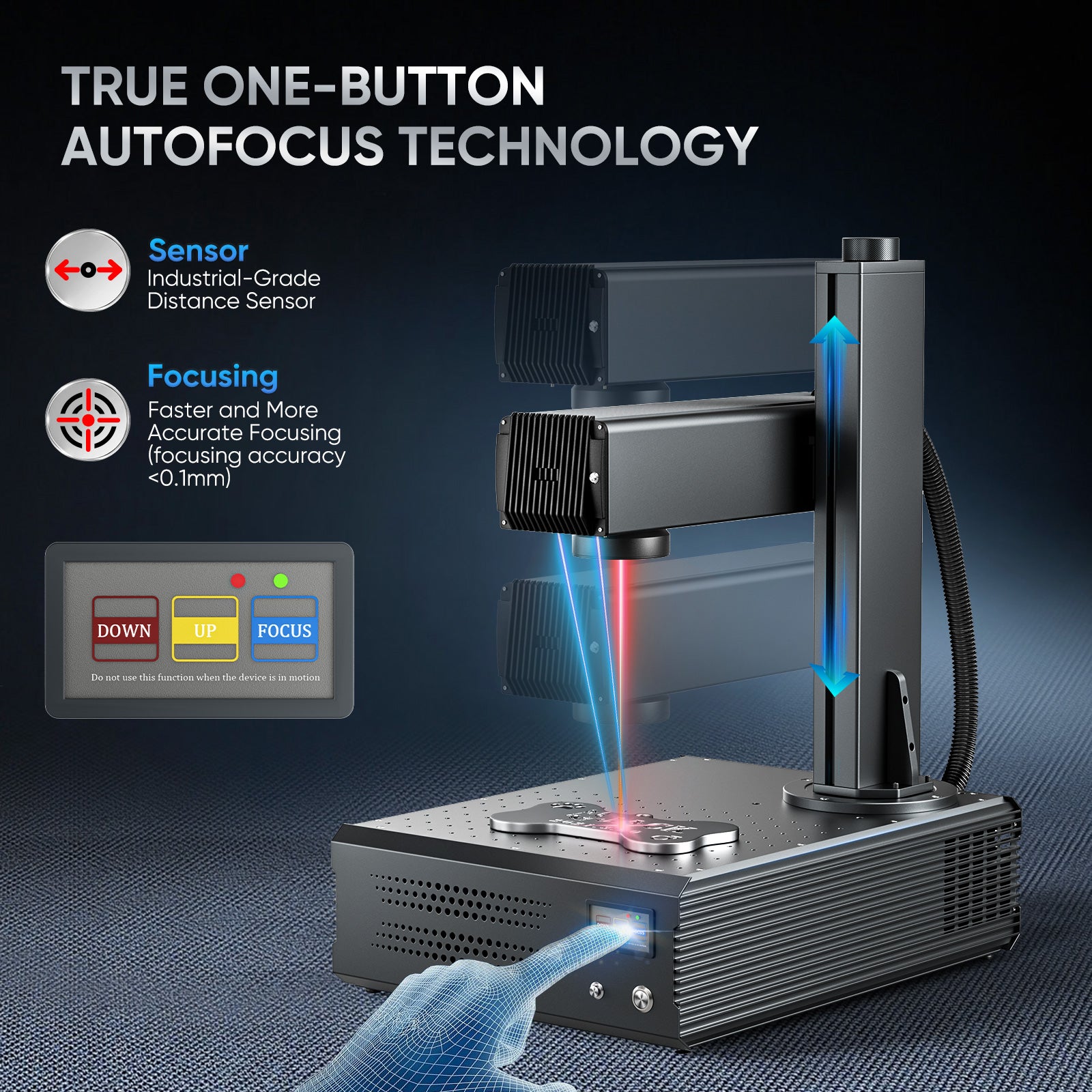

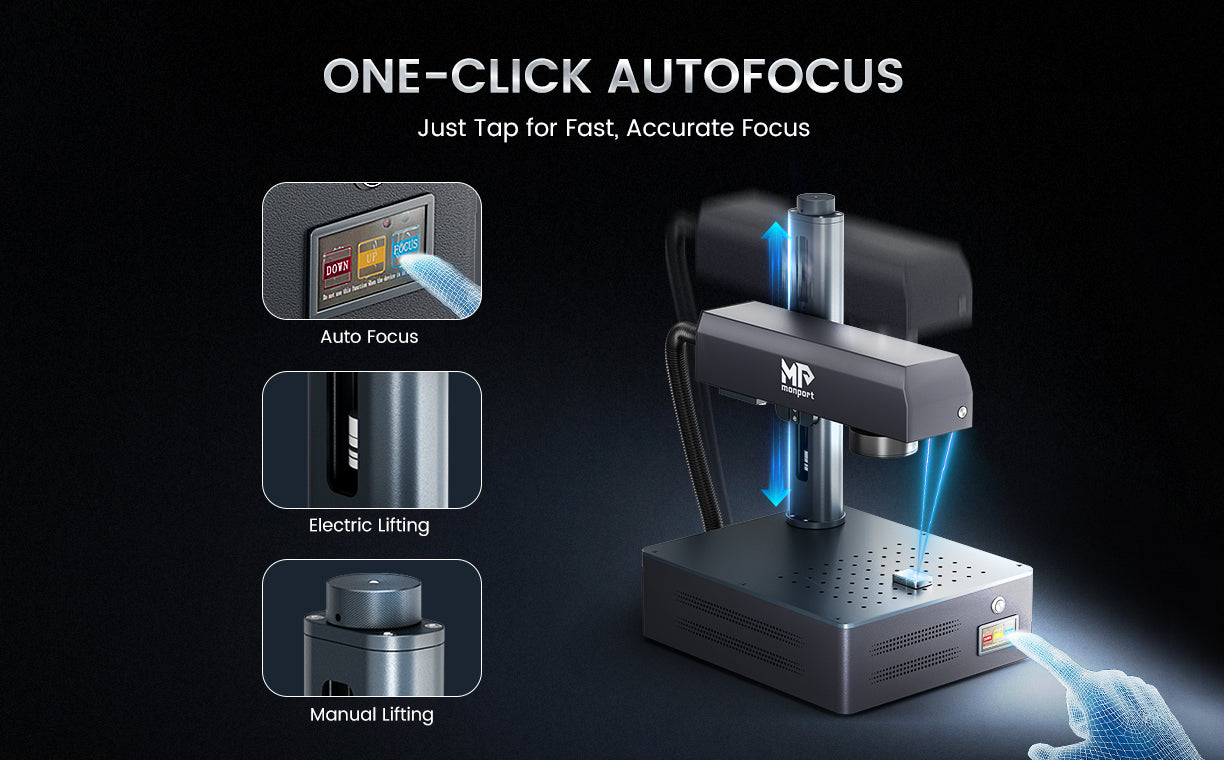

The all-new GM Pro Series comes equipped with a cutting-edge one-touch auto-focus feature, enabling faster and more precise engraving results. Experience enhanced convenience and superior performance with every use.

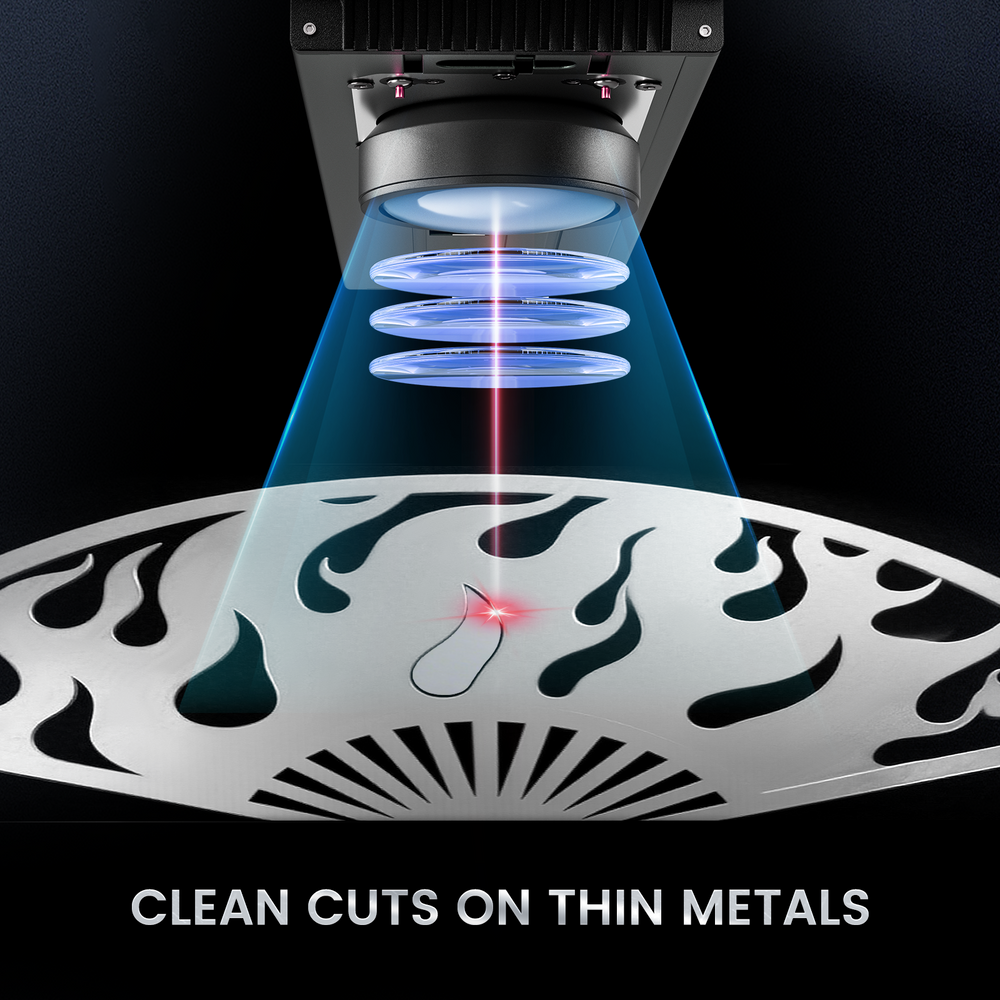

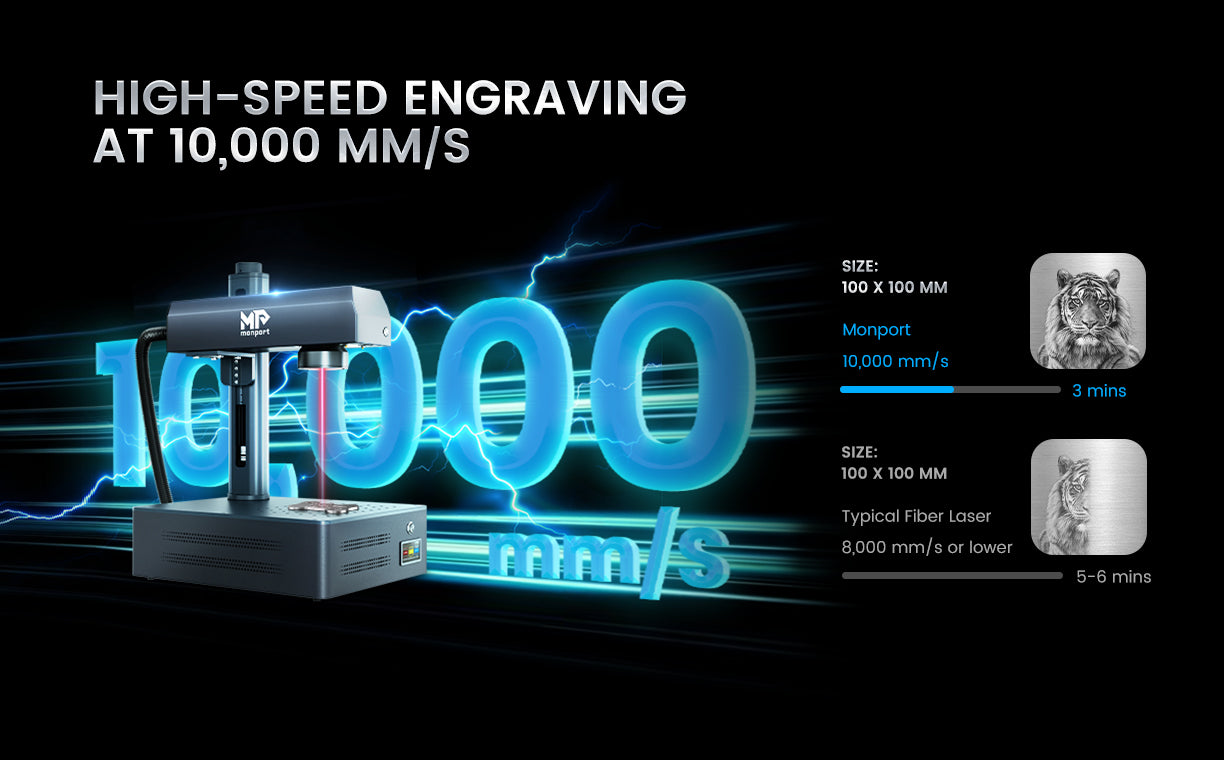

The newly designed galvanometer system features high-quality silicon material reflectors, pushing the maximum speed to an impressive 10,000mm/s. Coupled with a custom F-theta field mirror, this advanced marking system ensures engraving accuracy down to 0.01mm, delivering exceptional precision and speed.

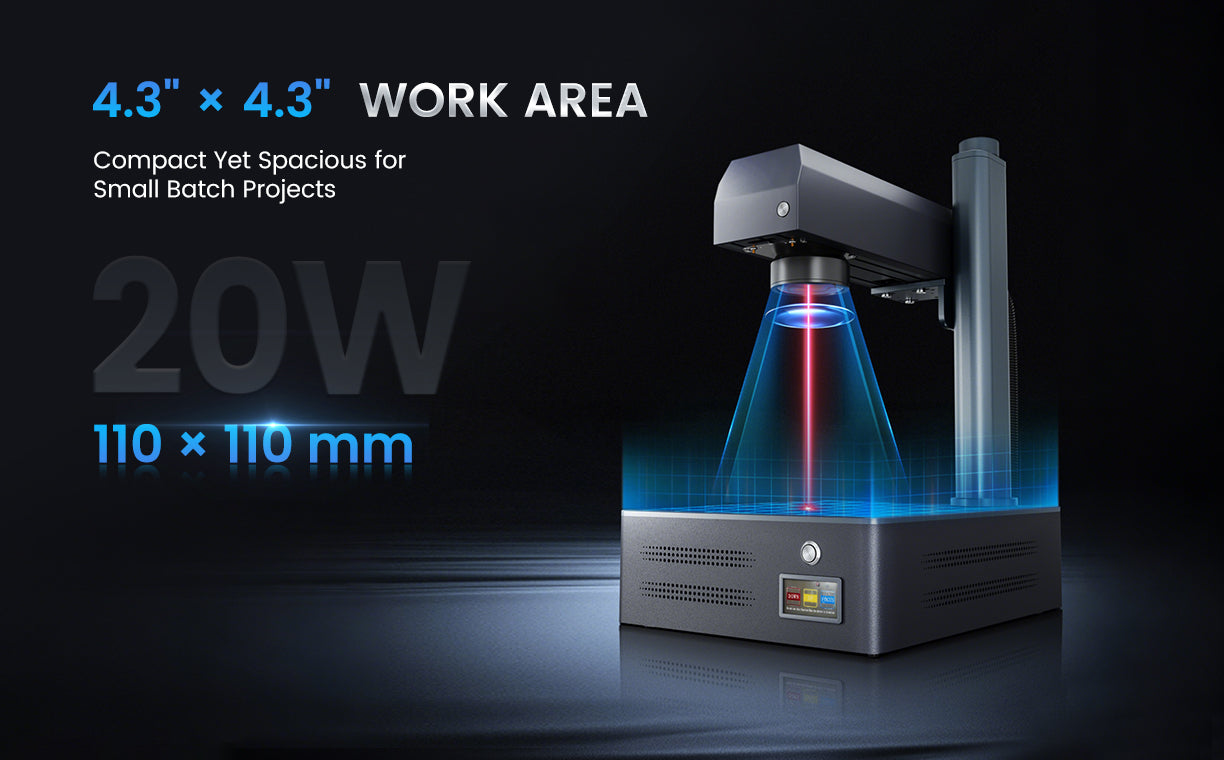

For the 20W fiber laser, the optimal working area is 110*110mm. Going beyond this size may lead to subpar engraving results or even distortion. Thanks to Monport's precise tuning, you can engrave at the edges with consistent power, ensuring no weak spots or loss of intensity.

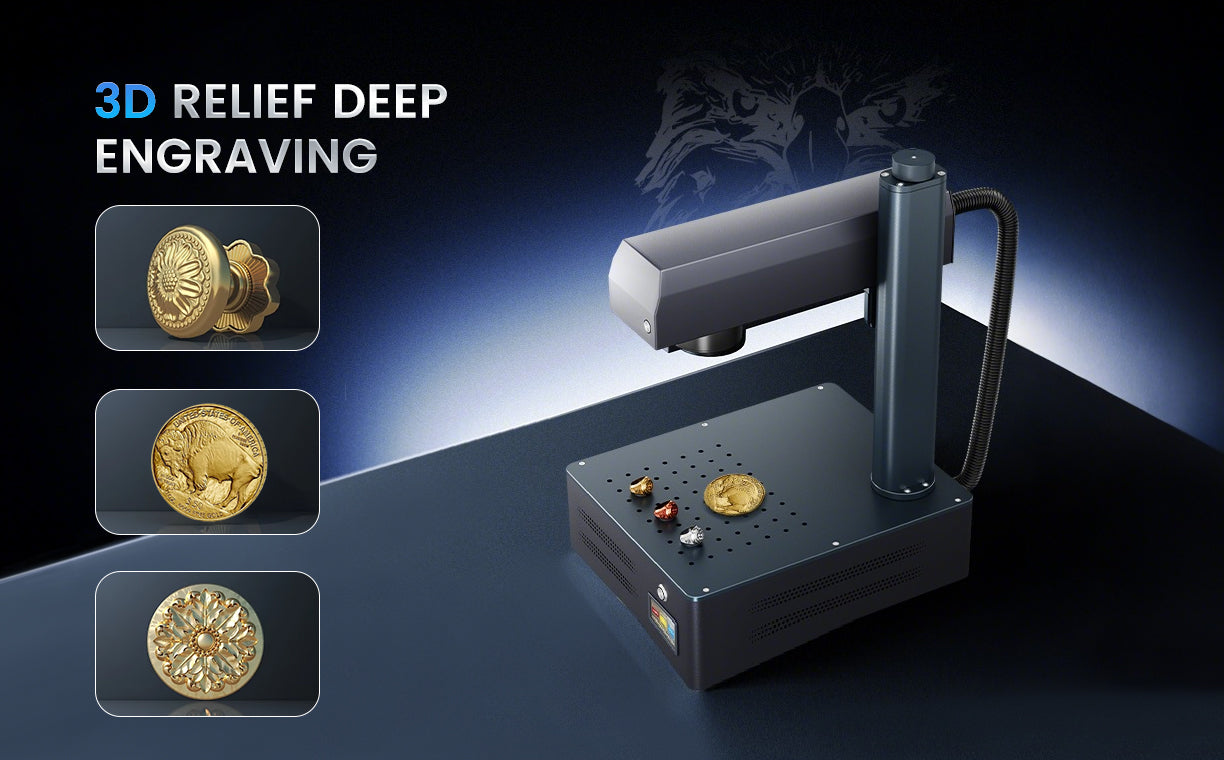

The higher the power, the greater the depth and detail you can achieve in your engravings. With enhanced power, the machine delivers superior deep engraving and 3D relief results, providing unmatched precision and depth for intricate designs.

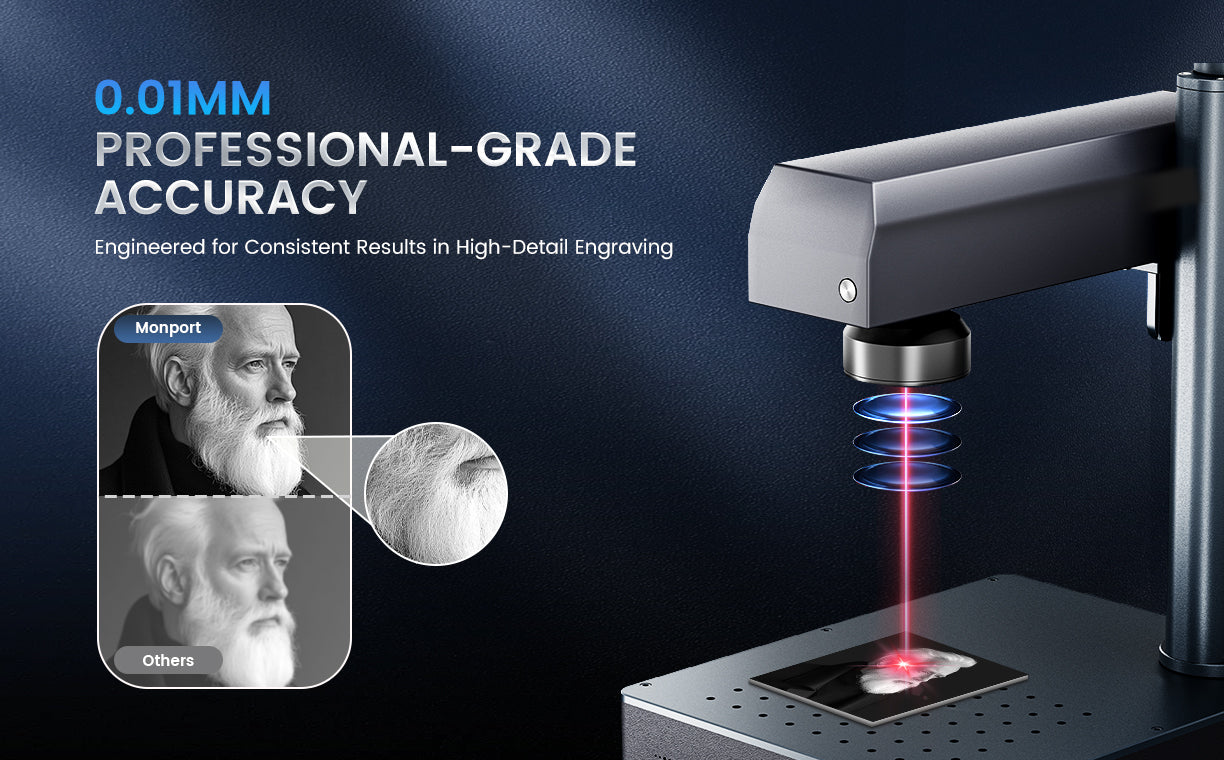

Engineered for precision, this machine delivers consistent, high-detail engraving with an accuracy of 0.01mm, ensuring flawless results with every use.
| Product | GM20 Pro | GM30 Pro | GM50 Pro | GM30 Pro MOPA | GM60 Pro MOPA | |
|---|---|---|---|---|---|---|
| Rated Power | 20W | 30W | 50W | 30W | 60W | |

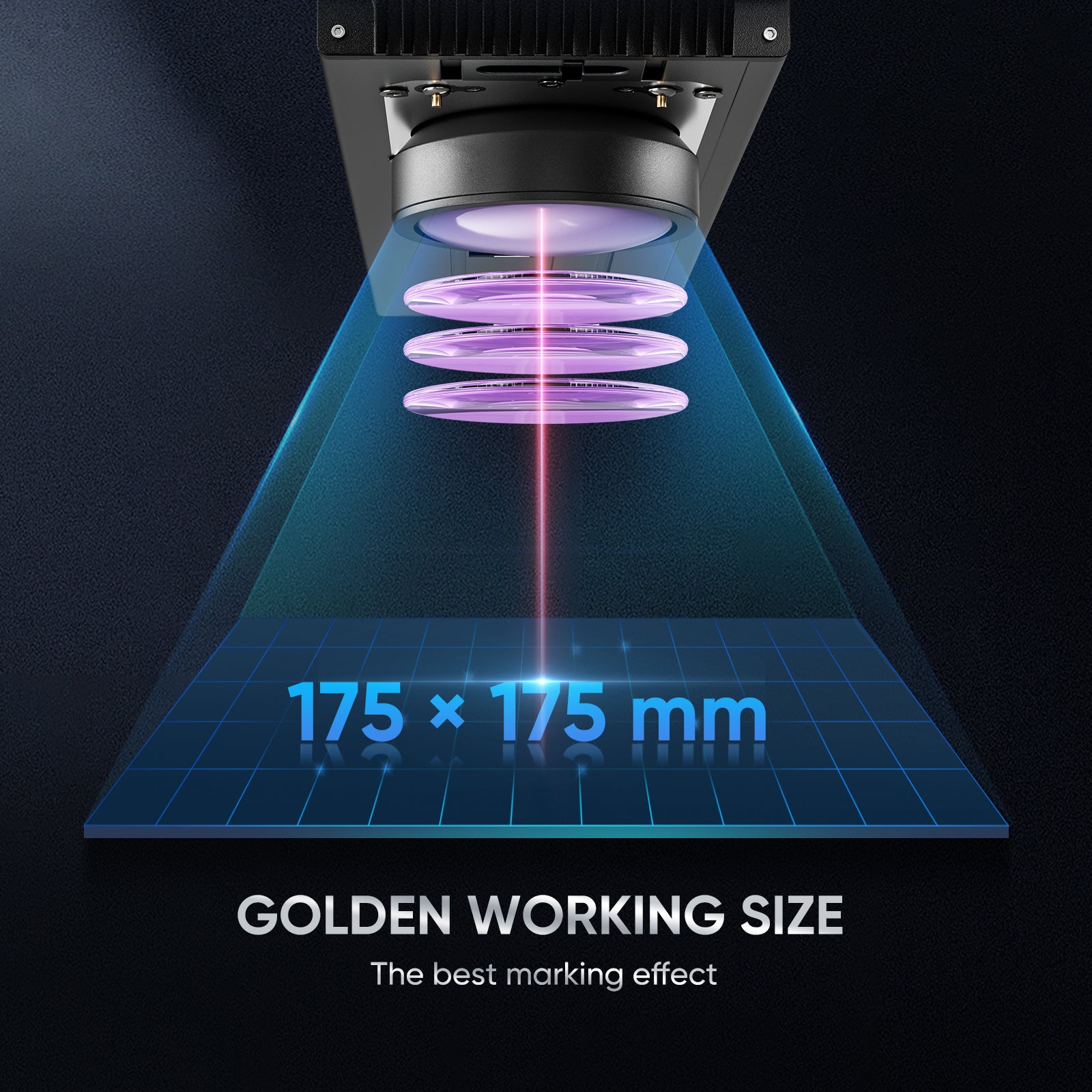

| Processing Area | 4.3 x 4.3 in. (110x110mm) | 5.9 x 5.9 in. (150x150mm) | 5.9 x 5.9 in. (150x150mm) | 6.9 x 6.9 in. (175x175mm) | 6.9 x 6.9 in. (175x175mm) | |
| Laser Type | Q-switched fiber laser | MOPA Fiber Laser | ||||
| Color Engraving | NO | YES | ||||
| Max. Marking Speed | 10000mm/s (393.7 ips) | |||||
| Focus mode | Autofucus | |||||
| Electric Lifting | YES | |||||
| Beam Quality M2 | <1.5 | <1.5 | <1.6 | <1.5 | <1.8 | |
| Maximum Pulse Energy | 0.75 mJ | 0.75 mJ | 1.1 mJ | 0.8 mJ | 1.5 mJ | |
| Max. Marking Depth on a Single Pass | 0.002in (0.04mm) | 0.003in (0.08mm) | 0.004in (0.1mm) | 0.003in (0.08mm) | 0.004in (0.1mm) | |
| Expected Service Life | 100,000 hr. | |||||
| Rated voltage | 110V(US),220V(UK,EU) | |||||
| Wavelength | 1064 nm | |||||
| Frequency Range | 29~60kHz | 30~60kHz | 45~170kHz | 1-4000kHz | 1-4000kHz | |
| Pulse Width |
80-120 ns Unadjustable (Fixed pulse width) |
80-120 ns Unadjustable (Fixed pulse width) |
90-110 ns Unadjustable (Fixed pulse width) |
2-500 ns |
2-500 ns |
|
| Beam Diameter | 6-8 mm | 7±1mm | ||||
| Positioning Accuracy | ±0.1 μm | |||||
| Galvanometer Thread size | M68 | |||||
| Field lens dimension | M85 | |||||
| Cooling Type | Air Cooling | |||||
| Supported File | For BSLcad：JPG Files（*.jpg；*.jpeg）,BMP Files（*.bmp）,GIF Files（*.gif）,PNG Files（*.gif）,TIF Files（*.tif；*.tiff）,EMF Files（*.emf）,DXF Files（*.dxf）,AI Files（*.ai）,FPGL Files（*.plt）,Gerber Files（*.cs；*.gbr；etc）,Svg Files;
For LightBurn：,Image files (*.bmp *.jpg *.jpeg *.png *.gif *.tif *.tiff *.tga *.webp),Vector files (*.ai *.pdf *.sc *.dxf *.gc *.gcode *.nc *.hpgl *.plt *.svg *.lbrn *.lbrn2 *.mage) |
|||||

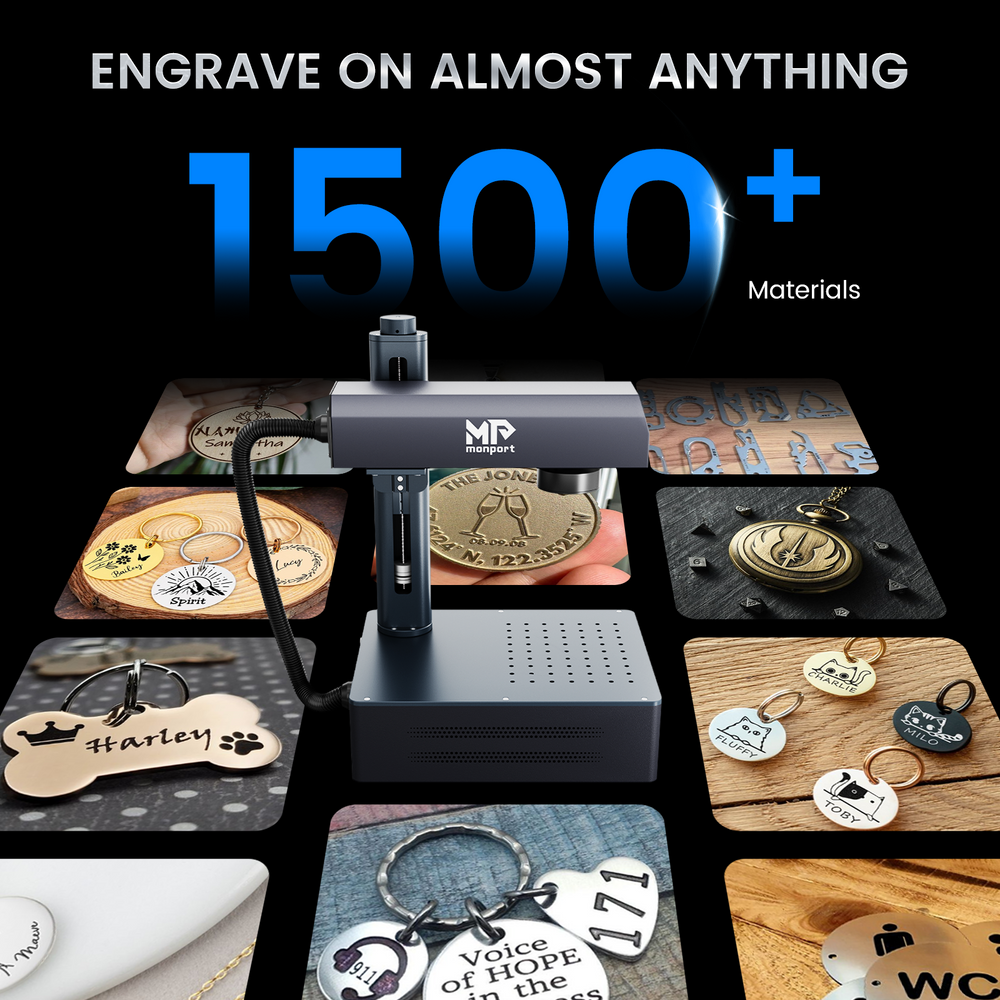

| Materials Suitable for Engraving | Brass，Hard Plastic，Titanium，Brick，Marble，Gold，Carbide，Silver，Tungsten，Granite，Steel，etc | |||||
| Data Transmission | USB Cable | |||||
| Compatible Operating Systems | Windows / macOS | |||||
| Provided Operating Software | BslAppSimple，Lightburn | |||||
| Warranty | 2-year(1 year for laser source) | |||||
Rated Power: 20W
Max. Engraving Speed: 10000mm/s（393.7 ips）
Engraving Area: 4.3 x 4.3 in.（110x110mm）
Focus Mode: Autofucus
Color Engraving: NO
Electric Lifting: YES
Expected Service Life: 100,000 hr.
Wavelength: 1064nm
Data Transmission: USB Cable
Compatible Software: BslAppSimple，Lightburn
Compatible Operating Systems: Windows / macOS
Product Dimensions: 400 x 330 x 620mm
Net Weight: 15.6kg
Package Dimension: 590 x 440 x 390mm
Gross Weight: 19.5kg
Warranty: 2 Years (1 year for laser source)

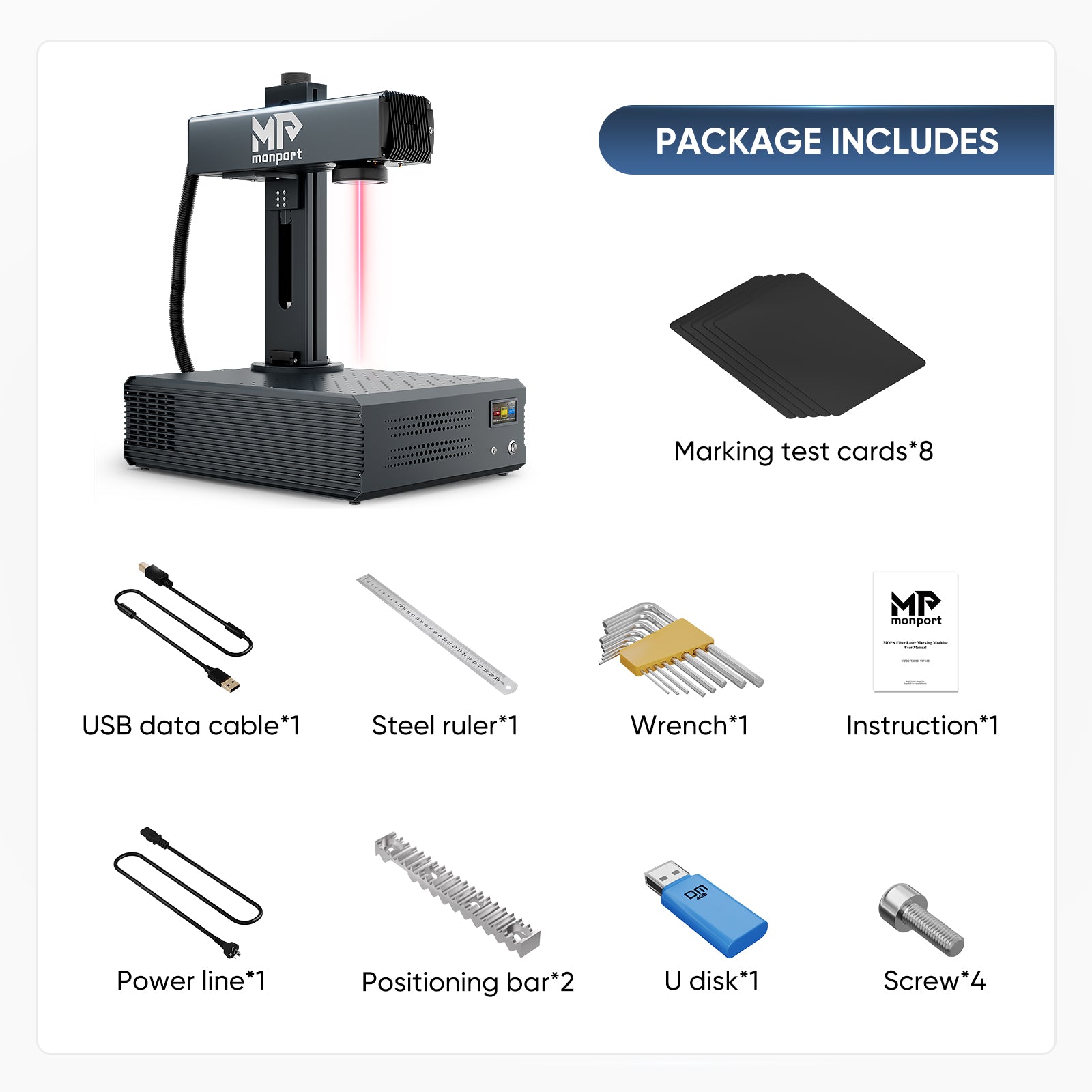

1x Fiber Laser Engraver
1x USB Cable(2 meters)
1x Power Cord(1.5 meters)
1x USB Flash Drive
1x User Manual
1x Goggles
1x Wrench Set
1x Ruler（40cm）
1x Foot Switch
2x Positioning Bars
4x Screws M6*12
4x Screws M6*10
4x Screws M5*16
1x Usb to TypeC Adapter
10x Test Aluminum Sheets
