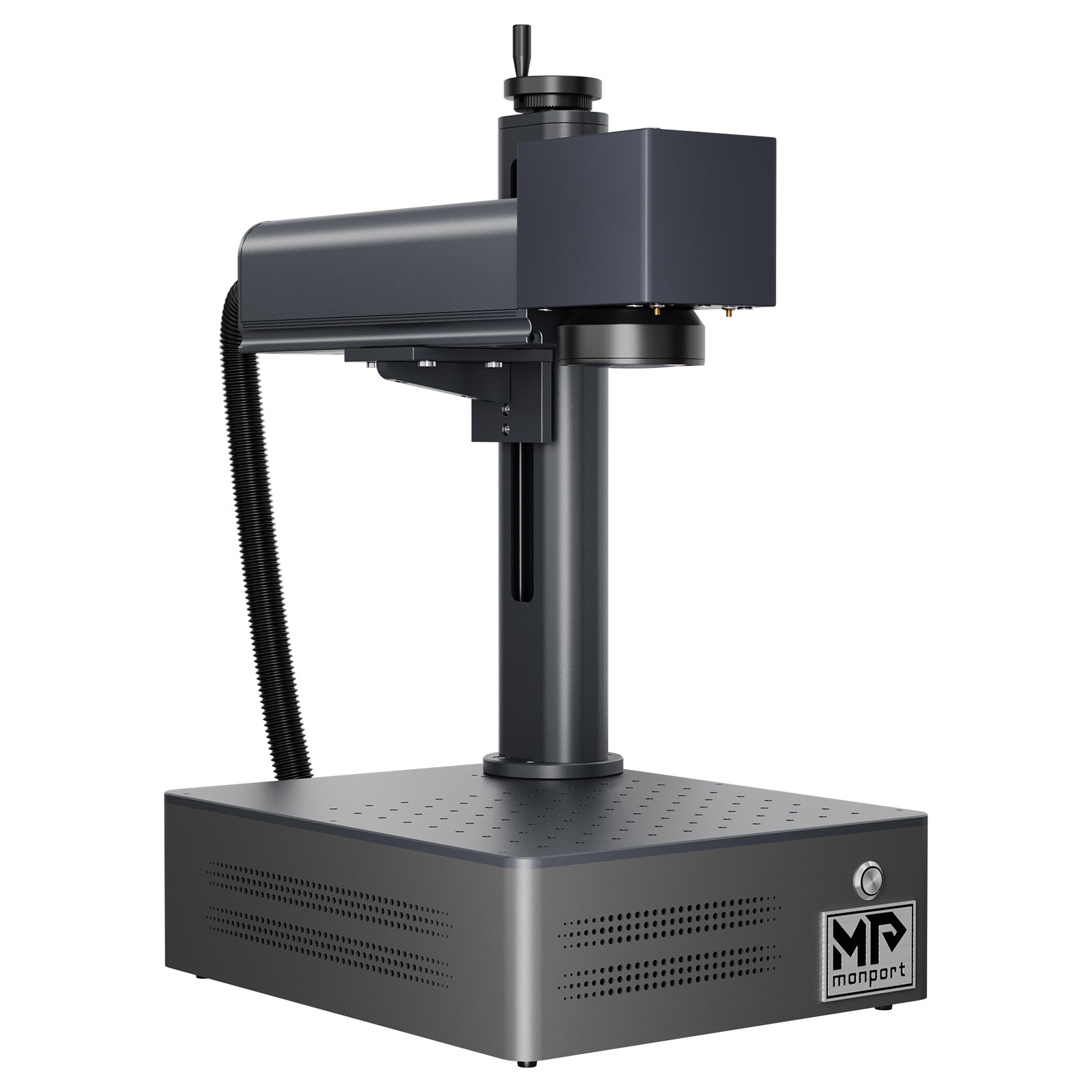

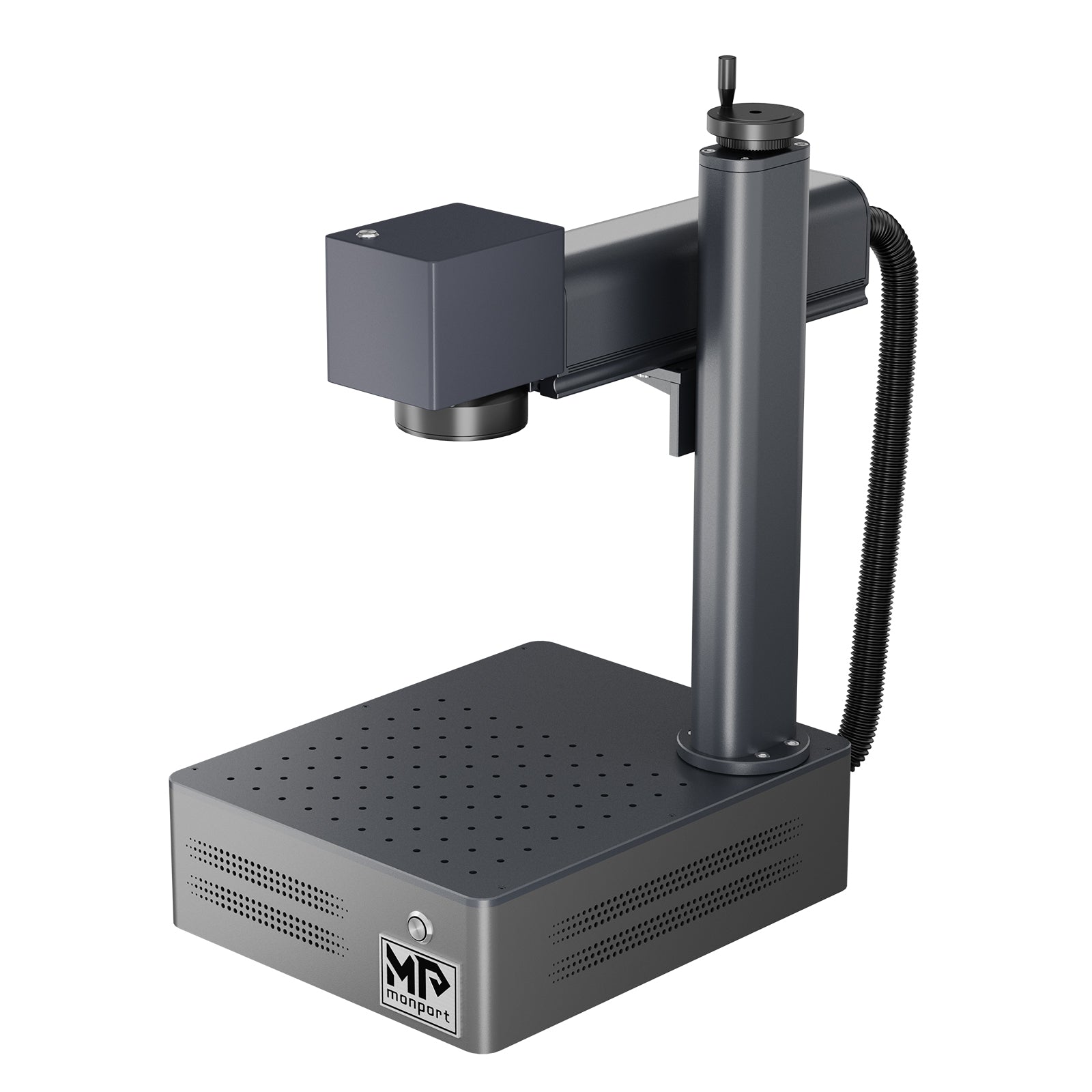

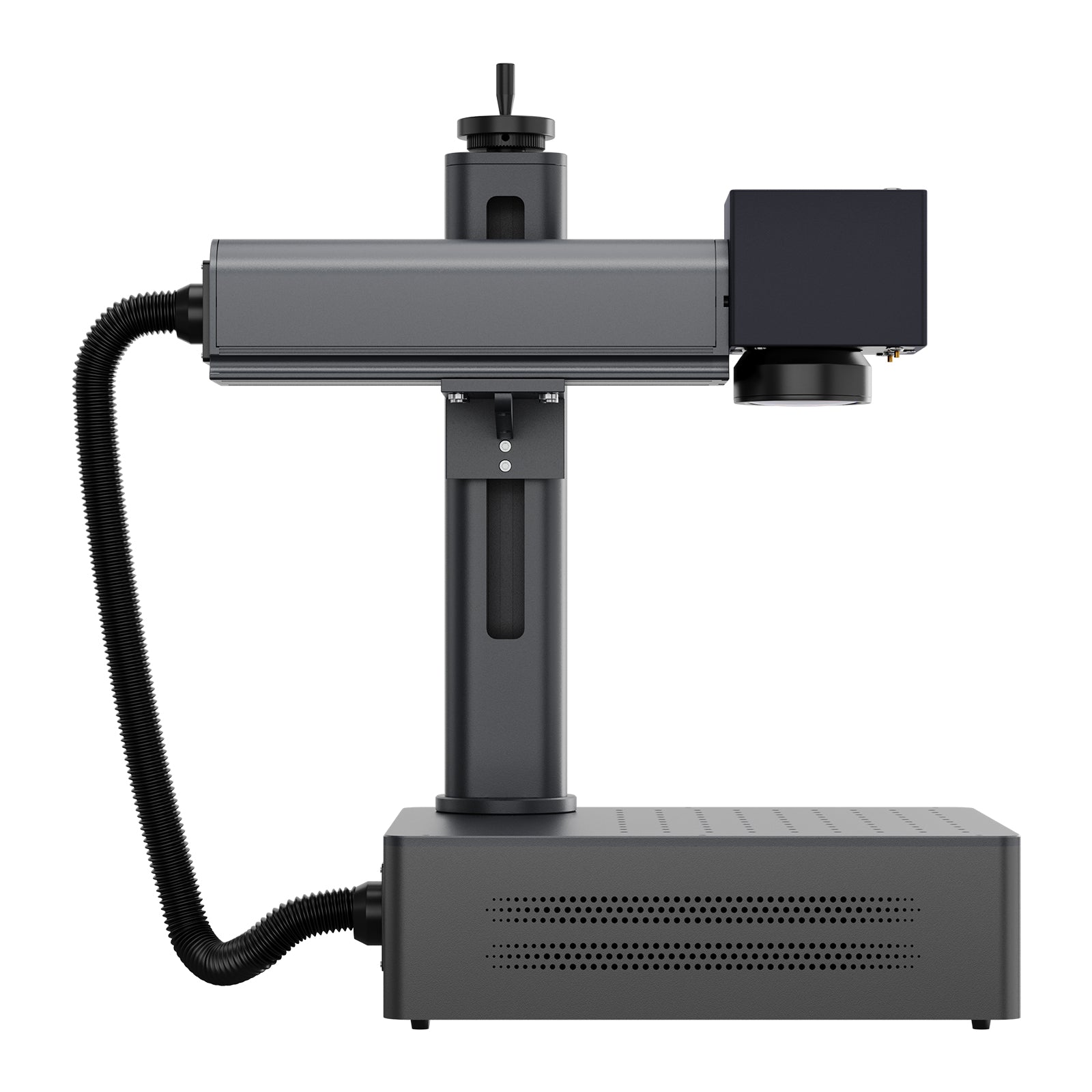

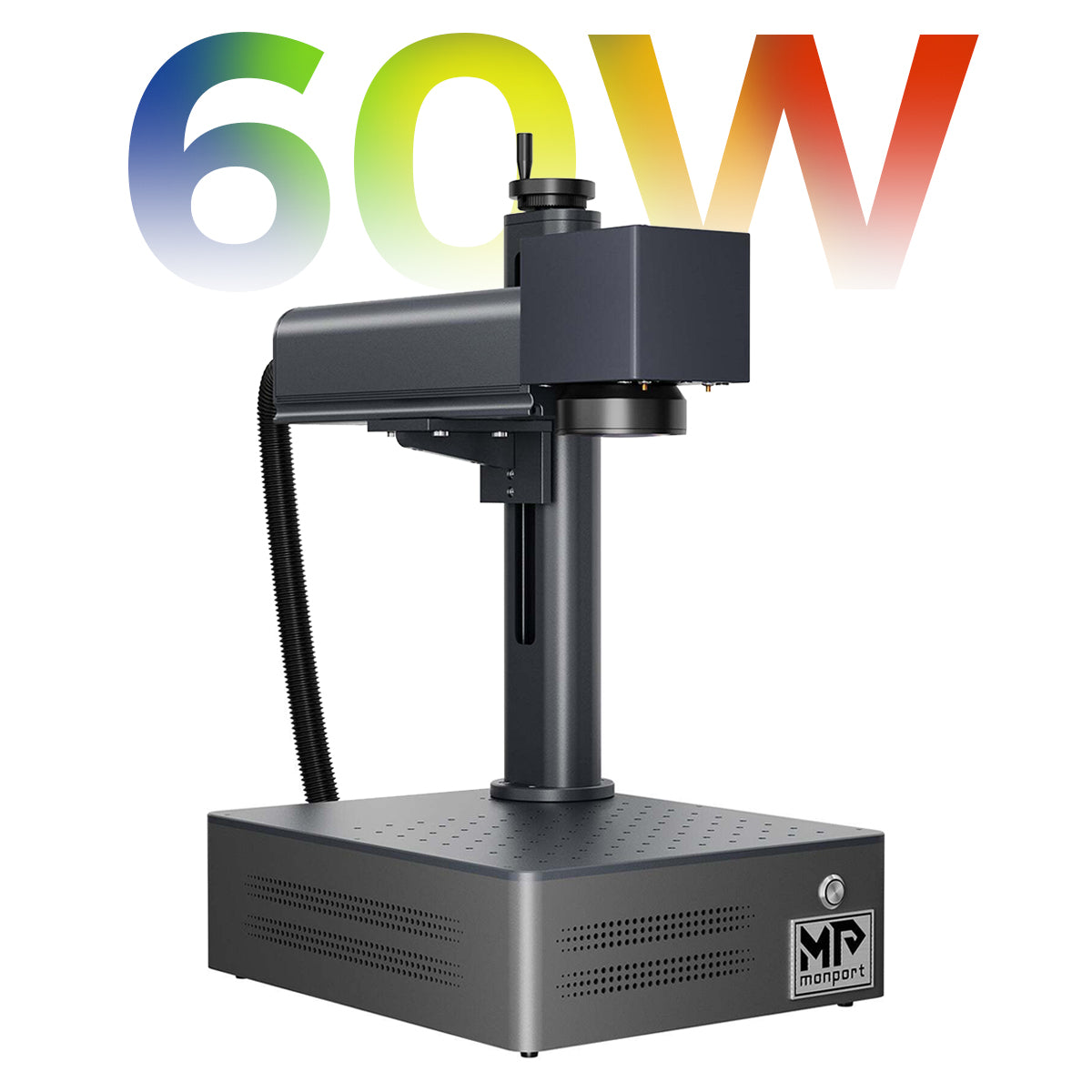

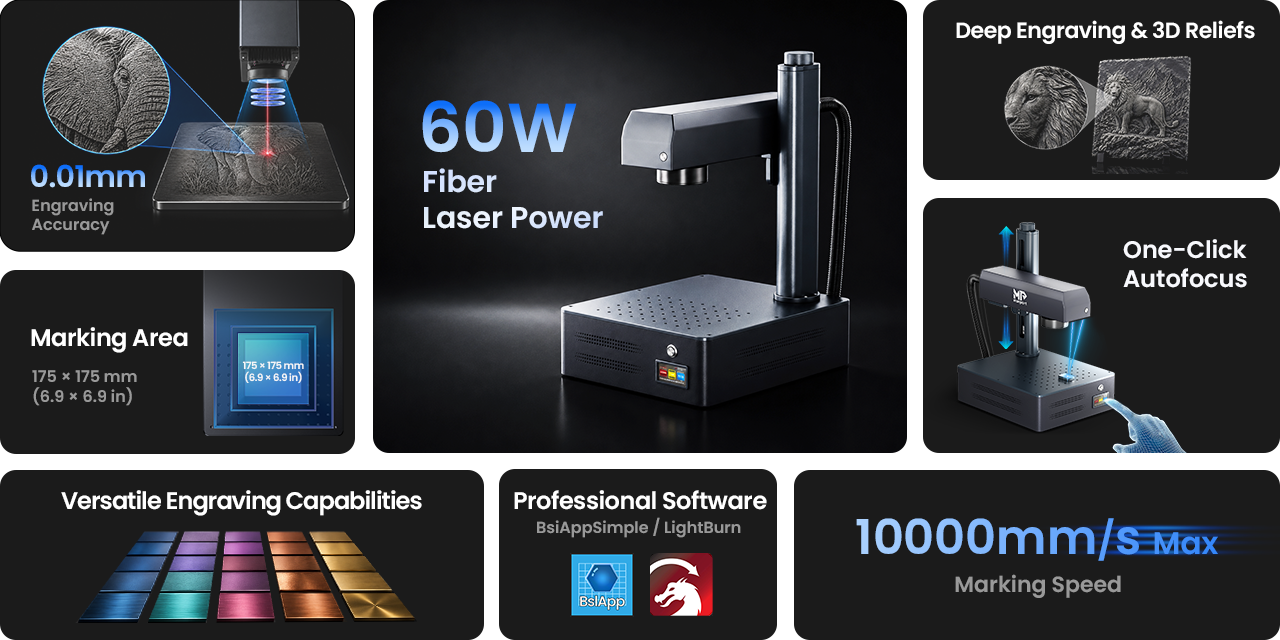

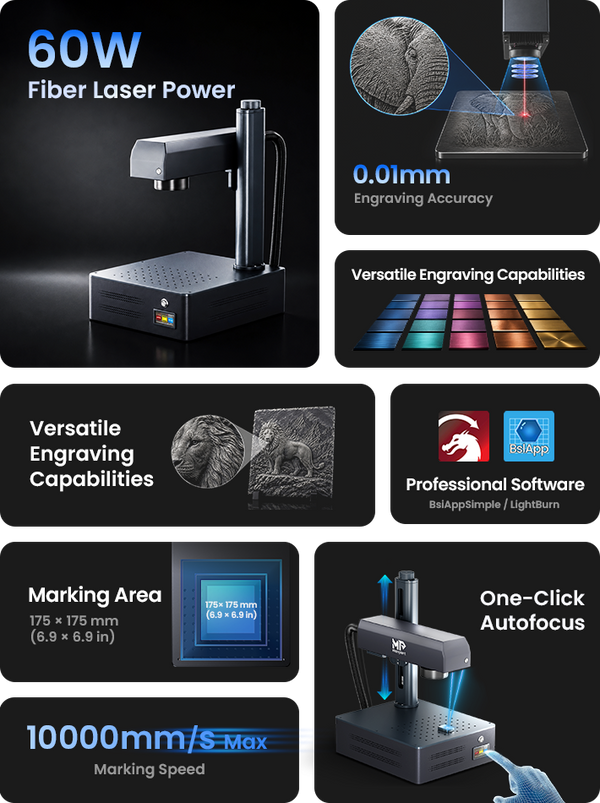

Monport GM 60W Pro Integrated JPT MOPA Fiber Laser Engraver & Marking Machine with AutoFocus
Monport GM 60W Pro Integrated JPT MOPA Fiber Laser Engraver & Marking Machine with AutoFocus
Low stock
Couldn't load pickup availability
PackageĀ Contents
PackageĀ Contents
- 1Ć Power Cord (1.5 meters)
- 1Ć USB Cable (2 meters)
- 1Ć Foot Switch
- 1Ć Ruler (40 cm)
- 1Ć Wrench Set
- 4Ć M6*12 Screws
- 4Ć M6*10 Screws
- 4Ć M5*16 Screws
- 1Ć User Manual
- 10Ć Test Aluminum Sheets
- 2Ć Positioning Bars
- 1Ć USB Flash Drive
- 1Ć USB to Type-C Adapter
- 1Ć Safety Goggles
Warranty & Certifications
Warranty & Certifications
- 2-year parts warrantyĀ on all GM pro MOPA fiber laser machines
- 1-year warranty on fiber laser source
About Delivery
About Delivery
Some tips about delivery in the continental CA (except preorder)
The delivery time varies from 3 to 7 business days.
If your address is outside the continental CA, Please read theĀ Shipping Policyācarefully before buying.
If the arrived outer package is damaged, please refuse to sign for it and take a photo, then contact Monport viaĀ support@monportlaser.ca.
We are very glad to help you with the exchange process.
User Manual
User Manual
Download GM pro User Manual Here
One-Touch Autofocus
The all-new GM Pro Series comes equipped with a cutting-edge one-touch auto-focus feature, enabling faster and more precise engraving results. Experience enhanced convenience and superior performance with every use.
Faster, More Precise, Custom-Engineered Performance

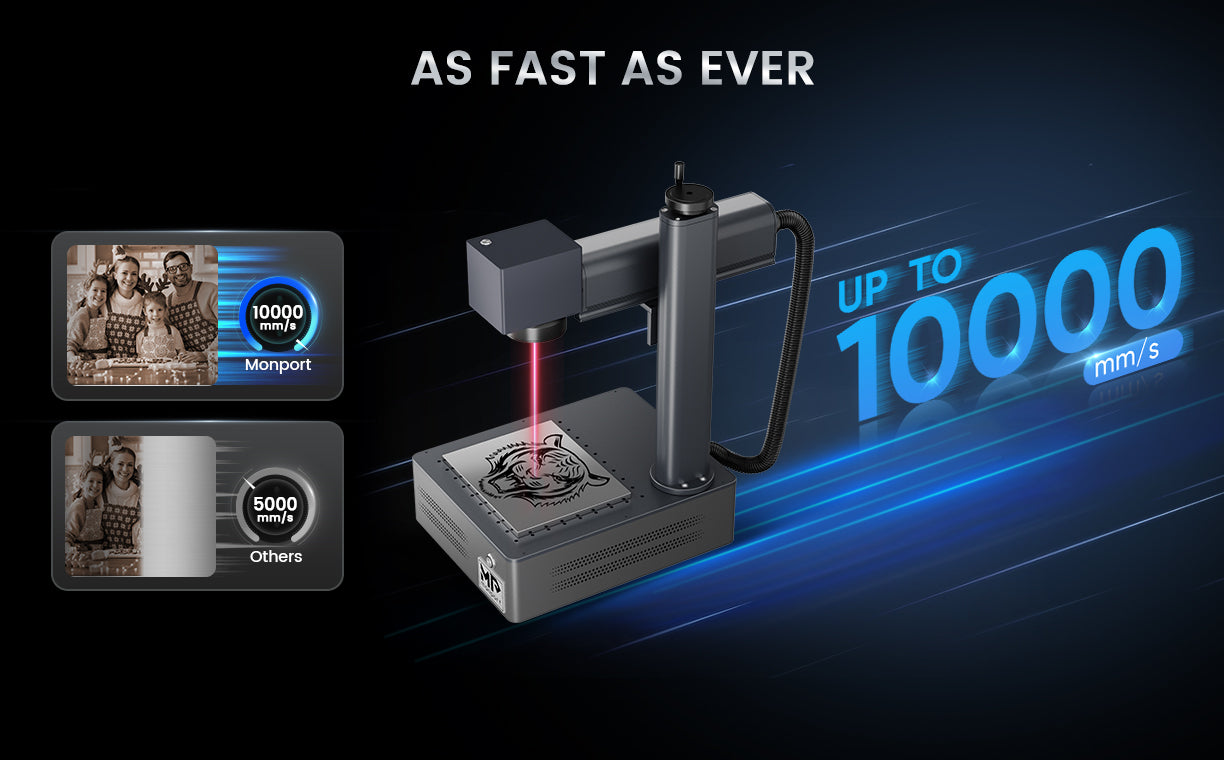

The newly designed galvanometer system features high-quality silicon material reflectors, pushing the maximum speed to an impressive 10,000mm/s. Coupled with a custom F-theta field mirror, this advanced marking system ensures engraving accuracy down to 0.01mm, delivering exceptional precision and speed.

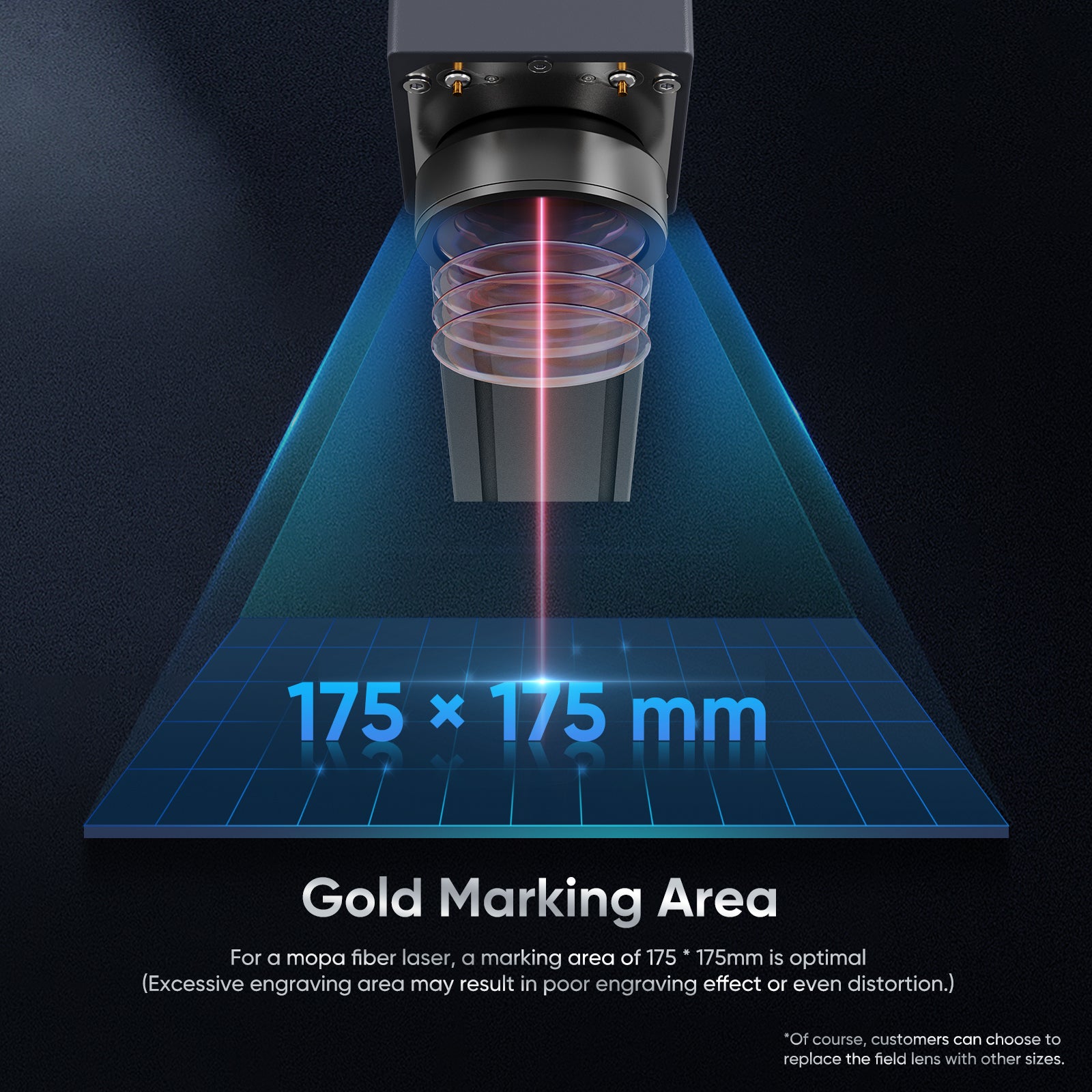

Perfectly Sized Working Area

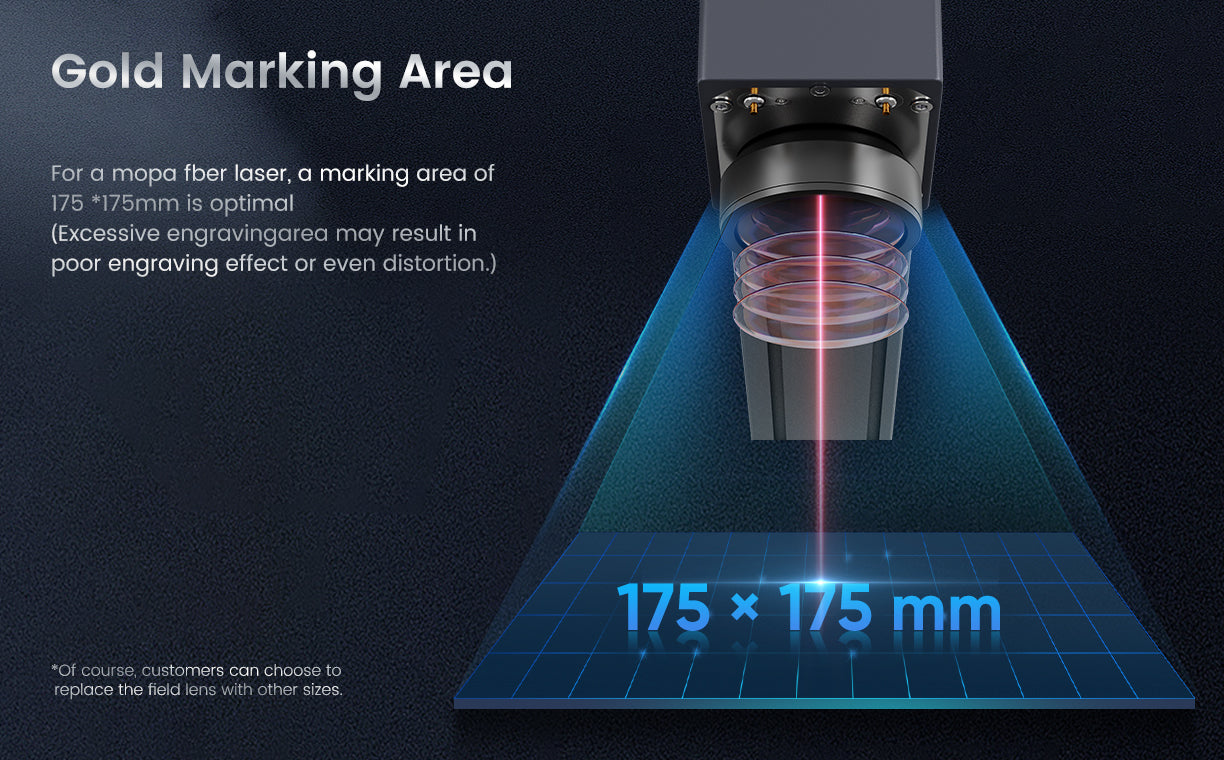

For the 60W Mopa fiber laser, the optimal working area is 175*175mm. Going beyond this size may lead to subpar engraving results or even distortion. Thanks to Monport's precise tuning, you can engrave at the edges with consistent power, ensuring no weak spots or loss of intensity.
Deep Engraving and 3D Relief Engraving
The higher the power, the greater the depth and detail you can achieve in your engravings. With enhanced power, the machine delivers superior deep engraving and 3D relief results, providing unmatched precision and depth for intricate designs.
0.01mm Professional-Grade Accuracy
Engineered for precision, this machine delivers consistent, high-detail engraving with an accuracy of 0.01mm, ensuring flawless results with every use.
Max Metal Cutting Capability
Engineered for high-power performance, this machine delivers exceptional cutting strength across a wide range of metals. From stainless steel to aluminum and brass, it ensures clean edges, deep penetration, and consistent resultsāeven on demanding industrial tasks.
| Product Name | GM20 Pro | GM30 Pro | GM50 Pro | GM30 Mopa Pro | GM60 Mopa Pro |
| Laser Power | 20 W | 30 W | 50 W | 30 W | 60 W |
| Engraving Area | 4.3 Ć 4.3 in. (110 Ć 110 mm) |
5.9 Ć 5.9 in. (150 Ć 150 mm) |
5.9 Ć 5.9 in. (150 Ć 150 mm) |
6.9 Ć 6.9 in. (175 Ć 175 mm) |
6.9 Ć 6.9 in. (175 Ć 175 mm) |
| Max. Marking Depth (single pass, material dependent) |
0.002 in. (0.04 mm) |
0.003 in. (0.08 mm) |
0.004 in. (0.10 mm) |
0.003 in. (0.08 mm) |
0.004 in. (0.10 mm) |
| Max Engraving Speed | 10 000 mm/s (393.7 ips) |
10 000 mm/s (393.7 ips) |
10 000 mm/s (393.7 ips) |
10 000 mm/s (393.7 ips) |
10 000 mm/s (393.7 ips) |
| Engraving Accuracy | 0.01 mm | 0.01 mm | 0.01 mm | 0.01 mm | 0.01 mm |
| Positioning Accuracy | Ā± 0.1 Āµm | Ā± 0.1 Āµm | Ā± 0.1 Āµm | Ā± 0.1 Āµm | Ā± 0.1 Āµm |
| Laser Source | MAX | MAX | MAX | JPT | JPT |
| Input Power | 110ā120 V 60 Hz | 110ā120 V 60 Hz | 110ā120 V 60 Hz | 110ā120 V 60 Hz | 110ā120 V 60 Hz |
| Beam Quality MĀ² | < 1.5 | < 1.5 | < 1.6 | < 1.4 | < 1.5 |
| Beam Diameter | 6ā8 mm | 6ā8 mm | 6ā8 mm | 7 Ā± 1 mm | 7 Ā± 1 mm |
| Maximum Pulse Energy | 0.78 mJ | 0.78 mJ | 1.1 mJ | 1 mJ | 2 mJ |
| Max Z Height (field lens to workbench) |
400 mm | 400 mm | 400 mm | 400 mm | 400 mm |
| Central Wavelength | 1 064 nm | 1 064 nm | 1 064 nm | 1 064 nm | 1 064 nm |
| Frequency Range | 29ā60 kHz | 30ā60 kHz | 45ā170 kHz | 1ā4 000 kHz | 1ā4 000 kHz |
| Pulse Width | 80ā120 ns (Unadjustable) |
80ā120 ns (Unadjustable) |
90ā110 ns (Unadjustable) |
2ā500 ns | 2ā500 ns |
| Expected Service Life (MTTF) | 100 000 h | 100 000 h | 100 000 h | 100 000 h | 100 000 h |
| Color Engraving | NO | NO | NO | YES | YES |
| Focus Mode | Autofocus | Autofocus | Autofocus | Autofocus | Autofocus |
| Electric Lifting | YES | YES | YES | YES | YES |
| Cooling Type | Air Cooling | Air Cooling | Air Cooling | Air Cooling | Air Cooling |
| Rotation Axis Function | YES | YES | YES | YES | YES |
| Galvanometer Thread Size | M68 | M68 | M68 | M68 | M68 |
| Field Lens Dimension | M85 | M85 | M85 | M85 | M85 |
| Materials Suitable for Engraving | Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. | Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. | Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. | Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. | Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. |
| Compatible Operating Systems | Windows / macOS | Windows / macOS | Windows / macOS | Windows / macOS | Windows / macOS |
| Compatible Software | BSLcad, Lightburn | BSLcad, Lightburn | BSLcad, Lightburn | BSLcad, Lightburn | BSLcad, Lightburn |
| Data Transmission | USB Cable | USB Cable | USB Cable | USB Cable | USB Cable |

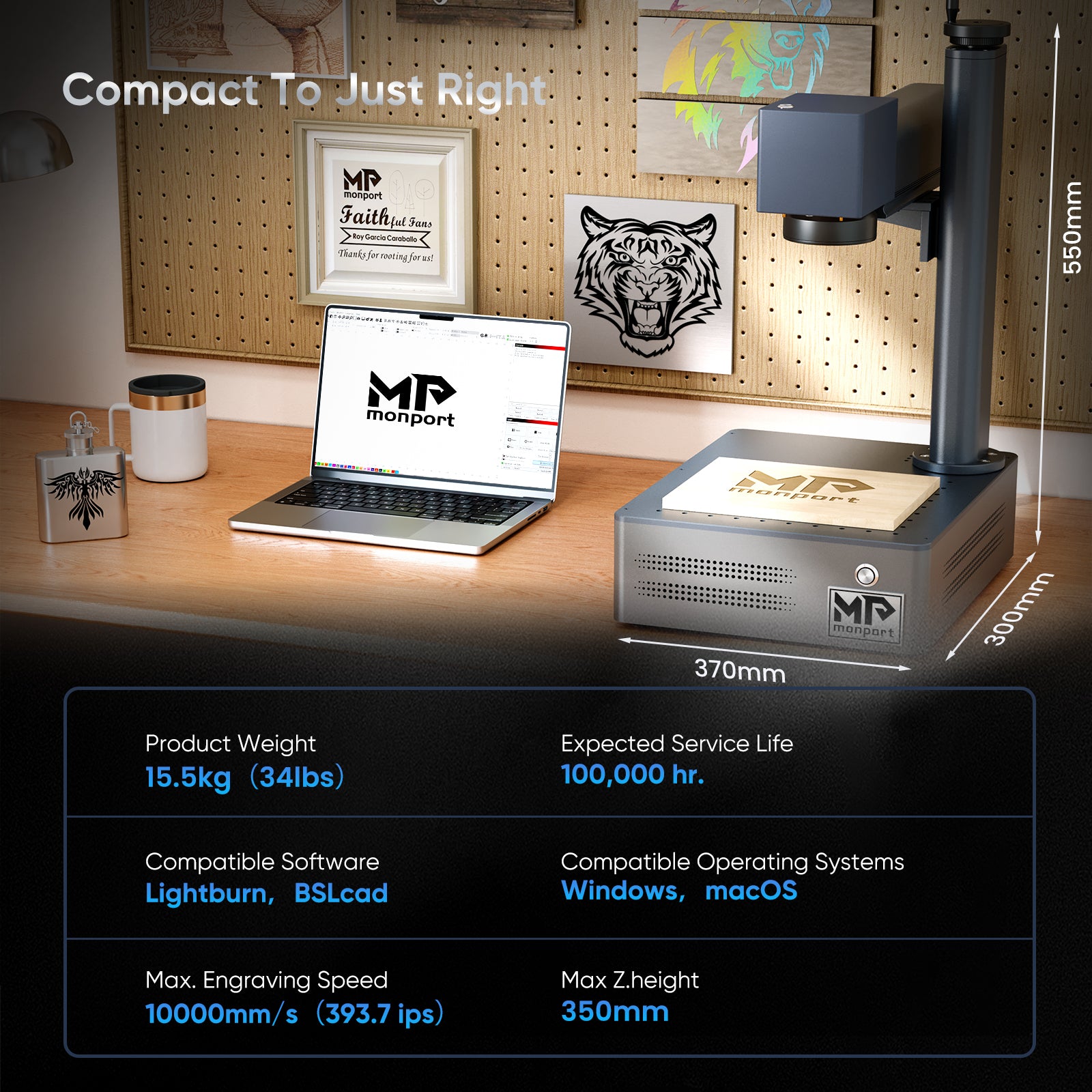

| Product Dimensions (L Ć W Ć H) | 15.75 Ć 13.00 Ć 24.41 in (40 Ć 33 Ć 62 cm) |
15.75 Ć 13.00 Ć 24.41 in (40 Ć 33 Ć 62 cm) |
15.75 Ć 13.00 Ć 24.41 in (40 Ć 33 Ć 62 cm) |
15.75 Ć 13.00 Ć 24.41 in (40 Ć 33 Ć 62 cm) |
15.75 Ć 13.00 Ć 24.41 in (40 Ć 33 Ć 62 cm) |
| Package Dimension (L Ć W Ć H) | 23.23 Ć 17.32 Ć 15.35 in (59 Ć 44 Ć 39 cm) |
23.23 Ć 17.32 Ć 15.35 in (59 Ć 44 Ć 39 cm) |
23.23 Ć 17.32 Ć 15.35 in (59 Ć 44 Ć 39 cm) |
23.23 Ć 17.32 Ć 15.35 in (59 Ć 44 Ć 39 cm) |
23.23 Ć 17.32 Ć 15.35 in (59 Ć 44 Ć 39 cm) |
| Product Weight | 34.4 lb (15.6 kg) | 37.7 lb (17.1 kg) | 34.4 lb (15.6 kg) | 34.4 lb (15.6 kg) | 36.6 lb (16.6 kg) |
| Gross Weight | 43.0 lb (19.5 kg) | 46.3 lb (21 kg) | 43.0 lb (19.5 kg) | 43.0 lb (19.5 kg) | 45.2 lb (20.5 kg) |
| Warranty | 2-year (1 year for laser source) |
2-year (1 year for laser source) |
2-year (1 year for laser source) |
2-year (1 year for laser source) |
2-year (1 year for laser source) |
Package List
