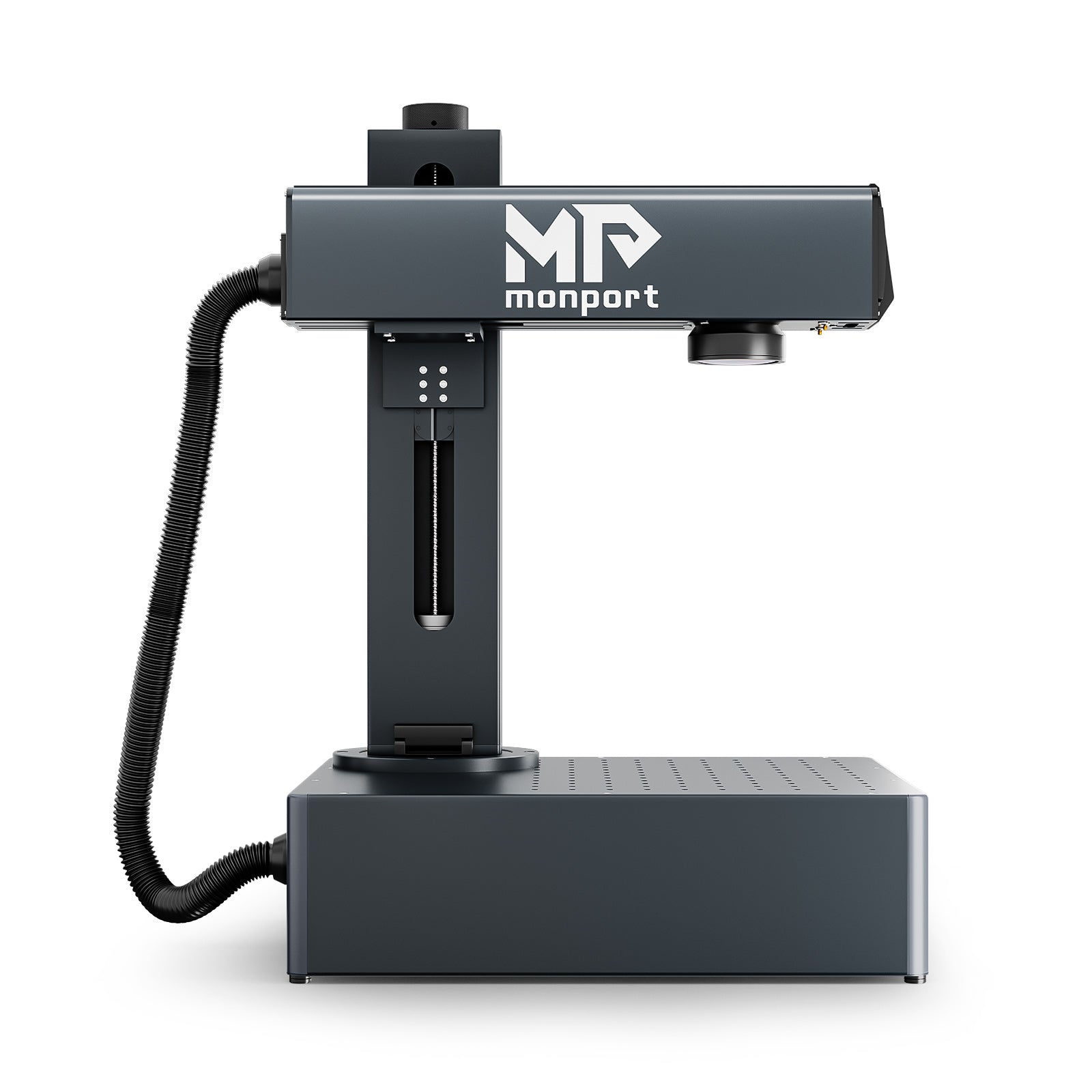

Monport GA 60W Upgraded Integrated MOPA Fiber Laser Engraver & Marking Machine with Auto Focus
Monport GA 60W Upgraded Integrated MOPA Fiber Laser Engraver & Marking Machine with Auto Focus
In stock
Couldn't load pickup availability
Dimension & Specifications
Dimension & Specifications
Laser Power: 60W

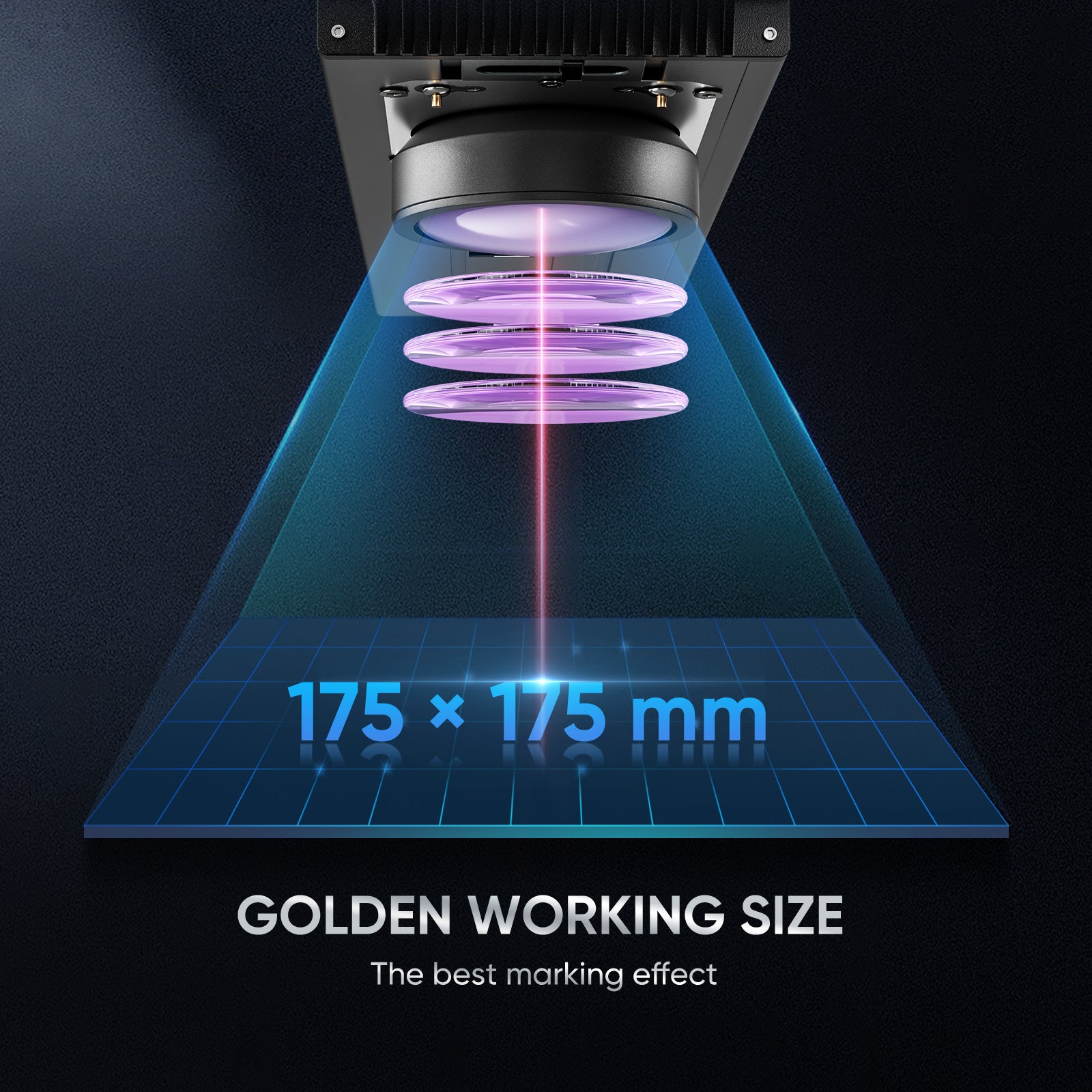

Working Area: 6.9"x 6.9"
Wavelength: 1064nm

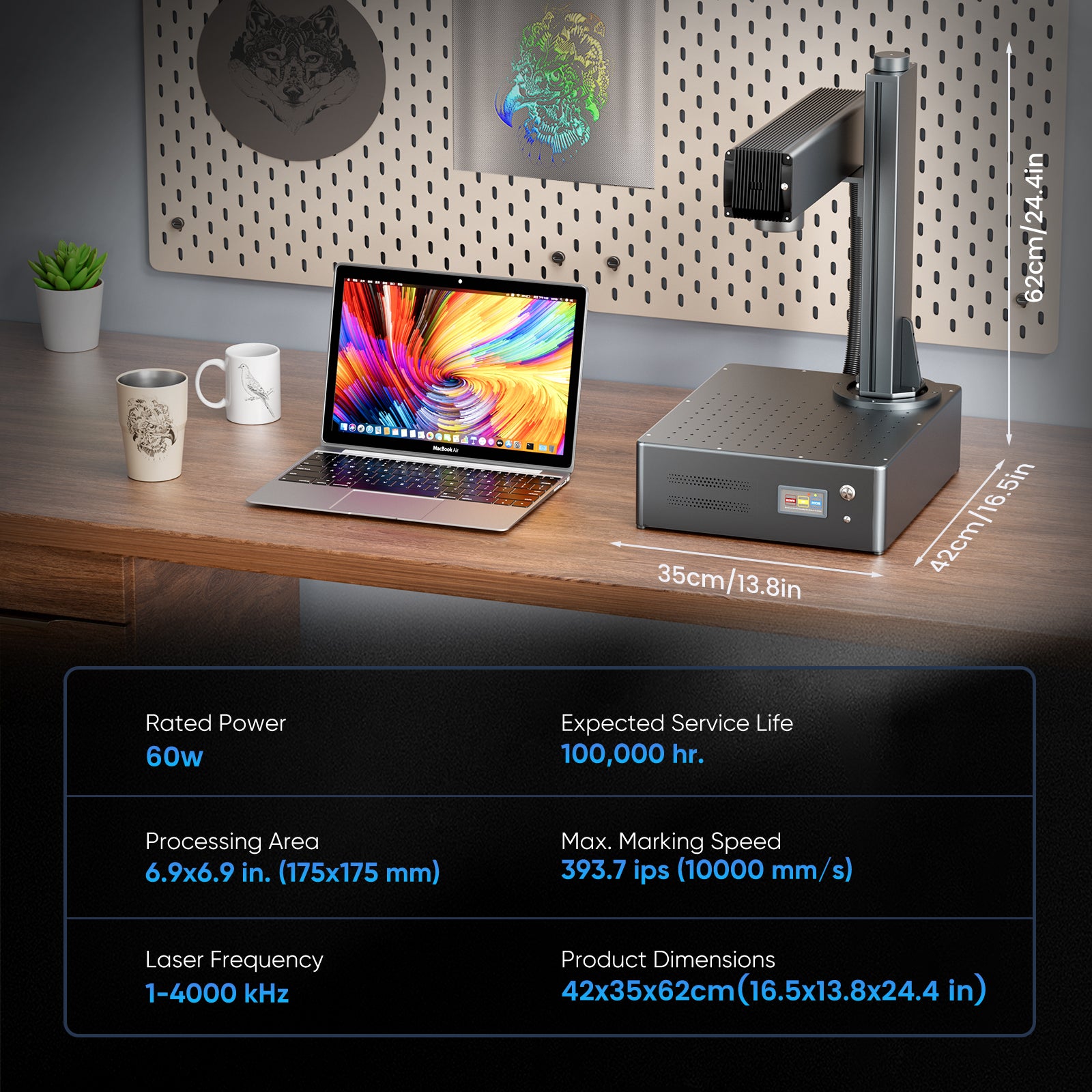

Machine Dimension: 42cm x 35cm x 62cm
Package Dimension: 74cm x 61cm x 36cm

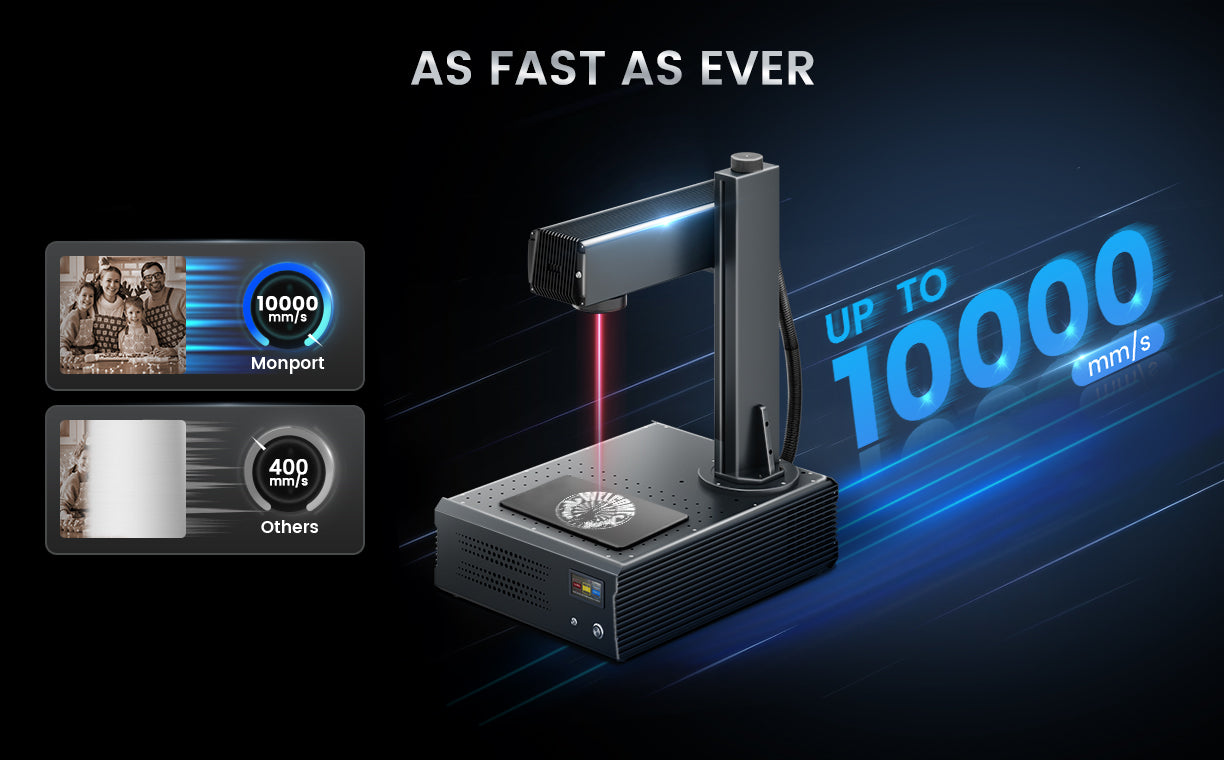

Marking Speed: 10000mm/s (Up to 15000mm/s)
Expected Service Life (MTTF): 100,000 hr.

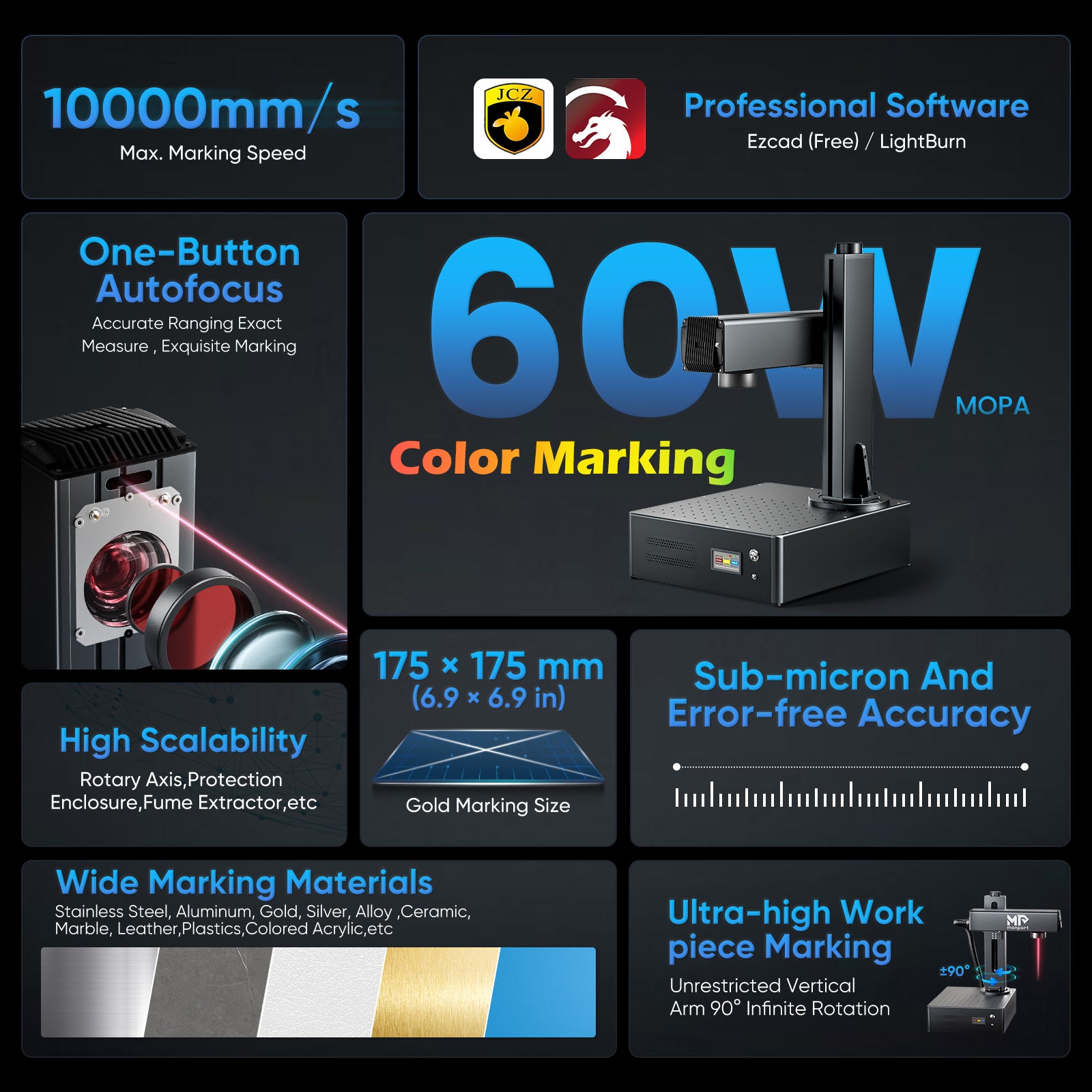

GA60 MOPA Fiber Features
GA60 MOPA Fiber Features
All-in-One Fiber LaserExperience Monport's latest, independently developed autofocuslaser marking machine. Upgraded for enhanced performance and cost-effectiveness, users can enjoy advanced features without significant cost increase. The machine arrives ready-to-use with easy installation, quick setup, and user-friendly operation.

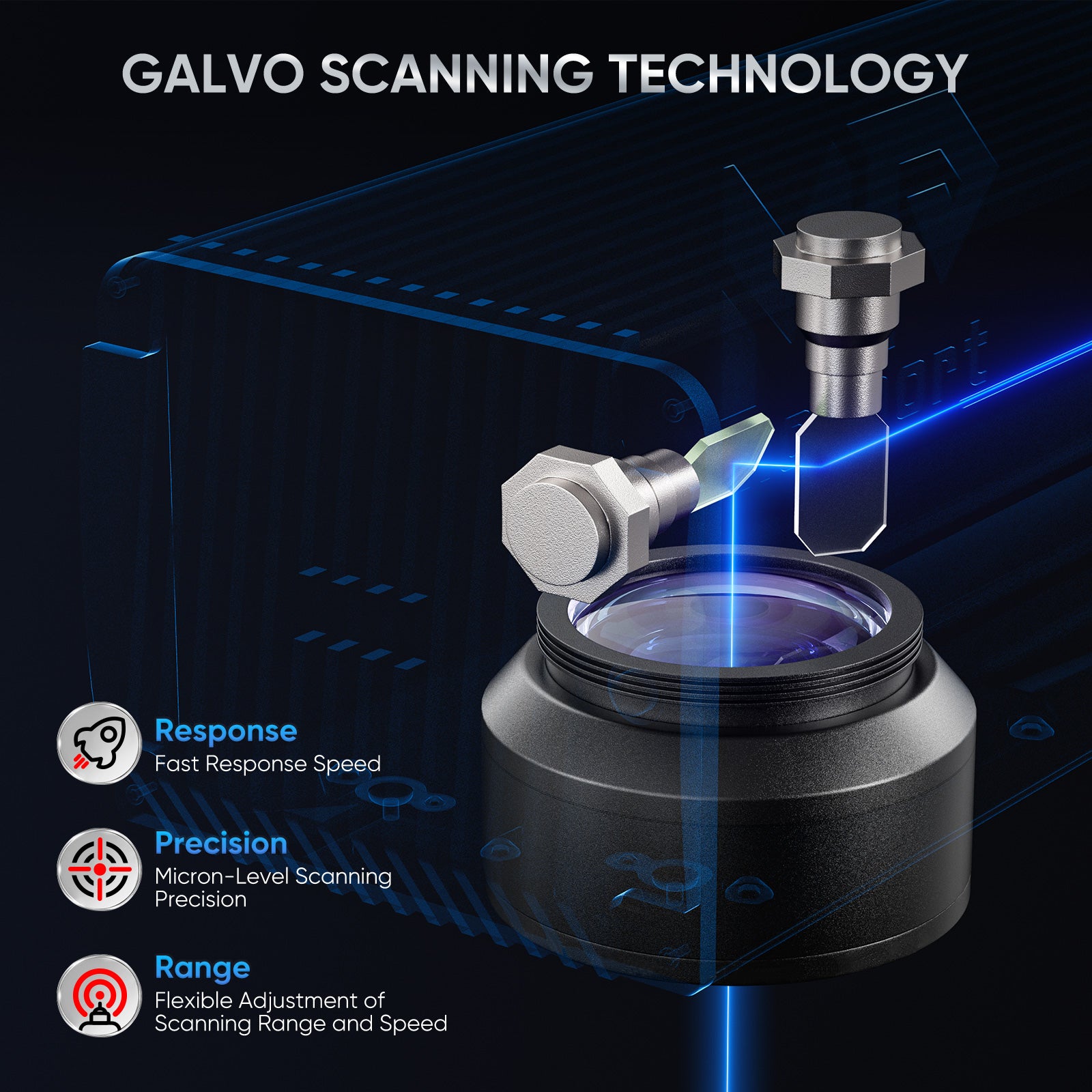

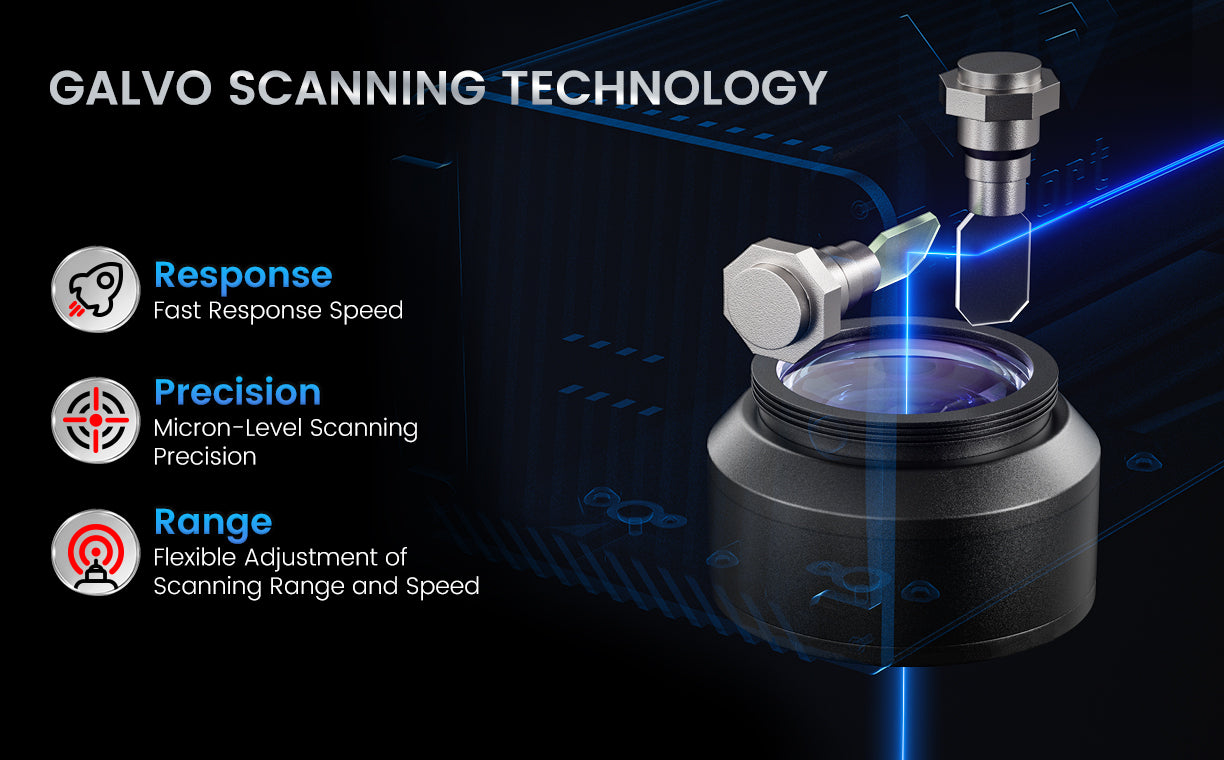

Aluminum Body with Integrated OpticsMonport combines functionality and aesthetics in industrial gradefiber laser engravers. The entire machine features a robust aluminum casing, with the auto-focus and galvanometer modules integrated into the optical path. This integration, paired with sleek exterior lines and a minimalist structure, positions it far ahead of industry competitors.

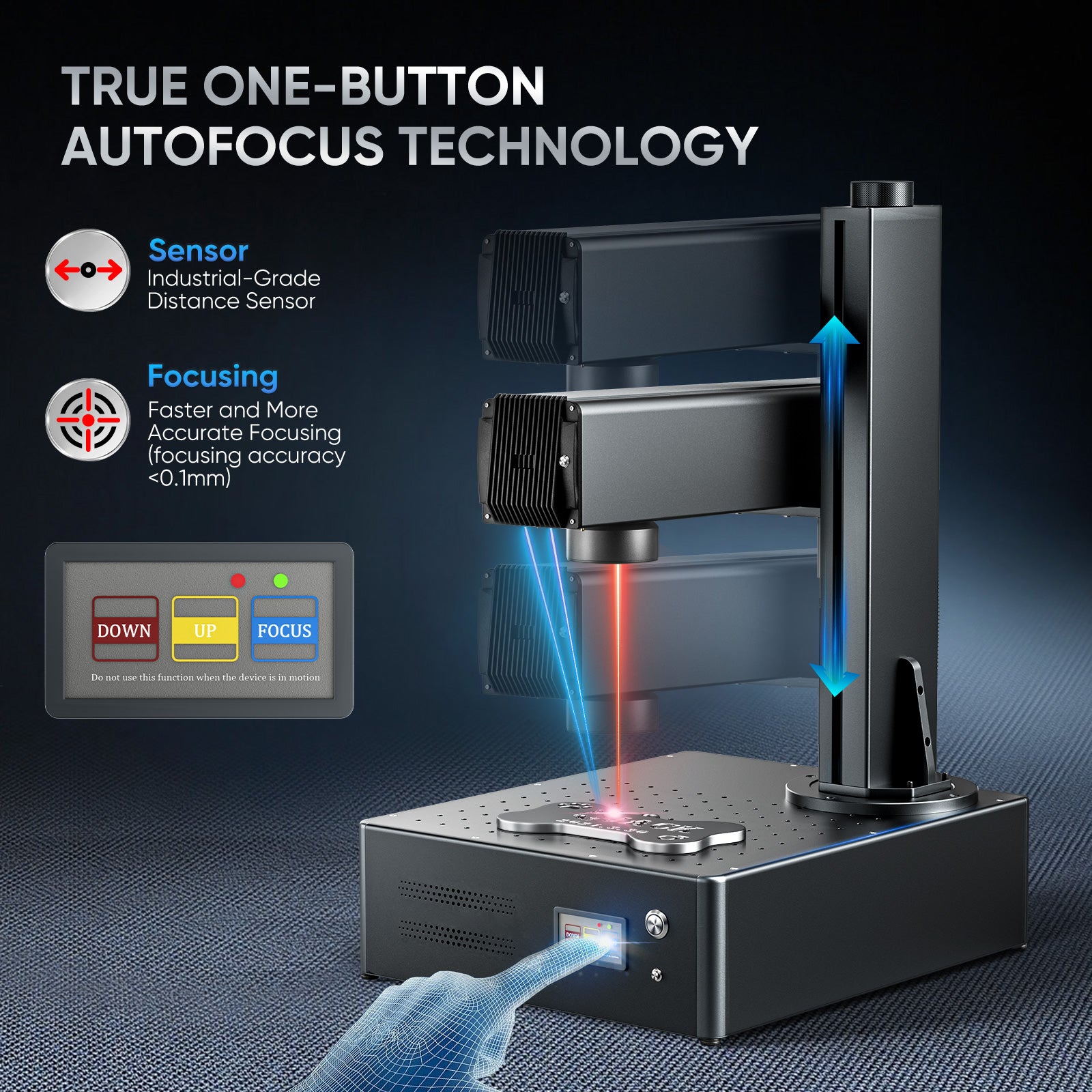

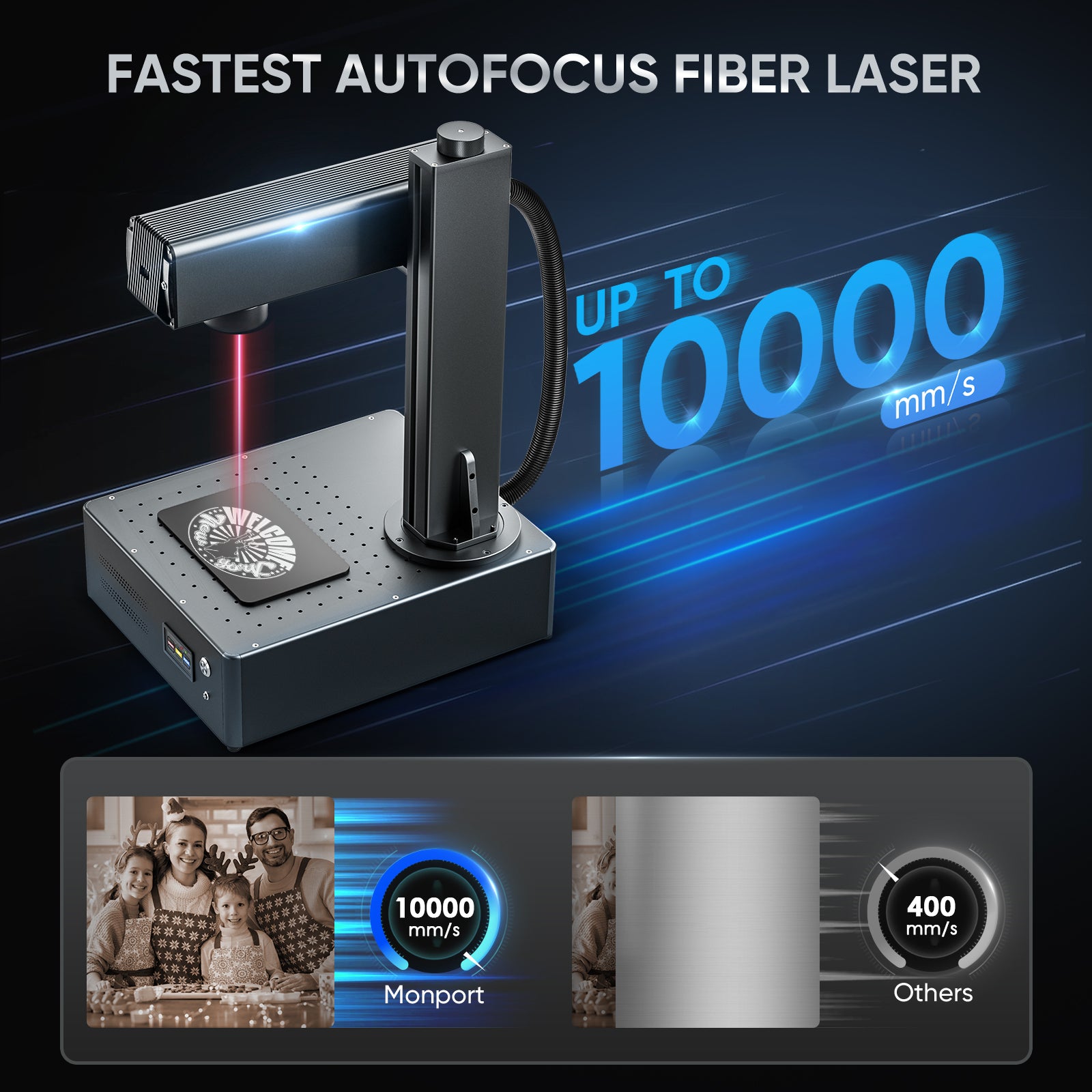

Auto-Focus InnovationMonport introduces our proprietary auto-focus technology, achieving high precision with a single click (error<±1mm). This streamlined process enhances work efficiency and focus accuracy compared to traditional manual methods. For added flexibility, manual focus is also possible, supported by three red lights.
Enhanced PerformanceBeyond its outstanding design, Monport's desktop marking machine outperforms competitors also in performance. Every component has been rigorously tested for ultra-high stability, precision positioning, rapid marking speeds, and robust anti-interference capabilities (see detailed specifications for reference).

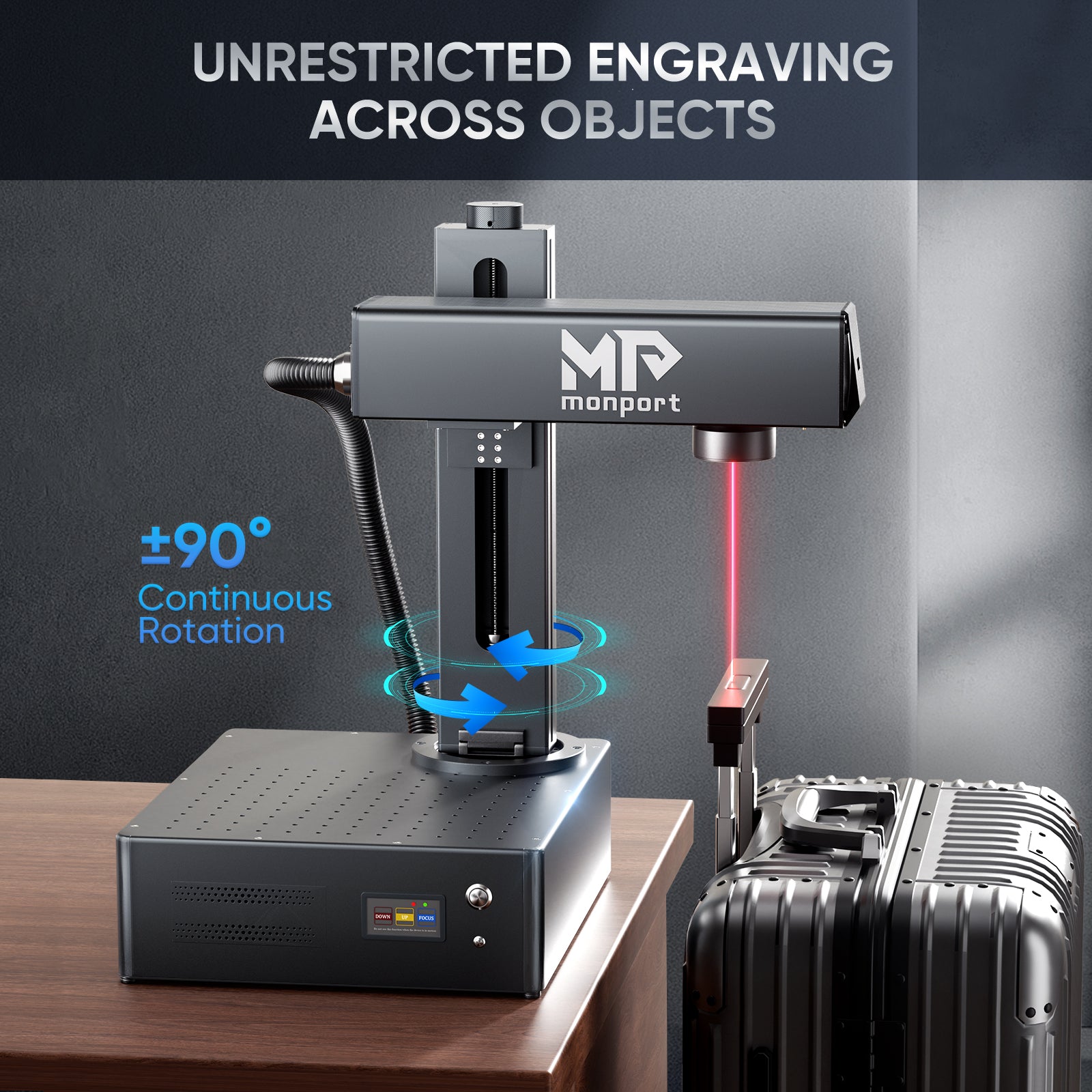

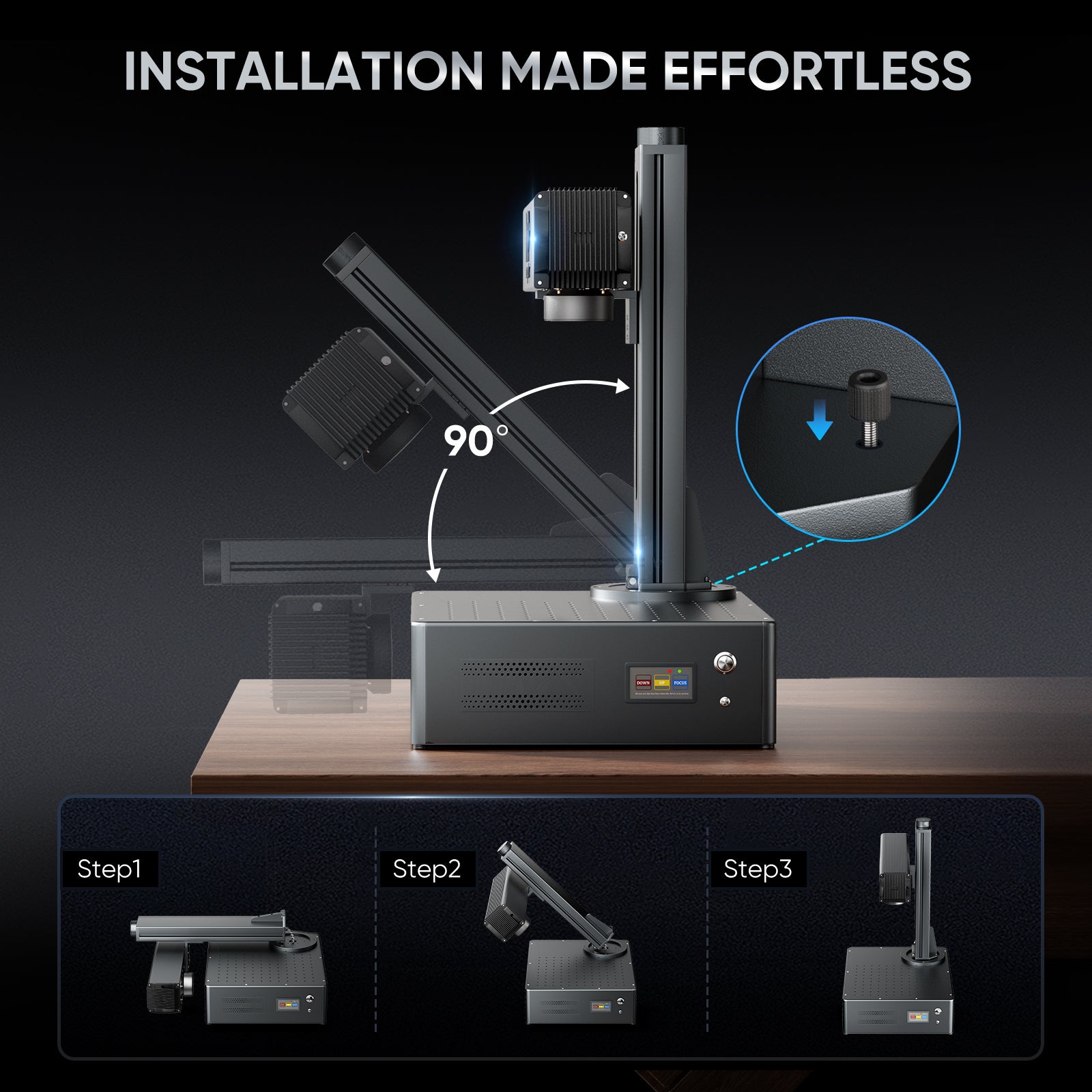

±90° Vertical Arm RotationThe vertical arm offers an infinitely adjustable range of ±90°. Users can fix it at any angle within this range, promoting unlimited creativity in marking applications. Adjustments are convenient, requiring just the loosening of screws without the need for complete unscrewing.

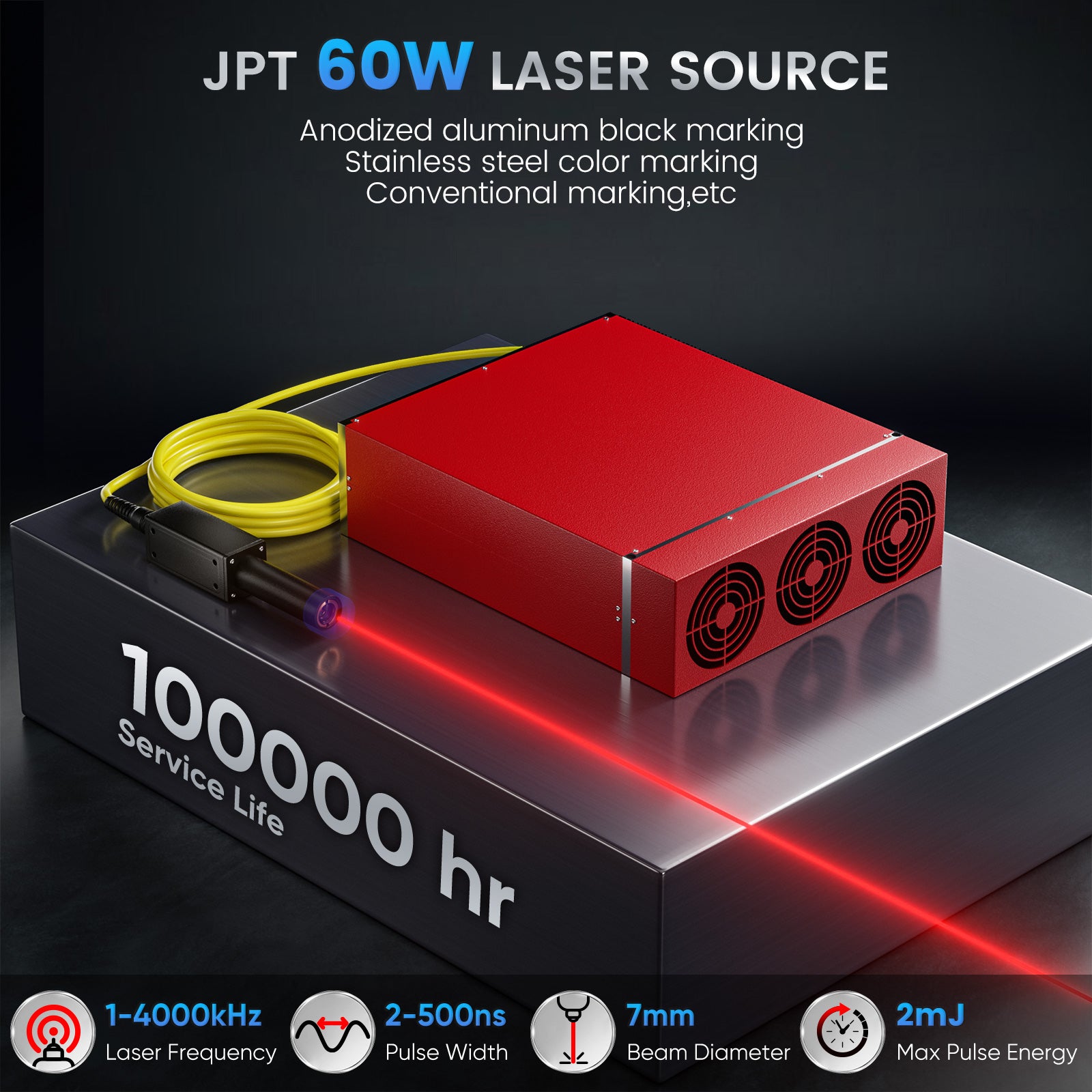

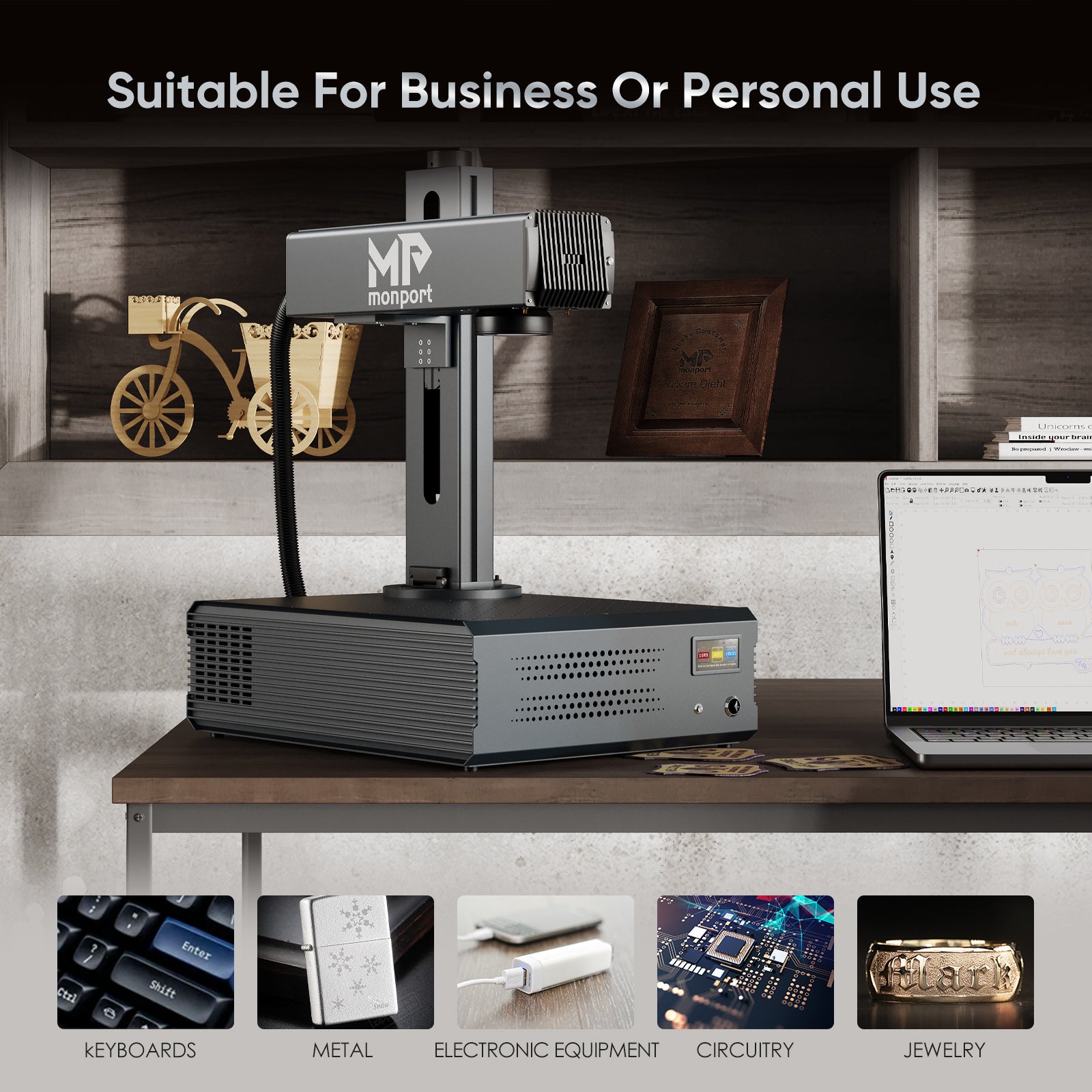

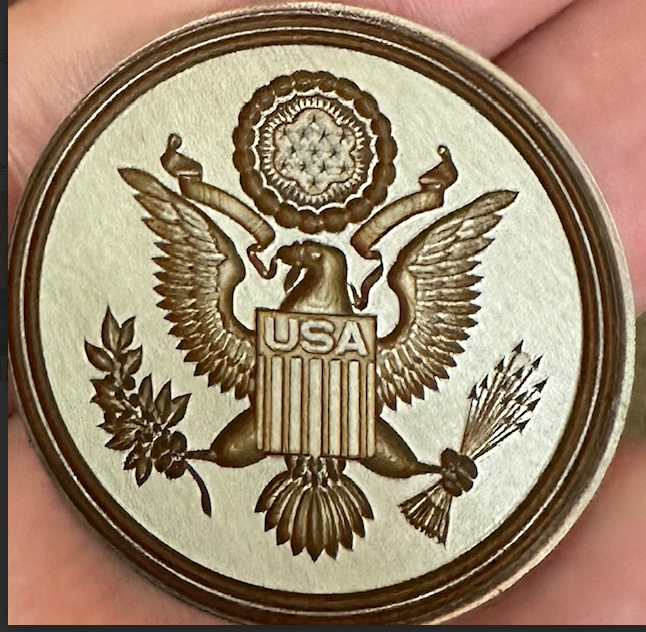

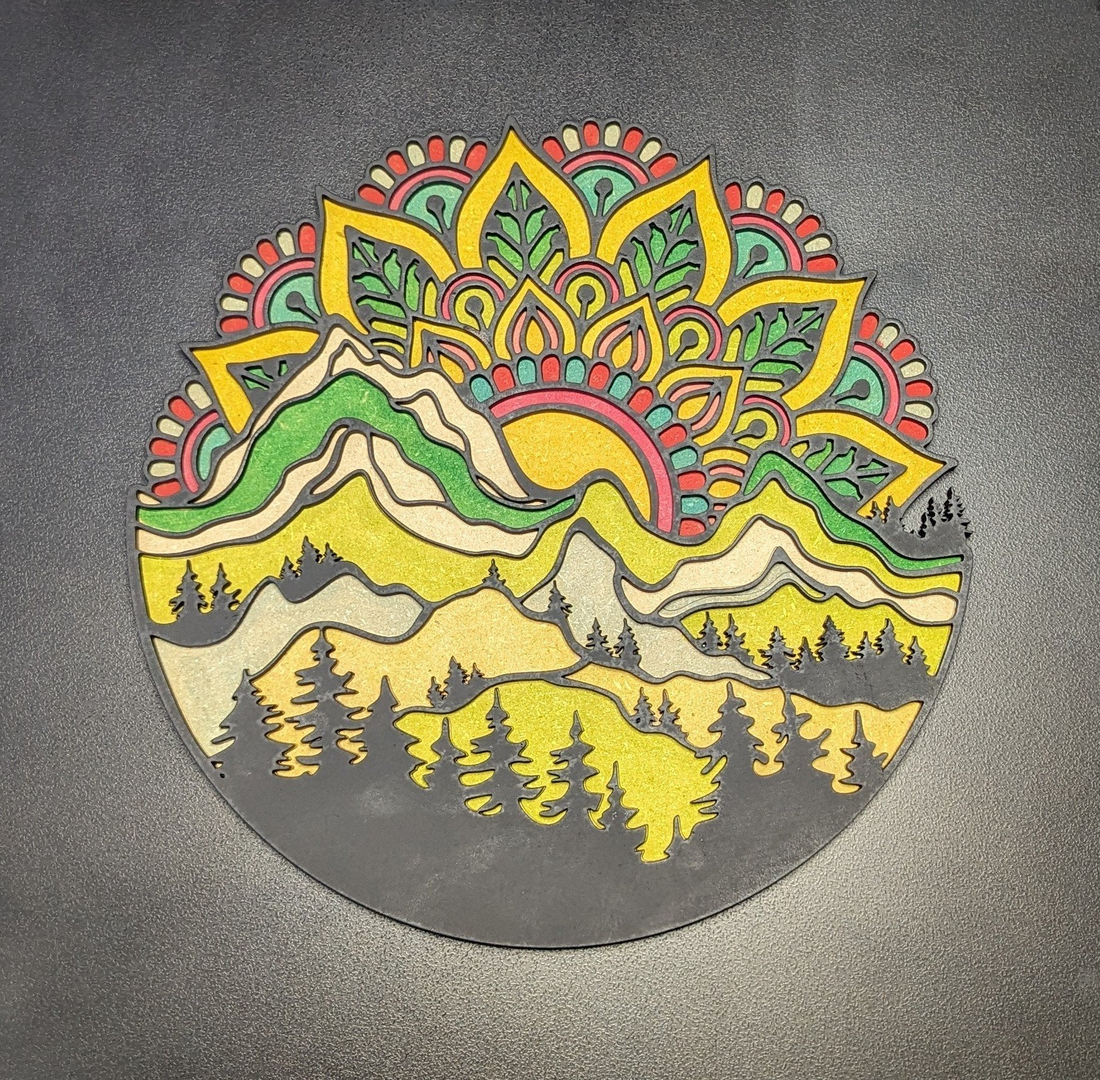

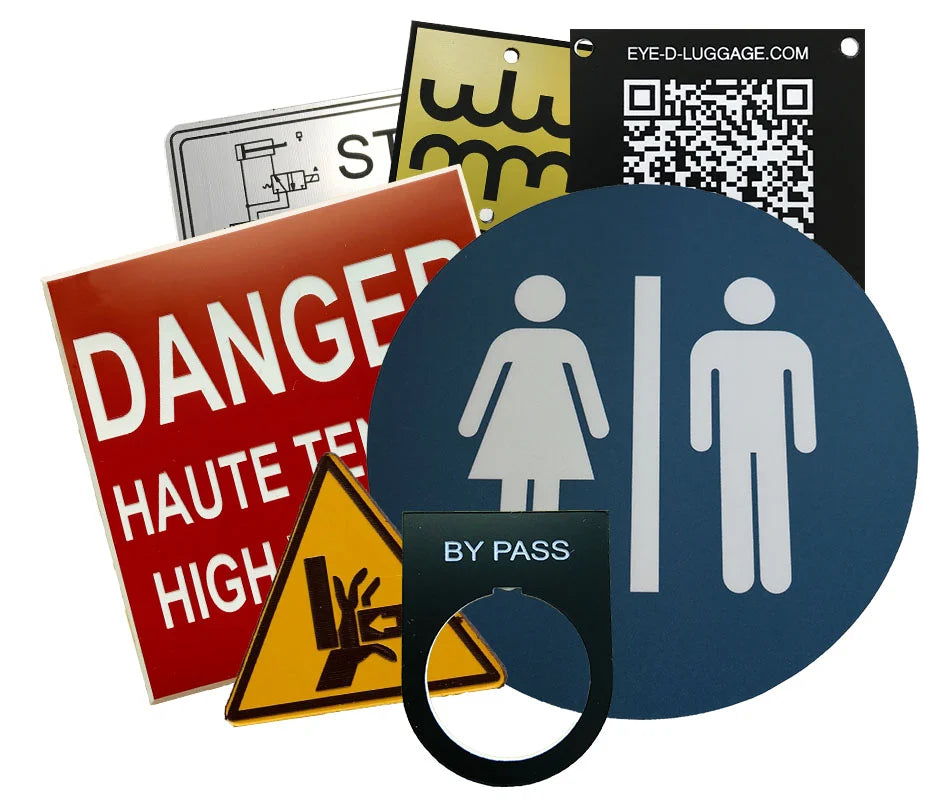

Widely adjustable frequency and pulse widthStainless steel colorful marking,including anodized aluminum black marking, precision cutting, drilling, conventional marking, plastic keystroke surface marking, etc.
(Note: Laser Frequency 1-3000kHz,Pulse Width 2-500ns)
One-Minute InstallationInstalling this LightBurn compatible fiber laser marker is a breeze with its excellent foldable vertical arm design —just tighten two screws, and you're ready to go. Monport promises that even beginners can complete the setup within a minute after unboxing for a hassle-free experience.

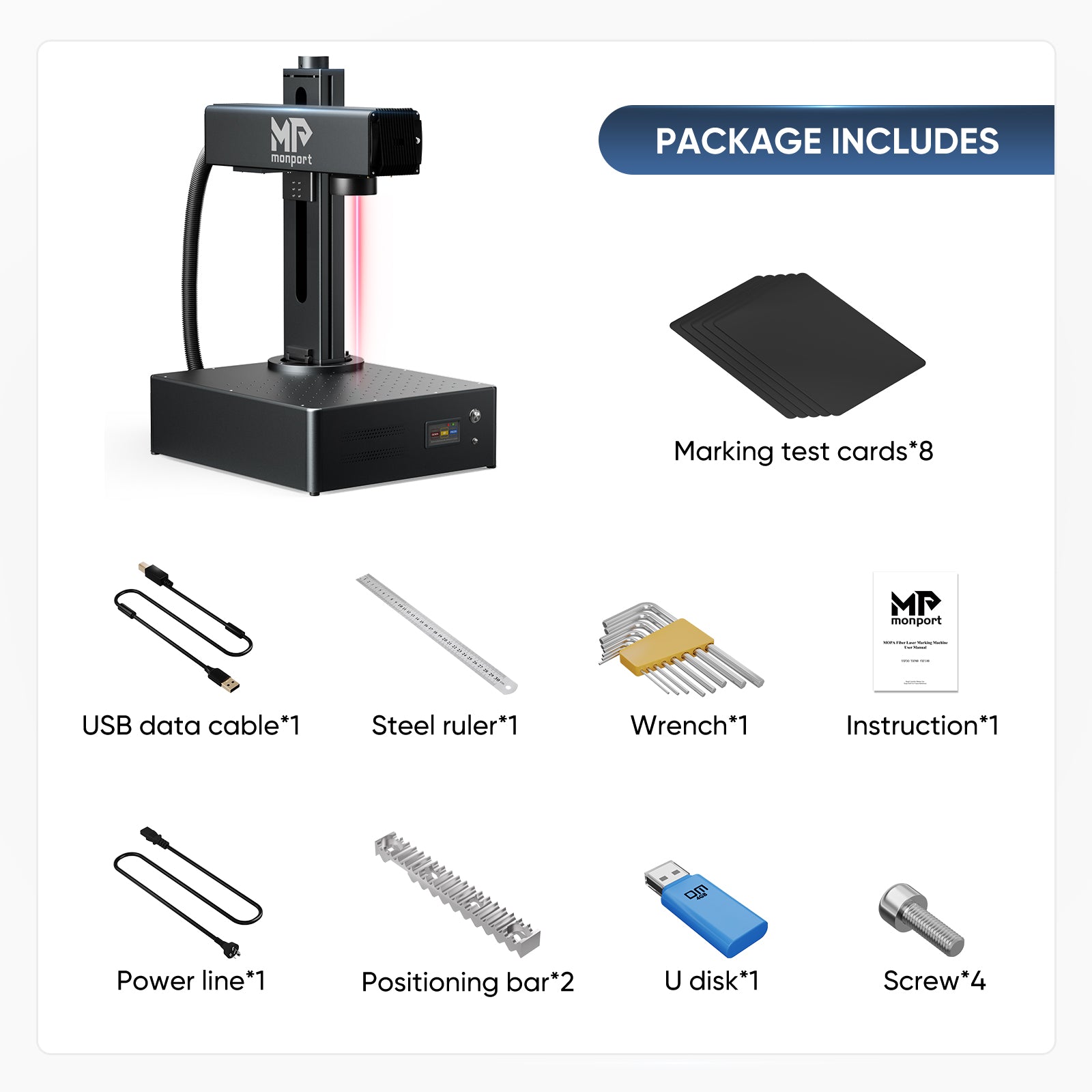

Package List
Package List
Fiber marking machine*1
Marking test cards*8
USB data cable*1
U disk*1
Wrench*1
Steel ruler*1
Positioning bar*2
Screw*4
Power line*1
Protective glasses*1
Instruction*1
Warranty & Certifications
Warranty & Certifications
- 2-year parts warranty on all GA MOPA fiber laser machines
- 1-year warranty on fiber laser source
Manual List
Manual List
Download GA User Manual: Here



Product | GA30 | GA60 | GA100 | |
Rated Power | 30W | 60W | 100W | |
Beam Quality M2 | <1.5 | <1.8 | <1.8 | |
Maximum Pulse Energy | 0.8 | 1.5 | 1.5 | |
Max. Marking Depth on a Single Pass |
0.003in. (0.08mm) |
0.004in. (0.1mm) |
0.006in. (0.15mm) |
|
Required Operating Environment |
Max. Humidity | <70% | ||
Temp. Range | 32–104°F(0 - 40°C) | |||
Expected Service Life | 100,000 hr. | |||
Input Power | 110-120V 60Hz | |||
Central Wavelength | 1064 nm | |||
Laser Frequency | 1-3000 kHz | |||
Pulse Width | 2-500 ns | |||
Beam Diameter | 7±0.5 mm | |||
Processing Area | 6.9x6.9 in. (175×175 mm) |
|||
Max. Marking Speed | 393.7 ips(10000 mm/s) | |||
Min. Marking Depth | 0.0002 in.(0.005 mm) | |||
Min. Line Width | 0.006 in.(0.15 mm) | |||
Precision | ±0.1 µm | |||
Provided Operating Software | BslAppSimple |

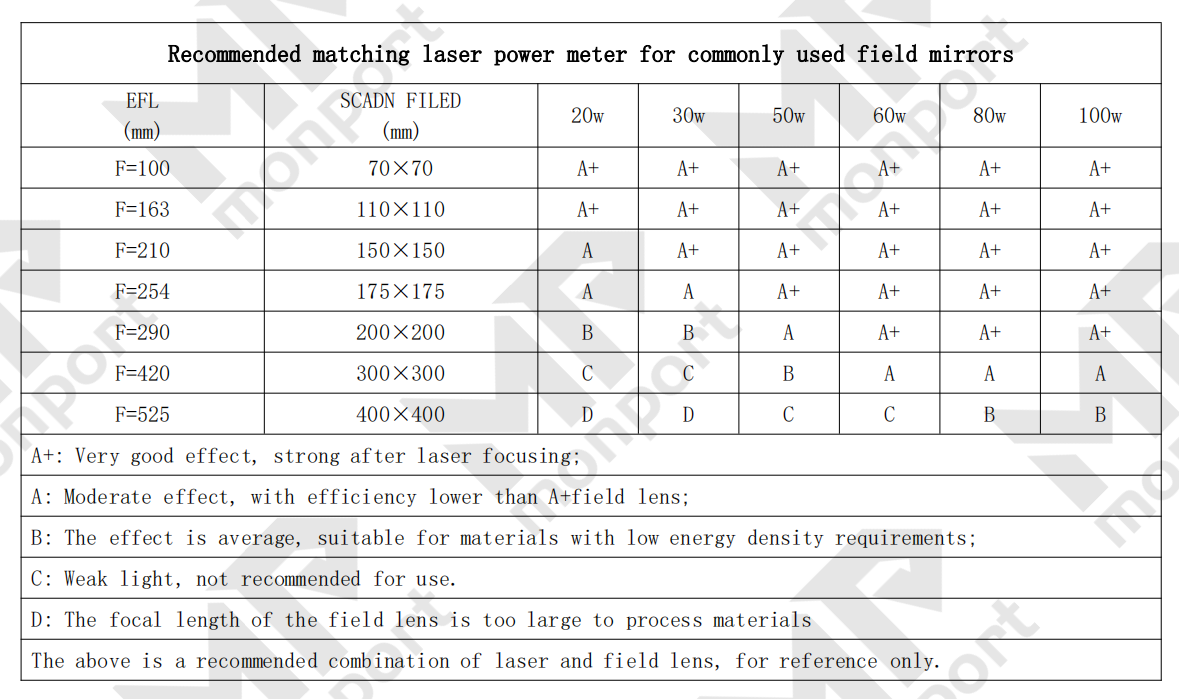

Recommended Matching Field Mirrors
