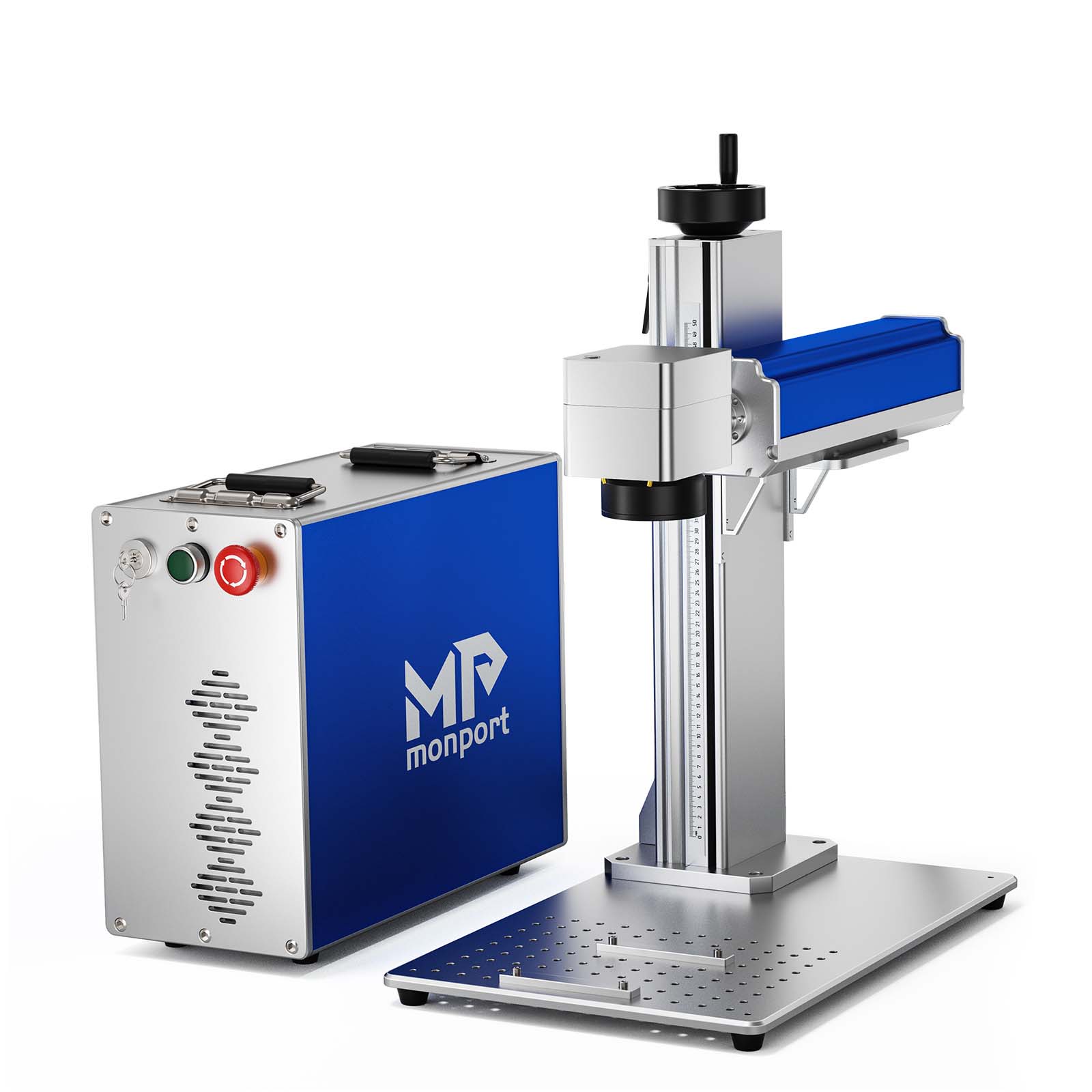

Monport GQ 20W (4.3" x 4.3") Fiber Laser Engraver & Marking Machine with FDA Approval
Monport GQ 20W (4.3" x 4.3") Fiber Laser Engraver & Marking Machine with FDA Approval
In stock
- Working Dimension: 6'' X 6'' (152 mm X 152 mm )
- Package Dimension: 31.1'' x 29.5'' x 14.5'' ( 79 cm x 75 cm x 37 cm )
- Package Weight: 106 lbs ( 48 kg )
Laser System
- Rated at 20 watt
- Maximum marking speed of 7000 mm/s
- Laser Wavelength: 1064 nm
Couldn't load pickup availability
Dimension & Specifications
Dimension & Specifications
Working Area : 4.3'' x 4.3''

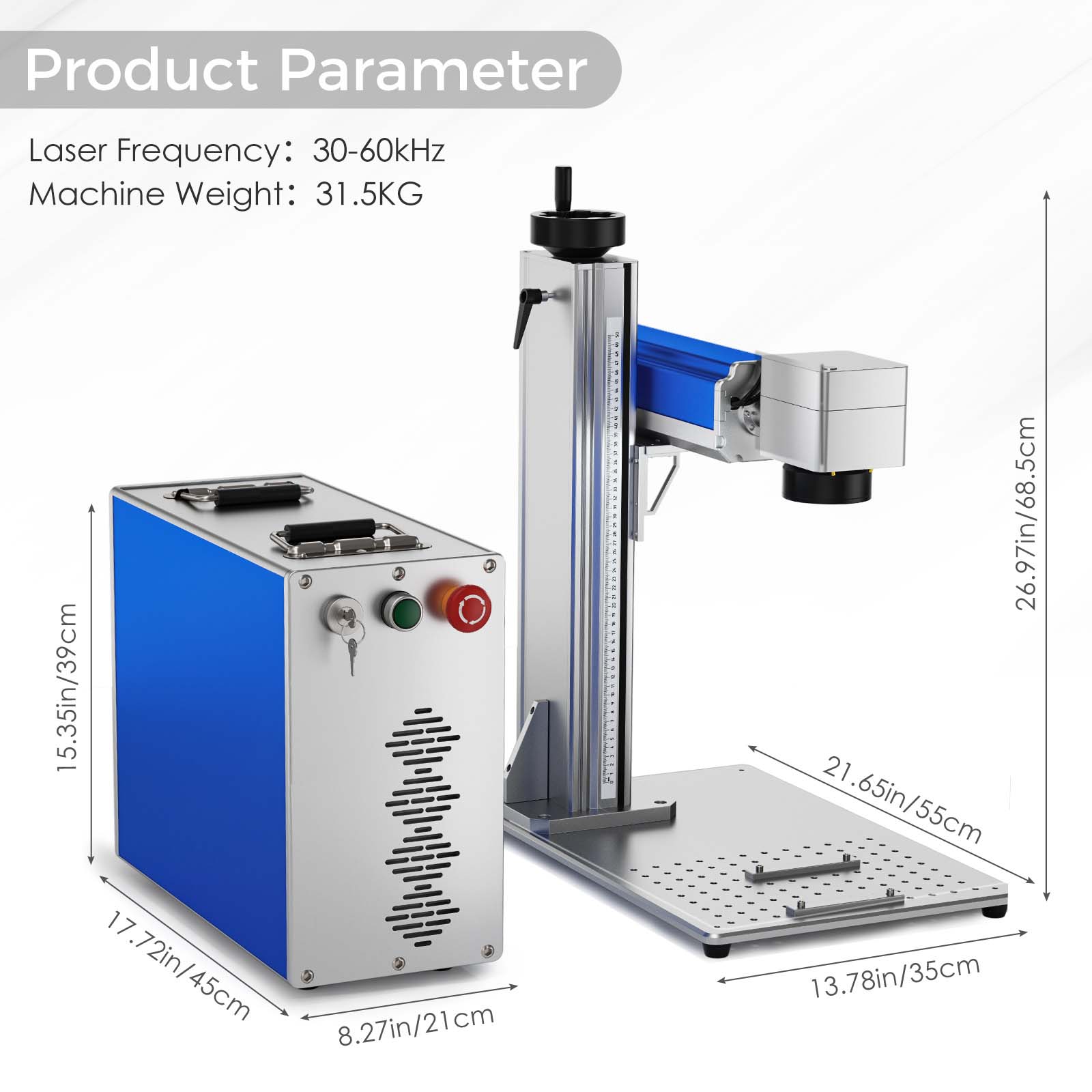

Machine Dimension: 8.2'' x 17.7'' x 15.3'' ( 21cm x 45cm x 39cm )
Main Tower Dimension: 13.7'' x 21.6'' x 26,9'' ( 35cm x 55cm x 68.5cm )
Field Lens Dimension: 110mm x 110mm
Fiber Lens Model: M52(55-68MM)
Package Size: 31.1'' x 29.5'' x 14.5'' ( 79 cm x 75 cm x 37 cm )
Product Weight: 69.4 lbs ( 31.5 kg )
Monport Features & Benefits
Monport Features & Benefits

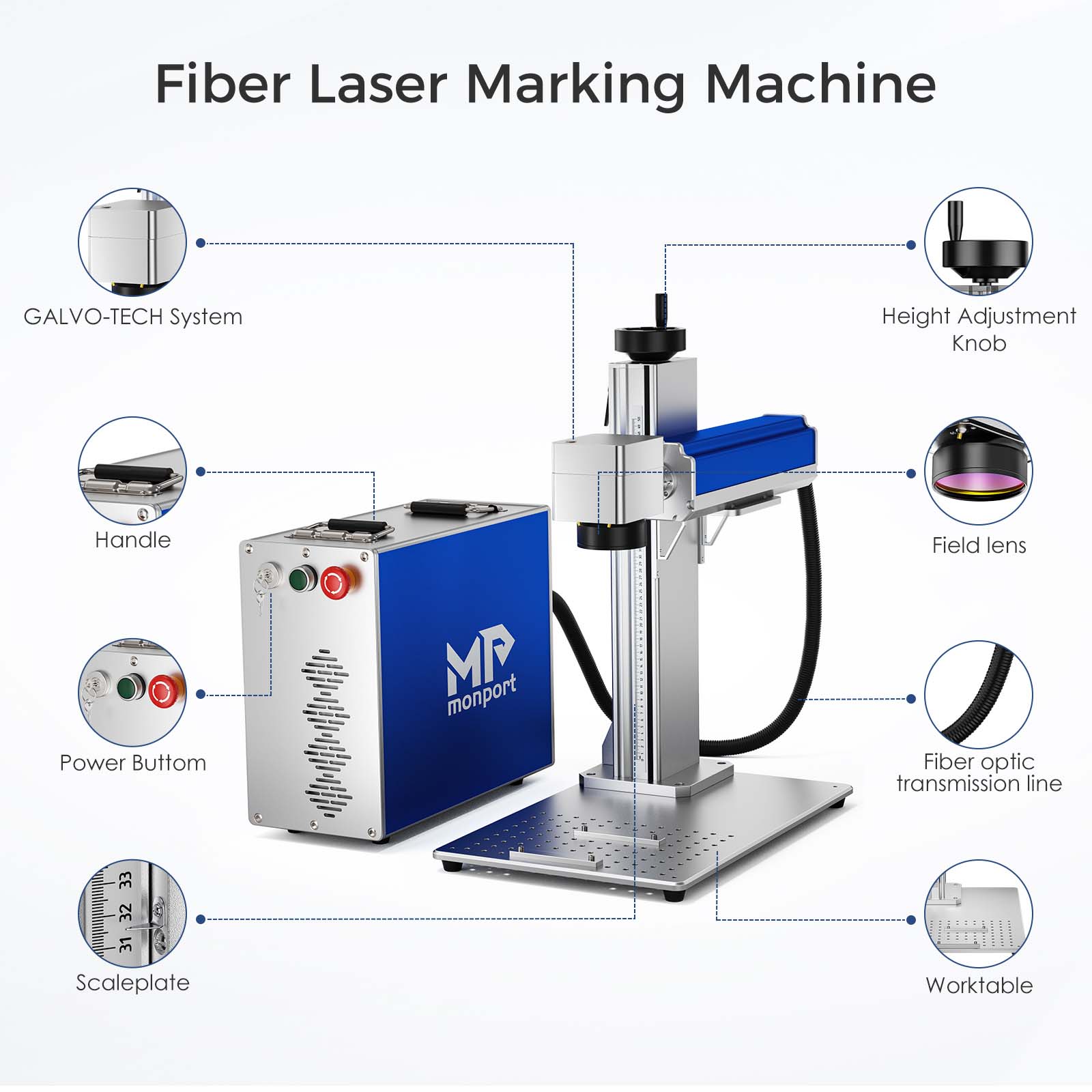

Galvo-Tech Control
Discover unmatched speed and precision with our Sino-Galvo laser technology. This advanced system delivers laser beams with extraordinary accuracy and speed, enabling quick scanning, engraving, and seamless project completion. It outperforms standard CO2 lasers.
The Fiber Laser Source
The source has an estimated lifetime of up to 100,000 hours, depending on power setting usage, which can safely mark most metals, such as stainless steel, gold, silver, and brass.
Enhanced Workspace
Our laser machine features an advanced built-in workspace equipped with a grid and removable positioning bars for precise material placement and flawless engraving results. Additionally, an optional rotary axis (not included) allows for effortless marking of curved surfaces like tubes, bottles, and pipes.
Portable Design
Tailored to accommodate a variety of accessory sizes, our 20w fiber laser machine is highly versatile. Its compact design makes it suitable for both desk placement and studio use, offering convenient usage in various settings.
Additional Laser Guidance

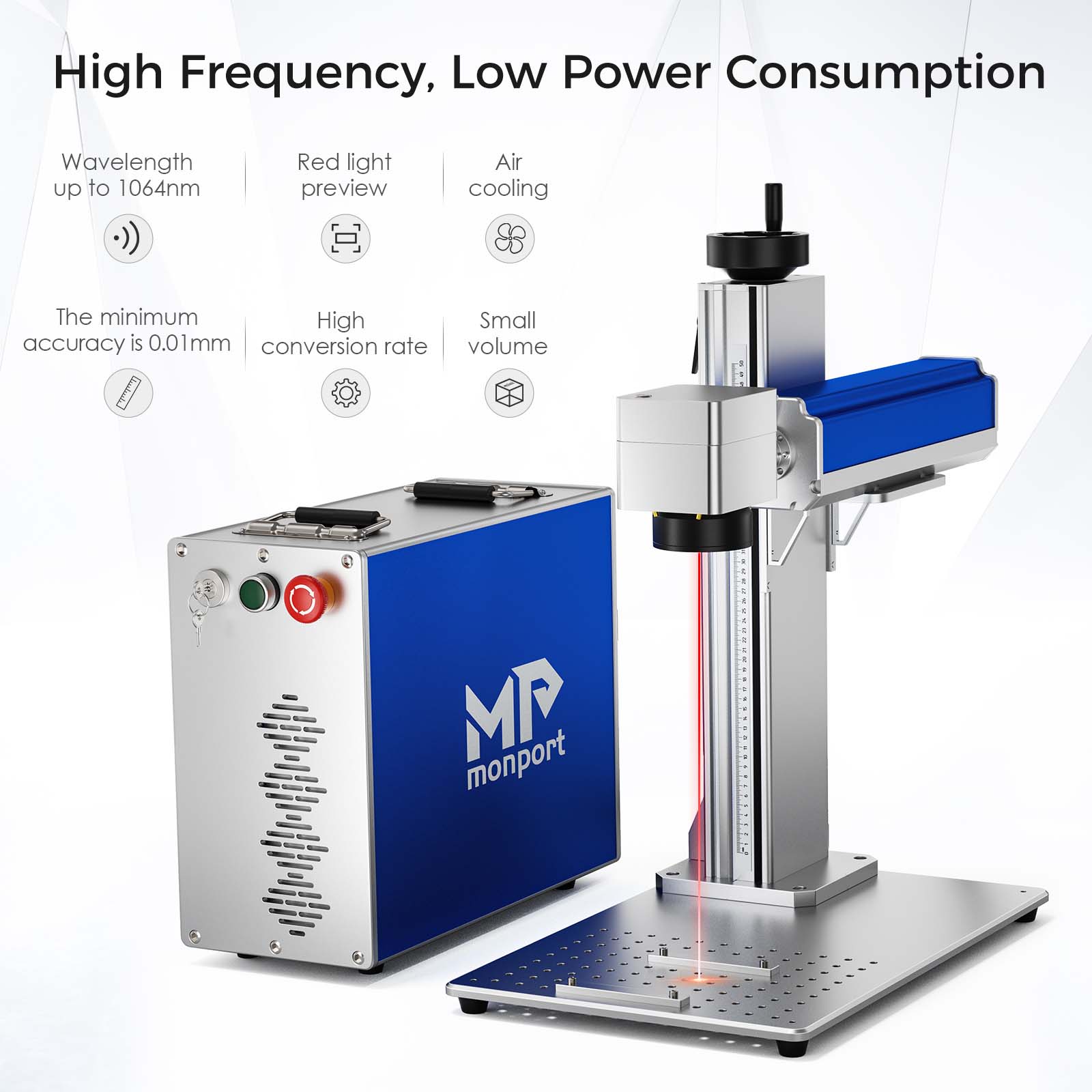

Optimize laser focus setup with our additional laser guidance feature. The external red dot locator, once aligned, synchronizes with the laser's scanner to provide precise guidance for laser placement.
Manual Focus
Our 20w fiber laser machine includes manual focus capability for precise adjustments on different materials such as gold, silver, brass, and stainless steel. Simply rotate the focus-height wheel to adapt to the chosen material. For more accurate focus height measurements, the vertical support tower is equipped with a ruler for convenience.
Monport 20W Specification
Monport 20W Specification
Compatibility

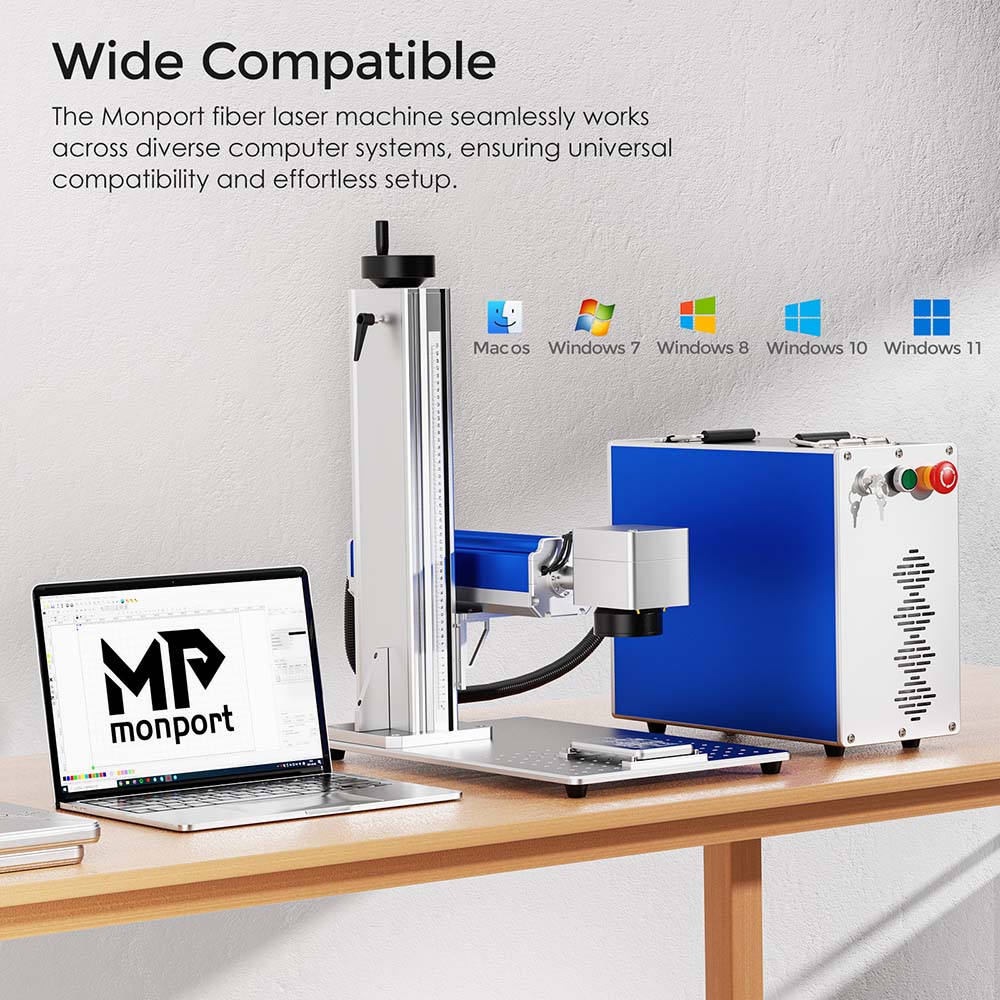

Includes EzCad2 software compatible with Windows XP/7/8/10/11 (32 and 64 bits)，MacOS
Compatible with Lightburn, AutoCAD, CorelDraw and more
Supported image formats:BMP, GIF, JPG, DXF, PNG and others
Laser System
Rated at 20 watt
Maximum marking speed of 7000 mm/s
Laser Wavelength: 1064 nm
Warranty & Certifications
Warranty & Certifications

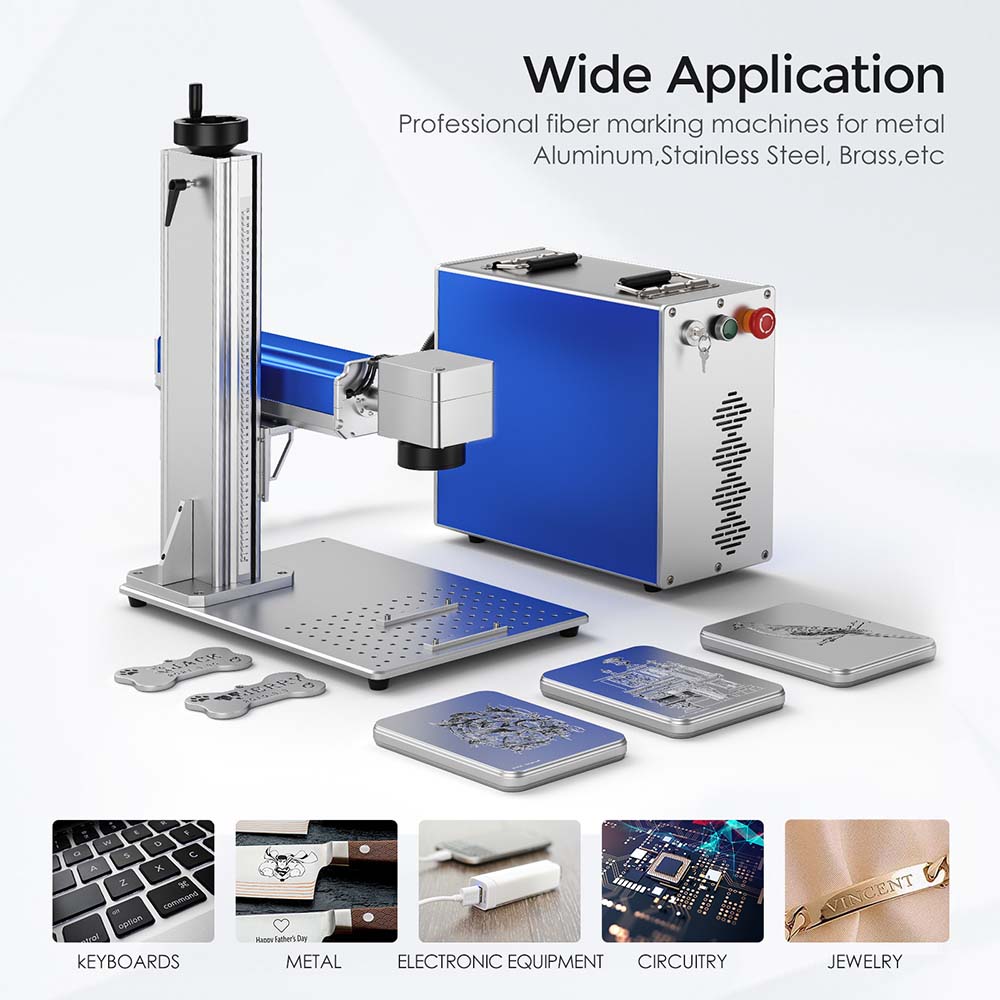

Metals: Stainless Steel, Aluminum, Common Alloys, anodized aluminum, Brass, Chromium, Gold&Silver, Titanium
Non-Metals: Slate, Hard Plastics, Artificial Leather, Colored Acrylic
Package Contents
Package Contents
20 Watt Fiber Laser Marker Machine *1
Power Cable *1
Foot Pedal *1
Laser Safety Glasses *1
USB Flash Drive *1
Clips *2
Bolts *4
Instruction Manual *1
Warranty & Certifications
Warranty & Certifications
2-year warranty on every fiber laser machine
FDA Approved & CE Certified
About More
About More
Download the User Manual: 20W Fiber User Manual
Download the Software: EzCad2
Download the Software Manual: EzCad2 Description
We offer compatible accessories: Fiber Laser Rotary
| Manchine Model | Monport 20W | Monport 30W | Monport 50W |
|---|---|---|---|
| Working Area | 4.3"x 4.3" | 5.9''x5.9'' | 7.9''x7.9'' |
| Field Lens Dimension | 110mm x 110mm | 150mm x 150mm | 200mm x 200mm |
| Output Power | 20W | 30W | 50W |
| Compatible Operating Systems | MacOS,Windows XP/7/8/10/11 | MacOS,Windows XP/7/8/10/11 | MacOS,Windows XP/7/8/10/11 |
| Laser Source | 20qs | 30qs | 50qb |
| Provided Operating Software | EzCad2 | EzCad2 | EzCad2 |
| Laser Wavelength | 1064 nm | 1064 nm | 1064 nm |
| Expected Service Life (MTTF) | 100,000 hr | 100,000 hr | 100,000 hr |
| Max. Marking Speed | 275.6 ips (7000 mm/s) | 275.6 ips (7000 mm/s) | 275.6 ips (7000 mm/s) |
| Machine Dimension | 13.7" x 21.6" x 26.9" | 13.7" x 21.6" x 26.9" | 13.7" x 21.6" x 26.9" |
| Main Tower Dimension | 8.2" x 17.7" x 15.3" | 8.2" x 17.7" x 15.3" | 8.2" x 17.7" x 15.3" |
| Product Weight | 69.4 lbs ( 31.5 kg ) | 69.4 lbs ( 31.5 kg ) | 73.8lbs ( 33.5 kg ) |
| Material Capability | Metals: Stainless Steel, Aluminum, Common Alloys, anodized aluminum, Brass, Chromium, Gold&Silver, Titanium | Metals: Stainless Steel, Aluminum, Common Alloys, anodized aluminum, Brass, Chromium, Gold&Silver, Titanium | Metals: Stainless Steel, Aluminum, Common Alloys, anodized aluminum, Brass, Chromium, Gold&Silver, Titanium |
