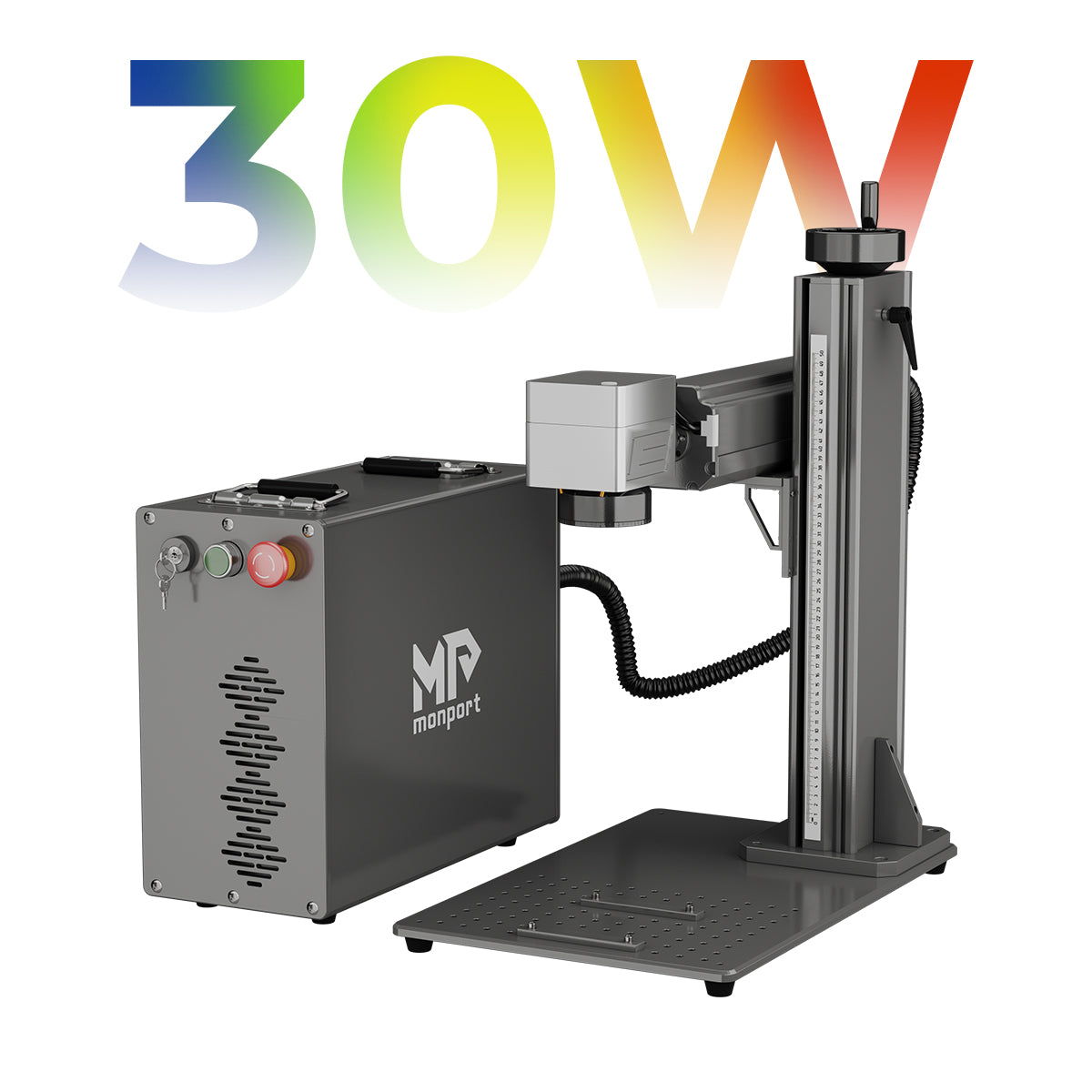

Monport GPro 30W Split MOPA Fiber Laser Engraver & Marking Machine With Manual Focus
Monport GPro 30W Split MOPA Fiber Laser Engraver & Marking Machine With Manual Focus
In stock
Couldn't load pickup availability
Dimension & Specifications
Dimension & Specifications
Laser Power: 30W
Machine Dimension: 35cm x 55cm x 69.5cm
Package Dimension: 48cm x 76cm x 80cm
Working Area: 6.9"x 6.9"
Wavelength: 1060-1080 nm
Marking Speed: 10000mm/s （Up to 15000mm/s）
Expected Service Life (MTTF): 100,000 hr.
GPro30 MOPA Fiber Features
GPro30 MOPA Fiber Features

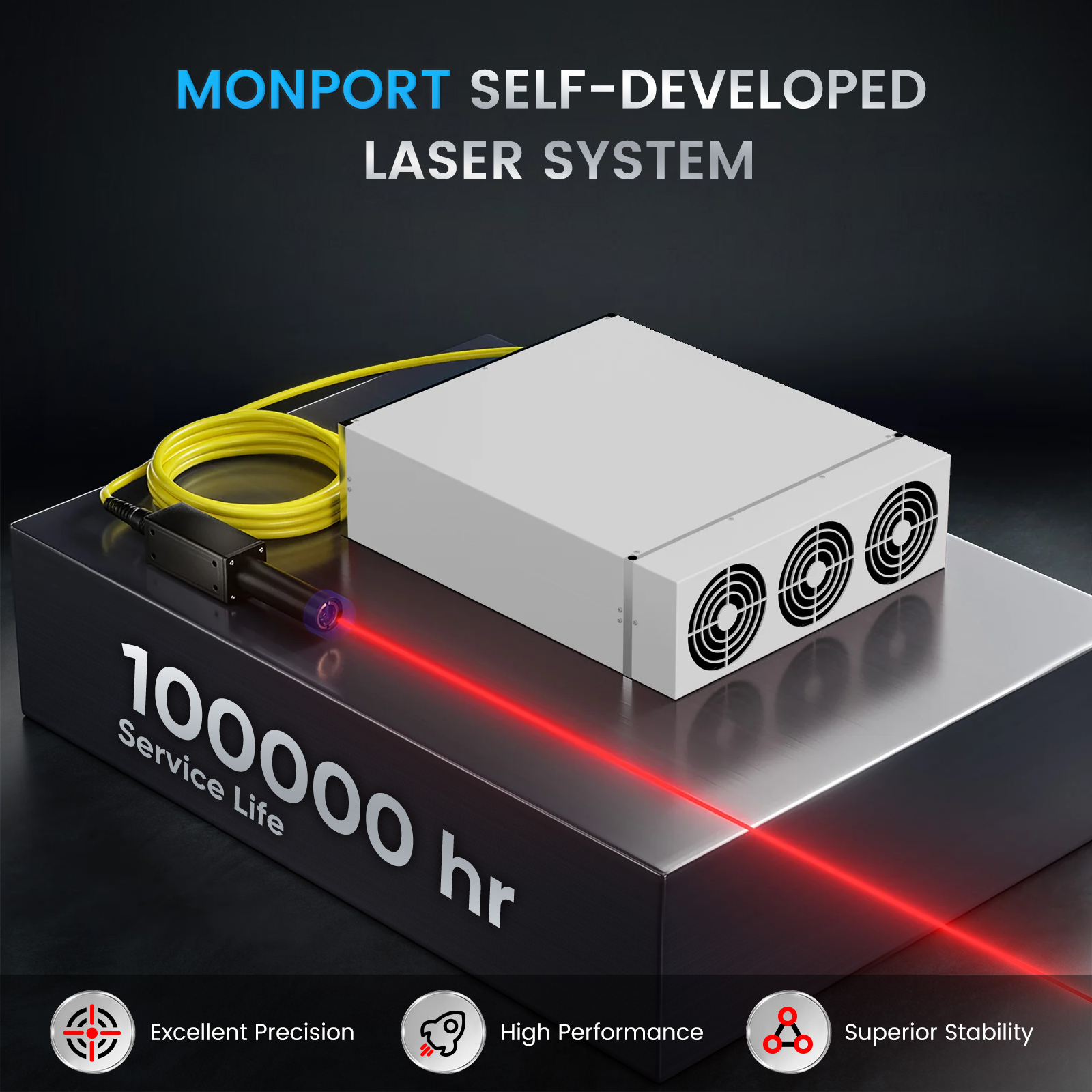

Powerful Laser Core & High-Performance Marking Controller

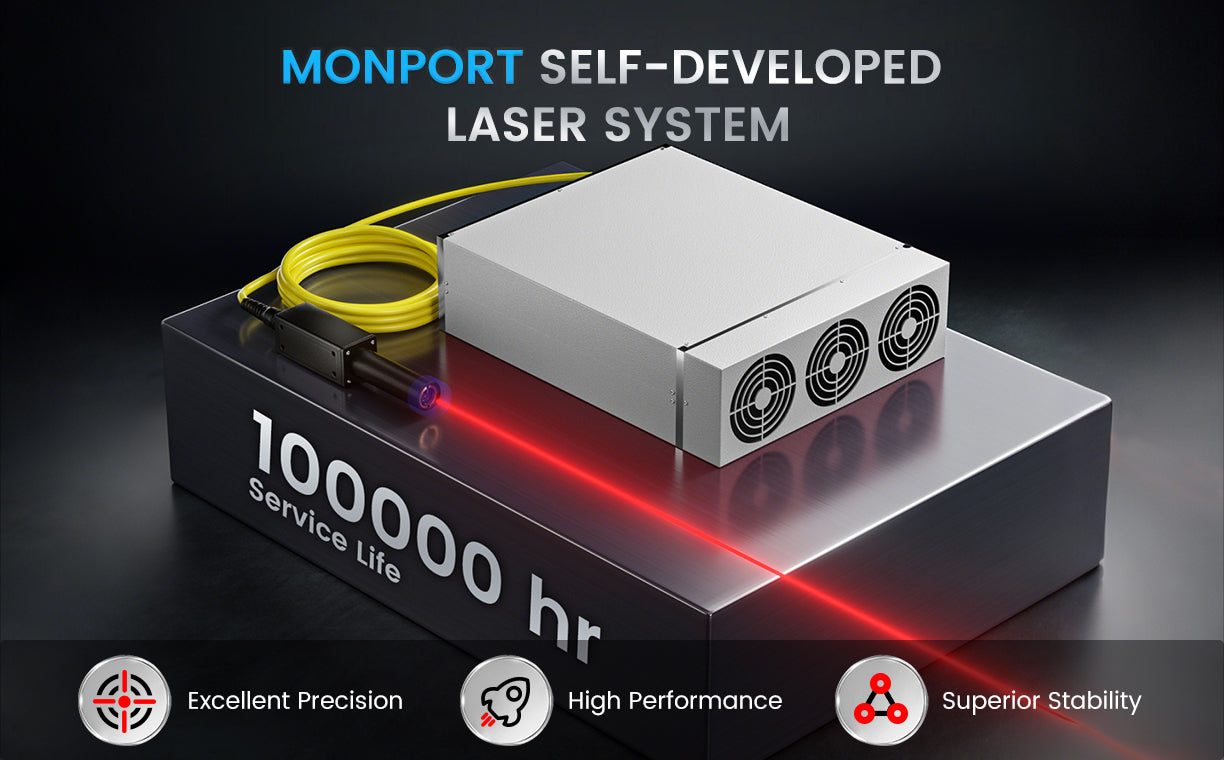

Monport's 30W fiber laser marking machine, equipped with the marking controller, ensures powerful performance and precision, removing limitations on your creativity and processing capabilities.
Versatile Laser Marking Capabilities
Our fiber laser engraver, with adjustable frequency (1-3000kHz) and pulse width (2-500ns), enables vibrant stainless steel markings, anodized aluminum black engraving, precise cutting, drilling, and intricate designs on plastic buttons. Experience rich and precise visual effects with ease.
Premium Galvanometer
A superior fiber laser demands a top-notch galvanometer. Monport opts for the high-end Sino-Galvo RC1001 galvanometer for exceptional stability, precise positioning, rapid marking speed, and robust anti-interference capabilities. The overall performance surpasses other brands by 100%.
Easy Focus with Precision

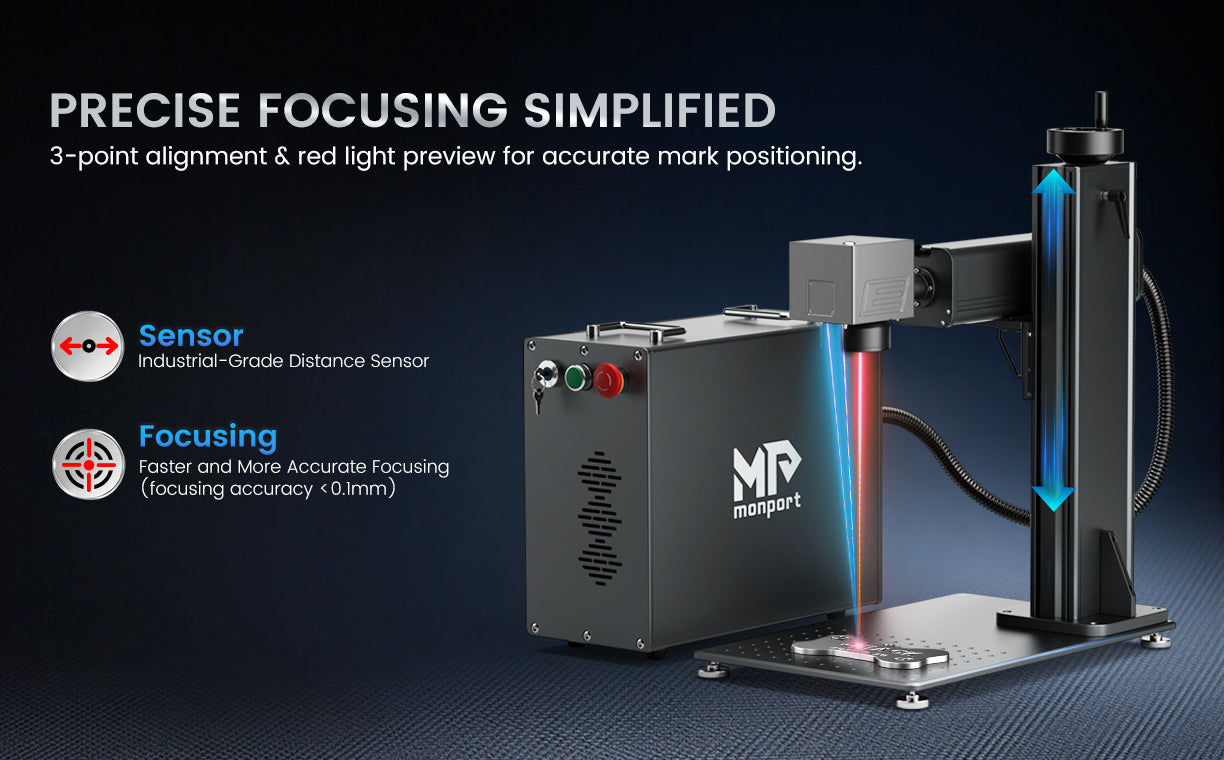

Our laser engraver machine features three-point red light alignment for easy focusing and allows for red light preview. Preview the marking area through the red light, swiftly confirming your marking positions with precision.
Enhanced Security Features
We've adopted the access key to prevent any unauthorized laser use, while the large E-stop button is readily available for emergencies, ensuring high levels of safety.
Versatile Operating Software
Monport's fiber laser marker is compatible with Lightburn or BslAppSimple for seamless operation, catering to both Windows and Mac systems. Note that LightBurn is exclusively available for use on Mac systems.
Package List
Package List
Fiber marking machine*1
Marking test cards*10
Pedal*1
U disk*1
Wrench*1
Steel ruler*1
Positioning bar*2
Screw*4
Power line*1
Ground wire*1
Protective glasses*1
USB to Type-C connector*1
Instruction*1
Warranty & Certifications
Warranty & Certifications
- 2-year warranty on all fiber laser machines and parts
- 1-year warranty on fiber laser source
About Delivery
About Delivery
You will get the tracking number within 2 business days.
The delivery time varies from 1 to 2 week.
If the arrived outer package is damaged, please refuse to sign for it and take a photo, then contact Monport via support@monportlaser.ca.
We are very glad to help you with the exchange process.
User Manual
User Manual
Download the User Manual Here
Monport's 30W fiber laser marking machine, equipped with the marking controller, ensures powerful performance and precision, removing limitations on your creativity and processing capabilities.
A superior fiber laser demands a top-notch galvanometer. Monport opts for the high-end Sino-Galvo RC1001 galvanometer for exceptional stability, precise positioning, rapid marking speed, and robust anti-interference capabilities. The overall performance surpasses other brands by 100%.

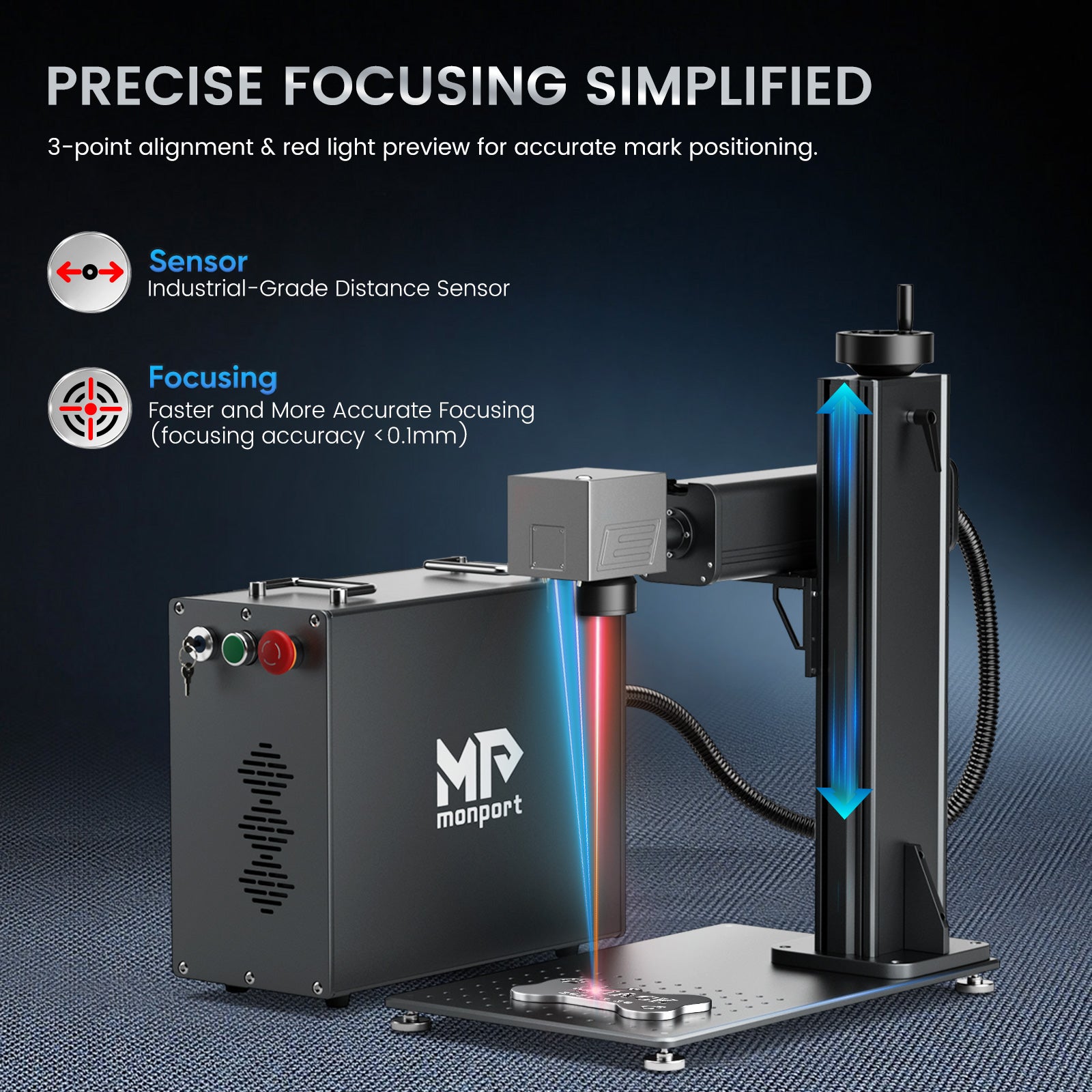

Monport GPro MOPA Fiber laser machine features three-point red light alignment for easy focusing and allows for red light preview. Preview the marking area through the red light, swiftly confirming your marking positions with precision.

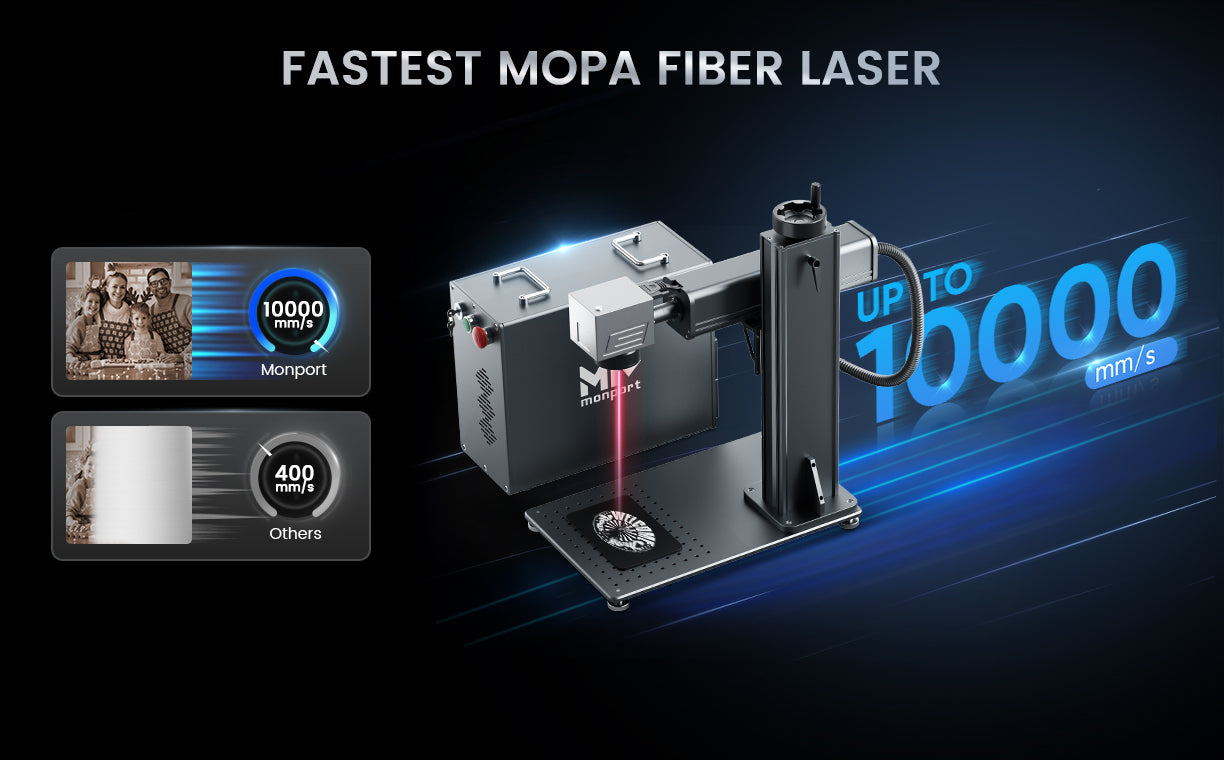

Boasting an unparalleled marking speed up to 10000mm/s, Monport GPro MOPA Fiber Laser is designed to cater to the most demanding industrial and creative applications, ensuring that your projects are not only completed with precision but also with an efficiency that sets new industry standards.
Monport GPro MOPA Fiber Laser, with adjustable frequency (1-3000kHz) and pulse width (2-500ns), enables vibrant stainless steel markings, anodized aluminum black engraving, precise cutting, drilling, and intricate designs on plastic buttons. Experience rich and precise visual effects with ease.
Experience the pinnacle of engraving accuracy with the Monport GPro MOPA Fiber Laser, featuring sub-micron high-precision technology. Designed for professionals who demand nothing but the best, the state-of-the-art GPro MOPA fiber laser redefines precision, allowing you to create intricate designs and detailed colorful markings with unparalleled clarity.
| Product | GM20 Pro | GM30 Pro | GM50 Pro | GM30 Pro MOPA | GM60 Pro MOPA | |
|---|---|---|---|---|---|---|
| Rated Power | 20W | 30W | 50W | 30W | 60W | |
| Processing Area | 4.3 x 4.3 in. (110x110mm) | 5.9 x 5.9 in. (150x150mm) | 5.9 x 5.9 in. (150x150mm) | 6.9 x 6.9 in. (175x175mm) | 6.9 x 6.9 in. (175x175mm) | |
| Laser Type | Q-switched fiber laser | MOPA Fiber Laser | ||||
| Color Engraving | NO | YES | ||||
| Max. Marking Speed | 10000mm/s (393.7 ips) | |||||
| Focus mode | Autofucus | |||||
| Electric Lifting | YES | |||||
| Beam Quality M2 | <1.5 | <1.5 | <1.6 | <1.5 | <1.8 | |
| Maximum Pulse Energy | 0.75 mJ | 0.75 mJ | 1.1 mJ | 0.8 mJ | 1.5 mJ | |
| Max. Marking Depth on a Single Pass | 0.002in (0.04mm) | 0.003in (0.08mm) | 0.004in (0.1mm) | 0.003in (0.08mm) | 0.004in (0.1mm) | |
| Expected Service Life | 100,000 hr. | |||||
| Rated voltage | 110V(US),220V(UK,EU) | |||||
| Wavelength | 1064 nm | |||||
| Frequency Range | 29~60kHz | 30~60kHz | 45~170kHz | 1-4000kHz | 1-4000kHz | |
| Pulse Width |
80-120 ns Unadjustable (Fixed pulse width) |
80-120 ns Unadjustable (Fixed pulse width) |
90-110 ns Unadjustable (Fixed pulse width) |
2-500 ns |
2-500 ns |
|
| Beam Diameter | 6-8 mm | 7±1mm | ||||
| Positioning Accuracy | ±0.1 μm | |||||
| Galvanometer Thread size | M68 | |||||
| Field lens dimension | M85 | |||||
| Cooling Type | Air Cooling | |||||
| Supported File | For BSLcad：JPG Files（*.jpg；*.jpeg）,BMP Files（*.bmp）,GIF Files（*.gif）,PNG Files（*.gif）,TIF Files（*.tif；*.tiff）,EMF Files（*.emf）,DXF Files（*.dxf）,AI Files（*.ai）,FPGL Files（*.plt）,Gerber Files（*.cs；*.gbr；etc）,Svg Files;
For LightBurn：,Image files (*.bmp *.jpg *.jpeg *.png *.gif *.tif *.tiff *.tga *.webp),Vector files (*.ai *.pdf *.sc *.dxf *.gc *.gcode *.nc *.hpgl *.plt *.svg *.lbrn *.lbrn2 *.mage) |
|||||
| Materials Suitable for Engraving | Brass，Hard Plastic，Titanium，Brick，Marble，Gold，Carbide，Silver，Tungsten，Granite，Steel，etc | |||||
| Data Transmission | USB Cable | |||||
| Compatible Operating Systems | Windows / macOS | |||||
| Provided Operating Software | BslAppSimple，Lightburn | |||||
| Warranty | 2-year(1 year for laser source) | |||||
| Product | GPro 30 | GPro 60 | GPro 80 | GPro 100 | |
| Model | JL-F30W | JL-F60W | JL-F80W | JL-F100W | |
| Rated Power | 30W | 60W | 80W | 100W | |
|
Max. Marking Depth on a Single Pass |
0.003in. (0.08mm) |
0.004in. (0.1mm) |
0.005in. (0.13mm) |
0.006in. (0.15mm) |
|
| Beam Quality M2 | ＜1.35 | ＜1.8 | |||
| Maximum Pulse Energy | 0.8 | 1.5 | |||
| Required Operating Environment |
Max. Humidity | <70% | |||
| Temp. Range | 40–95°F(5–35°C) | ||||
| Input Power | 110-120V 60Hz | ||||
| Expected Service Life | 100,000 hr. | ||||
| Central Wavelength | 1060-1080 nm | ||||
| Laser Frequency | 1-3000 kHz | ||||
| Pulse Width | 2-500 ns | ||||
| Beam Diameter | 7±1 mm | ||||
| Processing Area | 6.9×6.9 in.(175×175 mm) | ||||
| Max. Marking Speed | 393.7 ips(10000 mm/s) | ||||
| Min. Marking Depth | 0.0002 in.(0.005 mm) | ||||
| Min. Line Width | 0.006 in.(0.15 mm) | ||||
| Precision | ±0.1 µm | ||||
| Provided Operating Software | LightBurn or BslAppSimple | ||||

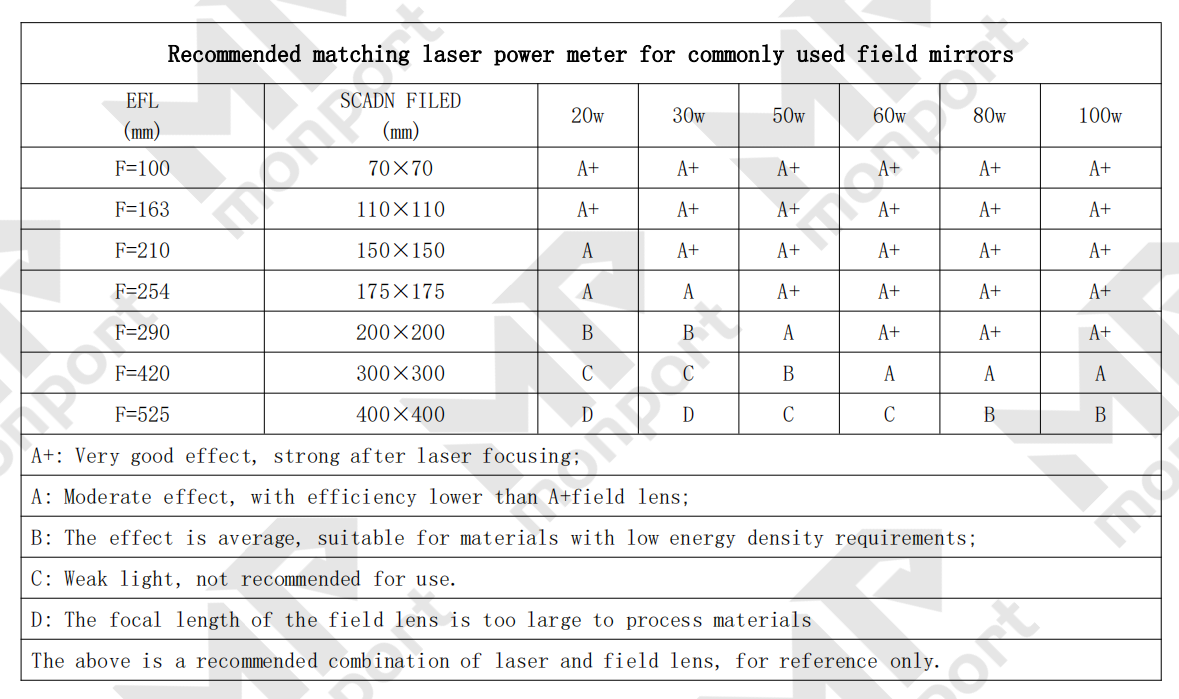

Recommended Matching Field Mirrors
